Grand Hotel - West Wing Addition

1998 - 1999

Design Architect: SmithGroup

Structural Engineer:
Nathaniel M. Stanton SE AIA - Structural Engineer for the West Wing Addition while working at Robert Darvas Associates.


Design:
The design for the West Wing of the Grand Hotel was an interesting structural challenge as we were adding two additional floors to the hotel on top of an existing four story wood structure.  For this project, a steel table top structure was inserted into the existing wood bearing walls down to new foundations in the crawl space.  The table top structure was devised in two phases.  The first phase involved the erection of the new roof structure on new steel columns to create a weather canopy for the renovation of the existing roof.  The second phase created a new floor structure at the elevation of the existing roof after demolition.  The new roof and floor structures then became an integrated story high steel truss which distributed the new floor and roof loads to the new columns.


 Read more

Status: Built
Location: Mackinac Island, Michigan

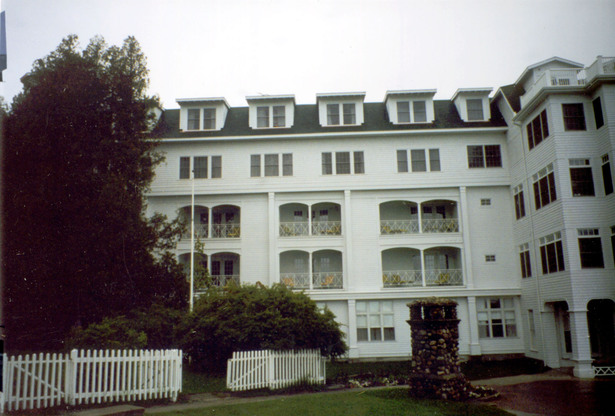

Grand Hotel - West Wing Addition (Image: N. Stanton)
Grand Hotel - West Wing Addition (Image: N. Stanton)

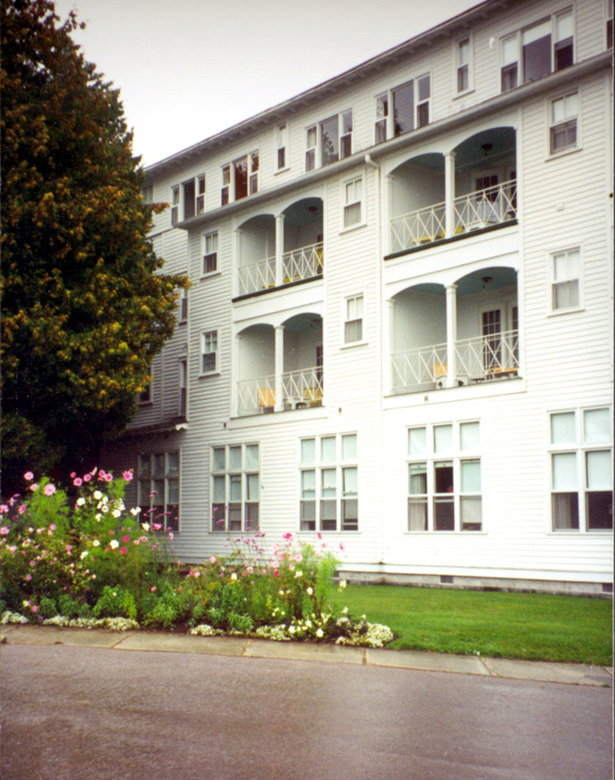

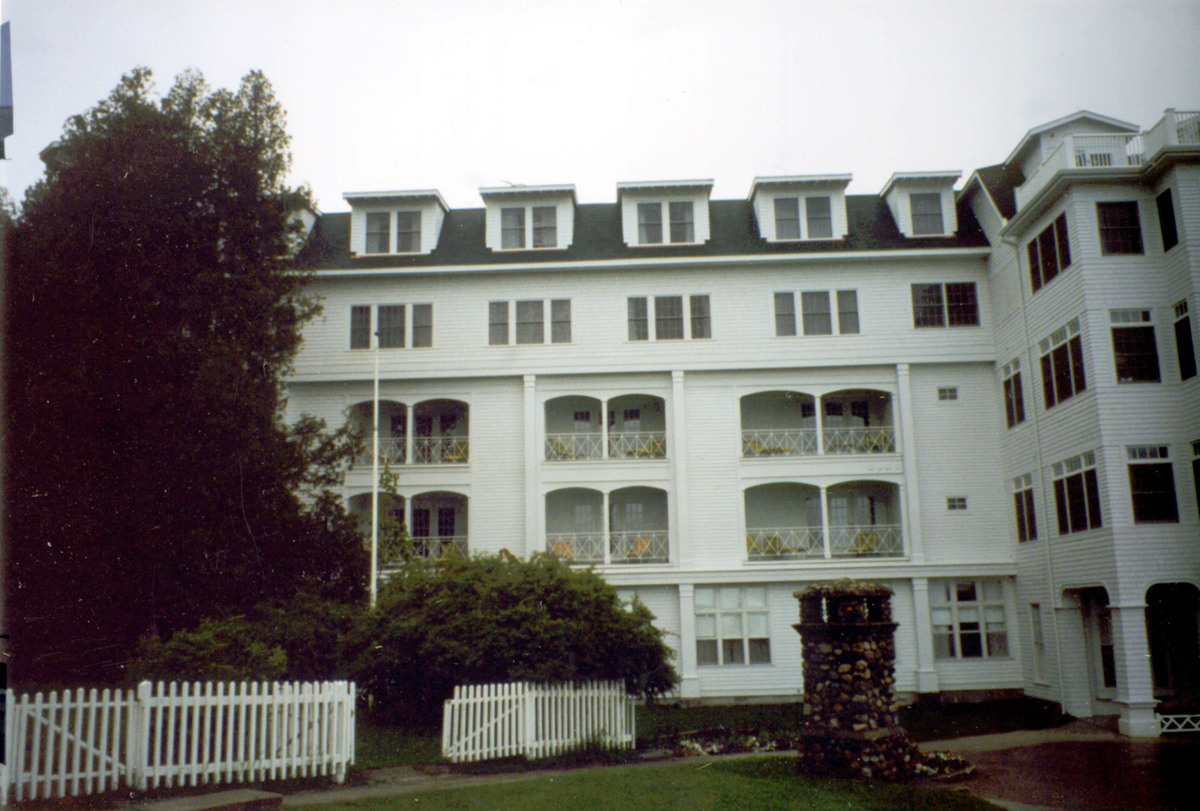

Grand Hotel - West Wing Addition Before (Image: Smithgroup)
Grand Hotel - West Wing Addition Before (Image: Smithgroup)

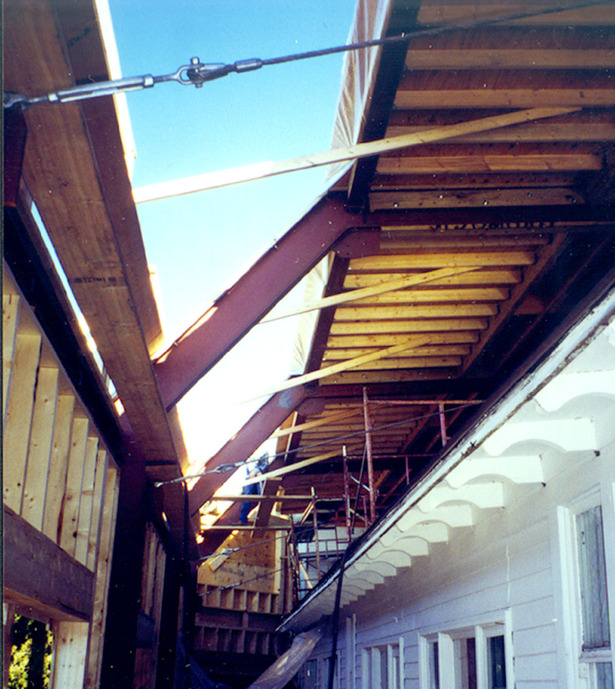

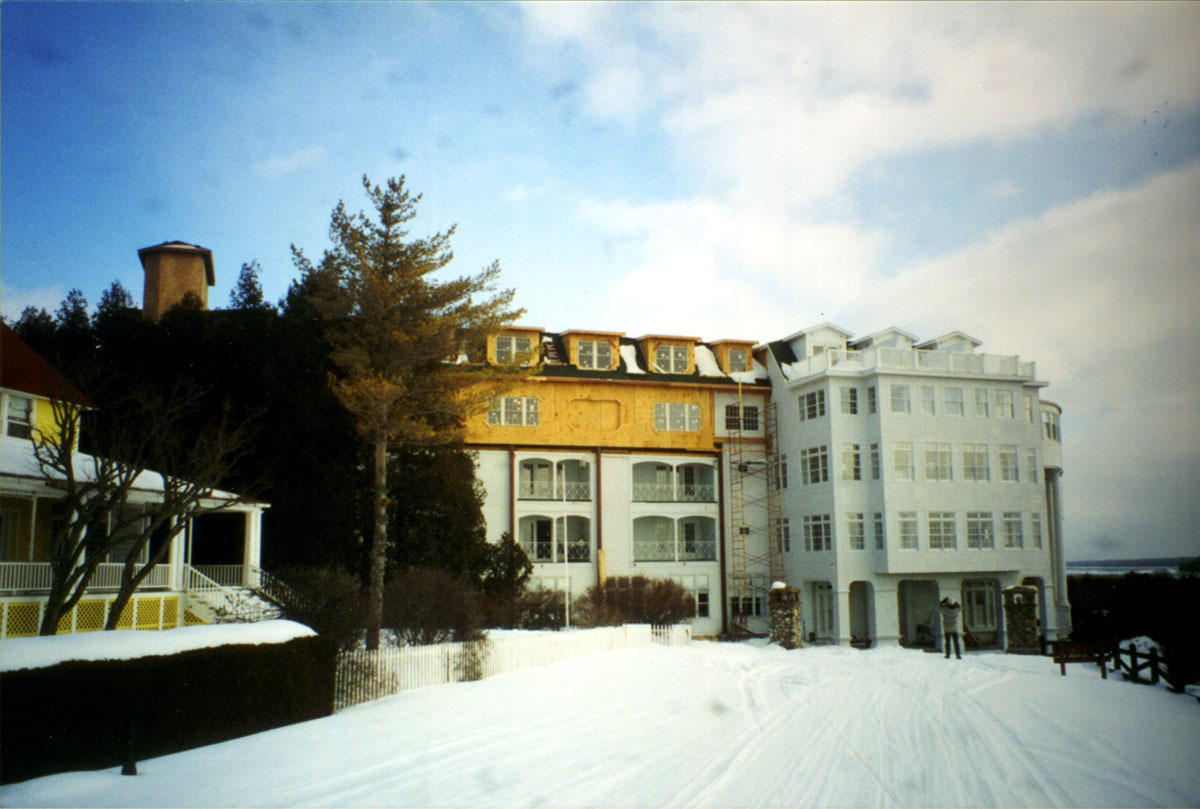

Grand Hotel - West Wing Addition Construction Phase 1 (Image: N. Stanton)
Grand Hotel - West Wing Addition Construction Phase 1 (Image: N. Stanton)

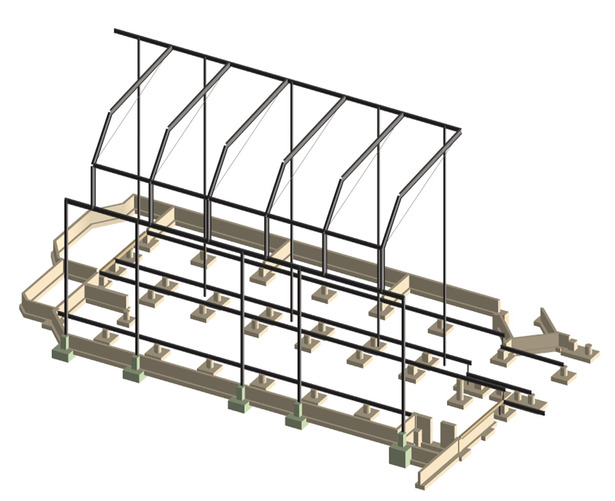

Grand Hotel - West Wing Addition Structural Model (Image: N. Stanton)
Grand Hotel - West Wing Addition Structural Model (Image: N. Stanton)

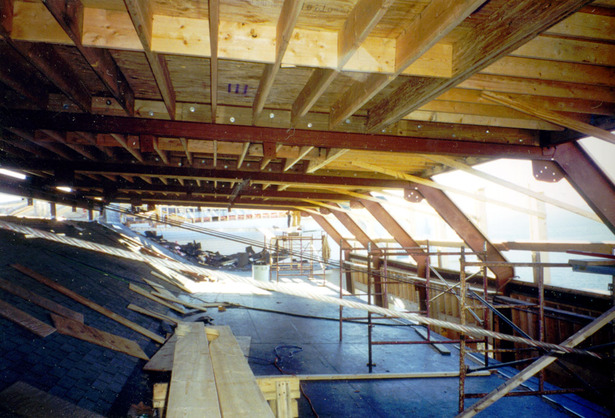

Grand Hotel - West Wing Addition Construction Phase 1 (Image: N. Stanton)
Grand Hotel - West Wing Addition Construction Phase 1 (Image: N. Stanton)

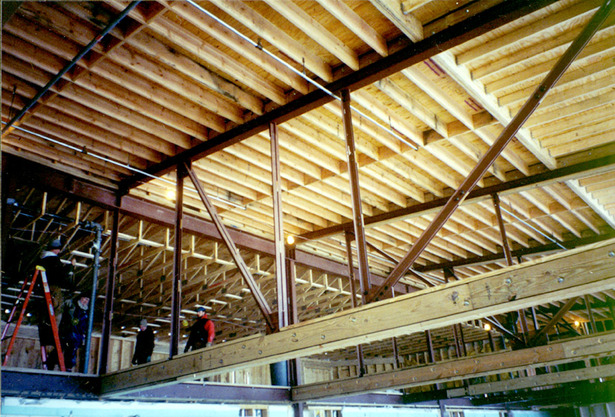

Grand Hotel - West Wing Addition Construction Phase 2 (Image: N. Stanton)
Grand Hotel - West Wing Addition Construction Phase 2 (Image: N. Stanton)
Grand Hotel - West Wing Addition Construction Image (Image: N. Stanton)
Grand Hotel - West Wing Addition Construction Image (Image: N. Stanton)
