J House

2007 -

Design Architect:
 AEDS Ammar Eleouini

Structural Engineer:
Nathaniel M. Stanton SE AIA - Structural Engineer and Designer of the J House while working as the Group Leader of the Special Projects Group at Buro Happold in New York.  Digital Fabrication consulting and Contract Administration by CRAFT | Engineering Studio.


Design:

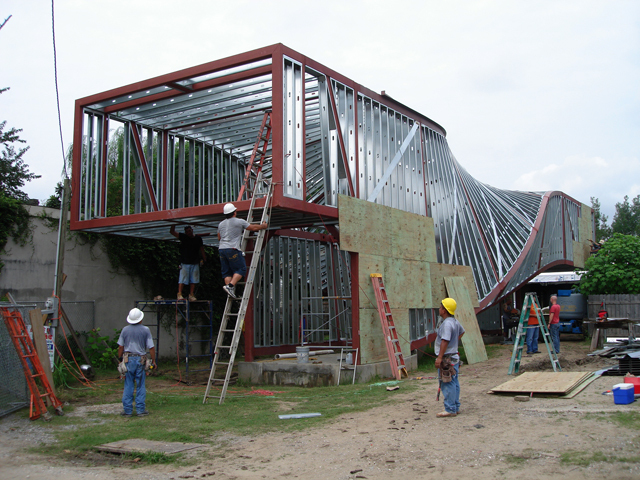

The J House project was a re-examination of the use of steel as an element of structure in a digital process of design and fabrication.  The structure was phased to act as a 3-D Vierendeel frame during construction and then a fully trussed assembly in its final condition.  During construction, 2-D steel frames were set in place at regular intervals and connected with doubly curved twisting rectangular edge members.  The geometry of each edge member was derived by its relationship to the adjacent surfaces and the exterior skin.  These members were modeled, exploded, flattened and then rebuilt out of welded cold formed laser cut plates.  In the final condition, the steel framework was infilled with an innovative assembly of light gage framing and X-bracing that defined the ruled surface and occured along lines of opposing convex curvature in each panel.  The completed structure acts as a 3-dimensional truss bracing the building against hurricane force winds.  The trussed form twists along its length and rests on two points of bearing, allowing a doubly cantilevered condition at each end.  The slit skylight in the roof adds to the complexity and displays the robustness of the completed structure.


 Read more

Status: Under Construction
Location: New Orleans, LA, US


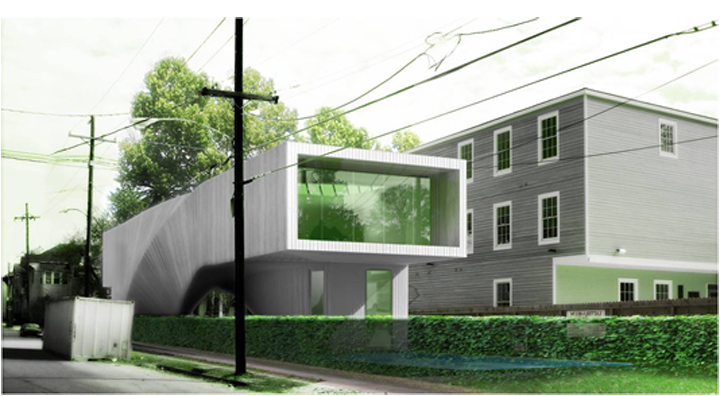

J House - Architectural Rendering

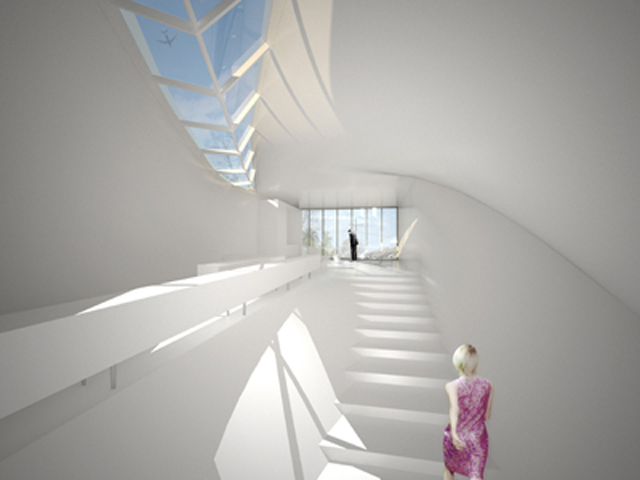

J House - Architectural Rendering

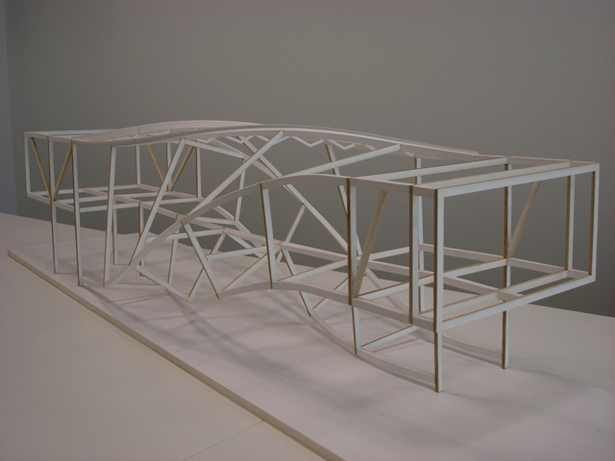

J House - Architectural Model of Structure
J House - Architectural Model of Structure

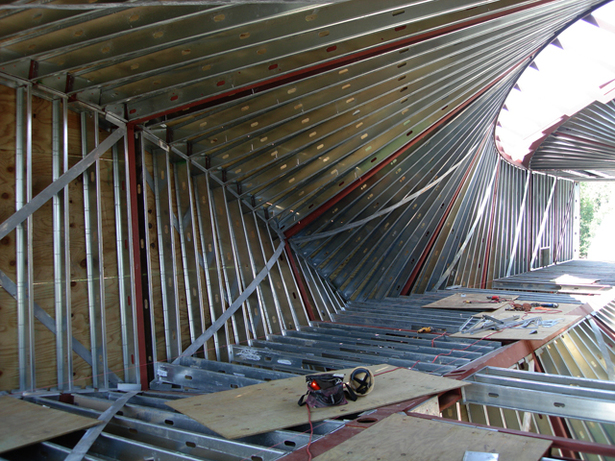

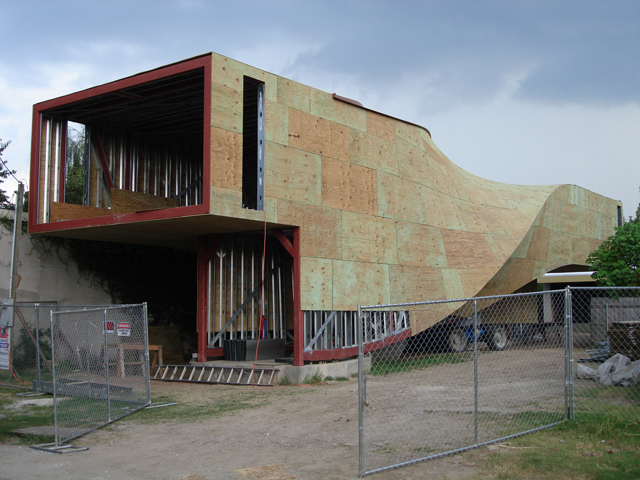

J House - Structure
