Wiki says the gable is 140 ft long. Draw a 140' rectangle in Rhino, insert the photo, match perspective with camera, draw a triangle perpendicular to the rectangle, and drag the vertex up until you hit the ridge line on the photo.

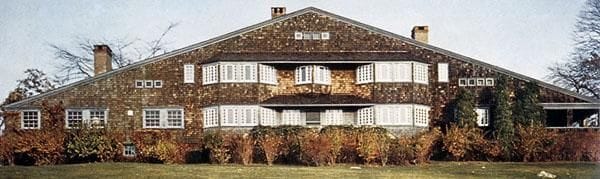

Printing out the above photo and using my junior high trig, I came up with a 18 degree angle up from horizontal at the ends with a 144 degree included angle (72 degrees * 2) at the top and a pitch of 3.7 to 12. If the gable is 140 feet long the maximum height above the gable line calculates to 21 feet, 8 inches exactly.
Dec 18, 19 8:23 am ·
·
Non Sequitur
the lazy student remains lazy
Dec 18, 19 9:03 am ·
·
OddArchitect
But egotistical architects still want to show off skills . . .
Dec 18, 19 9:52 am ·
·
Non Sequitur
junior high-school math is not really a skill worthy of showing off tho.
Dec 18, 19 9:56 am ·
·
Thayer-D
Serves you right for showing off. Hope they have an ice shield.
Dec 18, 19 10:13 am ·
·
OddArchitect
NS - all math is worth showing off - it's majic!
Dec 18, 19 10:17 am ·
·
Non Sequitur
Chad, I guess it is these days... sad.
Dec 18, 19 10:20 am ·
·
OddArchitect
Just the higher math like computational sciences and fluid mechanics. The type of stuff where you can divide by zero and become your own grandfather (or grandmother).
This is a McKim Mead and White house. There have to be historic drawings out there somewhere to work from. Go to your school's library and see what you find in terms of documentation.
Dec 18, 19 10:24 am ·
·
