Master Planning | Indiana Regional Medical Center

Indiana Regional Medical Center  |  Master Planning



Indiana Regional Medical Center  |  Master Planning

  • Participated in a series of three-day on-site Charrettes with C-Level Administrators, Facility Director, Planning Consultants, and Engineers
  • Produced hand-sketched concepts on-site to illustrate priorities, opportunities, and alternates.
  • Produced hard-lines drafted diagrams for test-fits and square foot analysis.
  • Produced AutoCAD Presentations.

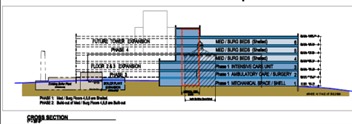

  • Site and Building concepts illustrated:  Block Diagrams, Adjacencies, Circulation, Stacking and Site Cross-Section studies and presentations.


 Read more

Status: Unbuilt
Location: Indiana, PA, US
My Role: Project Manager / Master Planner
Additional Credits: - Hayes Large Architects
- H.F. Lenz + Company (Engineers)

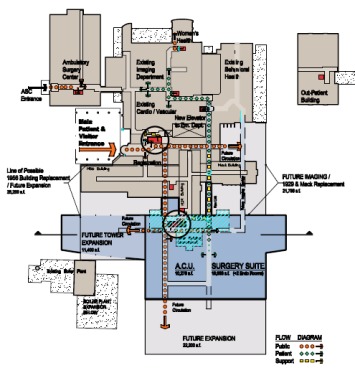

IRMC - Master Plan - Plan Layouts (adjacency and circulation)
