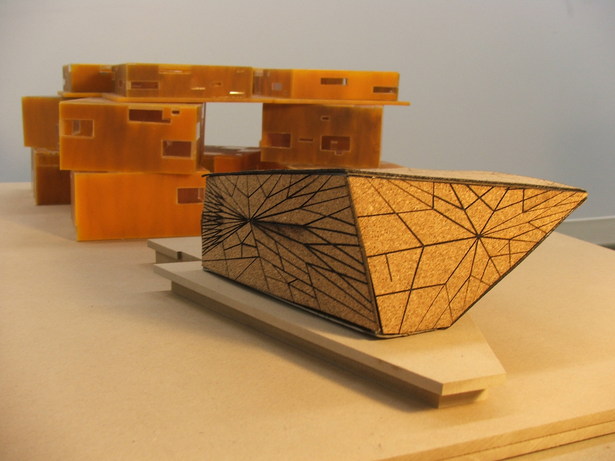

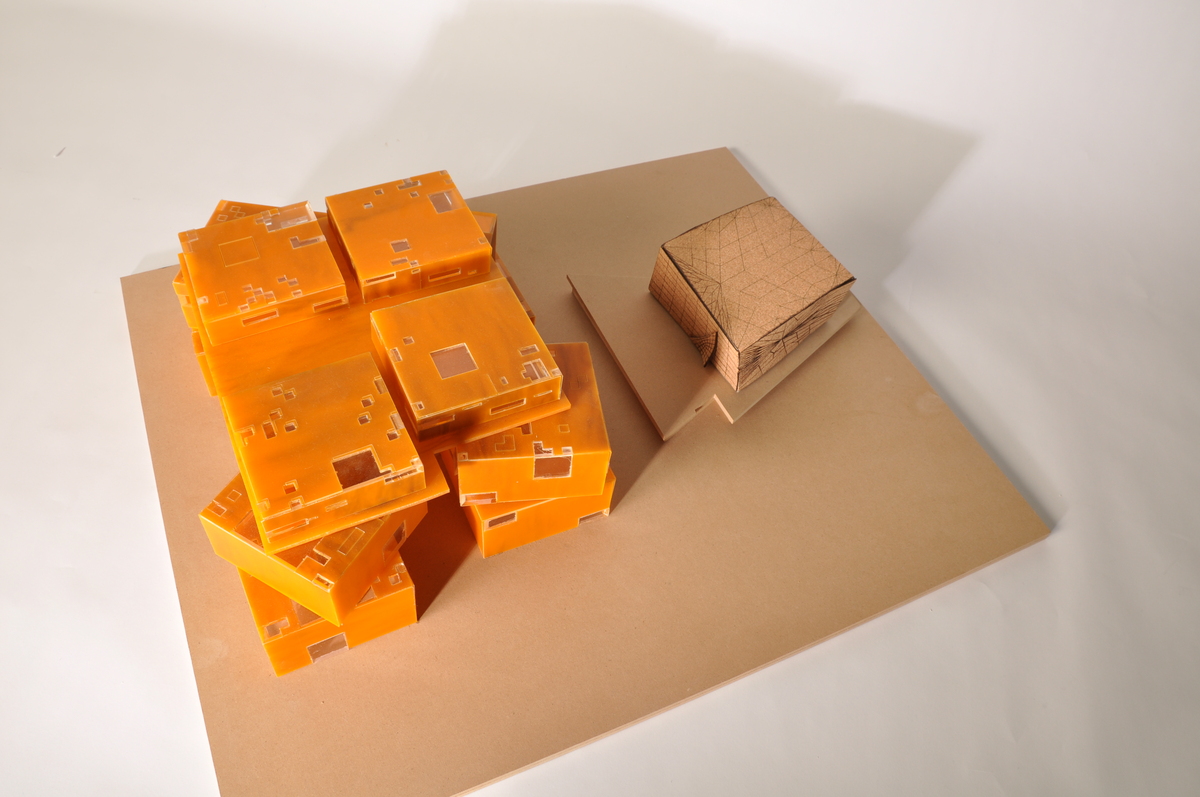

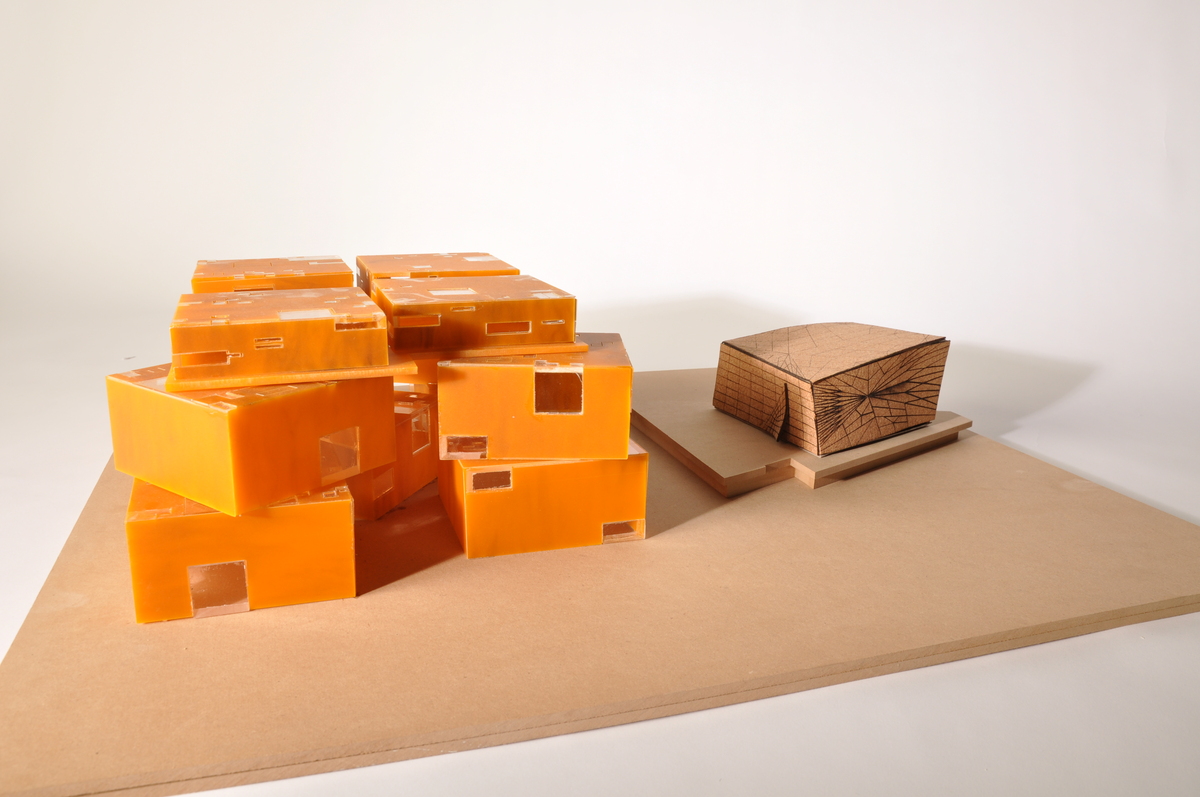

Physical Model
Physical Model
8 more images  ↓

Housing + Sacred Space on Treasure Island

This project was a portable pre-fab housing complex that is lightly stacked on Treasure Island, near the north shore of it.  Also the triangular space at the front of the site was a multi-faith small prayer chapel.

For the first half of the semester the studio worked on analyzing and changing the SOM master plan for Treasure Island.  Then each of us took a different typology of building on the island and developed it further.


 Read more

Status: School Project
Location: San Francisco, CA, US

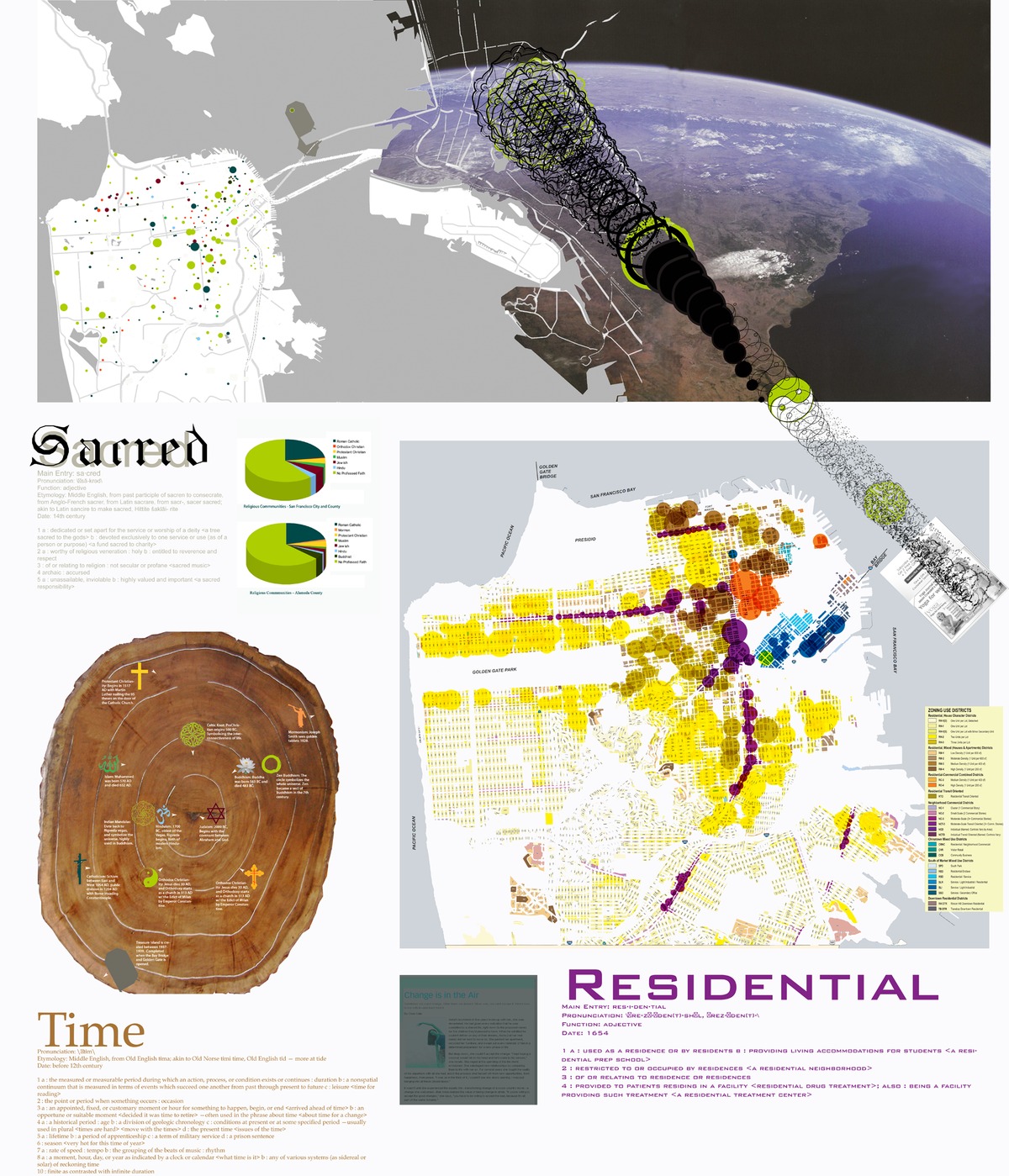

Mapping of Housing + Sacred Spaces
Mapping of Housing + Sacred Spaces

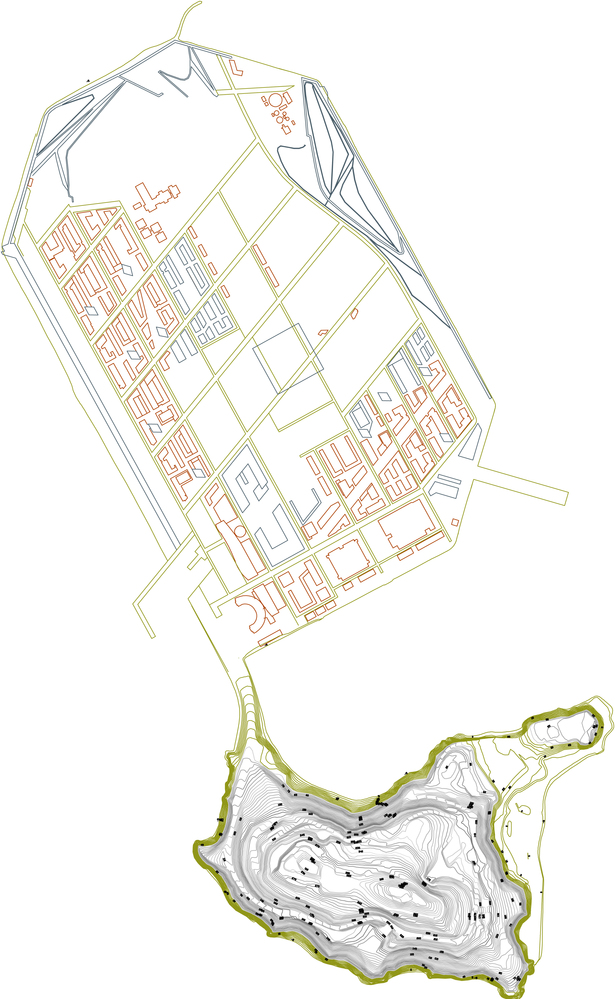

Whole Island Plan
Whole Island Plan

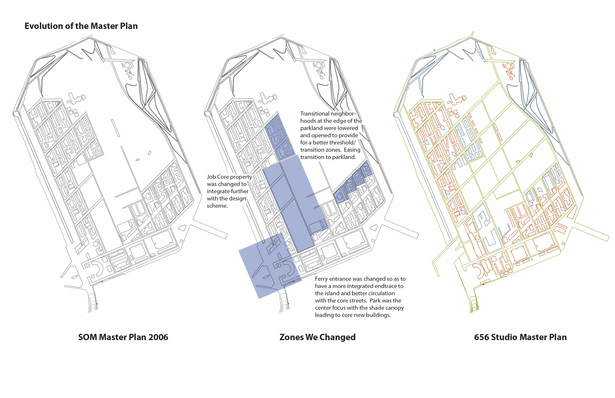

Evolution of the Master Plan from SOM
Evolution of the Master Plan from SOM

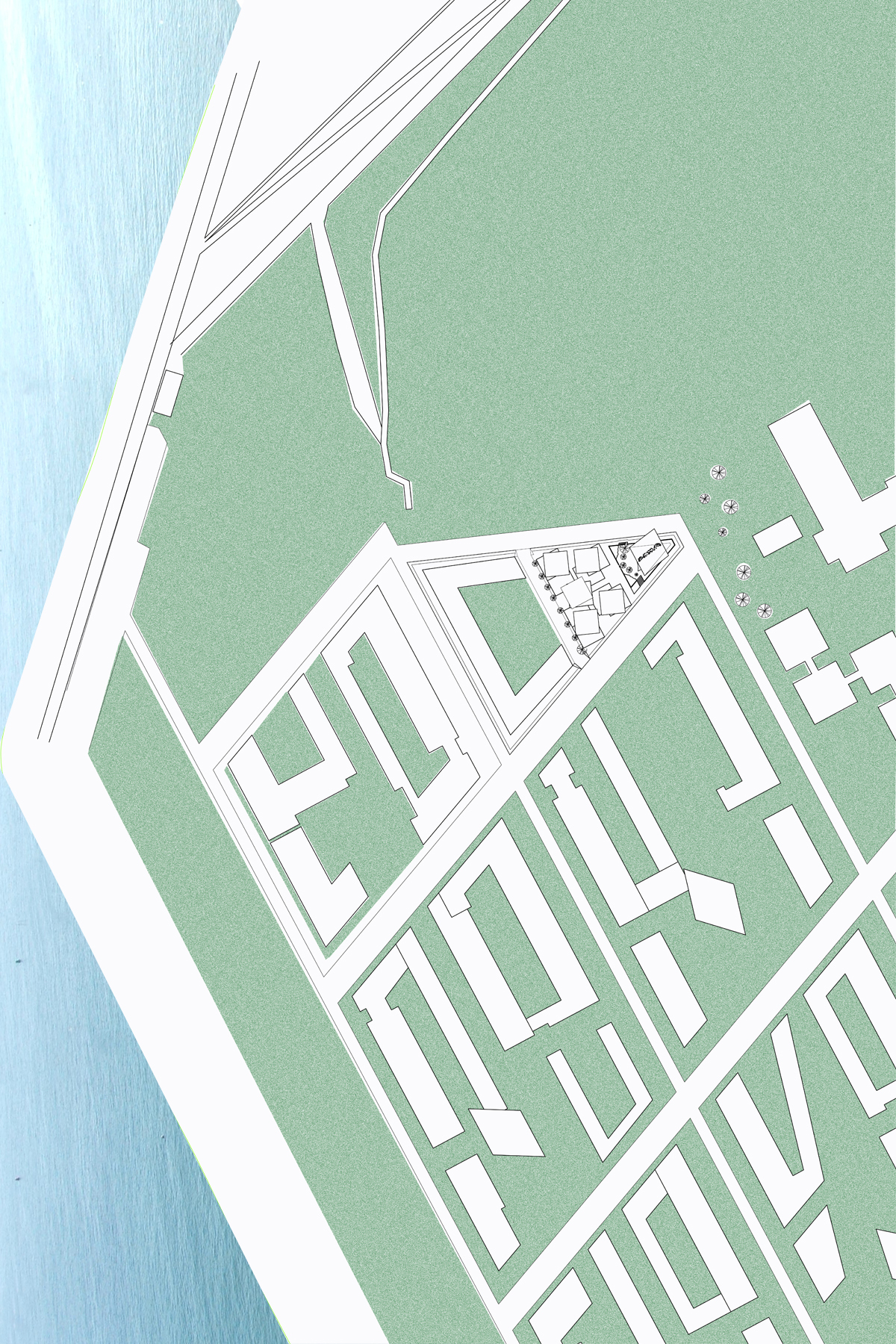

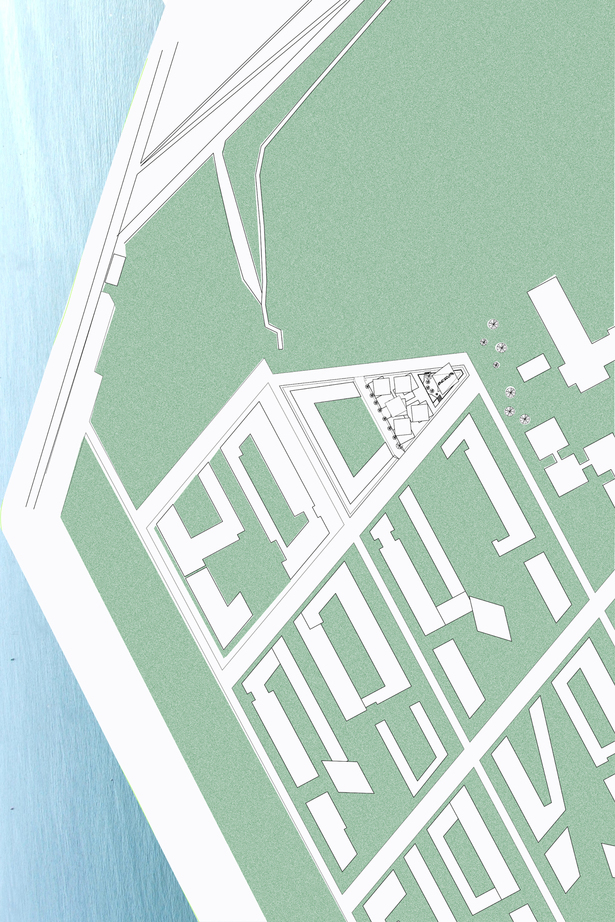

Site Plan of the surrounding area, Scale 1
Site Plan of the surrounding area, Scale 1"=64'-0"

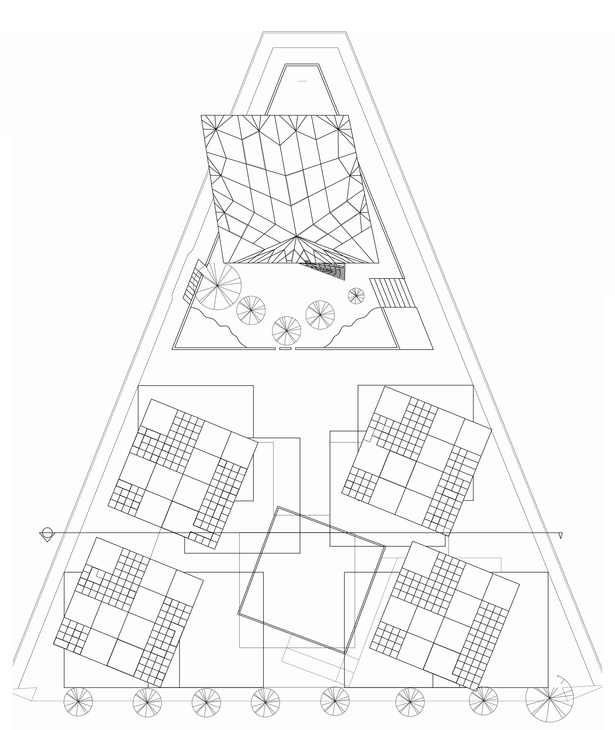

Roof Plan
Roof Plan

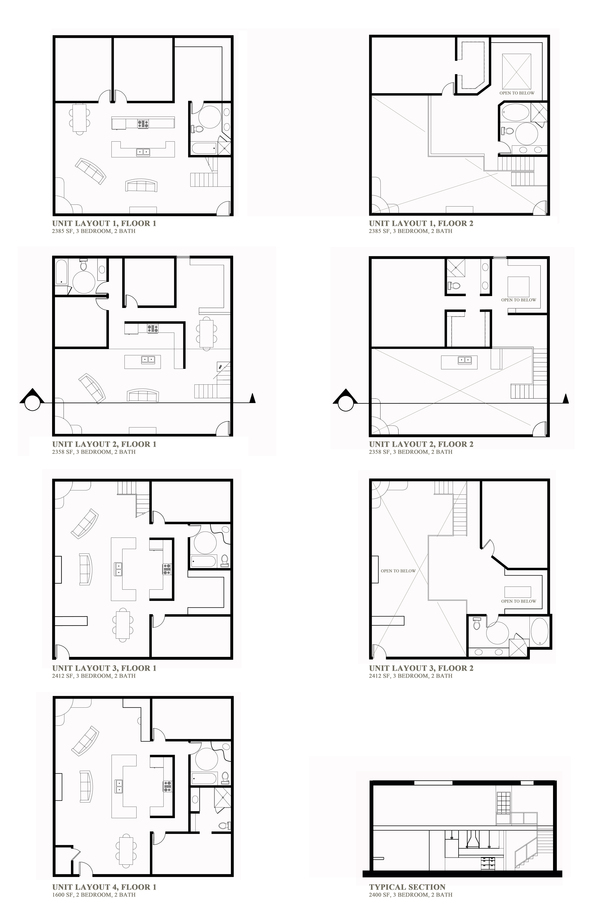

Unit Plans of the Apartments
Unit Plans of the Apartments
