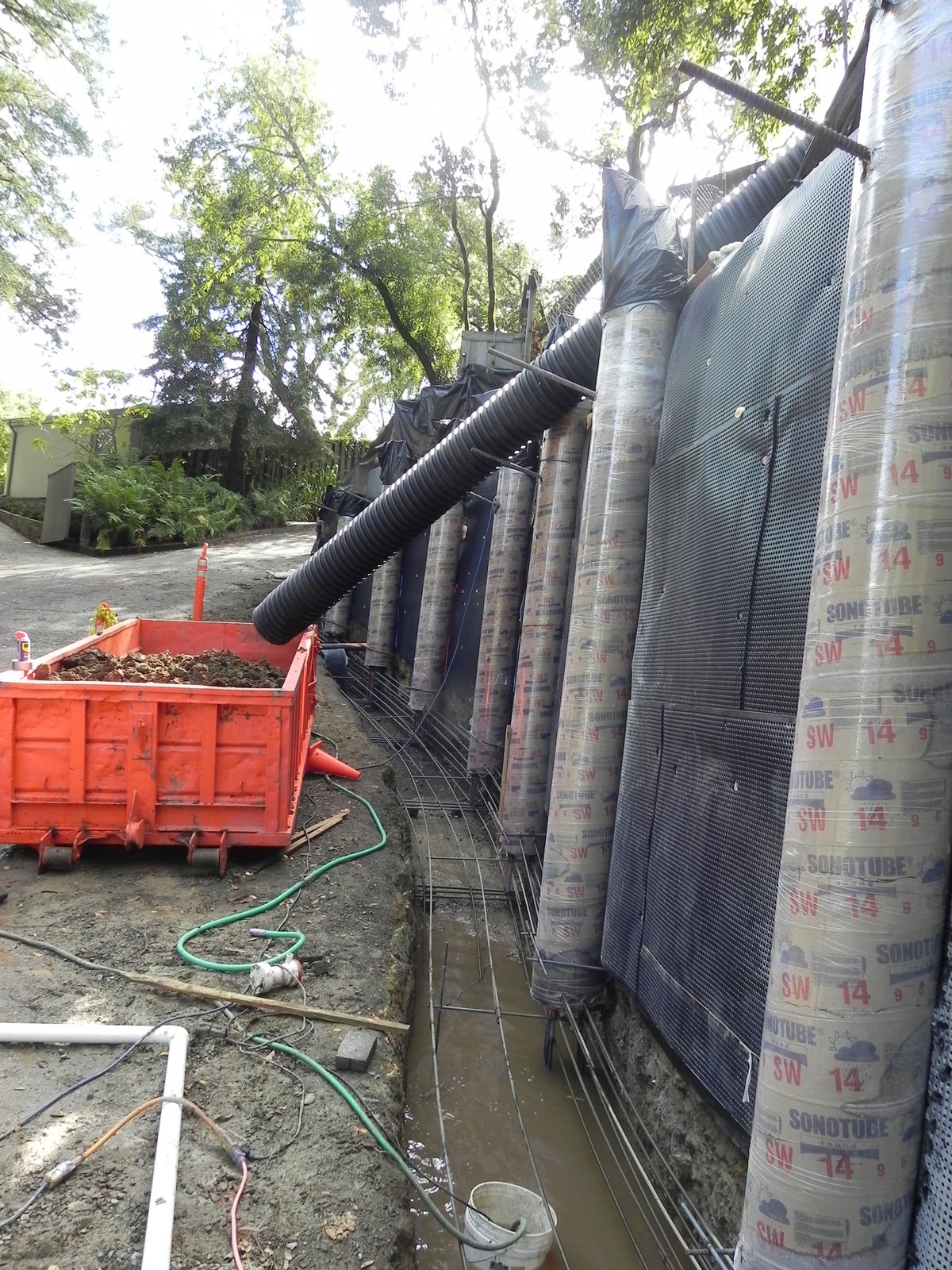

View of footing trench full of water after overnight rain. Pilasters are in place, but wall bars are not yet installed.
View of footing trench full of water after overnight rain. Pilasters are in place, but wall bars are not yet installed.
7 more images  ↓

CURVED ROADSIDE TIEBACK WALL, MILL VALLEY, CALIFORNIA

Tiebacks allowed us to use a narrow  footing for bearing rather than overturning resistance at this curving shotcrete wall located right against the street in the Mill Valley hills.  Access is tight, drivers tend  to go  fast, and footing excavation would have blocked traffic and posed a danger to the workers.  Tieback rod ends are visible two-thirds from the bottom of each pilaster.


Read more

Status: Under Construction
Location: Mill Valley, CA, US
My Role: Project Engineer
Additional Credits: Paul, J. Pieri, P.E., Senior Engineer, BHW Engineers, L.L.C.
Hsiaochien Chuang, Senior Project Manager, Blasen Landscape Architecture
Jim Josephs Construction
Bob Settgast, P.E. Geotechnical Engineer

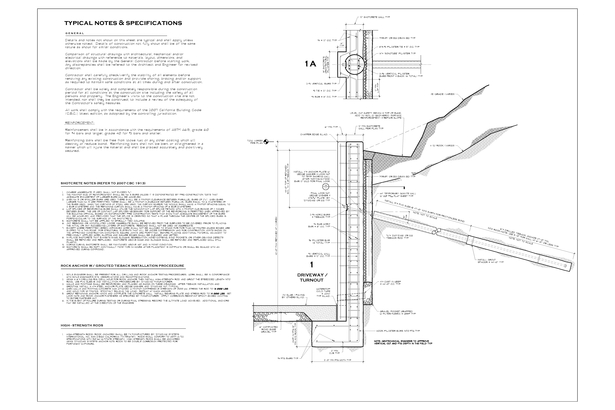

Structural details.
Structural details.

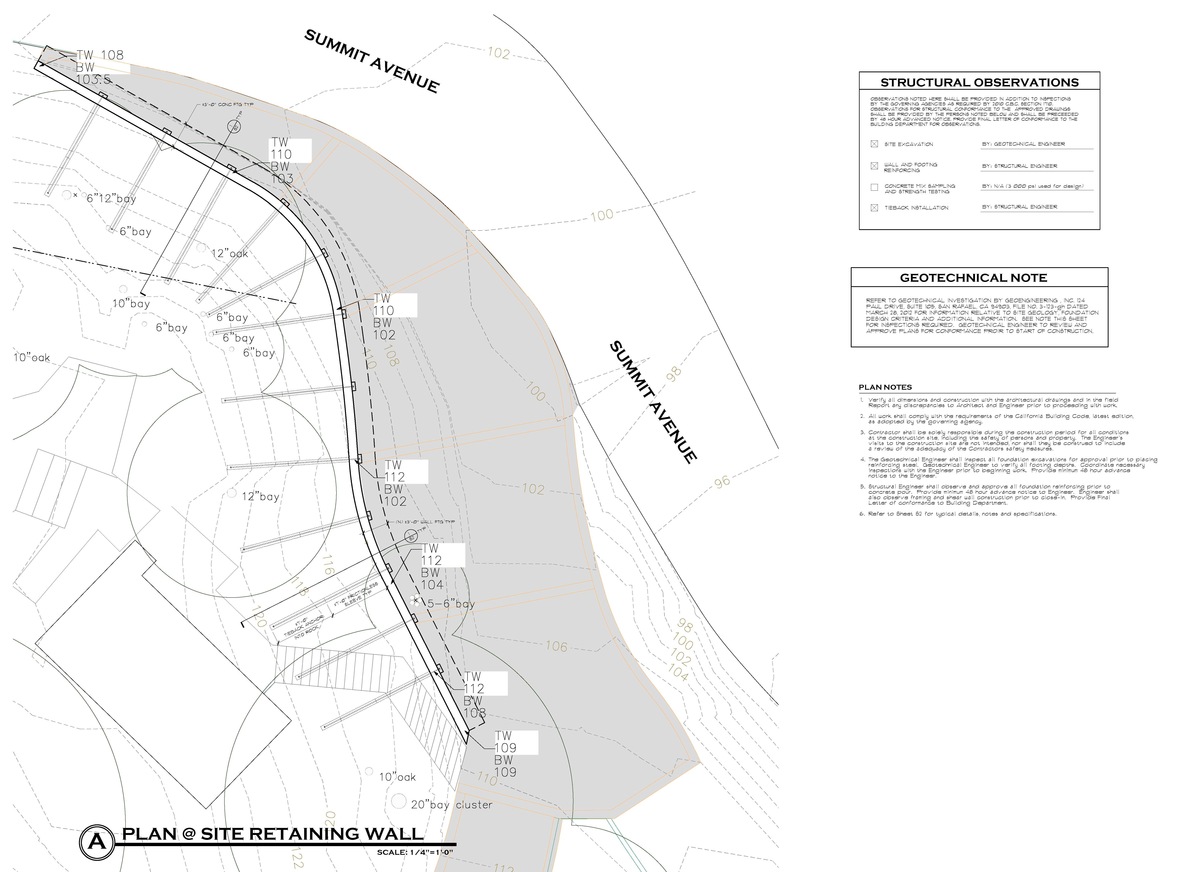

Partial plan.
Partial plan.

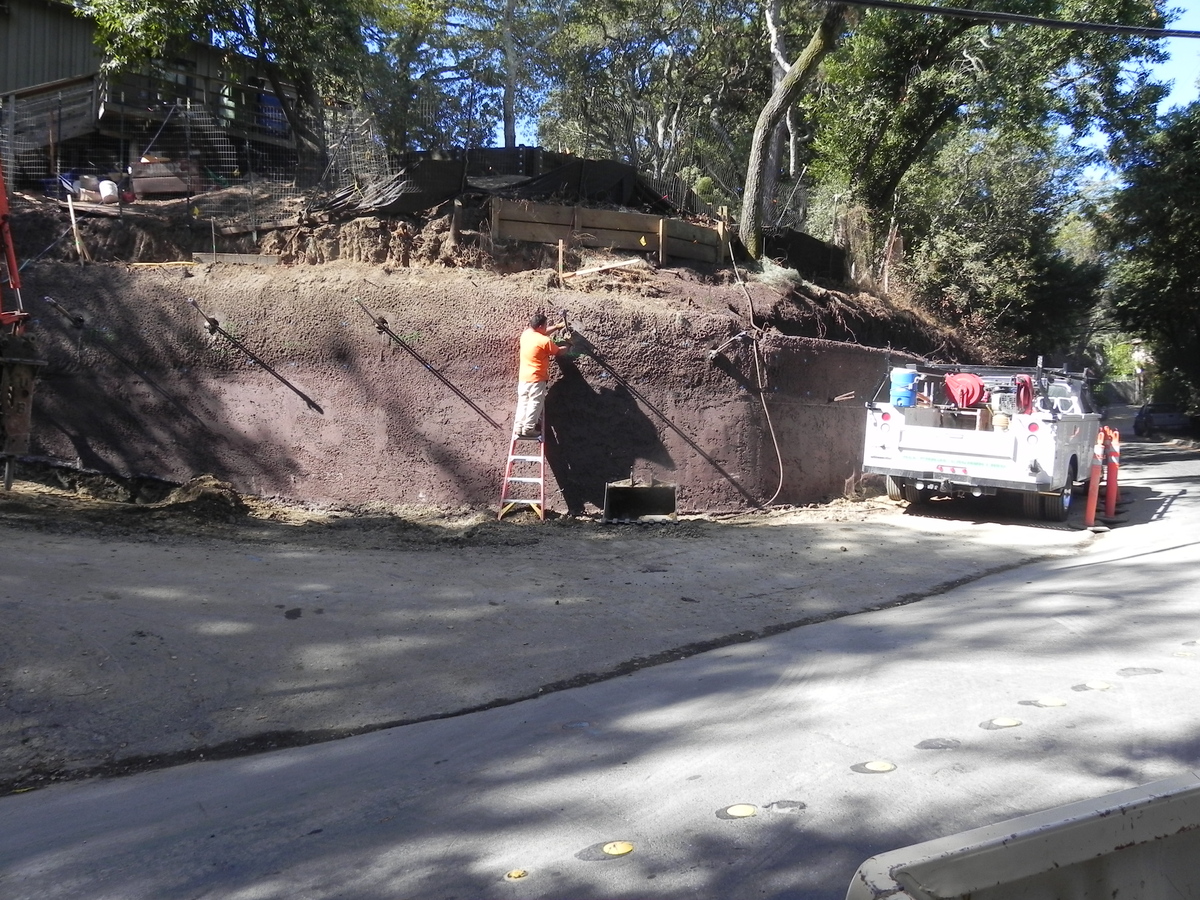

Wall cut with tieback rods and shotcrete backing in place.
Wall cut with tieback rods and shotcrete backing in place.

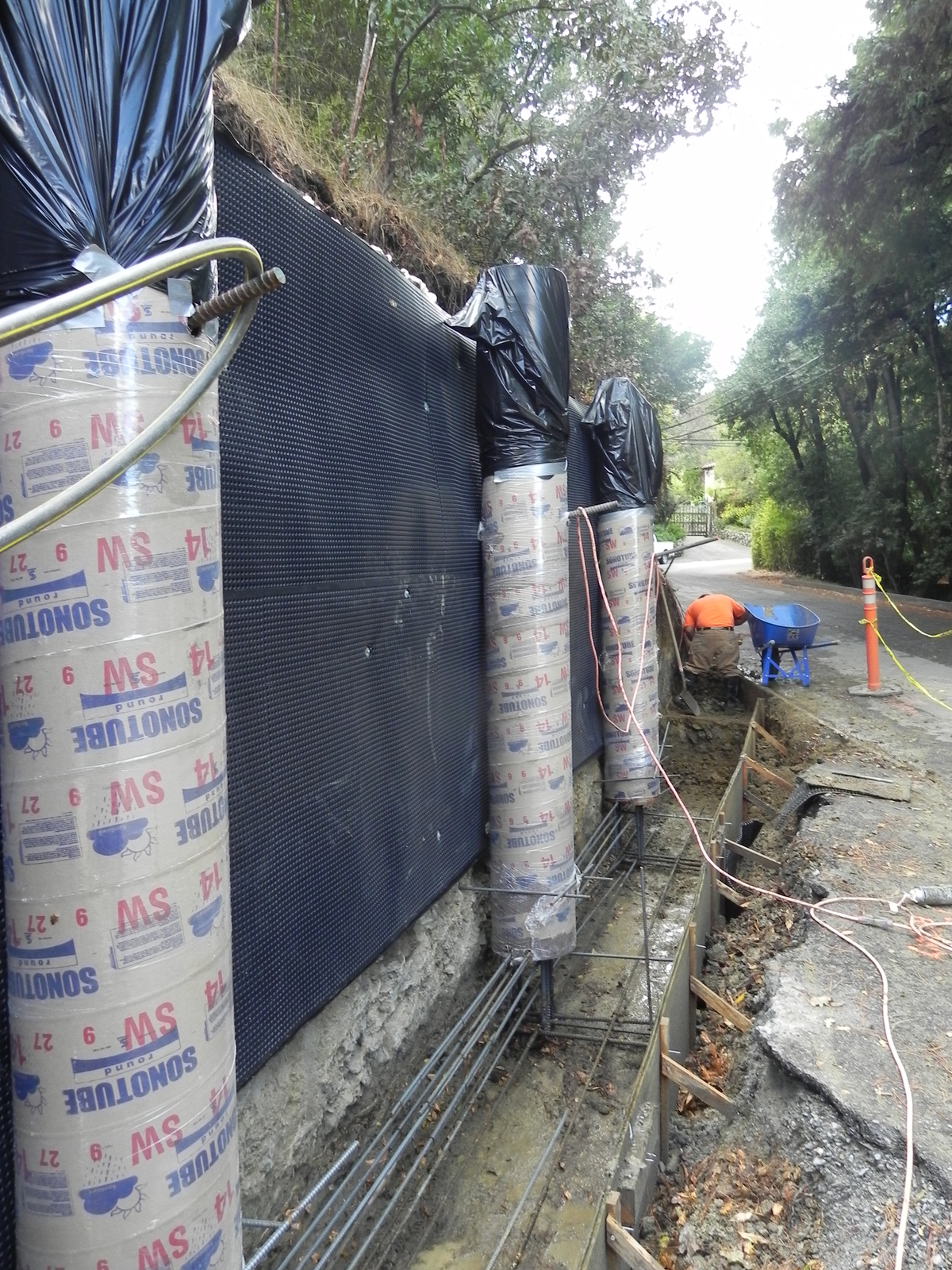

Retaining wall with waterproofing and pilasters almost finished.
Retaining wall with waterproofing and pilasters almost finished.

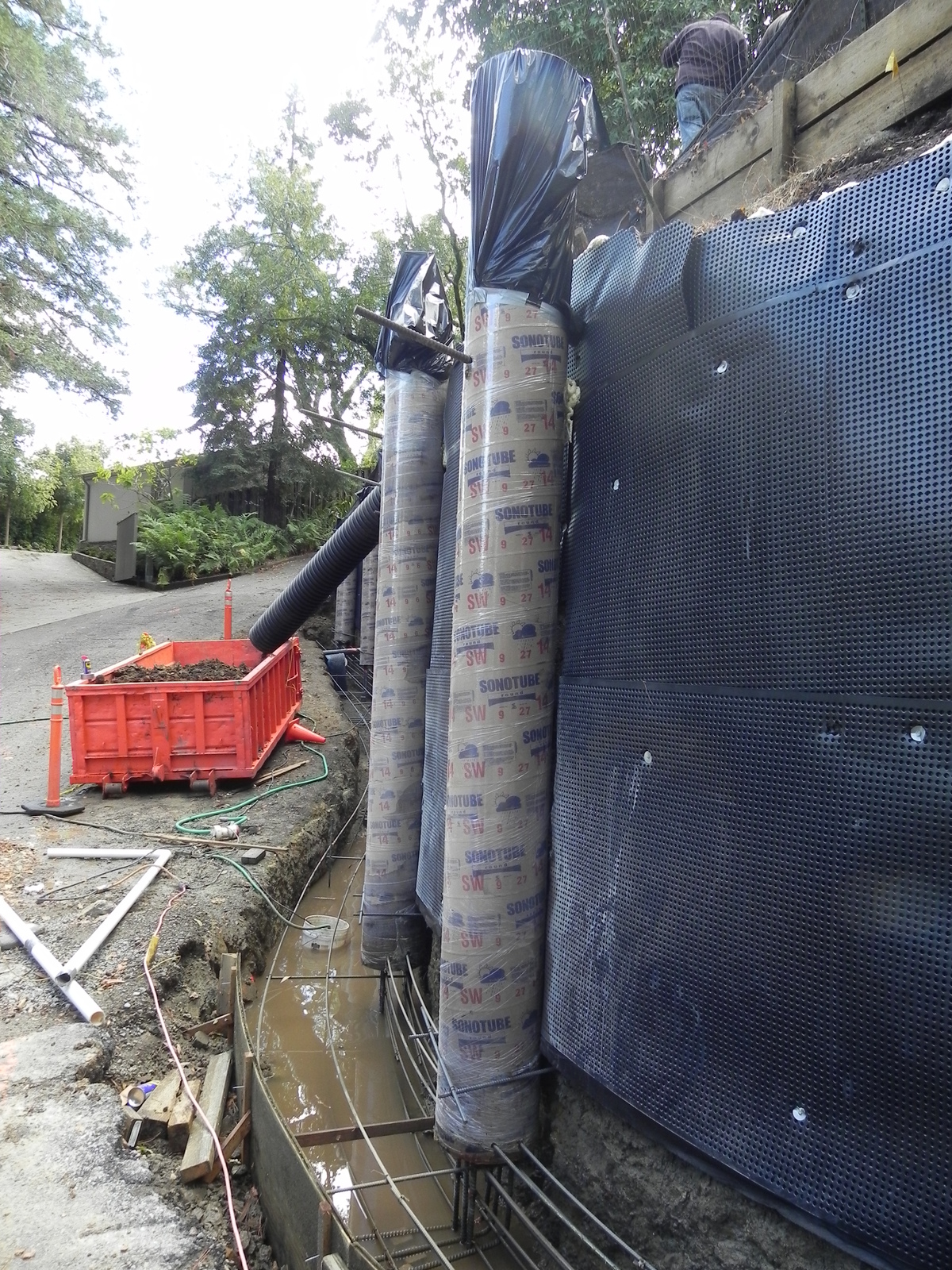

Sheet waterproofing added, sonotube pilasters almost ready.
Sheet waterproofing added, sonotube pilasters almost ready.

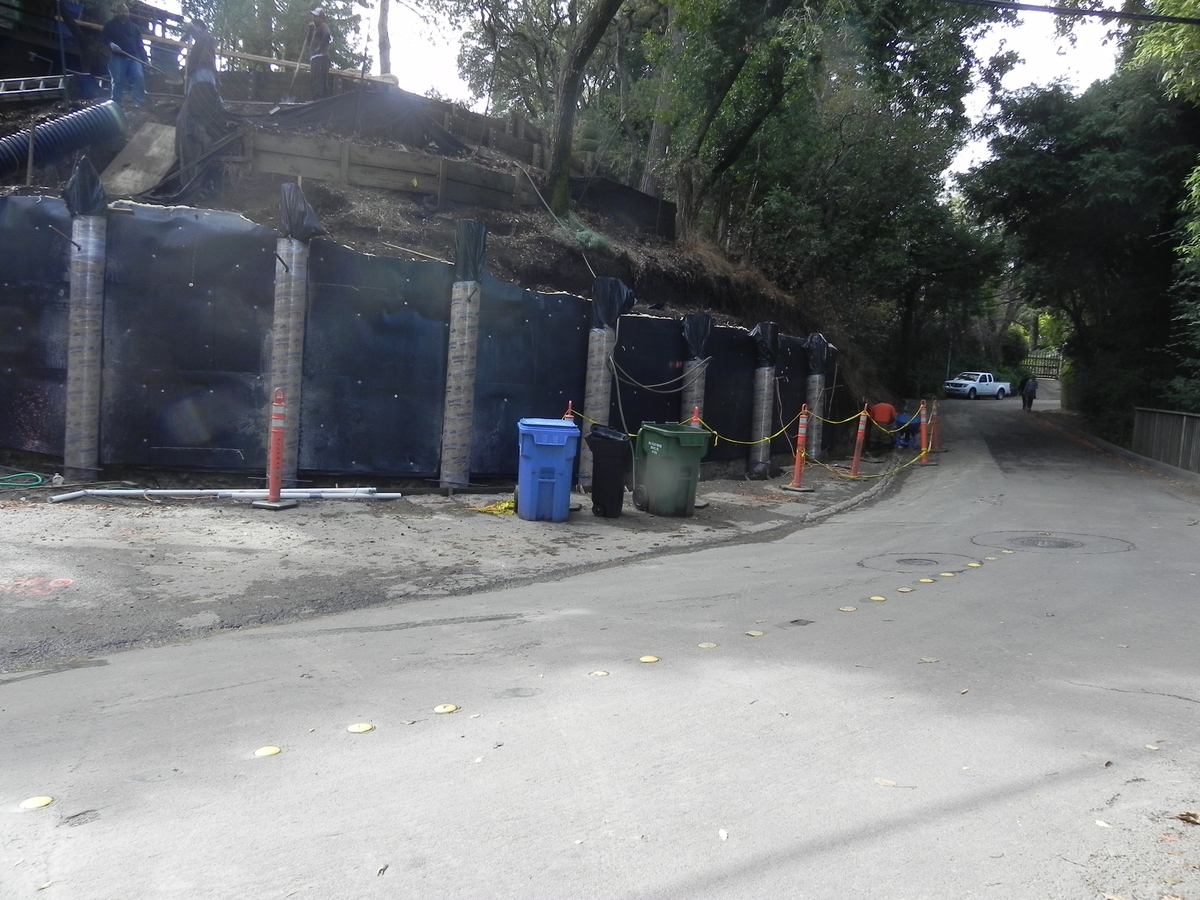

View toward shorter section of wall.
View toward shorter section of wall.

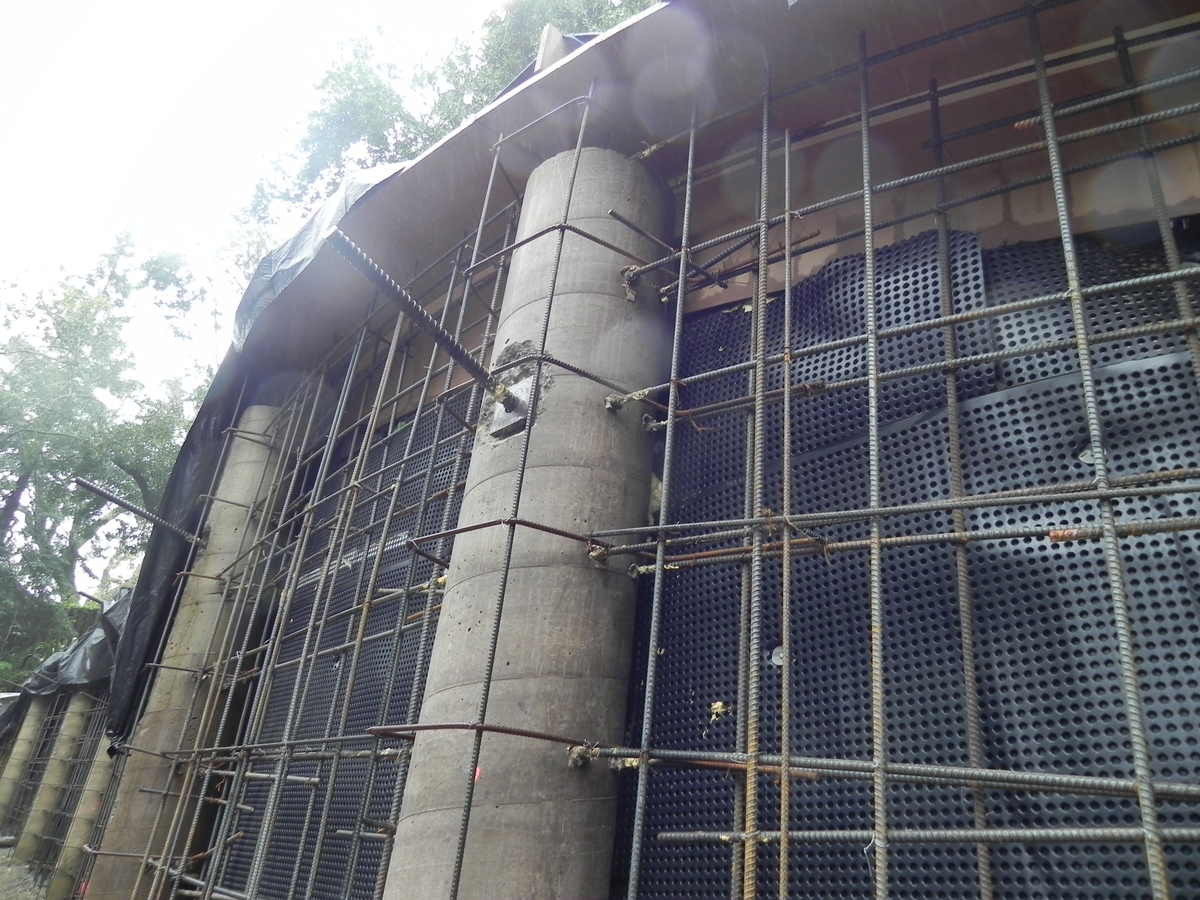

Ready for shotcrete. Now if it would only stop raining...
Ready for shotcrete. Now if it would only stop raining...
