Illumination Device Fabrication

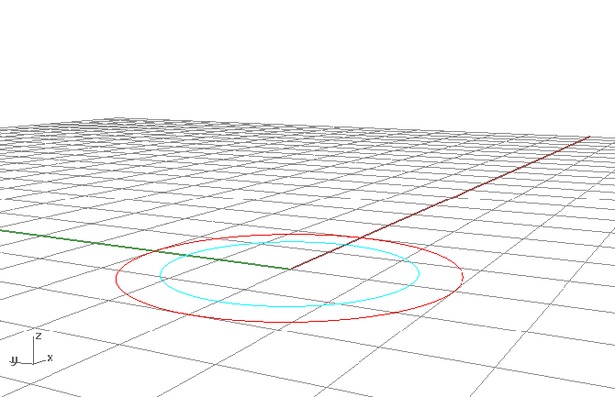

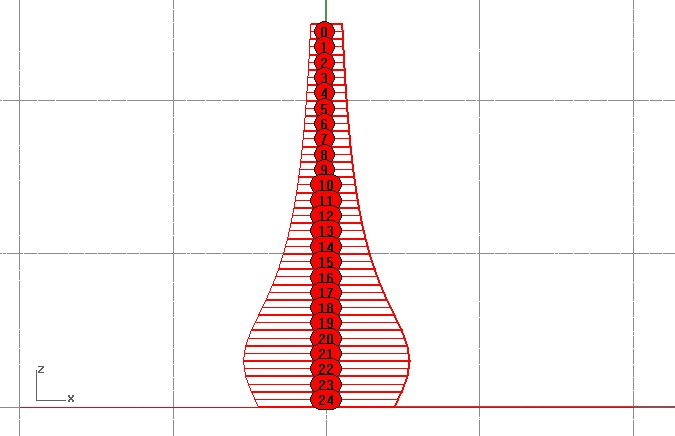

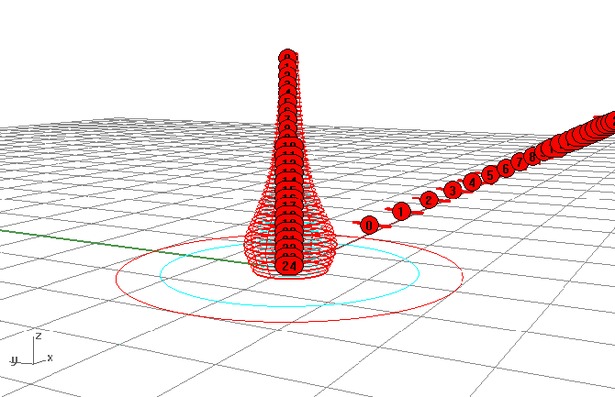

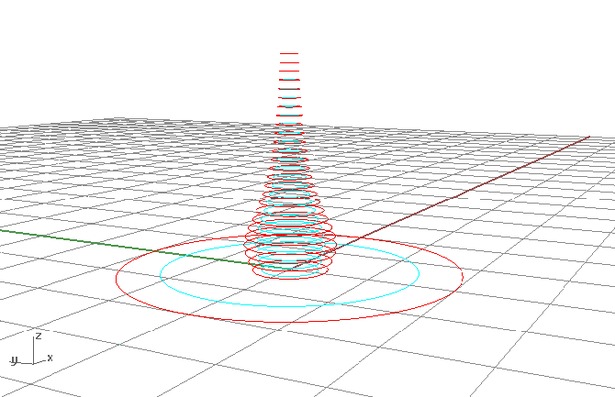

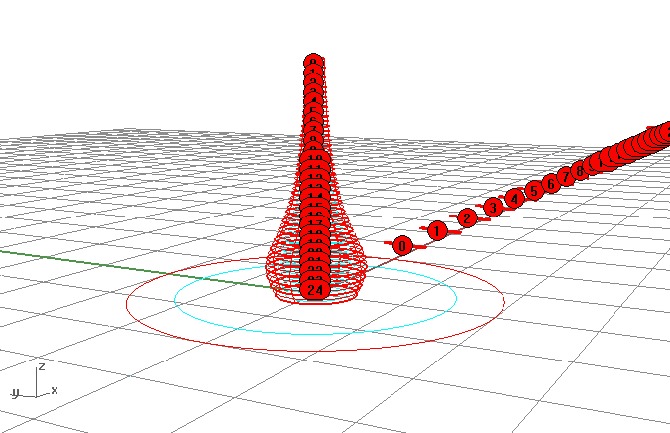

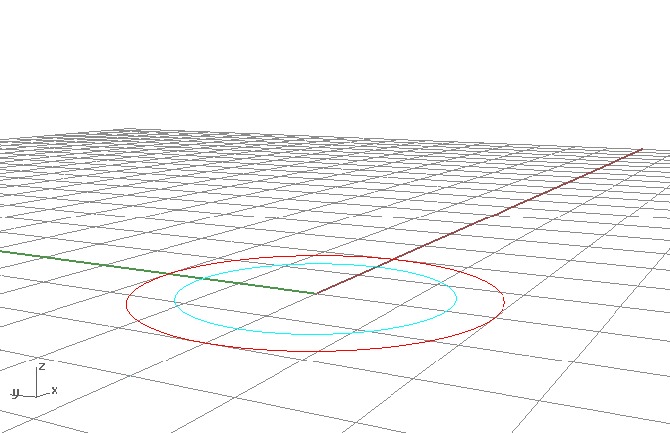

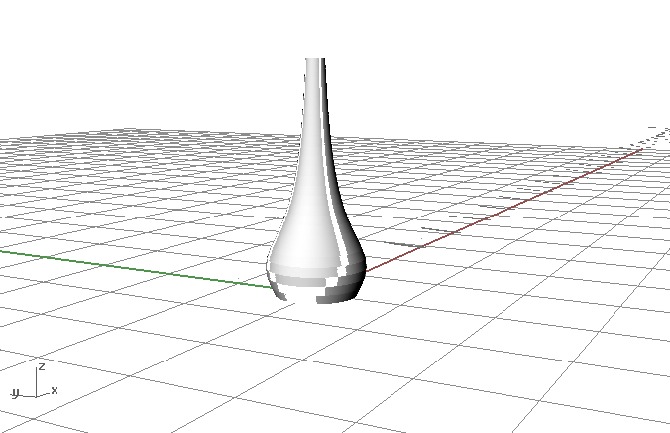

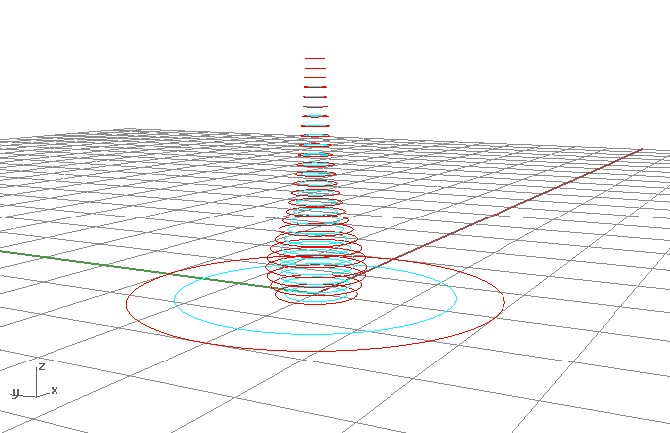

This illumination device was created using Rhino scripting through Monkey Editor. The form is generated by a script that runs copying, offsetting , rotating, lofting, nesting and other commands. The materials used include plywood for the base, plexiglass rings, wire to hold the rings in place, cardboard for construction purposes, and mylar for the envelope. The components were fabricated in a laser cutter using the digital files from Rhino. The final product is an approximately 3.5 ft tall lamp that  emits a luminous, soft glow.


Read more

Status: School Project
Location: Philadelphia, PA, US

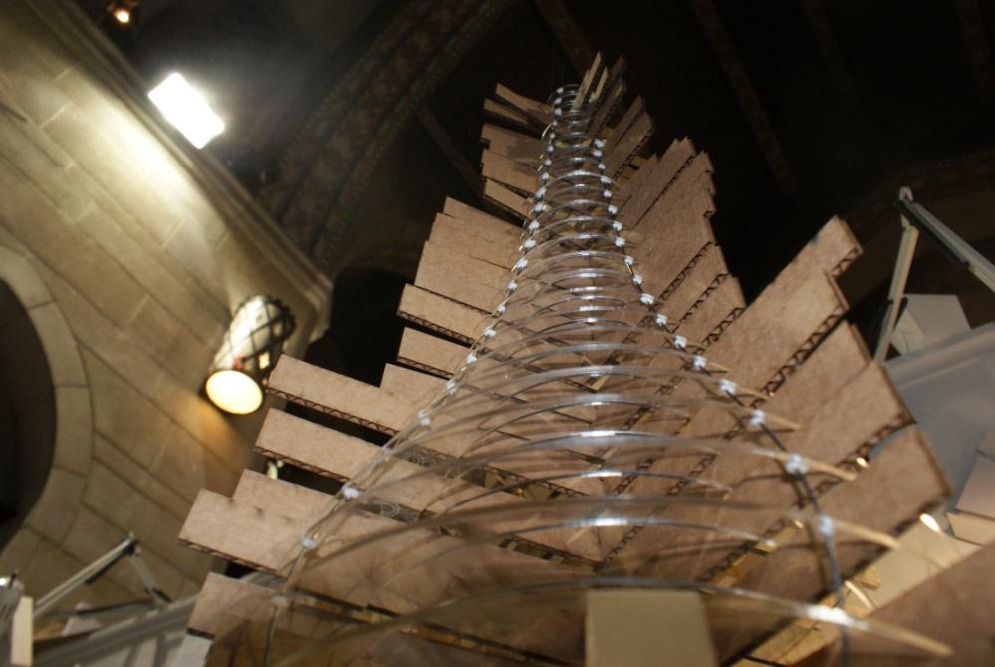

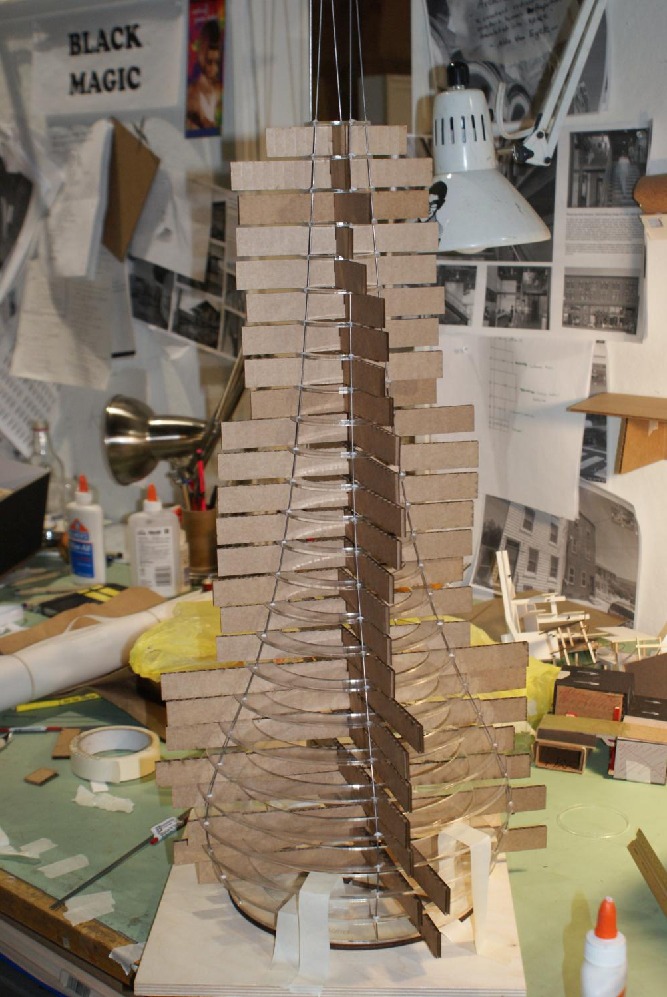

Construction of Frame
Construction of Frame
Construction of Frame
Construction of Frame

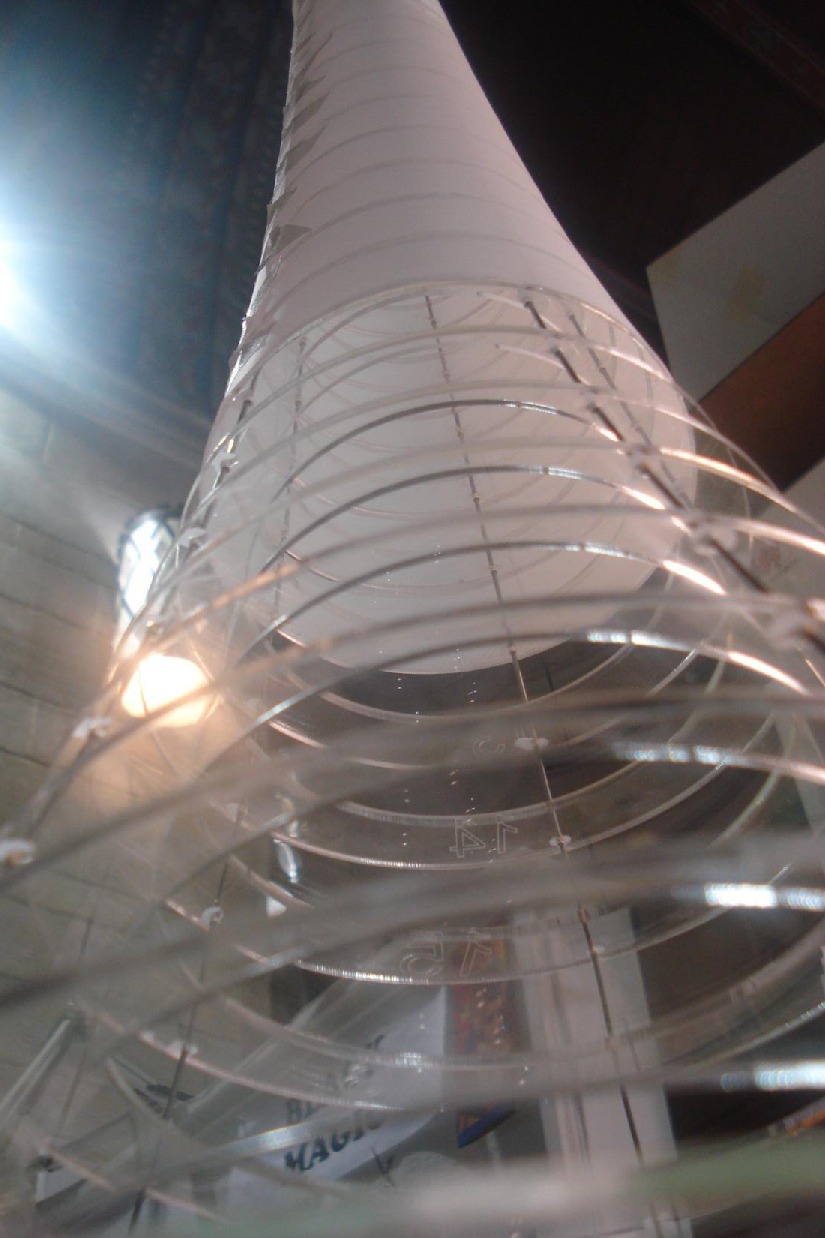

Envelope application
Envelope application

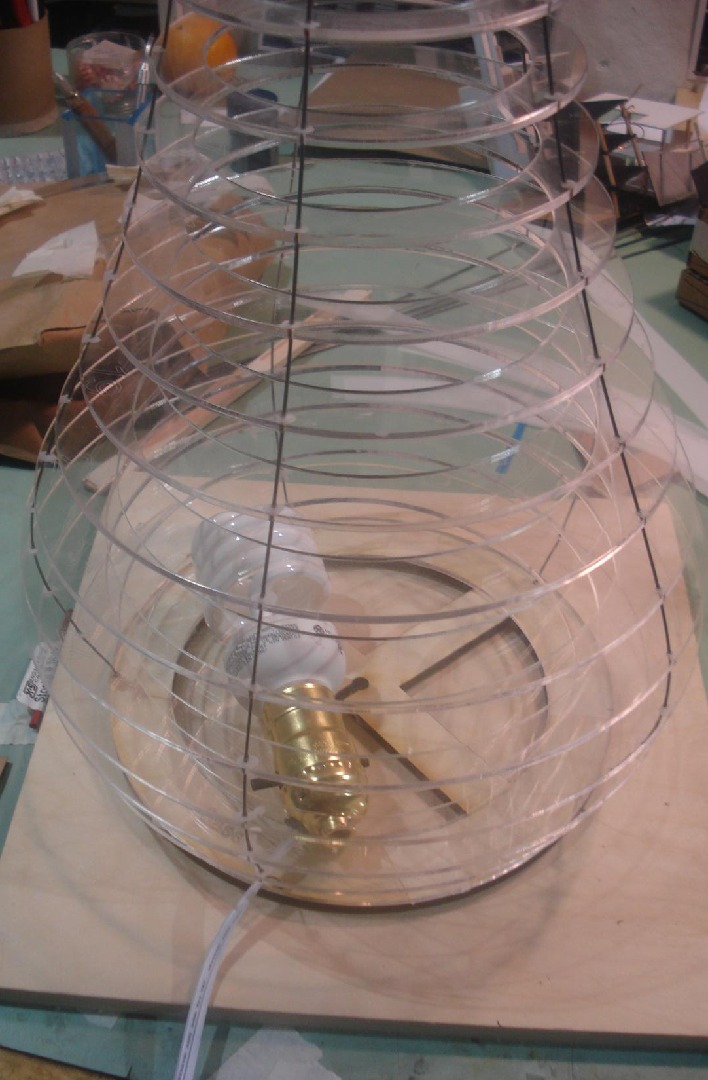

Light mounting
Light mounting

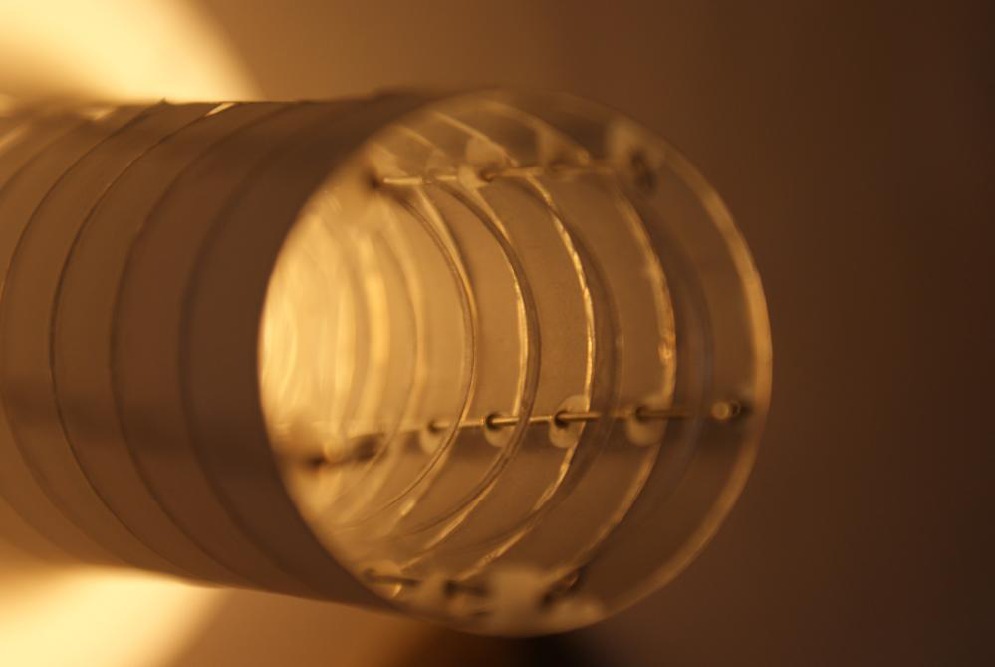

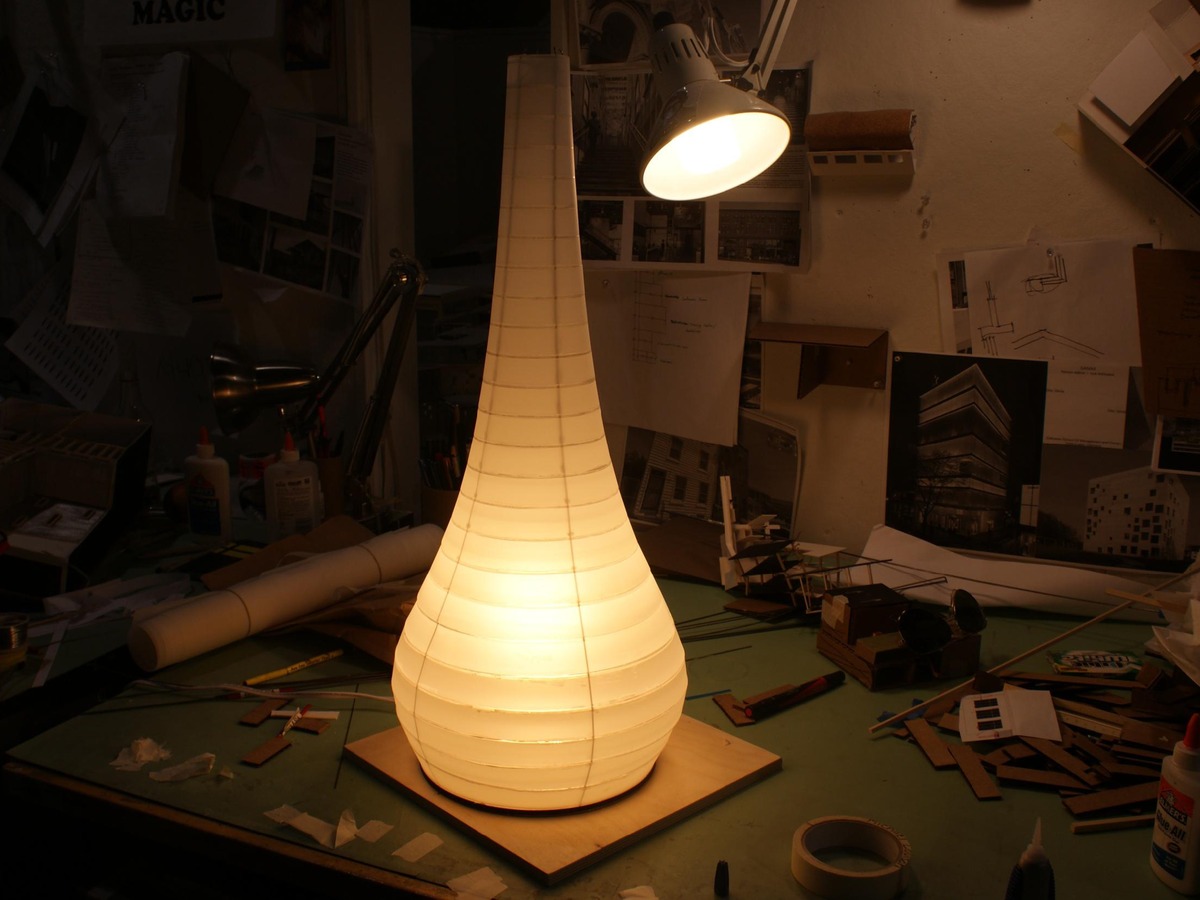

Complete
Complete
