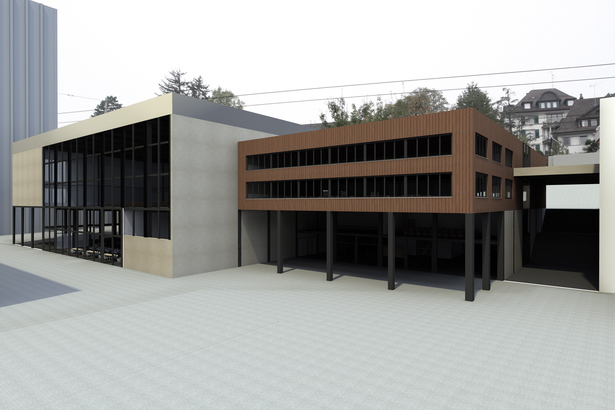

Project Rendering
Project Rendering
17 more images  ↓

OLMA Covention Center

Located in the city of St. Gallen where the famous fair
of OLMA takes place we had to design a new exhibition
center with a congress center on the upper floor
and a restaurant. A separate office building which is
connected to the exhibition center and inhouses offices
had to be attached to the main building. For the
first time we had to plan the whole supporting framework
and the building services like heating, cooling
and cross ventilation.
The warehouses are locadet on the lower levels as is
the parking garage which is connected to the already
existing garage from another hall.
The visual difference between the main exhibition center
(concrete) and the office building (wood paneling)
was chosen to differentiate the two.


Read more

Status: School Project
Location: St. Gallen
My Role: Designer

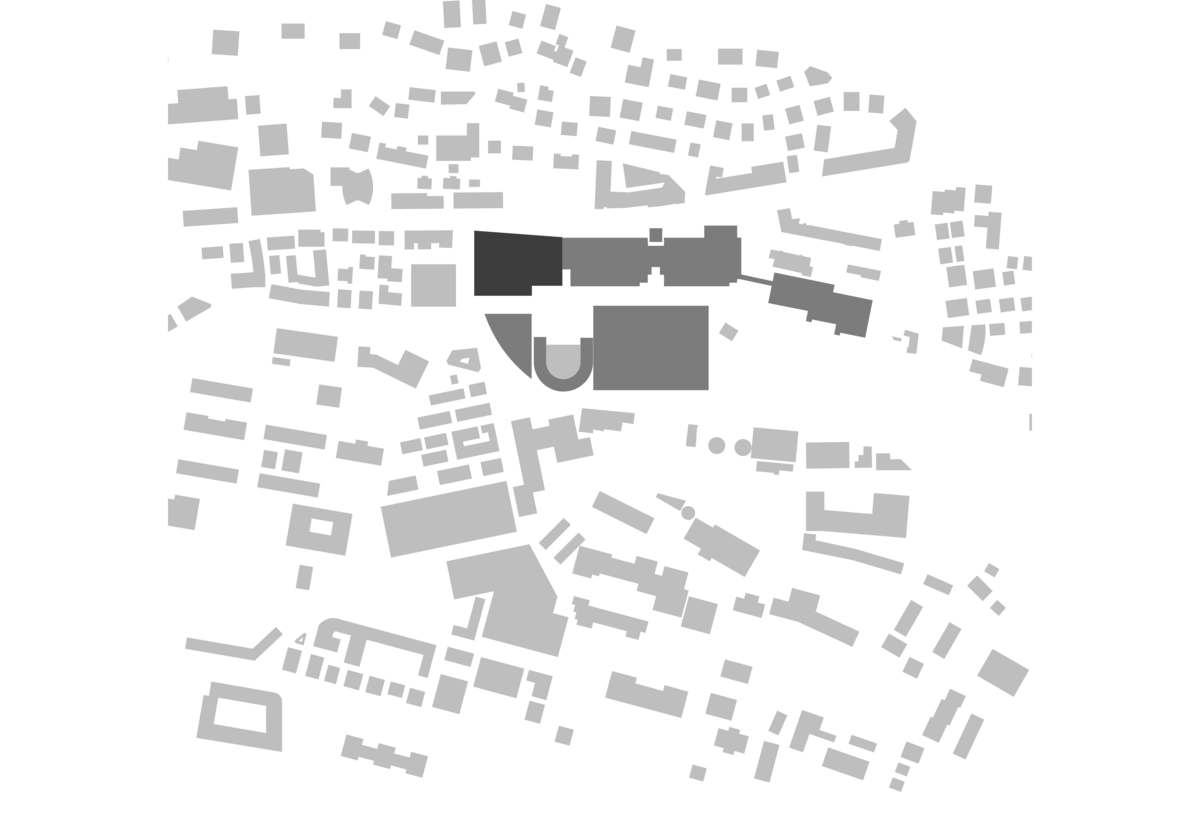

Situation
Situation

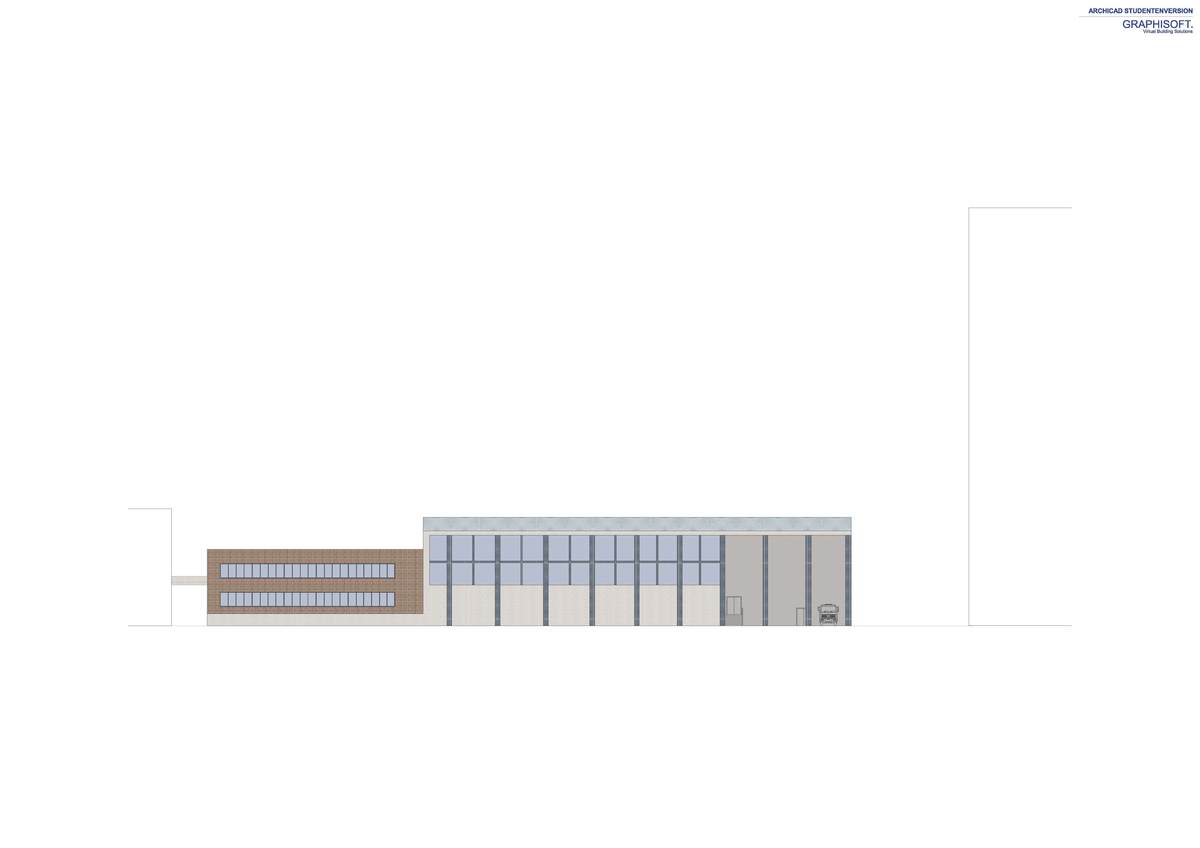

Facade North
Facade North
Facade South
Facade South
Offices
Offices
Congress Centre
Congress Centre

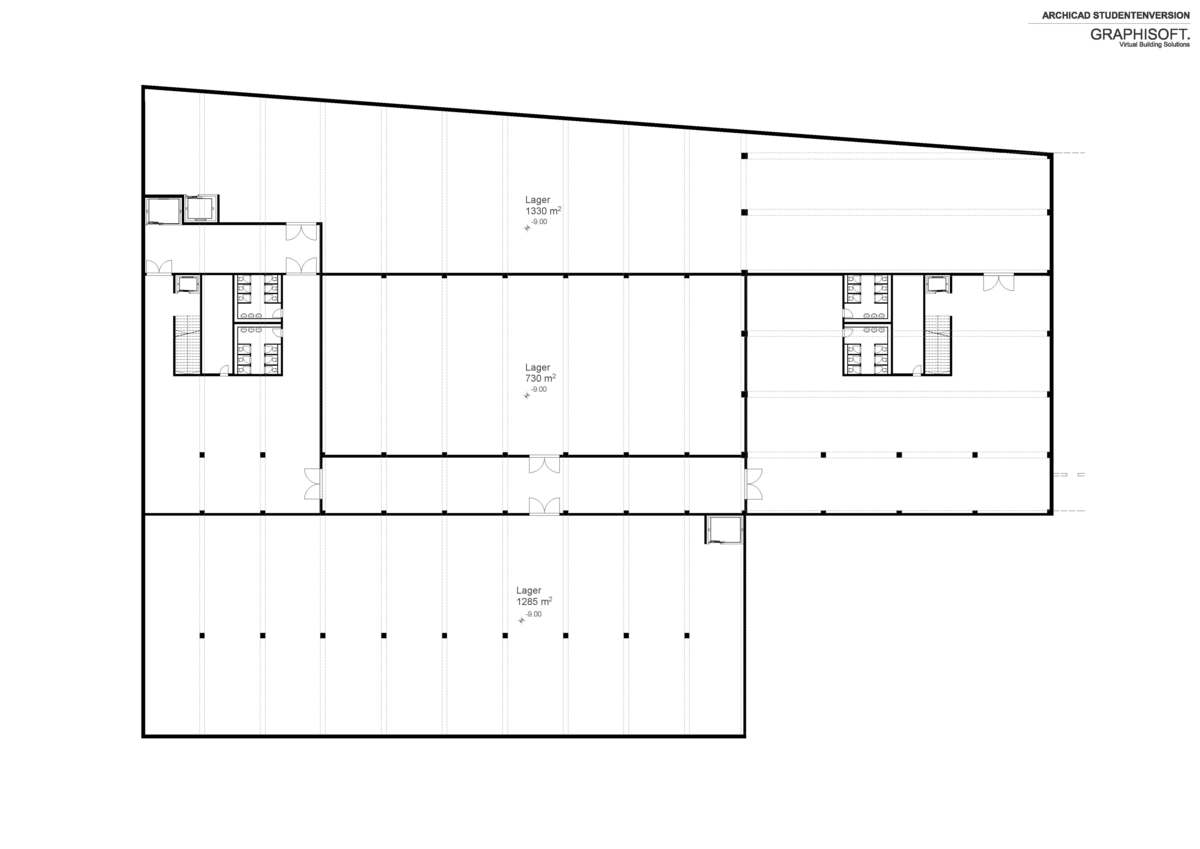

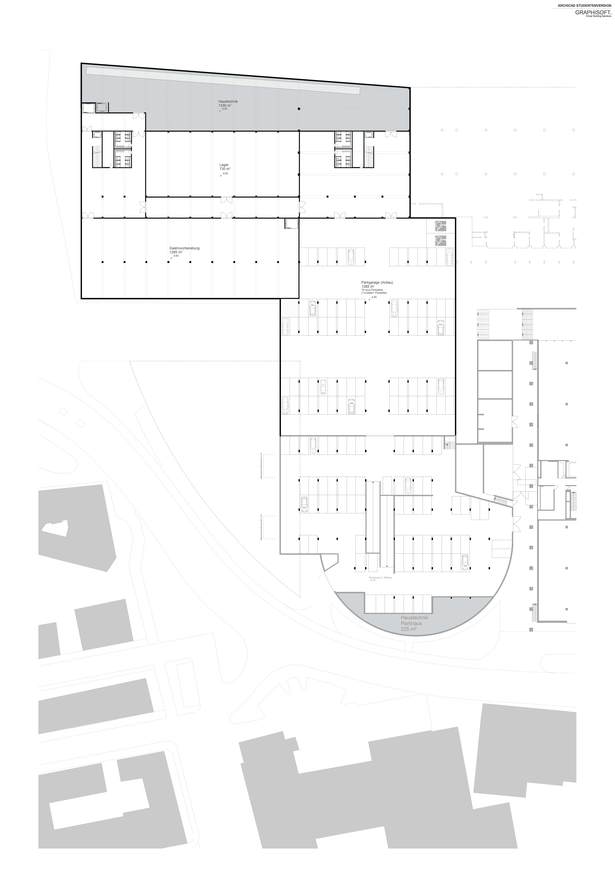

1st Lower Level Floor
1st Lower Level Floor
2nd Lower Level Floor
2nd Lower Level Floor

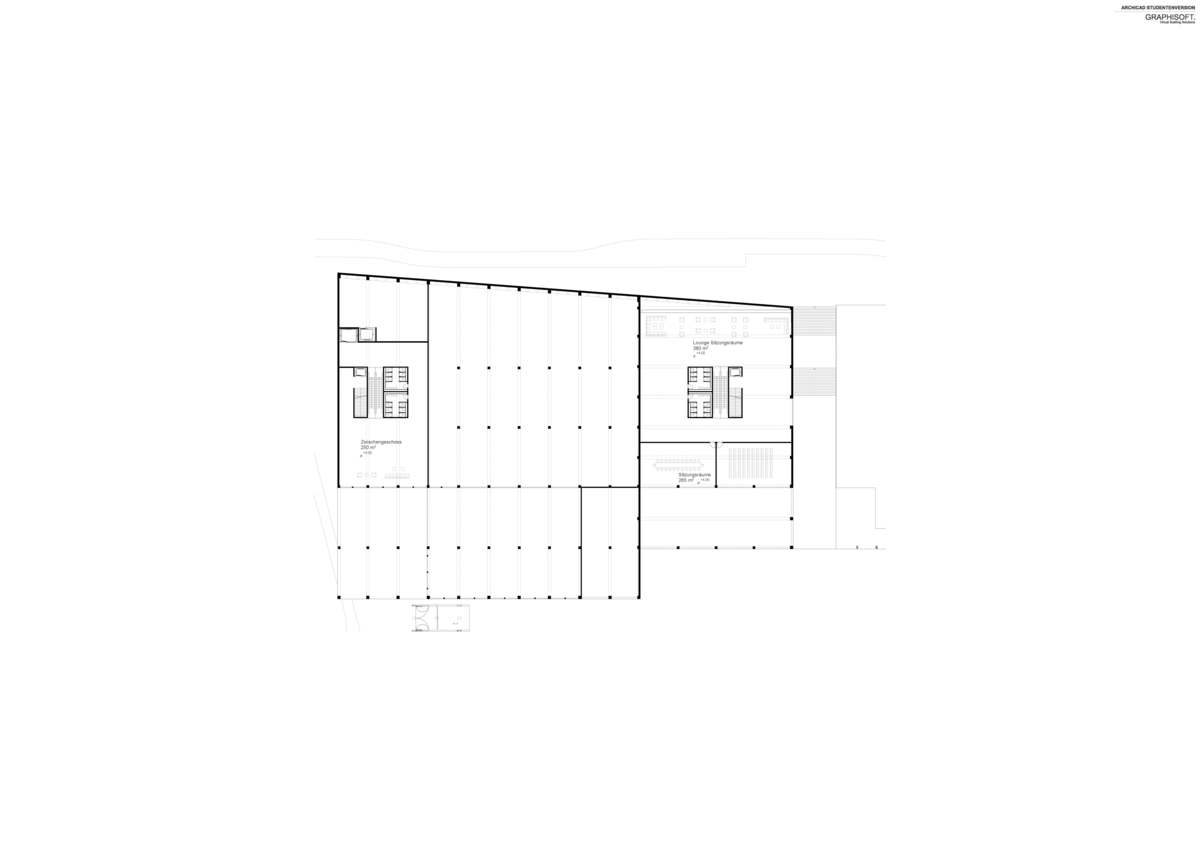

Ground Floor
Ground Floor
1st Mezzanine Level
1st Mezzanine Level
Congress Centre Level
Congress Centre Level
2nd Mezzanine Level
2nd Mezzanine Level
Longitudinal Section
Longitudinal Section
Cross Section
Cross Section

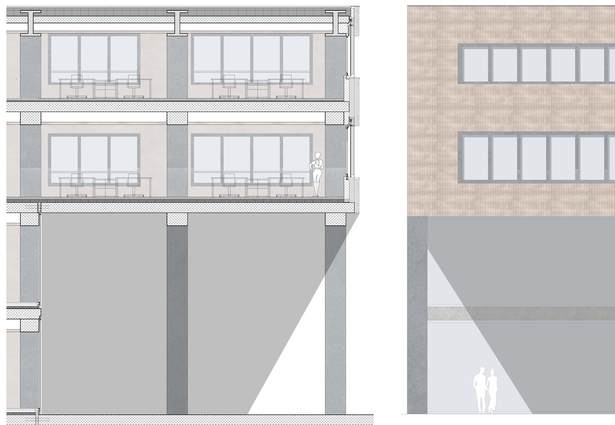

Detailed Section
Detailed Section
Section
Section

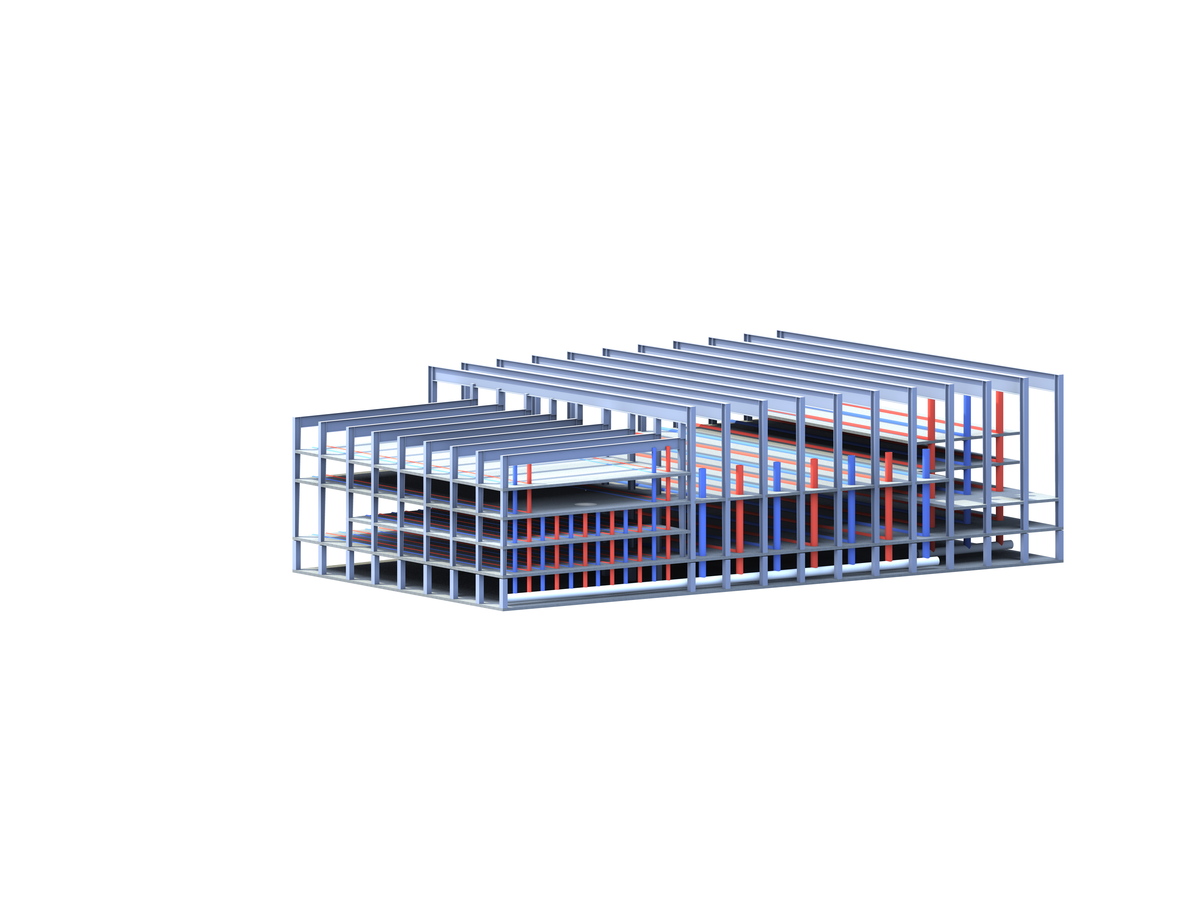

Building Services Scheme
Building Services Scheme

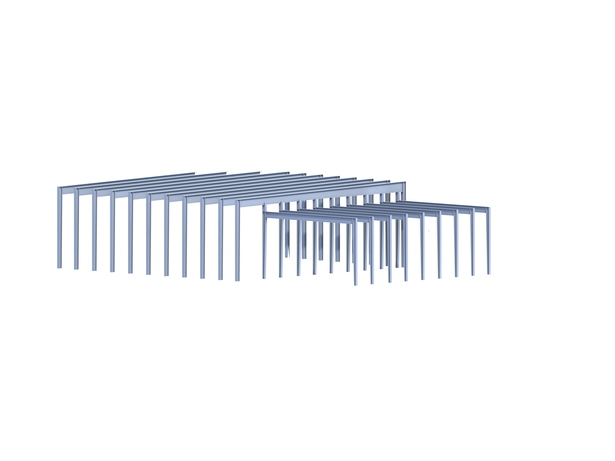

Framework
Framework
