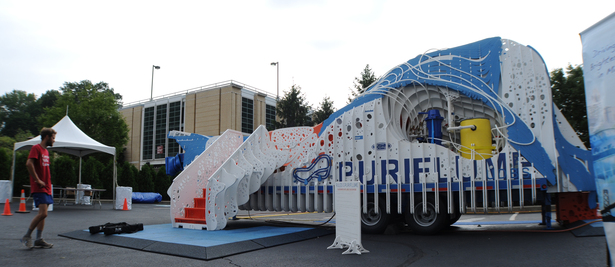

Exit side elevation view of the PURIFLUME in operation. From left to right : the exit stairs, educational track, visual systems void, and the slide entrance.
Exit side elevation view of the PURIFLUME in operation. From left to right : the exit stairs, educational track, visual systems void, and the slide entrance.
6 more images  ↓

PURIFLUME-UDBS

Fall 2010 - Summer 2012

The PURIFLUME is a mobile, proof-of-concept, closed-loop water filtration system that features elements commonly found in a municipal spray park.  Acting as a fun education tool, The PURIFLUME will provide information on water conservation while also providing an exciting experience for children of all ages.  The PURIFLUME is result of the work of 12 students under the direction of Professor John Folan.

The PURIFLUME project began in response to the UDBS student’s work on the Leslie Park Pool masterplan beginning in the fall of 2010.  UDBS students worked on a sustainable spray park proposal for the decommissioned Leslie Pool that would utilize environmentally friendly spray park equipment and Pennsylvania’s first water filtration system.  As a result, funding and local support emerged to create a mobile prototype of the proposed sustainable water filtration system.  The PURIFLUME is made possible by funding from Allegheny County’s Community Infrastructure and Tourism Fund (CITF), Ford Motor Company’s Ford College Community Challenge, and AutoDesk, in collaboration with Baker Engineering, Allegheny County Health Department (ACHD), Department of Public Works (DPW), Pittsburgh Water and Sewage Authority (PWSA), Department of Environmental Protection (DEP), and with the support of the Leslie Park Pool Collective, and Senator Ferlo.

The PURIFLUME is a dynamic educational experience for children.  The mobile project houses a water slide within its structural rib matrix as the primary attraction for children.  The water is then stored in cisterns and treated through water management equipment (diatomaceous earth filter, UV sterilizer, and chlorine generator) on The PURIFLUME.  Testing of water quality and safety is available through a series of data collection points that are installed into the closed loop system.  The testing results become a crucial part of advancing local and regional perspective on sustainable water treatment options.  The data collected from The PURIFLUME will become evidence to support the implementation of closed loop water management technology, advance sustainable practices, as well as providing a possible solution to the issues of municipal water management in the city of Pittsburgh.

For more information please see: http://www.cmu.edu/architecture/udbs/puriflume/index.html


Read more

Status: Built
Location: Pittsburgh, PA, US
My Role: UDBS team member
Additional Credits: Project Team: John Folan, Director, UDBS; Grace Ding, Jason Gates, Angelina Gonzalez, Sara Gotschewski, Alex Greenhut, Timothy Hild, Inkyoung Kim, Christopher Lee, Hubert Li, Ming Ming Lin, Michelle Spitzer

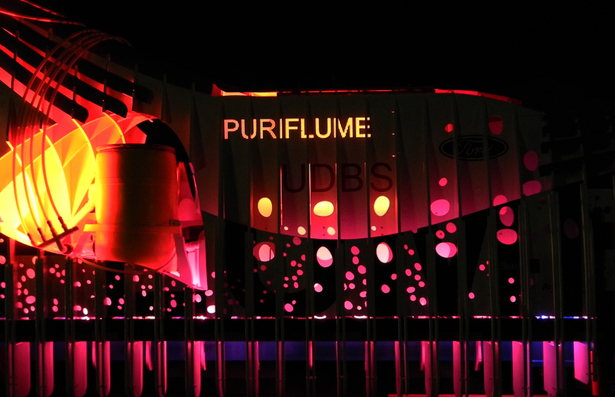

Night view of the education side elevation.
Night view of the education side elevation.

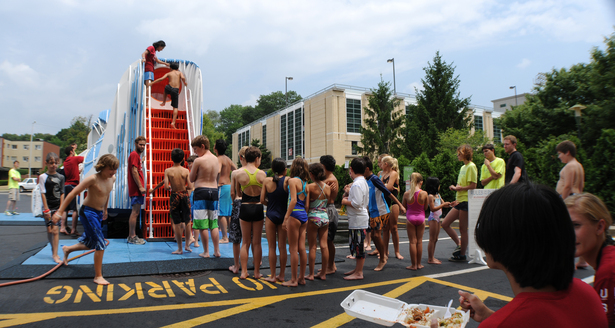

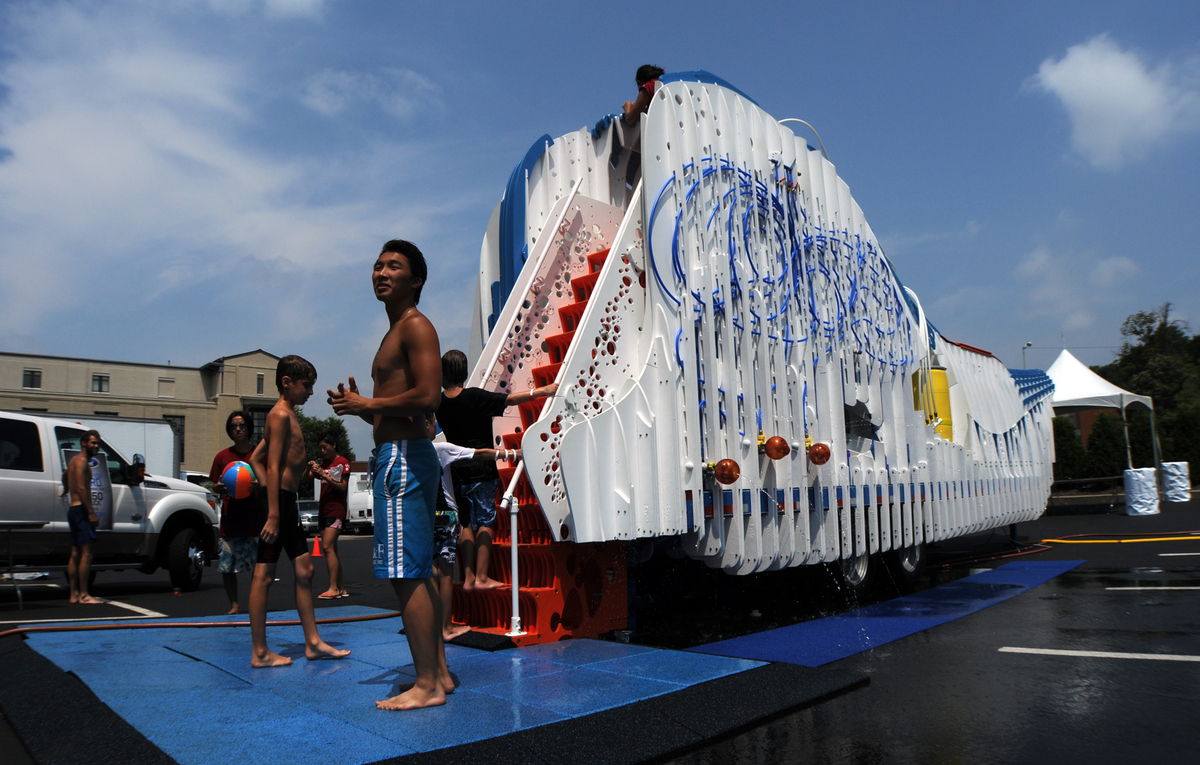

PURIFLUME in operation. From left to right a child is exiting the basin area, an UDBS member explains the systems in the visual void to a student, a child ascends the entrance stair to the slide, C-MITES in queue. PURIFLUME Deployment June 22 2012.
PURIFLUME in operation. From left to right a child is exiting the basin area, an UDBS member explains the systems in the visual void to a student, a child ascends the entrance stair to the slide, C-MITES in queue. PURIFLUME Deployment June 22 2012.
Back and educational side view of the PURIFLUME in operation.
Back and educational side view of the PURIFLUME in operation.

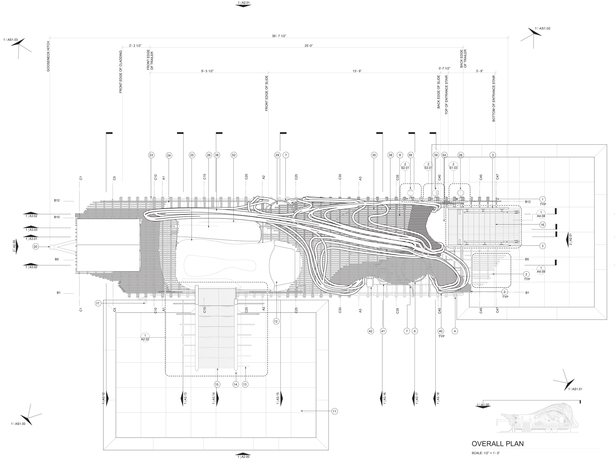

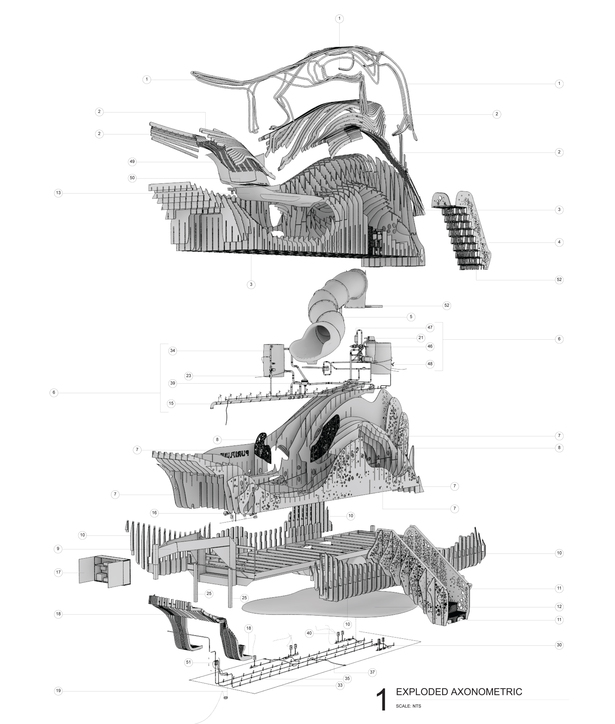

Sample of drawings included in the PURIFLUME CD set.
Sample of drawings included in the PURIFLUME CD set.
Sample of drawings included in the PURIFLUME CD set.
Sample of drawings included in the PURIFLUME CD set.

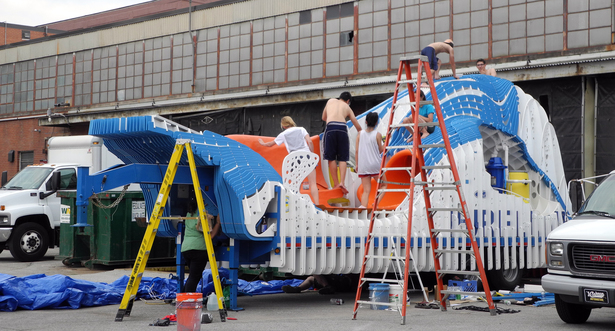

PURIFLUME under construction.
PURIFLUME under construction.
