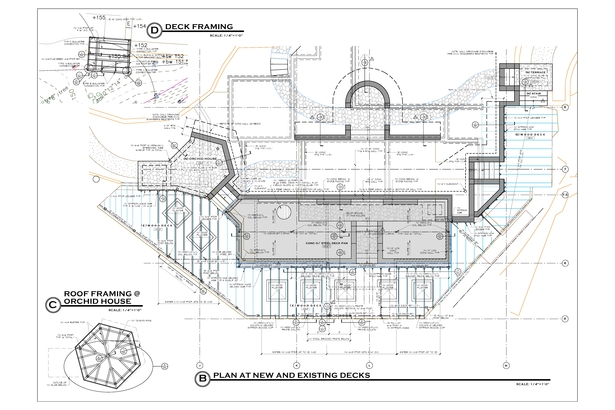

New site structures. Note the existing footings from the demolished home will be left in place and buried.
New site structures. Note the existing footings from the demolished home will be left in place and buried.
7 more images  ↓

ESTATE SITE STRUCTURES, MILL VALLEY, CALIFORNIA

The owner of an adjacent home overlooking San Francisco Bay bought this property to expand his hillside gardens. He had the existing house razed and is in the process of building the site structures shown.  Note that the new concrete deck, laterally supported in part by a steel frame, will be covered with soil to form a new terrace that ties into an existing wrap-around wood deck.  New site structures include retaining walls, concrete stairs, and a new orchid house.


 Read more

Status: Under Construction
Location: Mill Valley, CA, US
My Role: Project Engineer
Additional Credits: Principal Engineer: Paul, J. Pieri, P.E., BHW Engineers, L.L.C.
Landscape Architect: Hsiaochien Chuang, Senior Project Manager, Blasen Landscape Architecture
Builder: Jim Josephs Construction

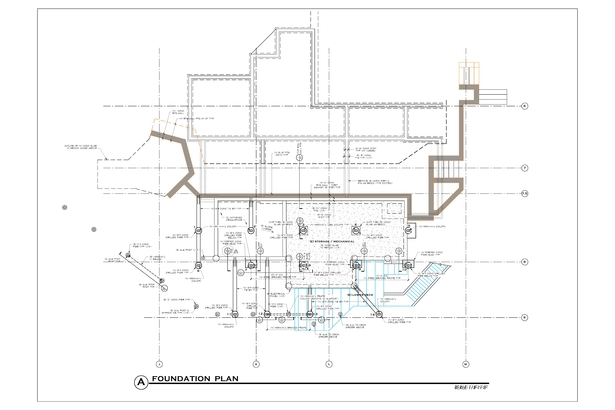

Foundation plan.
Foundation plan.

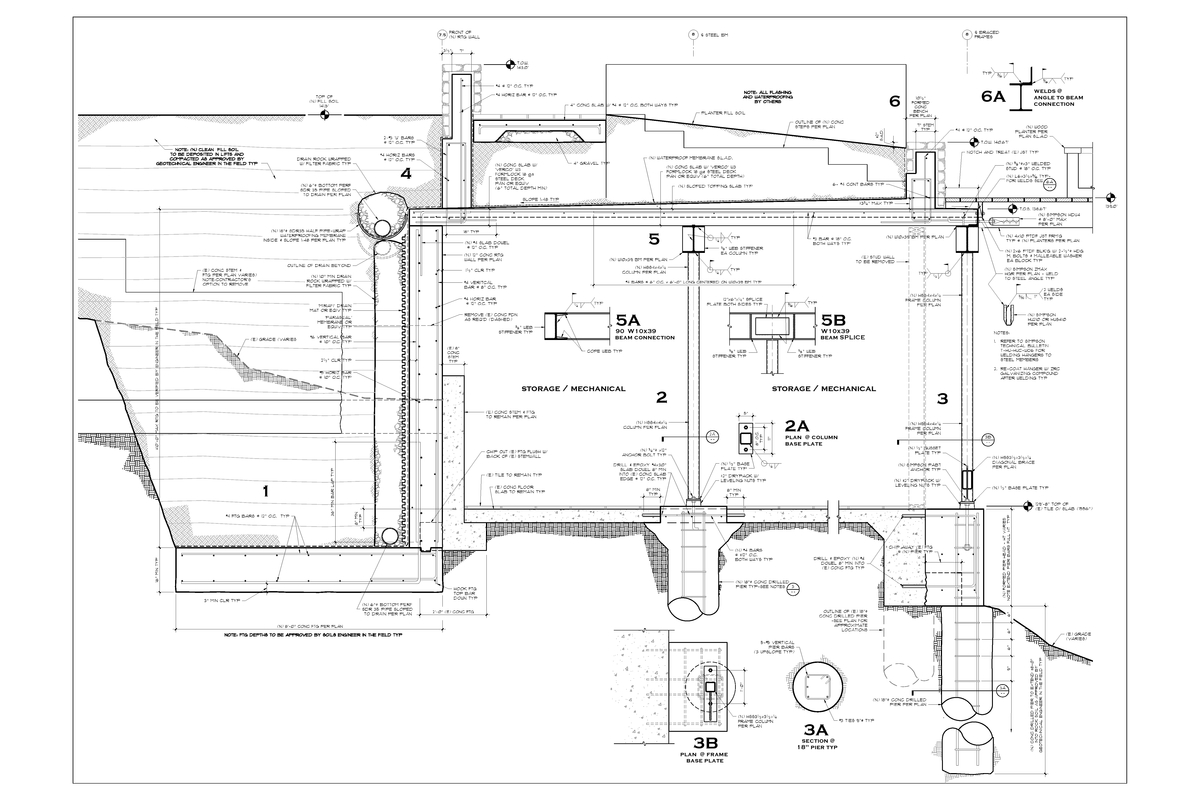

New concrete and steel deck with a new utility vault below. The new retaining wall is being formed against part of the existing foundation of the demolished house.
New concrete and steel deck with a new utility vault below. The new retaining wall is being formed against part of the existing foundation of the demolished house.

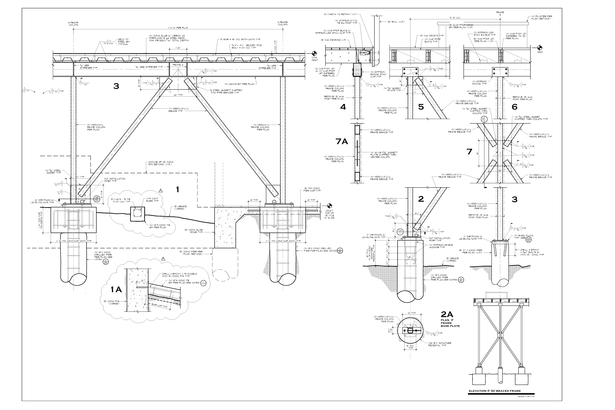

New steel braced frames.
New steel braced frames.

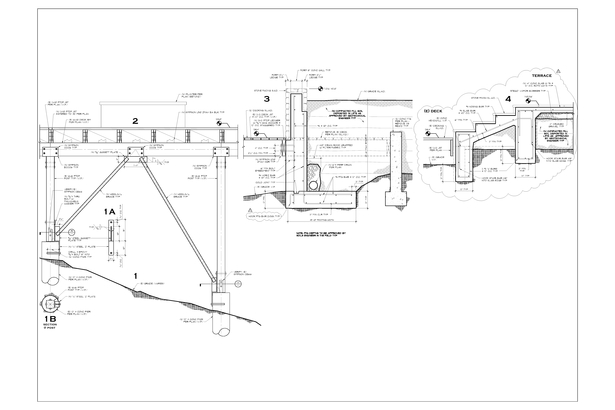

Details at the new steel braced frame supporting the wood deck, new retaining wall, plus concrete stair details
Details at the new steel braced frame supporting the wood deck, new retaining wall, plus concrete stair details

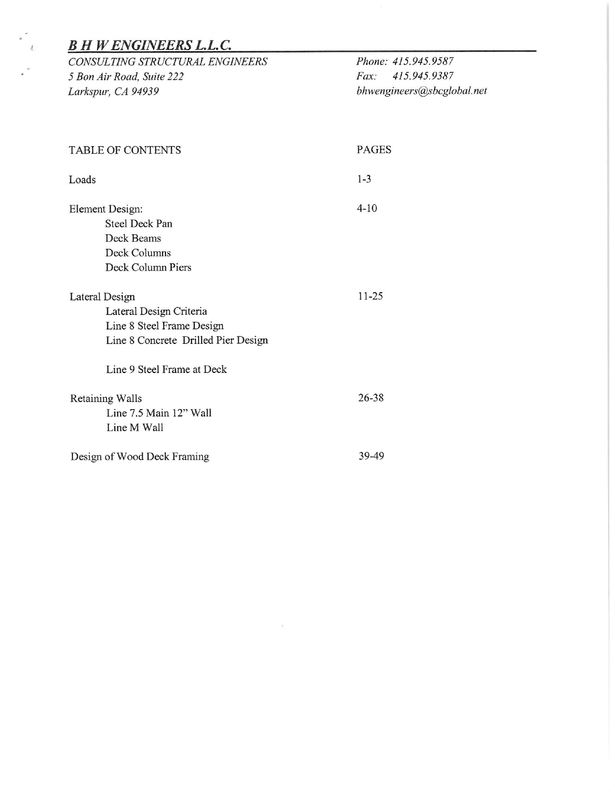

Structural calculations table of contents.
Structural calculations table of contents.

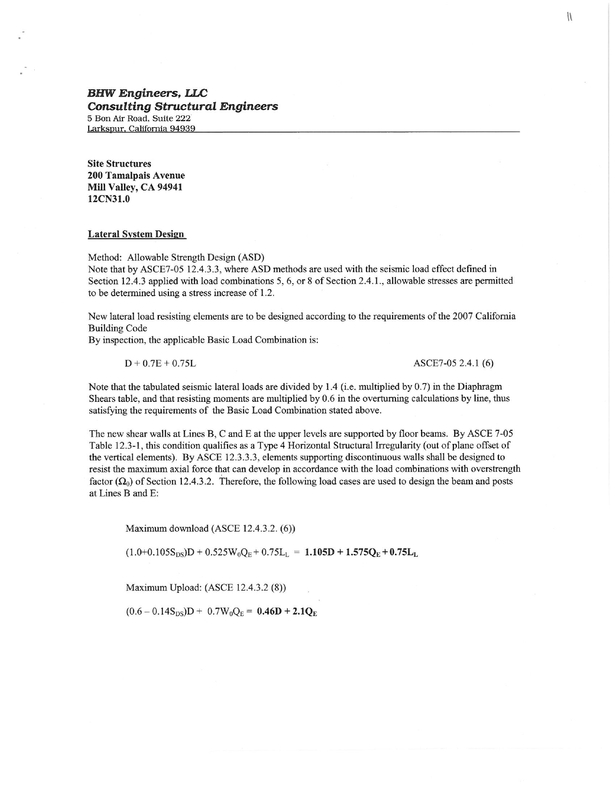

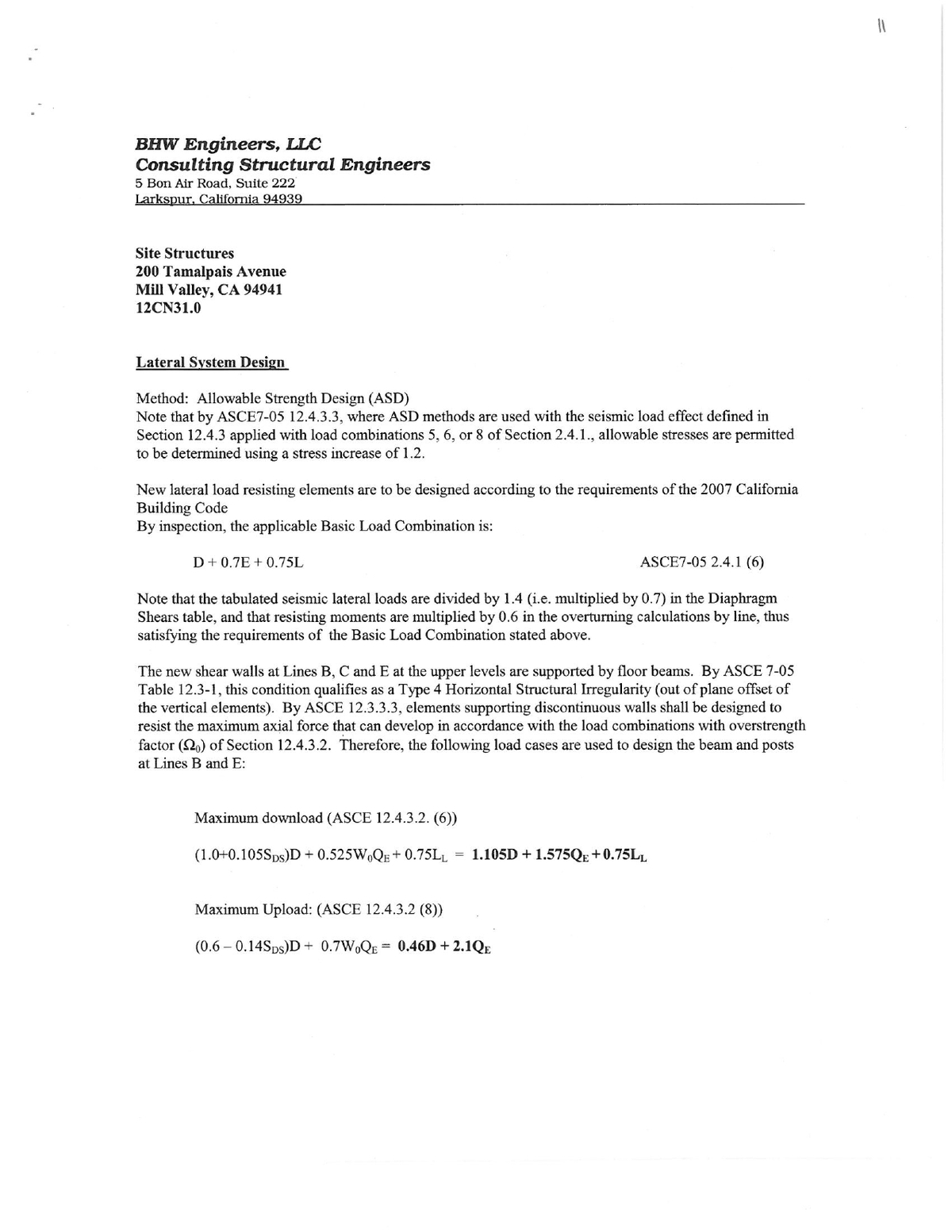

Lateral design statement.
Lateral design statement.

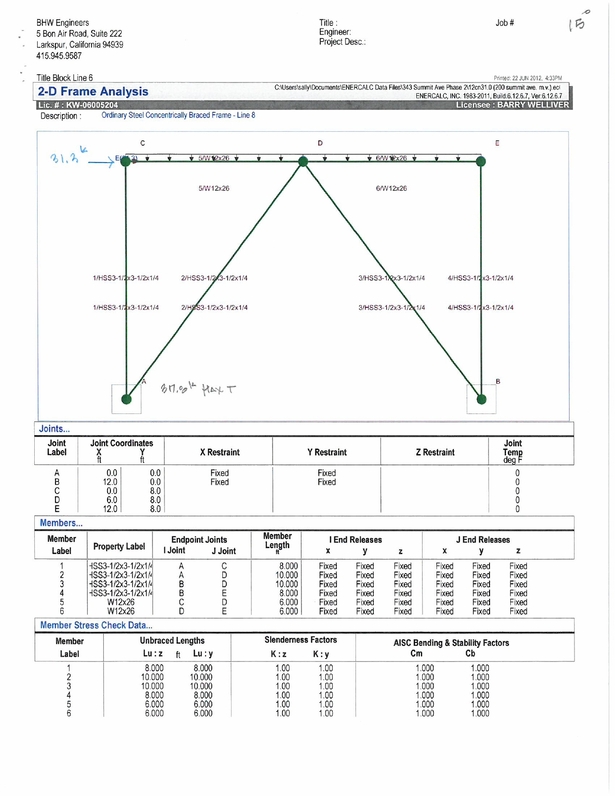

Example frame calculation.
Example frame calculation.
