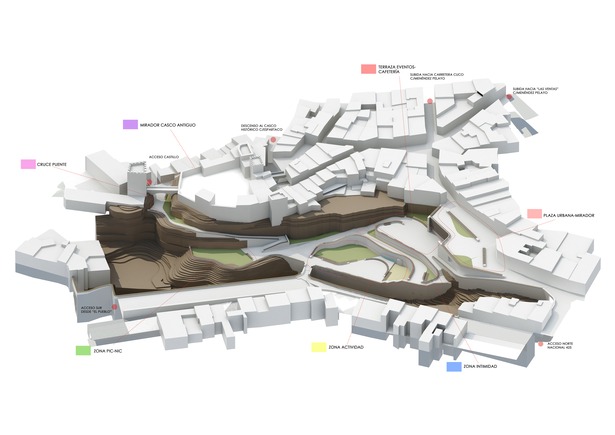

Axonometric view
Axonometric view
18 more images  ↓

Merging with the environment - Public park and Cultural Center in Buñol (Valencia, Spain)

The project is located in a complex topography, between the city’s historical castle and a gully. The goal of the project was to preserve the natural quality of the site while regenerating the area’s activity. To achieve this, the steepness of the topography is solved with a series of terraces, built with earth from the site itself in the form of rammed earth walls, that organize the different spaces and allow the visitor to easily move around the park. The cultural center is a consequence of this logic, merging into the terrain as the rest of the terraces, while generating the access to the park and public plaza in its roof with views towards the landscape. The building separates from the existing wall to obtain natural sunlight and cross ventilation. Earth construction reduces the building’s ecological footprint: reducing energy cost and CO2 emissions while passively saving energy thanks to its large thermal inertia. To relate the different areas of the park and solve the furniture, a system of wooden pieces is designed, that adapt to the irregular forms of the site thanks to its orthogona disposition and vary according to its function. All the vegetation used is local and most of it was preserved from the original park. A rainwater storage system is designed for irrigation.


 Read more

Status: Built
Location: Buñol, ES

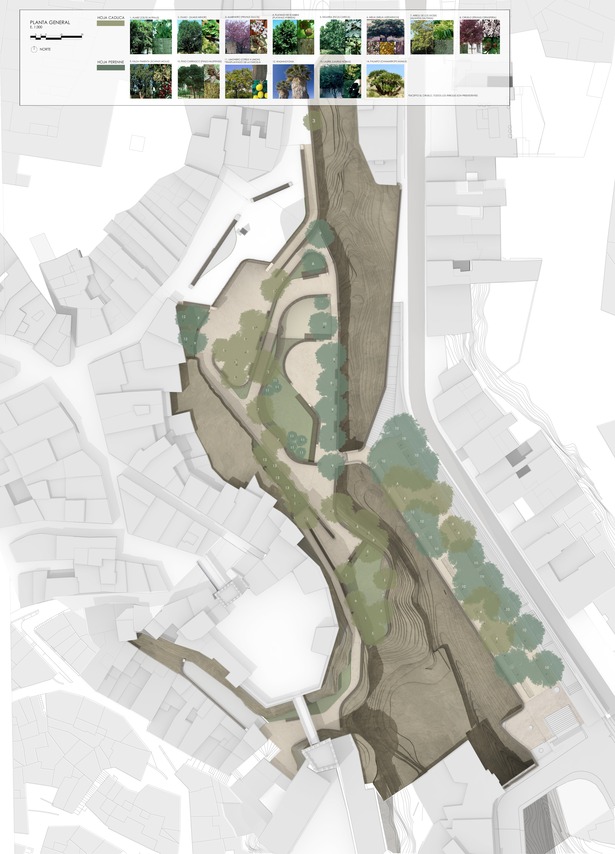

General Plan
General Plan
Section1
Section1

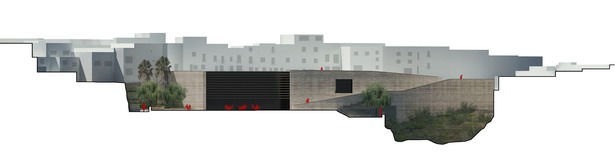

Section2
Section2

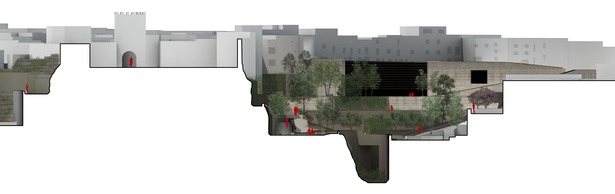

Section3
Section3

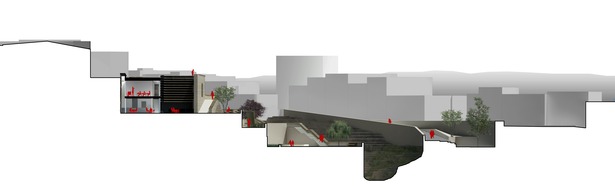

Section4
Section4

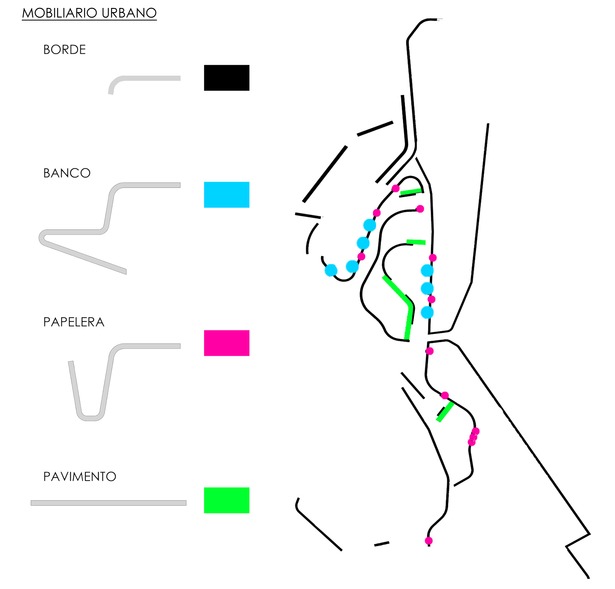

Furniture Diagram
Furniture Diagram

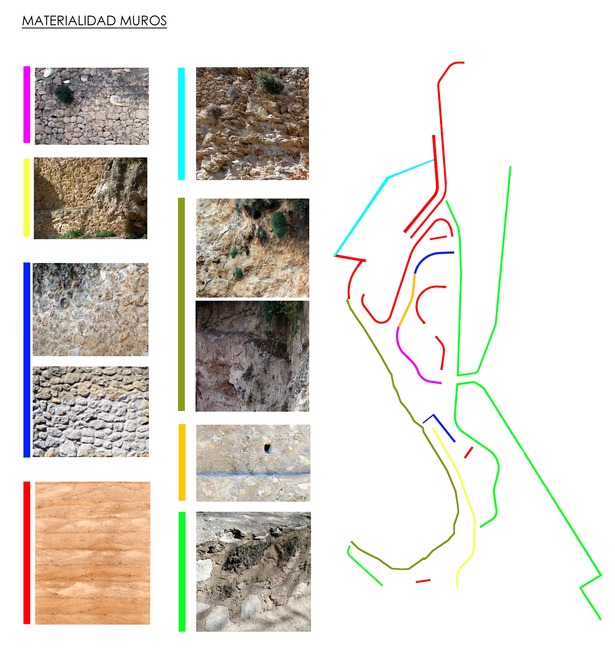

Materials diagram
Materials diagram

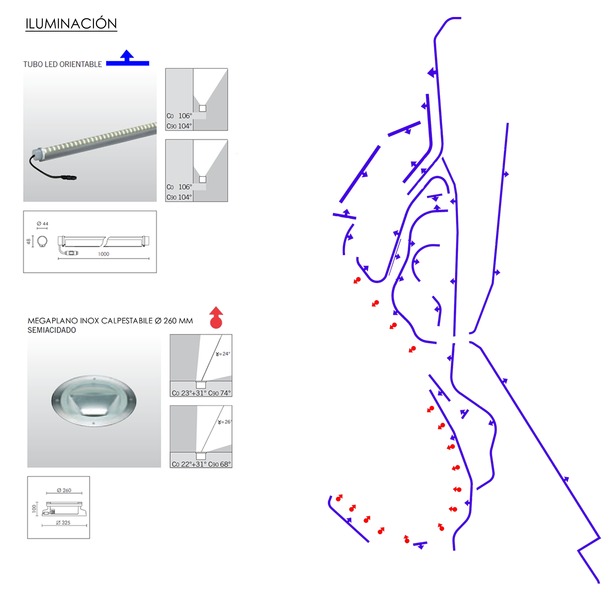

Light Diagram
Light Diagram

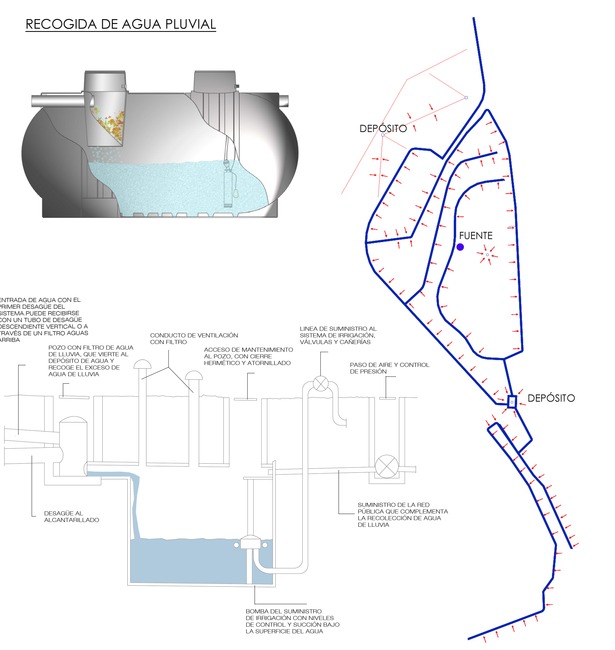

Water harvesting diagram
Water harvesting diagram

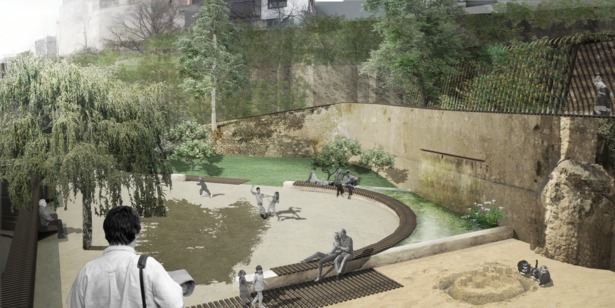

Perspective from activity area
Perspective from activity area
Perspective from bridge
Perspective from bridge

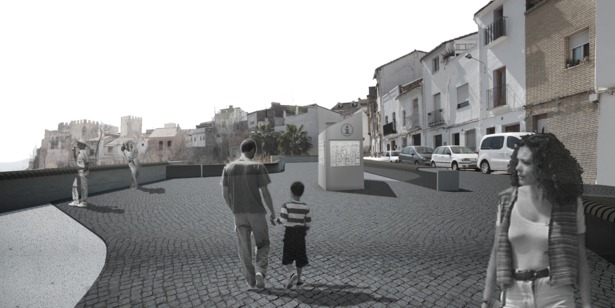

Perspective from rooftop plaza
Perspective from rooftop plaza

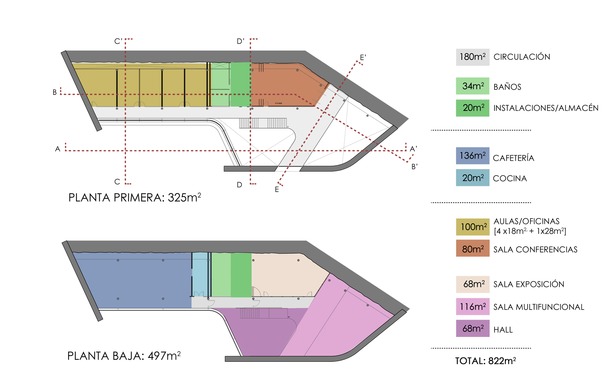

Cultural center program
Cultural center program

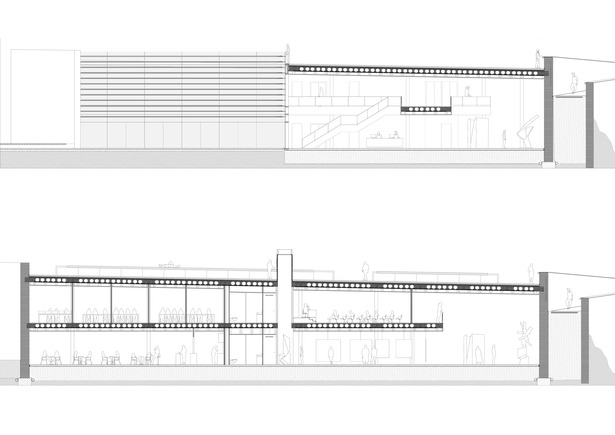

Cultural Center Sections
Cultural Center Sections

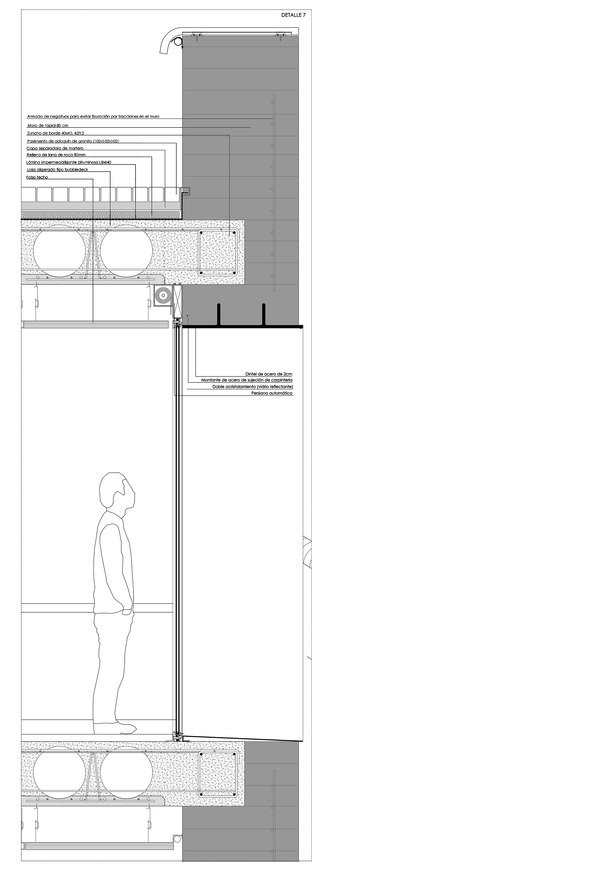

Cultural center Detail
Cultural center Detail

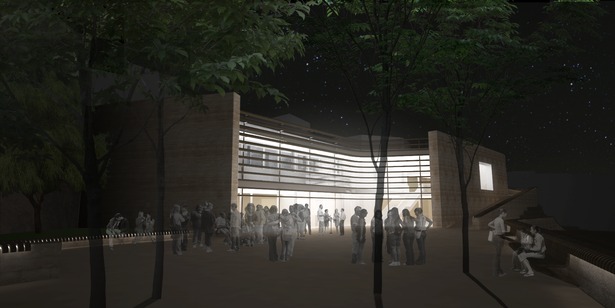

Cultural center at night
Cultural center at night

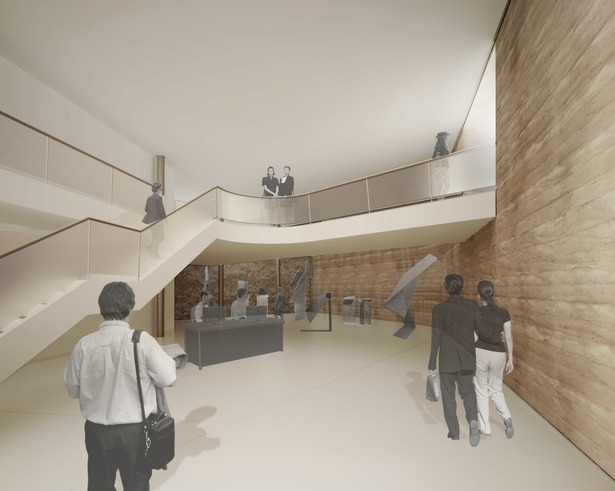

Cultural center hall
Cultural center hall
Cultural center first floor
Cultural center first floor
