ShowCase: Herta and Paul Amir Building, Tel Aviv Museum of Art

Site plan PL00: 1 lobby, 2 bookstore, 3 coat check, 4 lightfall, 5 architecture and design gallery I, 6 architecture and design gallery II, 7 architecture and design gallery III, 8 library, 9 architecture and design curatorial offices PL01: 10 israeli art promenade, 11 gallery of israeli art I (pre-1948), 12 gallery of israeli art II (1948-1970), 13 gallery of israeli art III (1970-present), 14 video room, 15 israeli art curatorial offices PL02: 16 classrooms, 17 photography gallery, 18 photography archive and study room PL-4: 19 auditorium, 20 special exhibition gallery, 21 reception hall, 22 café/bar PL-2: 23 classrooms, 24 loading dock, 25 preparation kitchen PL-1: 26 glass connector, 27 lobby, 28 gallery, 29 gallery, 30 gallery, 31 conference room, 32 restaurant, 33 restaurant terrace, 34 sculpture garden, 35 library stacks, 36 classroom, 37 library offices PLRF Elevation East Elevation North Elevation West Elevation South Section A Section B Section C Section key Diagram lightfall Construction detail, lightfall Construction detail, attachment Construction detail, panel

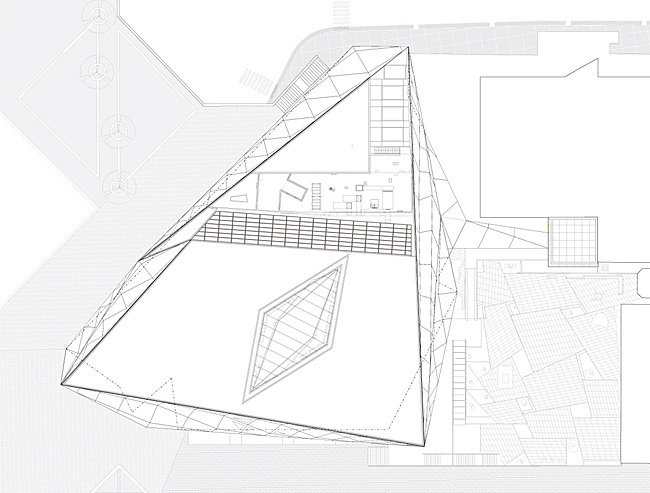

PLRF

PLRF
