sound reflex

This project explores the potential for lightweight kinetic architecture.  Using both physical prototypes and parametric models, a system of mechanized units is developed to produce a transformable structure.  The process began by testing connections between paper strips to create a laminated, shell-like structure.  By changing connection points along a continuous range and producing fixed prototypes of each result, we visualize stages along a potential range of motion. Two sliding connections comprised of a servo fixed to a geared track, one parallel near the strip’s edge and one transverse at the center, produce all of the variation we use for the design.  The movement is programmed through Arduino to respond to sound using audio sensors.

The architectural proposal uses this system to create sonically responsive public space.  A performance space for subway buskers creates enclosure for the Civic Center BART station in SF.  As a sensor network locates musicians within the space, the structure responds accordingly, forming various listening zones based on acoustic reflection.


 Read more

Status: School Project
Location: San Francisco, CA, US
Additional Credits: Neil Wiita, MArch 2012

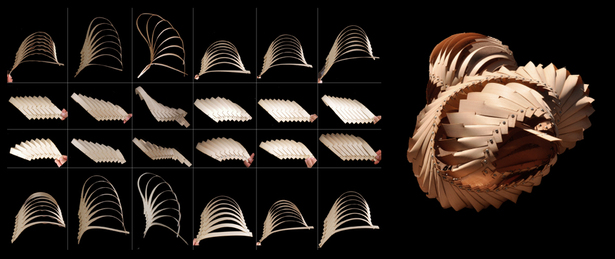

prototypes
prototypes

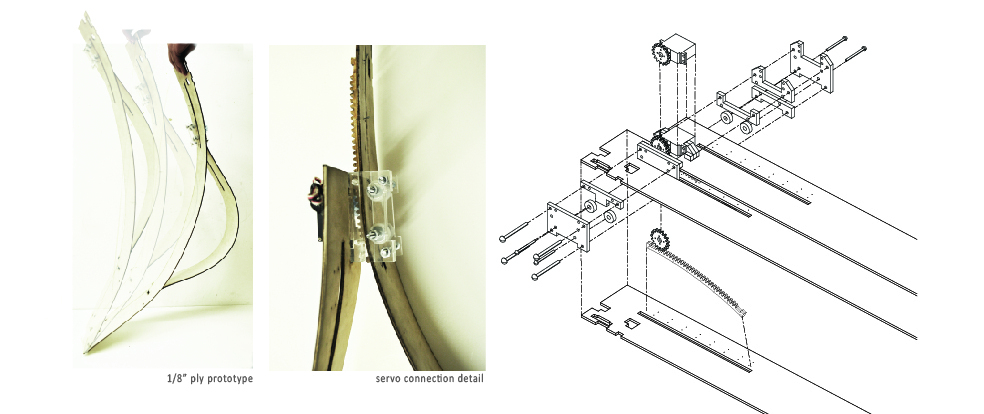

servo connection detail
servo connection detail

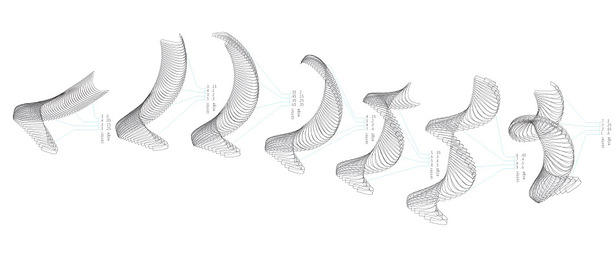

transformation of parametric model
transformation of parametric model

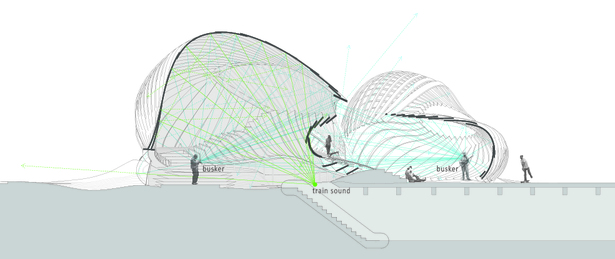

sound section
sound section

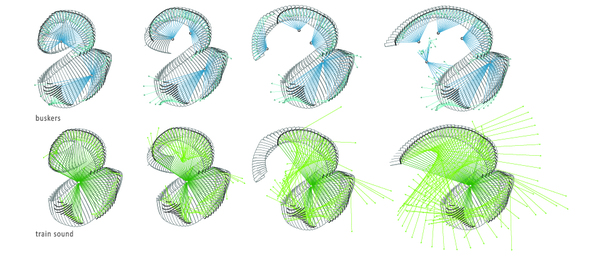

plan transformations in response to sound
plan transformations in response to sound
interior of BART station enclosure
interior of BART station enclosure

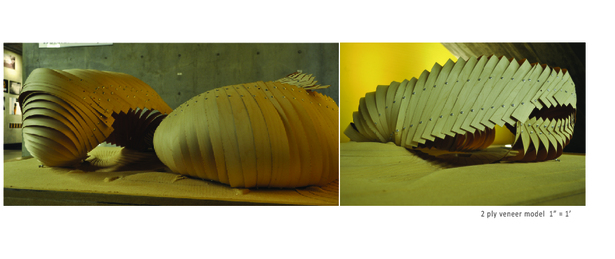

veneer model of proposal
veneer model of proposal
