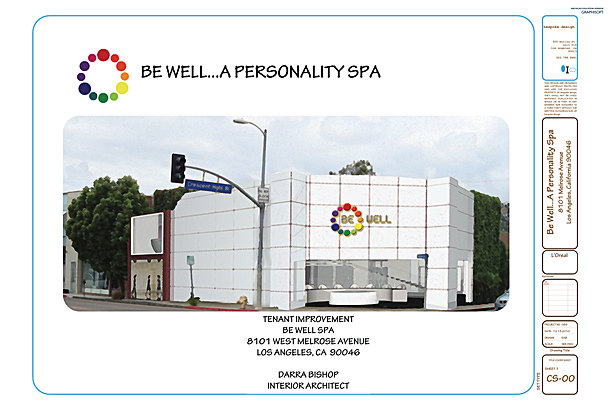

CS-00 Title Cover Sheet
CS-00 Title Cover Sheet
21 more images  ↓

Be Well Construction Documents

A natural extension of the Be Well design project, these pages document the construction plan, power plan, ADA requirements and construction details of the spa.


 Read more

Status: Unbuilt
Location: Melrose Avenue, Los Angeles

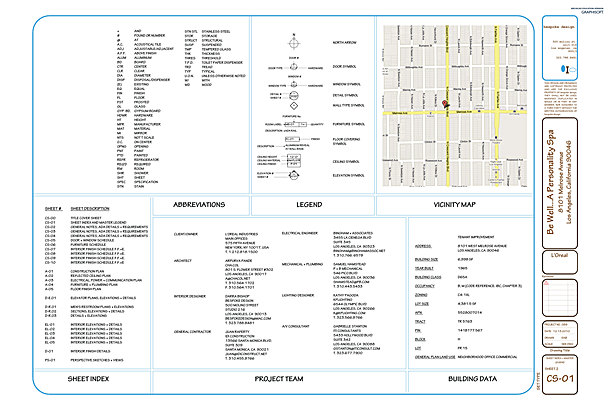

CS-01 Sheet Index + Master Legend
CS-01 Sheet Index + Master Legend

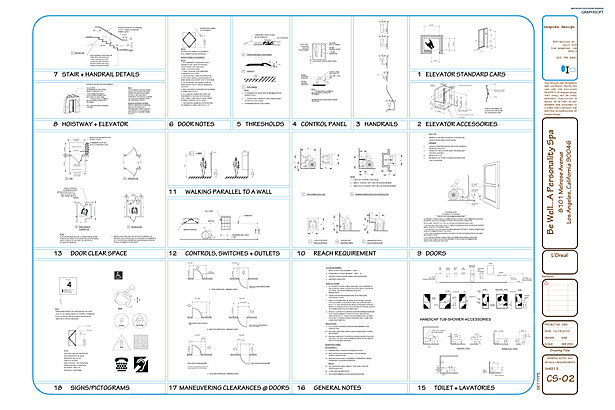

CS-02 General Notes, ADA Details + Requirements
CS-02 General Notes, ADA Details + Requirements

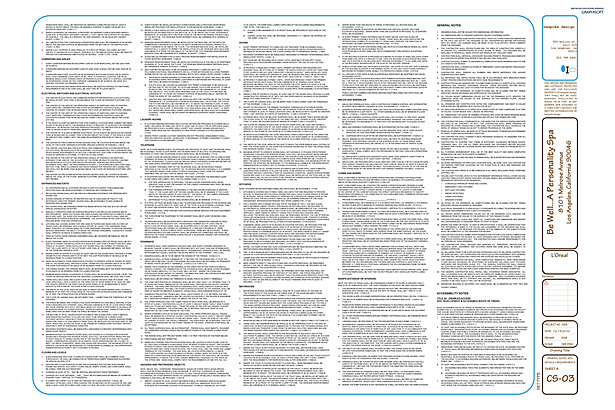

CS-03 General Notes, ADA Details + Requirements
CS-03 General Notes, ADA Details + Requirements

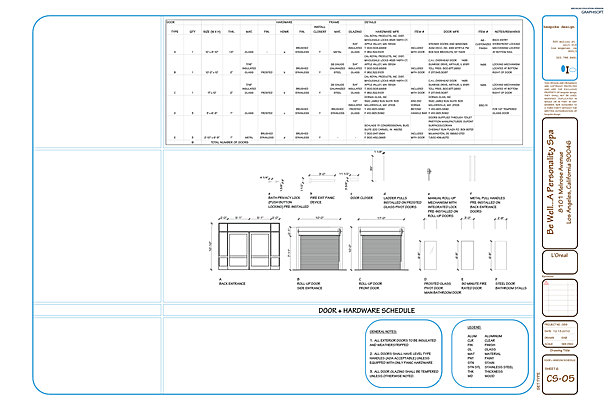

CS-05 Door + Window Schedule
CS-05 Door + Window Schedule

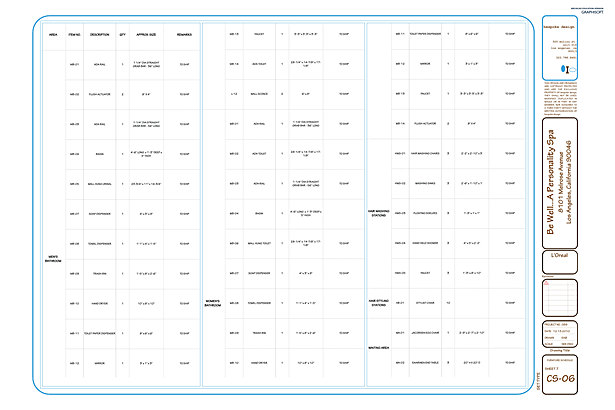

CS-06 Furniture Schedule
CS-06 Furniture Schedule

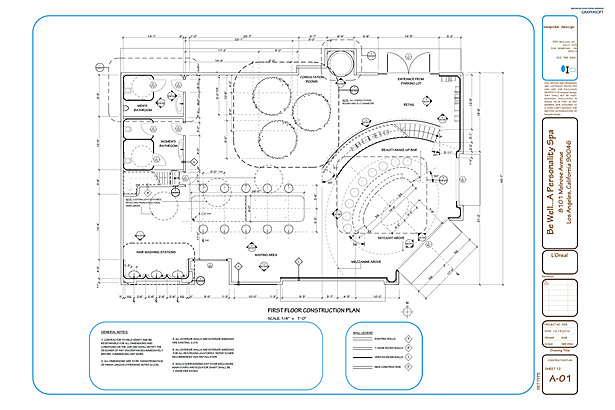

A-01 First Floor Construction Plan
A-01 First Floor Construction Plan

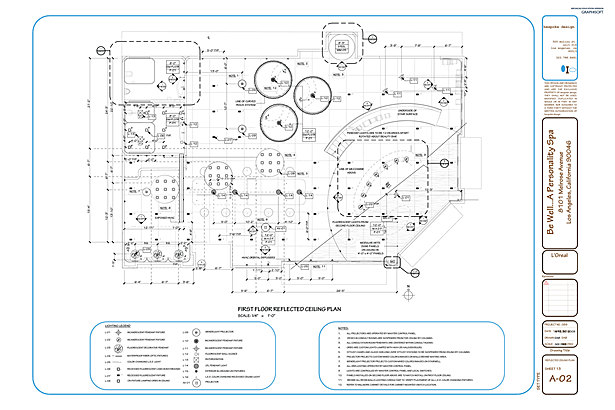

A-02 First Floor RCP
A-02 First Floor RCP

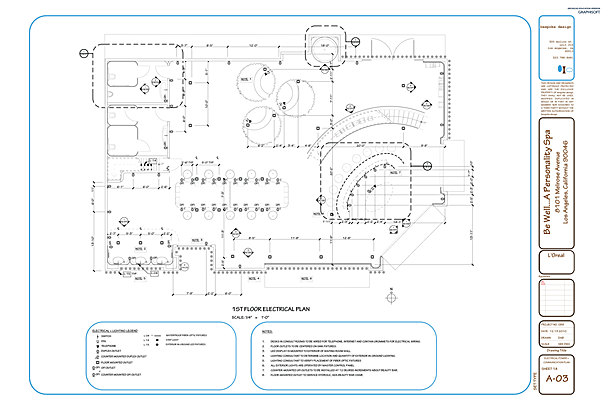

A-03 Electrical Power + Communication Plan
A-03 Electrical Power + Communication Plan

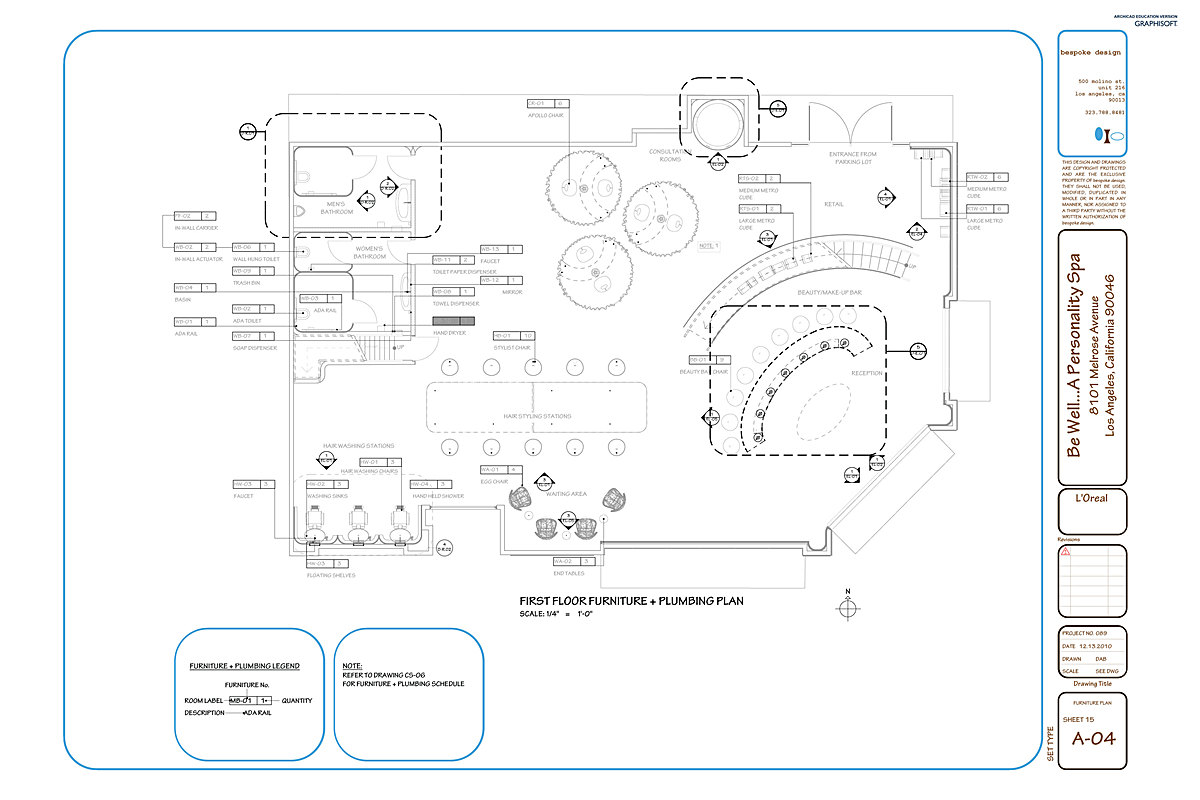

A-04 Furniture Plan
A-04 Furniture Plan

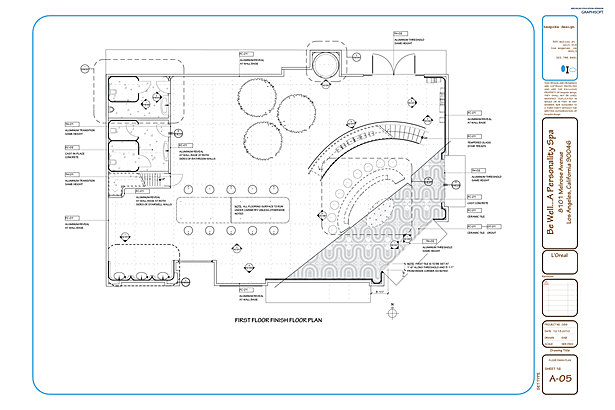

A-05 Floor Finish Plan
A-05 Floor Finish Plan

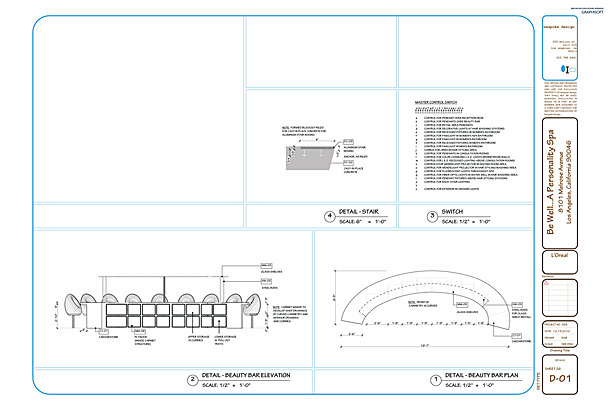

D-01 Details
D-01 Details

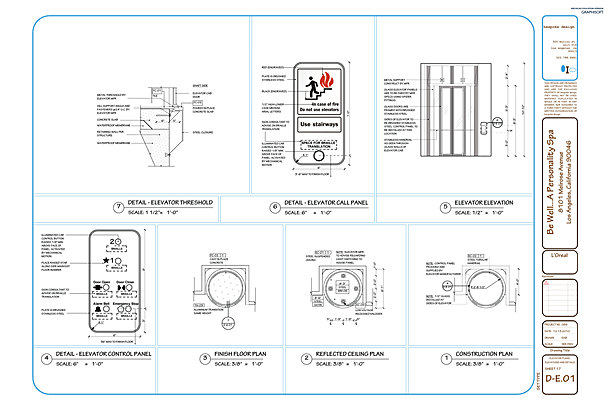

D-E.01 Elevator Plans, Elevations + Details
D-E.01 Elevator Plans, Elevations + Details

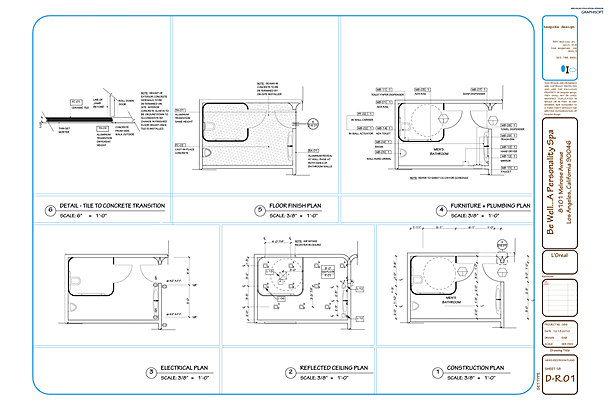

D-R.01 Men's Restroom Plans
D-R.01 Men's Restroom Plans
D-R.02 Men's Restroom Sections, Elevations + Details

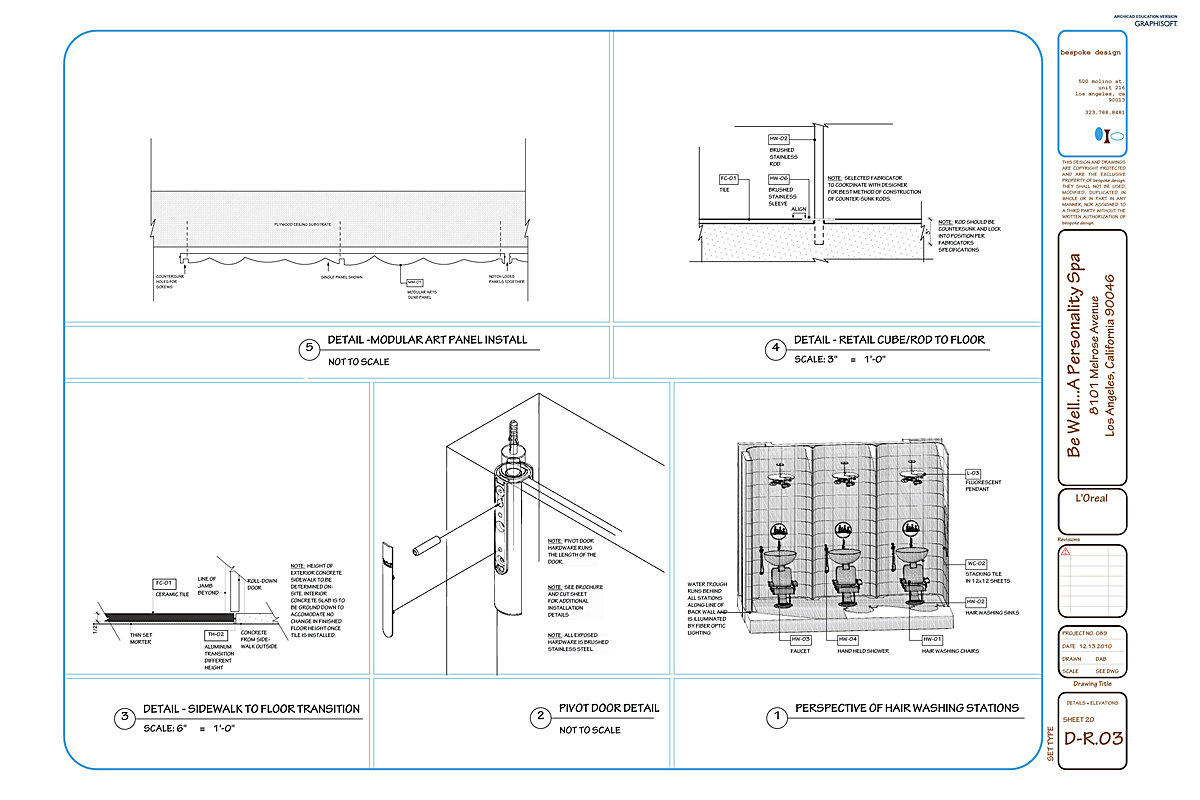

D-R.03 Men's Restroom Details, Elevations + Perspective Dwg
D-R.03 Men's Restroom Details, Elevations + Perspective Dwg

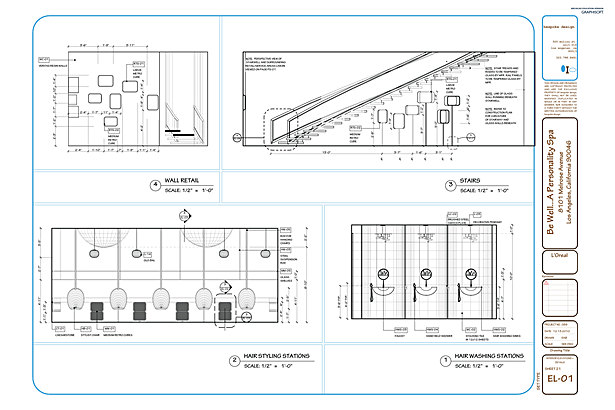

EL-01 Interior Elevations + Details
EL-01 Interior Elevations + Details

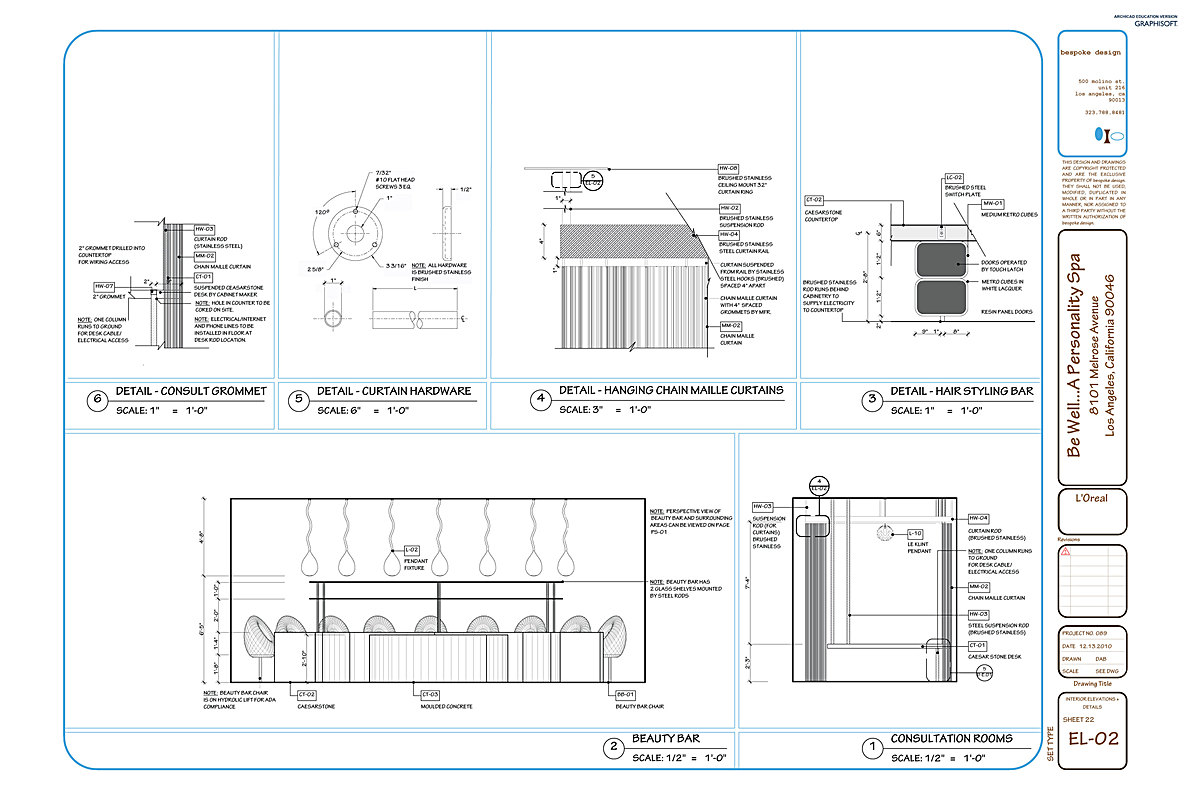

EL-02 Interior Elevations + Details
EL-02 Interior Elevations + Details

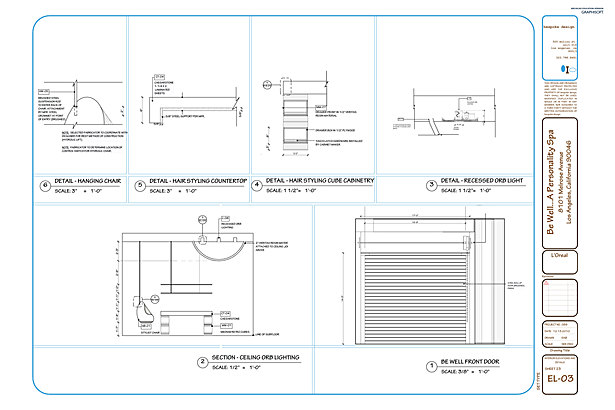

EL-03 Interior Elevations + Details
EL-03 Interior Elevations + Details

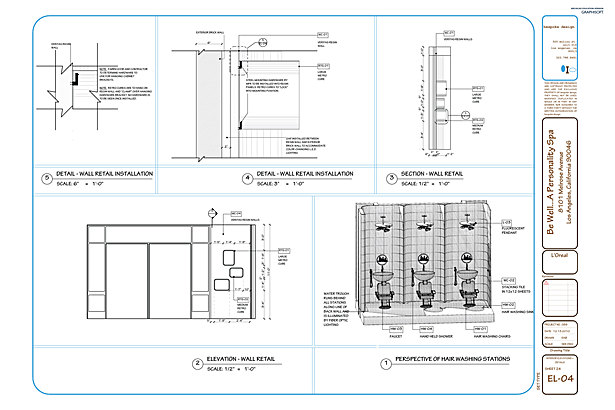

EL-04 Interior Elevations, Details + Perspective Dwg
EL-04 Interior Elevations, Details + Perspective Dwg

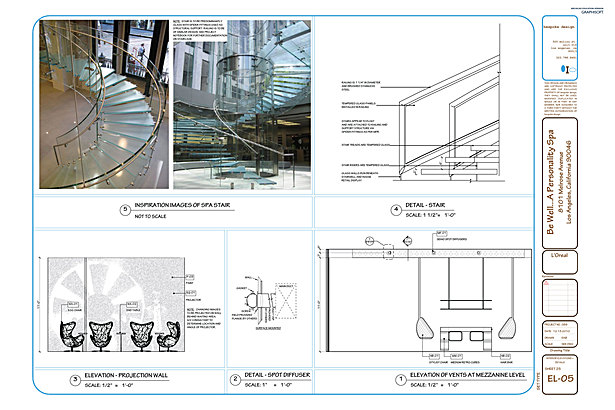

EL-05 Interior Elevations, Details + Project Stair Ideas
EL-05 Interior Elevations, Details + Project Stair Ideas

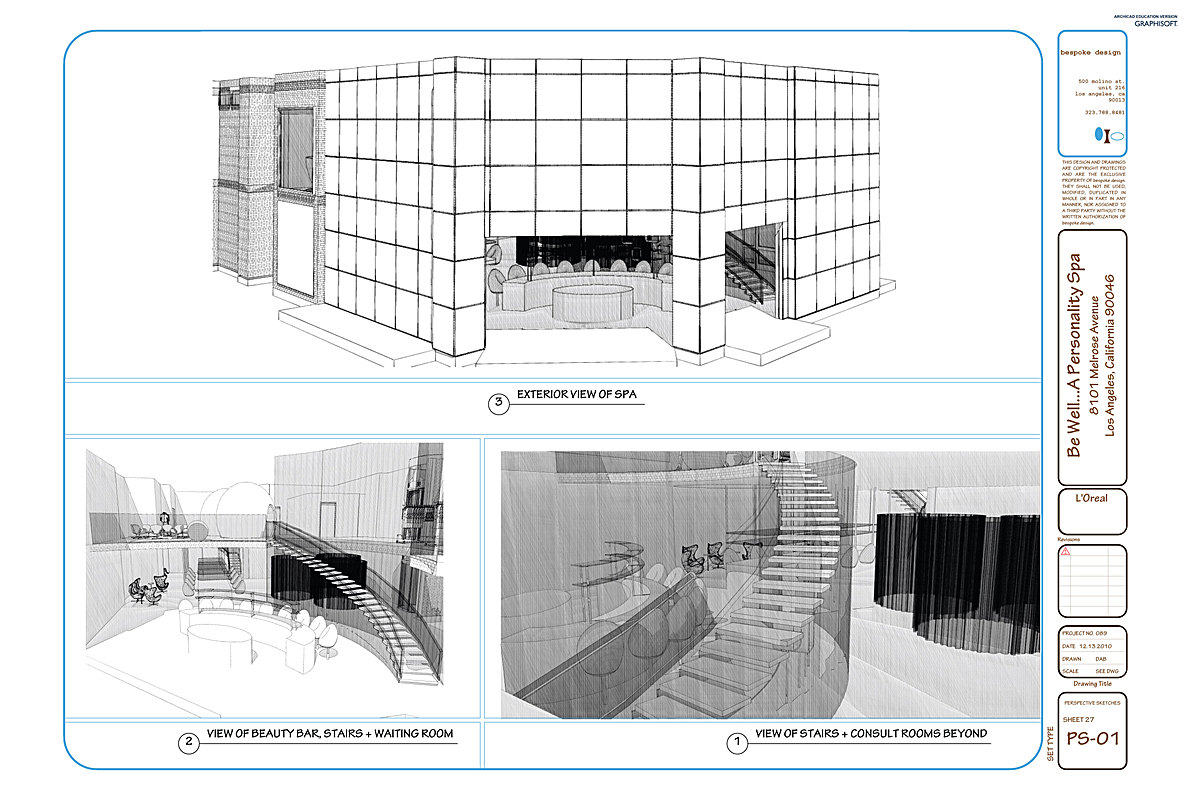

PS-01 Perspective Sketches
PS-01 Perspective Sketches
