Reconstruction and ADA upgrade of structurally deficient bridge span and stair connecting public park with riverfront esplanade. Illustration of existing site context.
Reconstruction and ADA upgrade of structurally deficient bridge span and stair connecting public park with riverfront esplanade. Illustration of existing site context.
5 more images  ↓

E81st Pedestrian Bridge over FDR Drive

Replacement of the E81st Street pedestrian bridge over the FDR Drive.


 Read more

Status: Under Construction
Location: New York, NY
My Role: Project Architect / Manager / Lead Designer

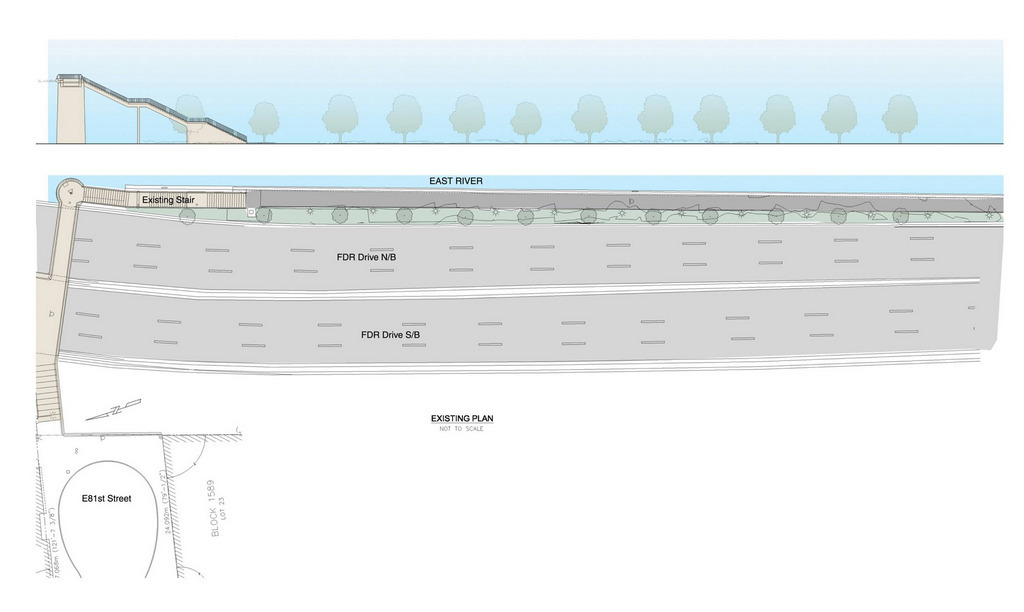

Illustration of existing site plan and elevation.
Illustration of existing site plan and elevation.

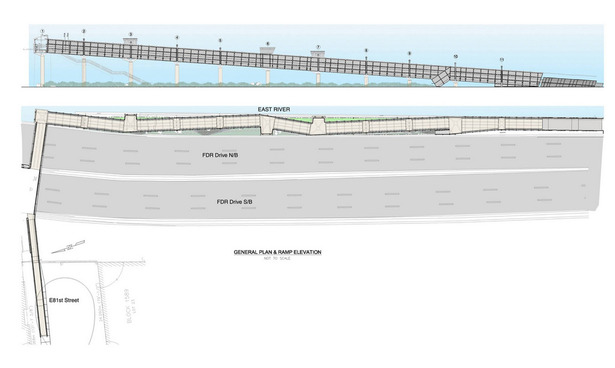

Illustration of proposed site plan and elevation showing ADA compliant ramp span along riverside.
Illustration of proposed site plan and elevation showing ADA compliant ramp span along riverside.

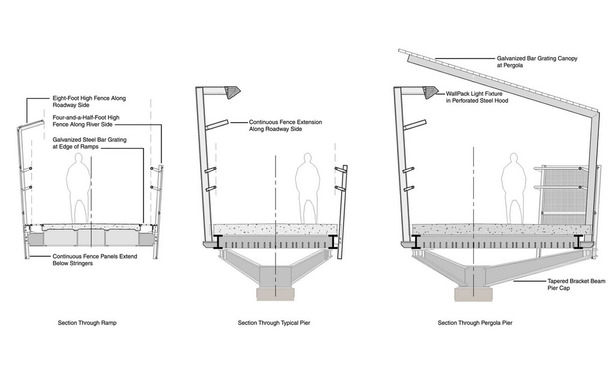

Cross sections through ramp, landing, and overlook pier with pergola.
Cross sections through ramp, landing, and overlook pier with pergola.

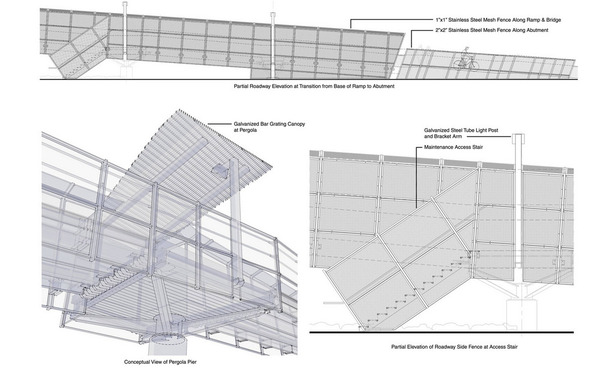

Schematic ramp elevation and conceptual detail illustration.
Schematic ramp elevation and conceptual detail illustration.
Contextual rendering of proposed ramp structure along East River waterfront.
Contextual rendering of proposed ramp structure along East River waterfront.
