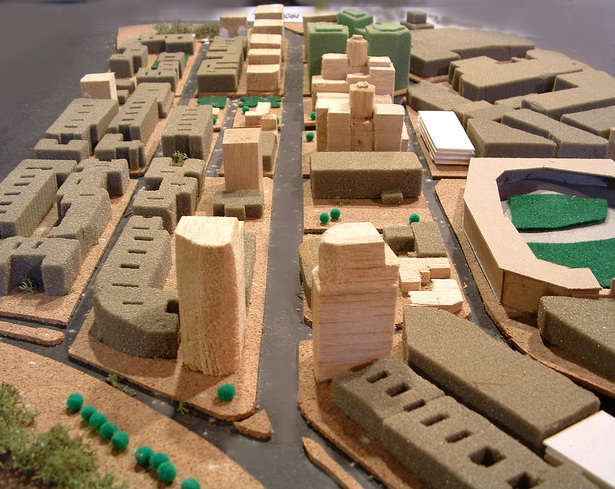

Indicating with new structures where you leave or enter Fenway.
Indicating with new structures where you leave or enter Fenway.
6 more images  ↓

Fenway School project.

This is a School sample where I exposed some of my talent being developed during the classes and home studies.


 Read more

Status: School Project
Location: Fenway community, Boston, MA.
My Role: Create a threshold between Fenway and the rest of the surrounding cities.

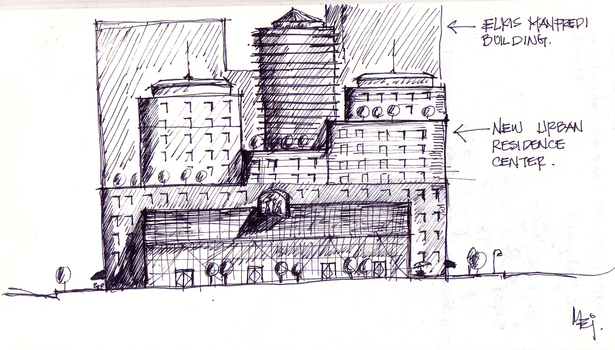

A sketch of my proposed commercial center in the middle of Fenway .
A sketch of my proposed commercial center in the middle of Fenway .

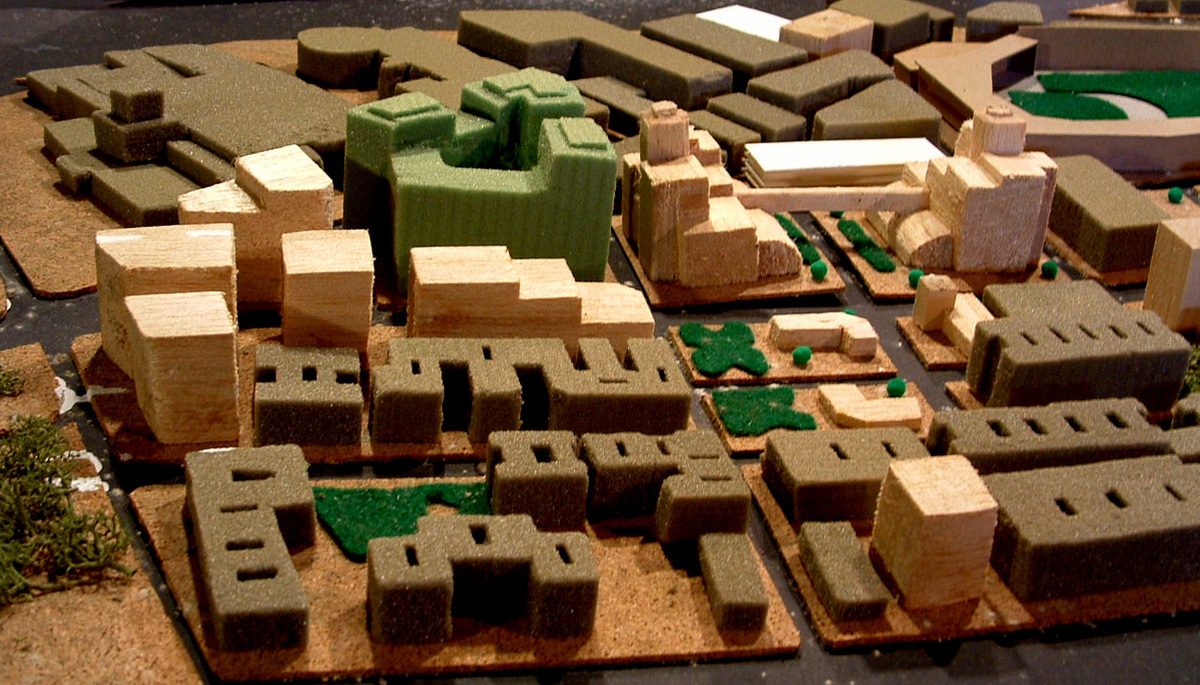

West Side elevated view.
West Side elevated view.

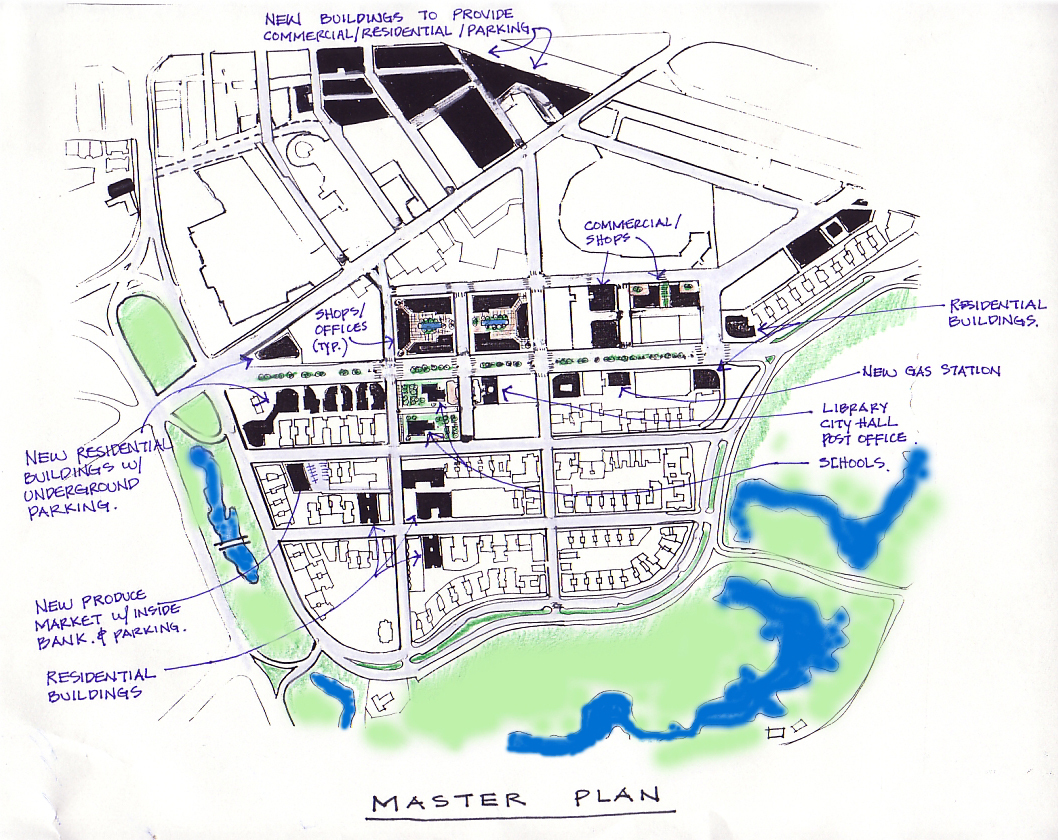

Master plan
Master plan

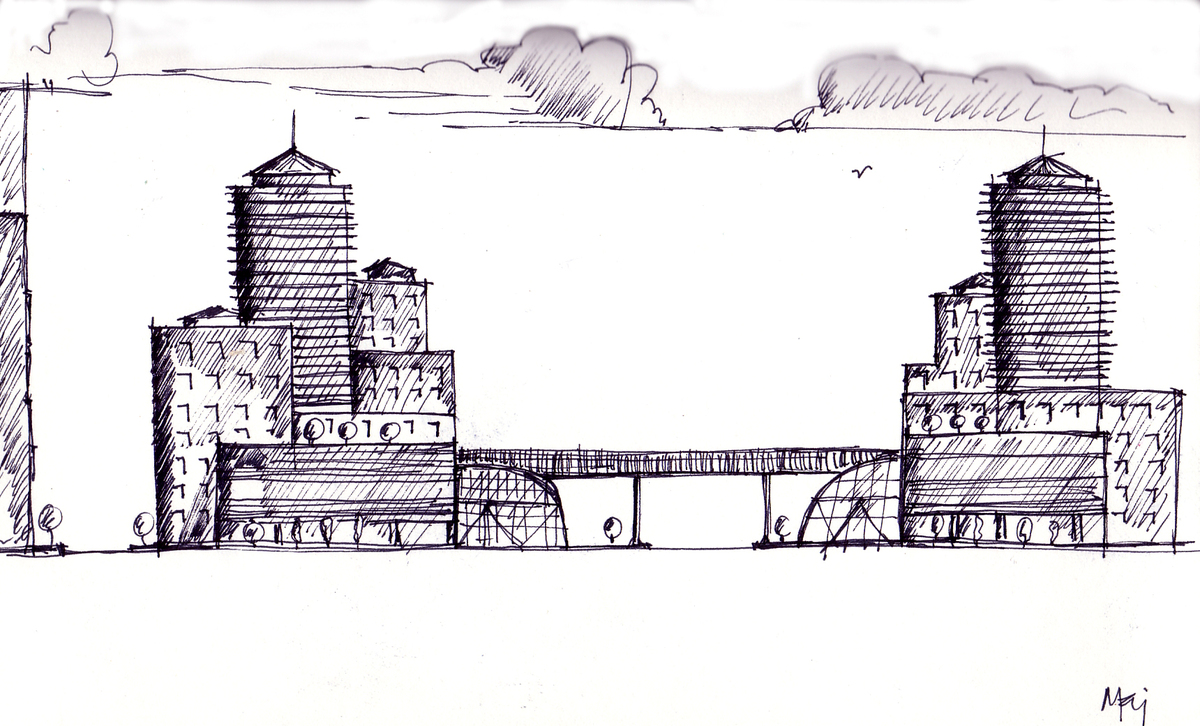

Side sketch
Side sketch

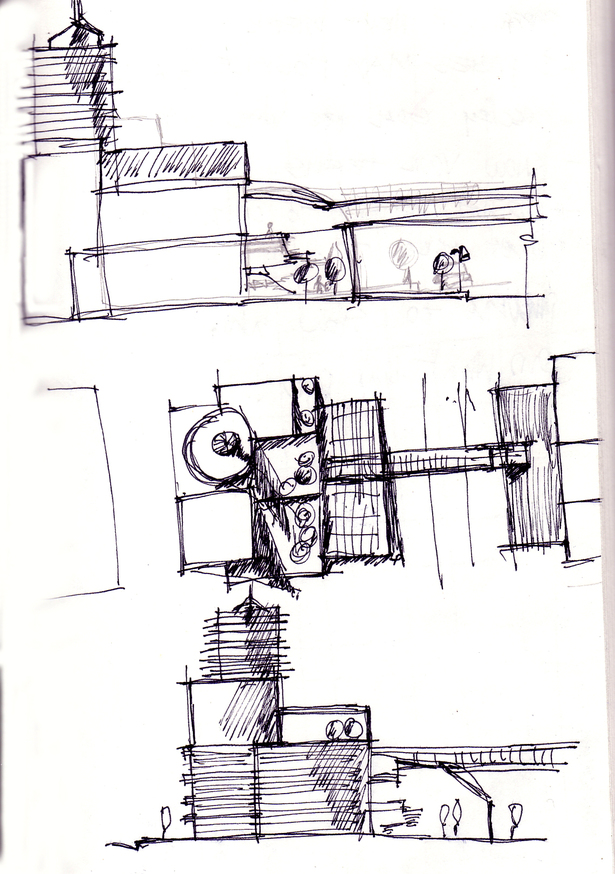

Top and side sketch
Top and side sketch

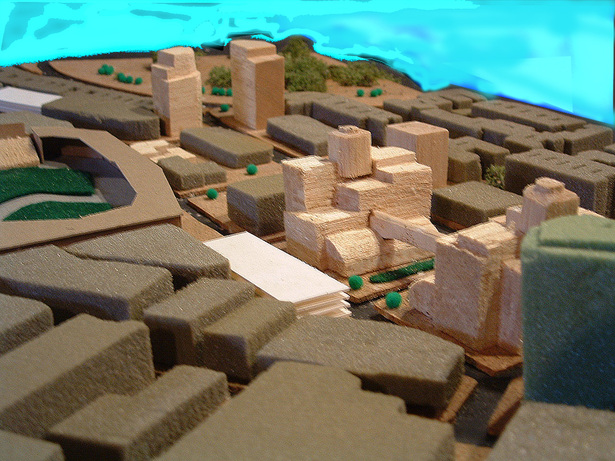

The Commercial Center block
The Commercial Center block
