Lindsey Warner

Lindsey Warner

Chicago, IL, US

anchor

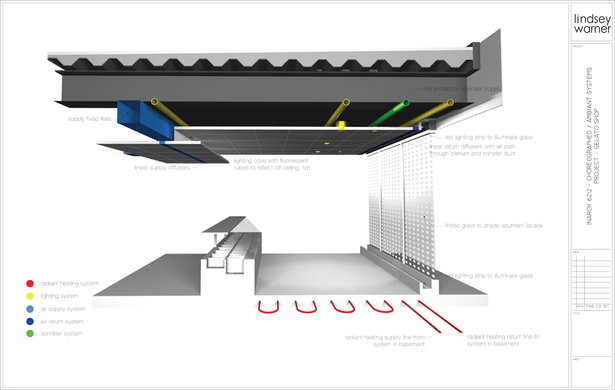

Partial Systems Section
Partial Systems Section
8 more images  ↓

Gelato Shop

The proposed addition includes contemporary technology and exposed construction materials to suggest progression with an old technique. The south wall consists of a curtain wall of fritted glass with a modern pattern that plays on the characterization of the buildings in the surrounding area. This allows the addition to be visible for pedestrian traffic without comprimising the interior environment. Radient heating is integrated to take advantage of the adjacent patio during winter months and provide effective heating for the public.


 Read more

Status: School Project
Location: Chicago, IL, US

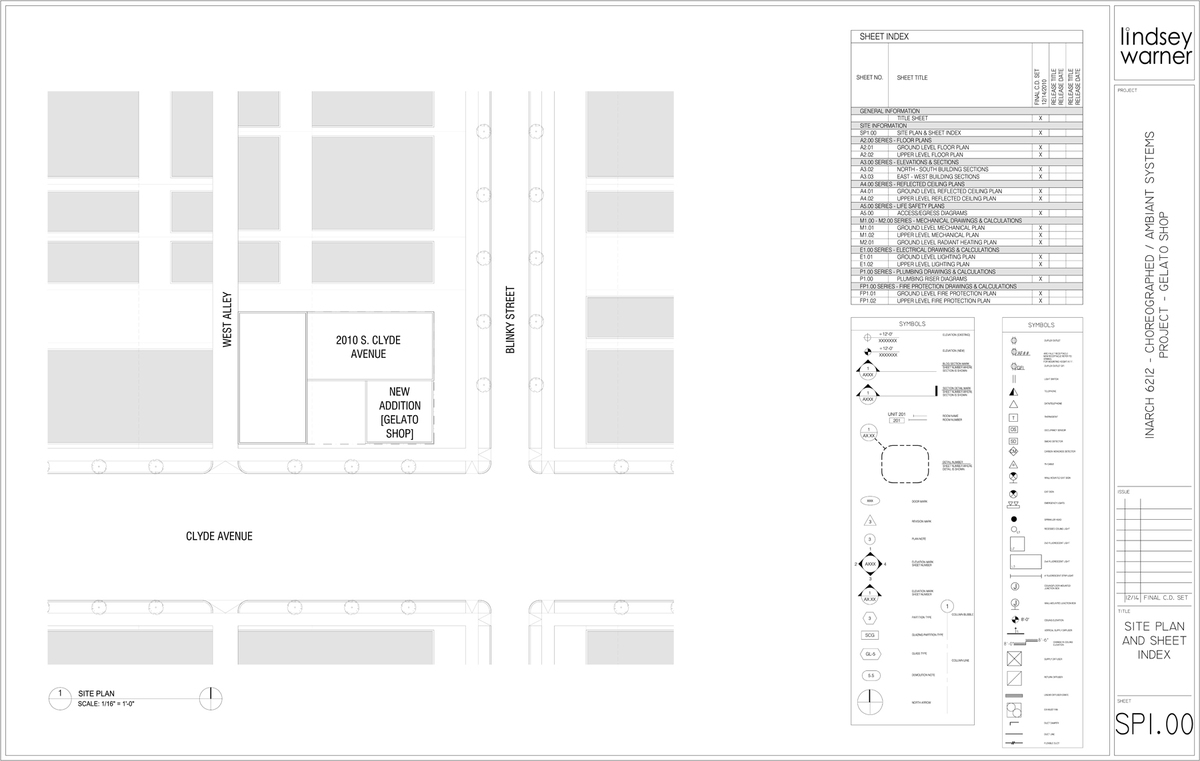

Site Plan
Site Plan

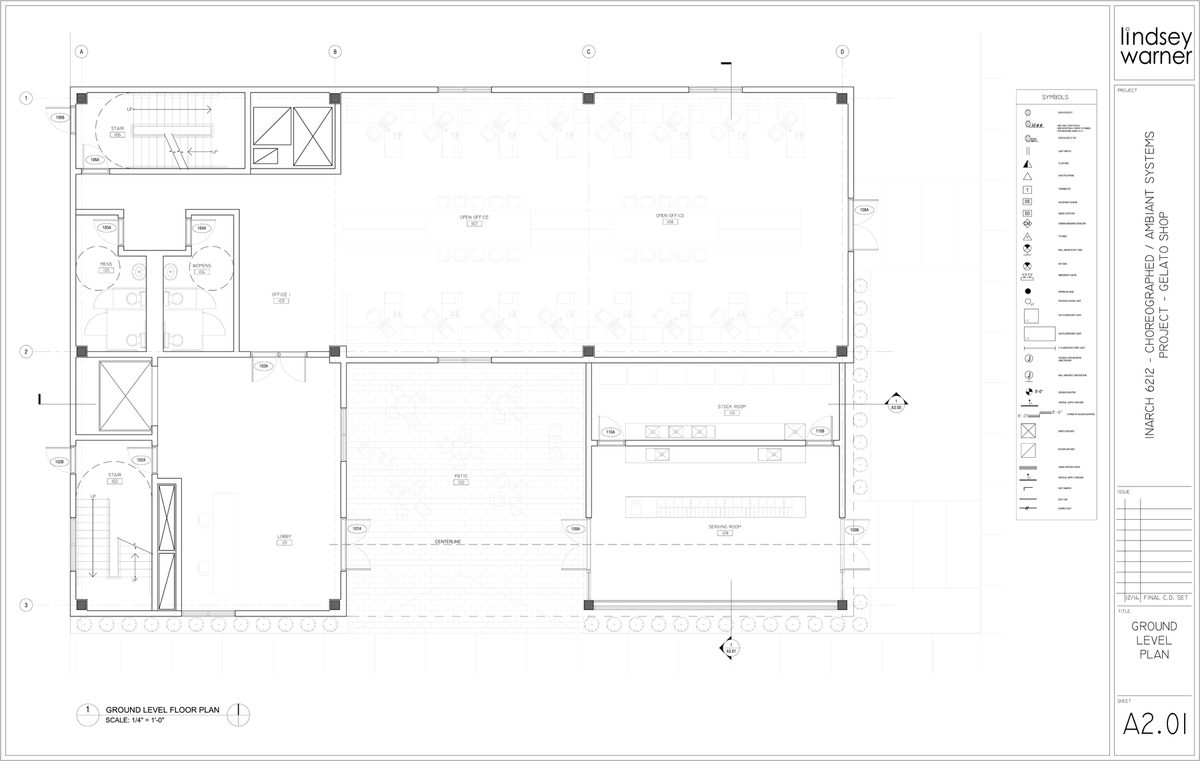

Ground Floor Plan
Ground Floor Plan

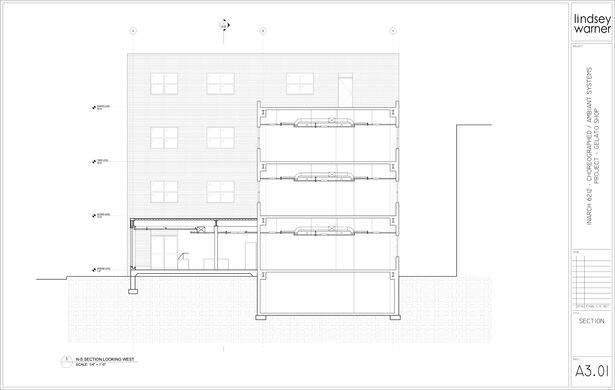

Transverse Section
Transverse Section

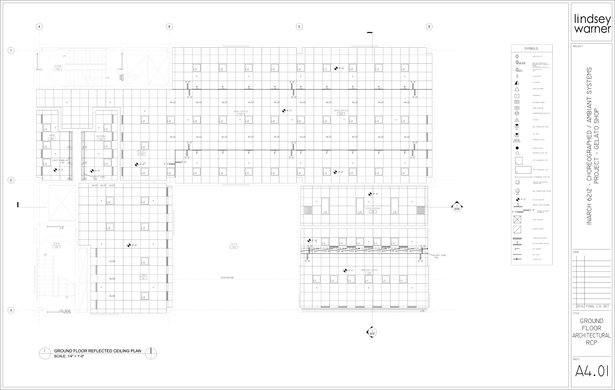

Reflected Ceiling Plan
Reflected Ceiling Plan

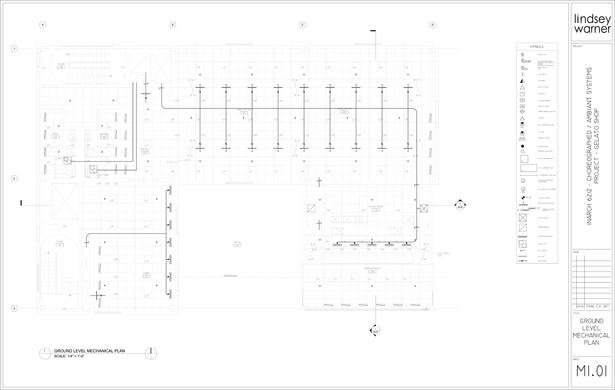

Mechanical Plan
Mechanical Plan

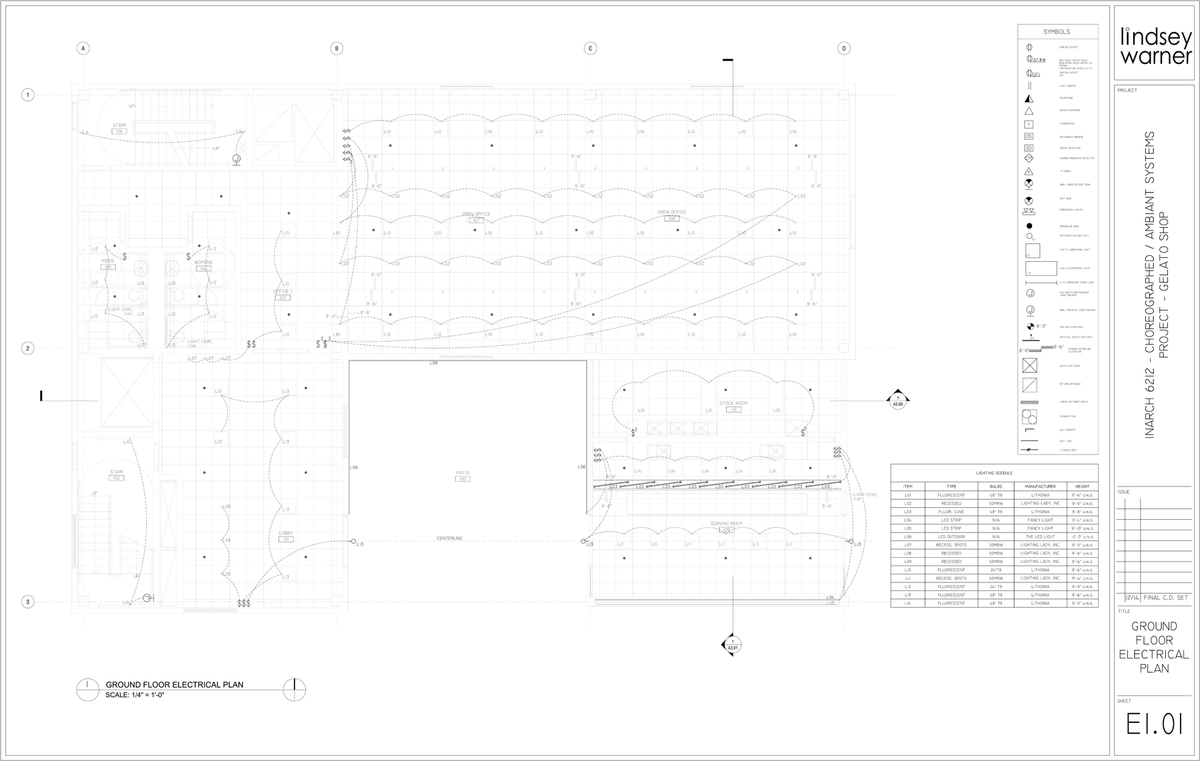

Electrical Plan
Electrical Plan

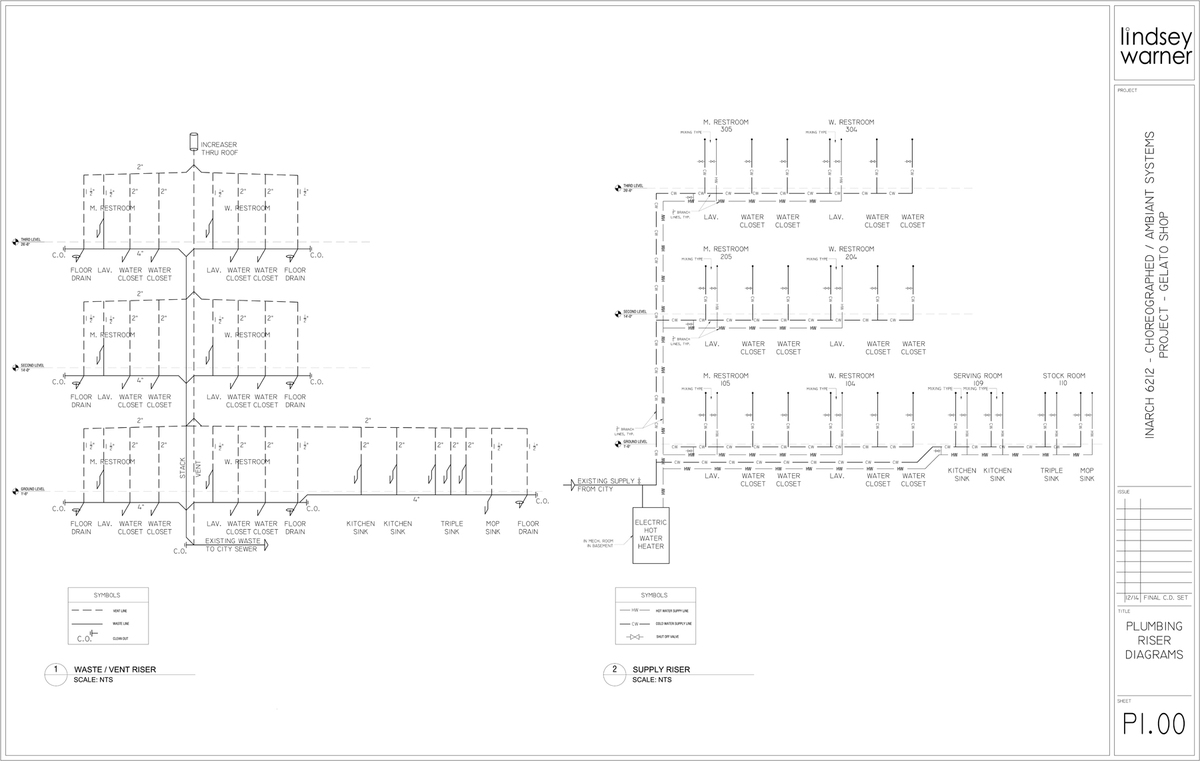

Plumbing Diagram
Plumbing Diagram

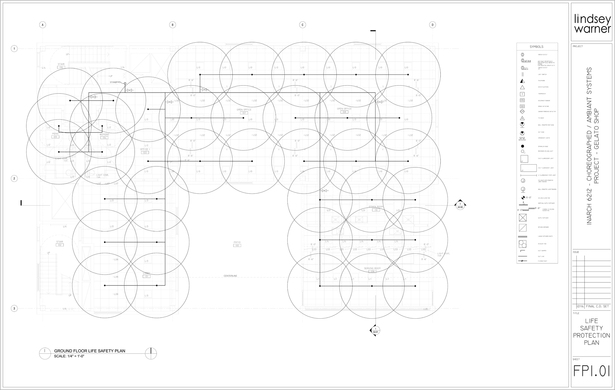

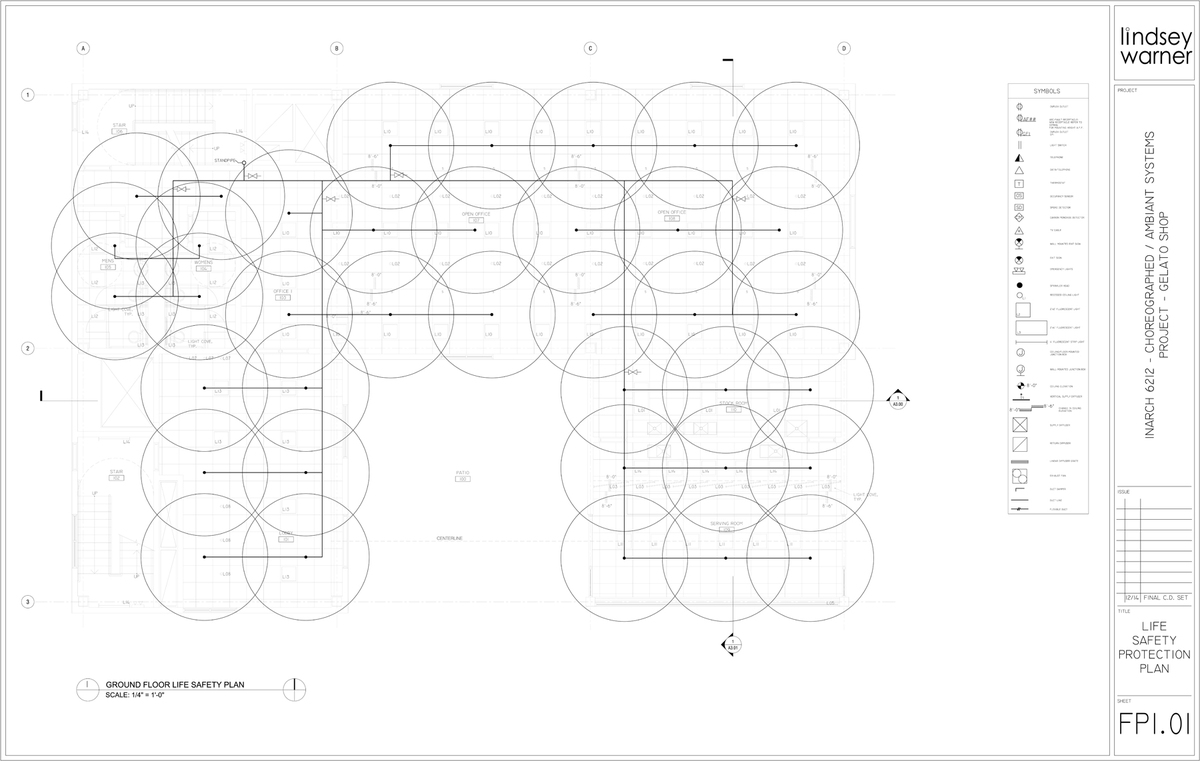

Life Safety Plan
Life Safety Plan
