TAR CREEK SUPERGRID

We focused on the example of the Tar Creek Lead and Zinc mine in Picher, Oklahoma as a pilot project for Infrastructural Reclamation. Dozens of waste rock piles, some up to 13-storeys high, and contaminated ground and surface water are the legacy of mining operations in the area, which produced a significant portion of the lead used in the World Wars.



Solar energy generation is introduced as an economic catalyst on the site, but with a twist: the introduction of a structure that raises the solar energy infrastructure off the ground, creates the opportunity to host other activities on the site, as well as to remediate the polluted ground and waterways. The concrete structure, pre-fabricated using waste rock material from the site, is assembled in a modular fashion from a kit of parts that accommodates a variety of programs. Importantly, the hollow structure also acts as a conduit to carry water, energy, waste -- all the infrastructure for human habitation -- to all inhabited areas of the site.

The result is a three-tiered plan: the topmost layer is devoted to solar energy development and production: testing the latest solar technology and producing a surplus of energy for the site and its surroundings. This layer is also the starting point for water management on the site. Rainwater is collected as needed and transported through the structure to one of several treatment plants around the radial plan. The middle layer is the place of dwelling and exploration of the site. As the need for space grows, beams are added to create this inhabited layer: the beams act as a pedestrian and cycling circulation system, but also the infrastructure for dwelling and automated transit. Finally, the ground layer becomes a laboratory for bioremediation of the ground and water systems. Passive treatment of both the waste water from the site and of the acid mine drainage is coupled with a connected system of boardwalks to allow inhabitants and visitors to experience both the industrial inheritance of the site and the renewed hope for its future.

http://www.captainsofindustry.ca/tar-creek.html


 Read more

Status: School Project
Location: Tar Creek, Oklahoma

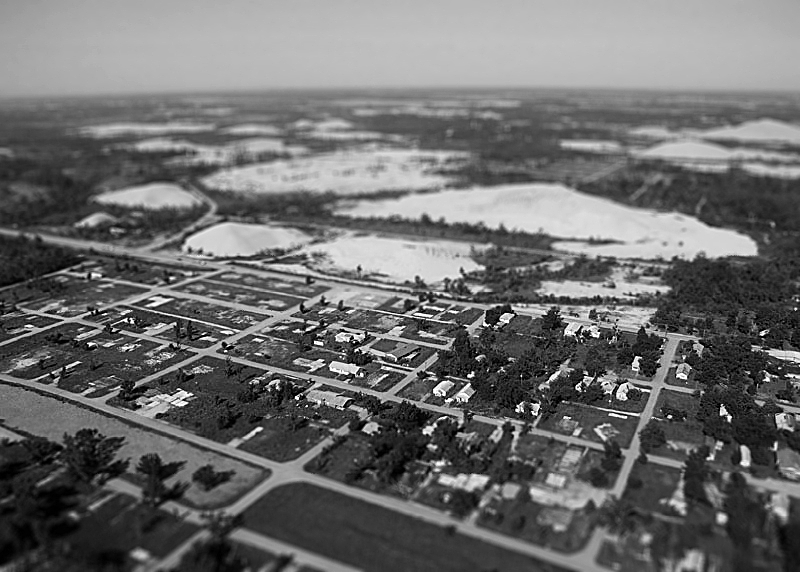

photo of a Tar Creek chat pile by Jason Stair
photo of a Tar Creek chat pile by Jason Stair

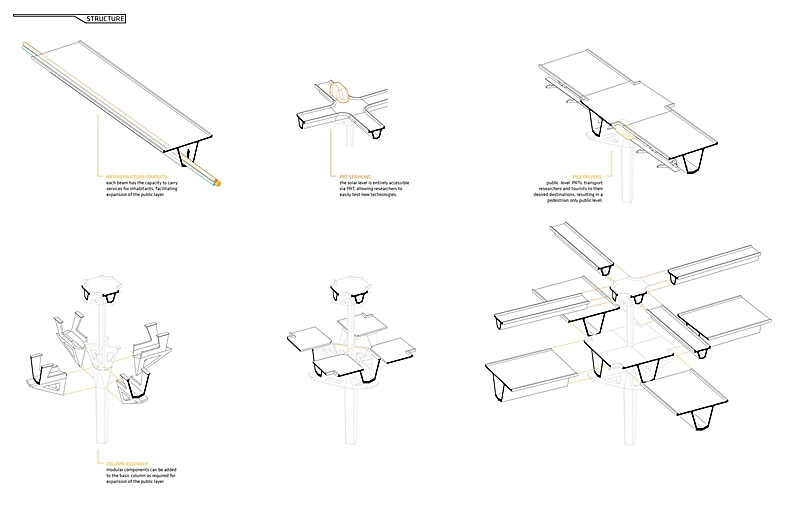

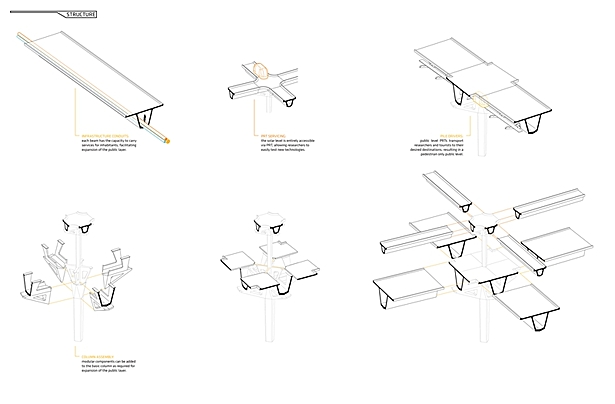

modular structure
modular structure

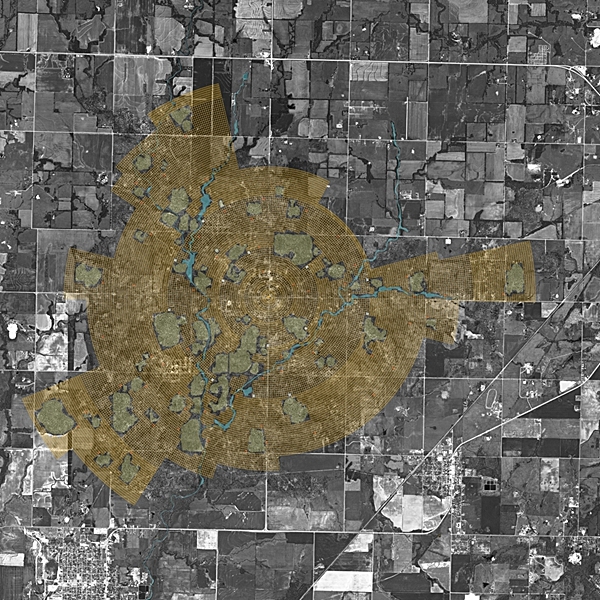

solar level plan
solar level plan
looking out over the solar (third) level
looking out over the solar (third) level

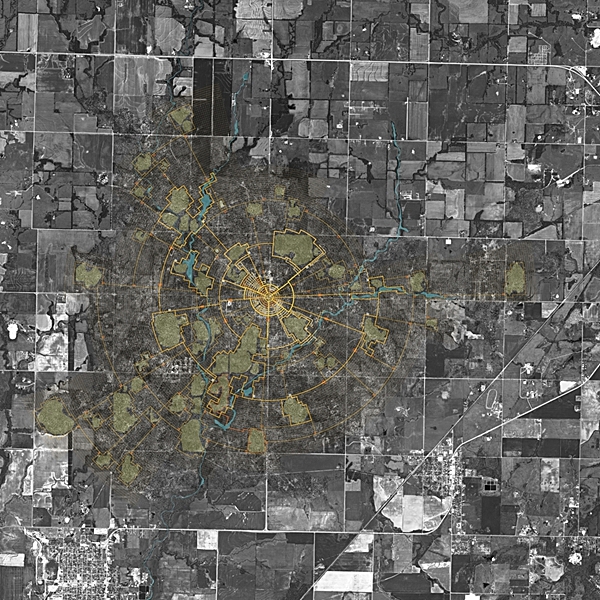

public level plan
public level plan
perspective from the public (second) level
perspective from the public (second) level

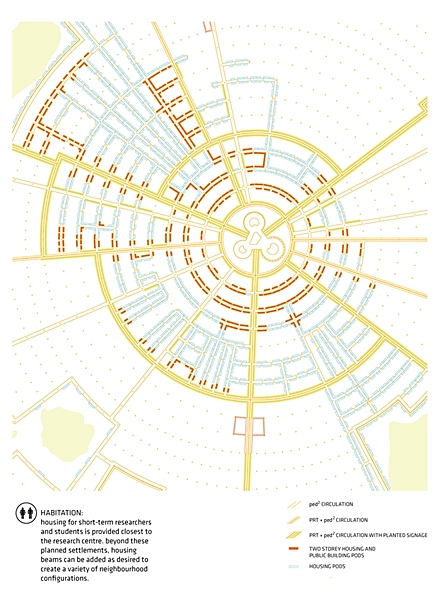

plan zoom-in
plan zoom-in

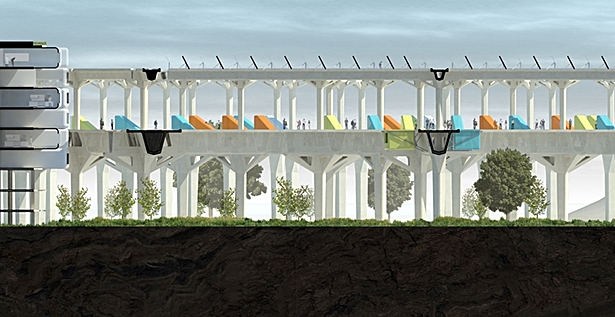

small piece of a time-lapse section from the centre of the structure towards the edge
small piece of a time-lapse section from the centre of the structure towards the edge

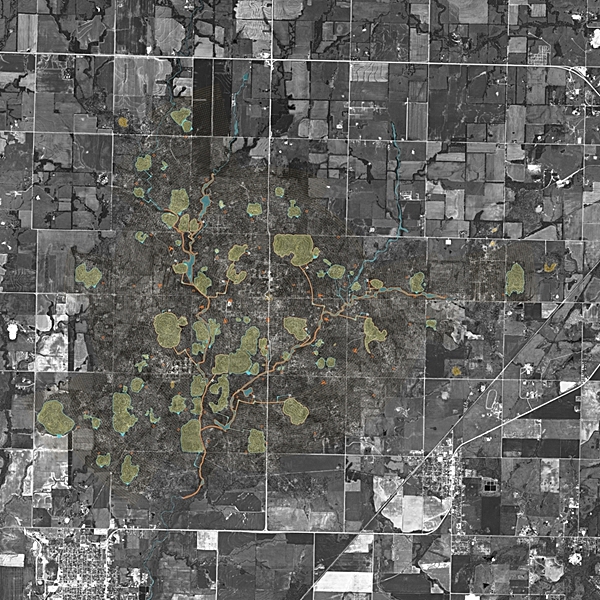

ground level plan
ground level plan
ground level plan
ground level plan

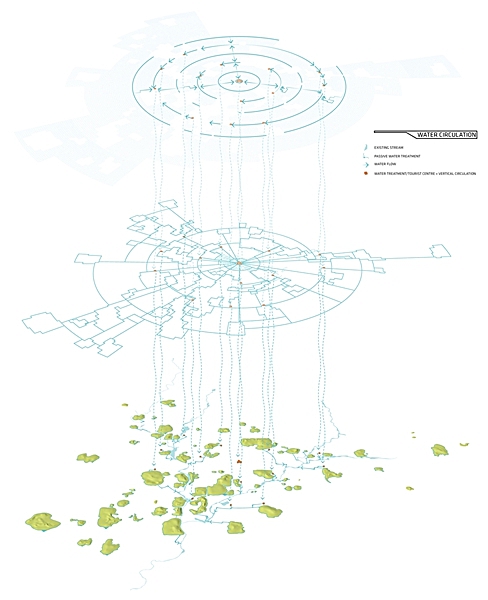

water flow diagram
water flow diagram

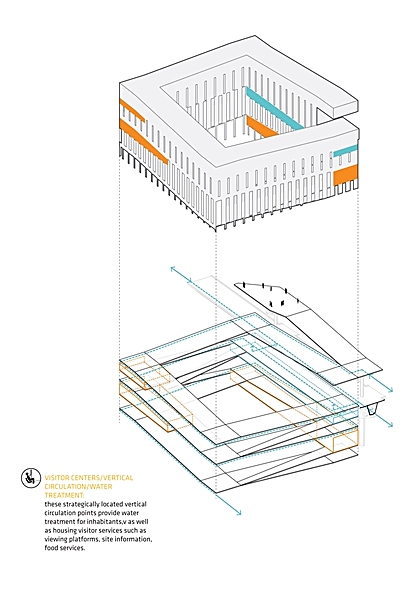

visitor centre/water treatment centre
visitor centre/water treatment centre

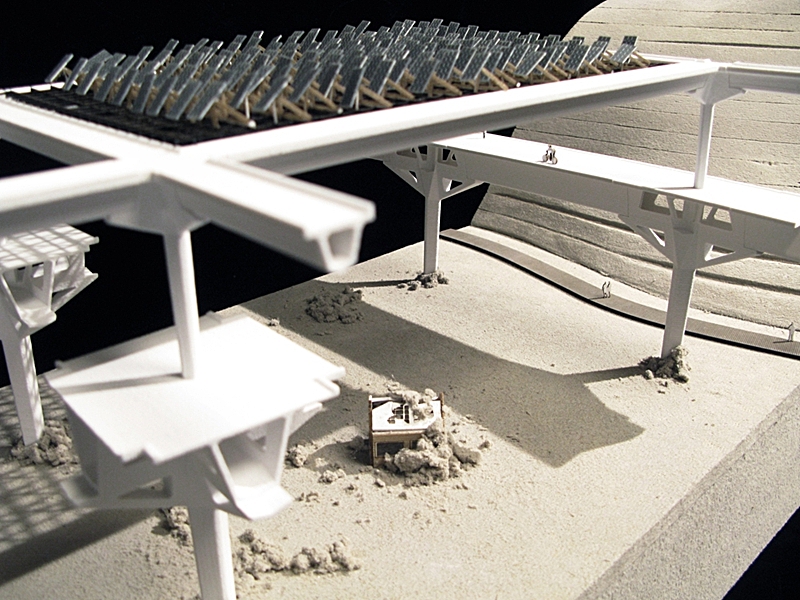

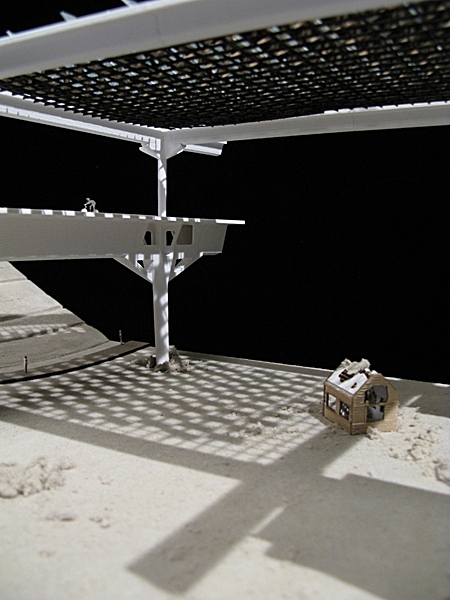

sectional model (1:150)
sectional model (1:150)
sectional model (1:150)
sectional model (1:150)

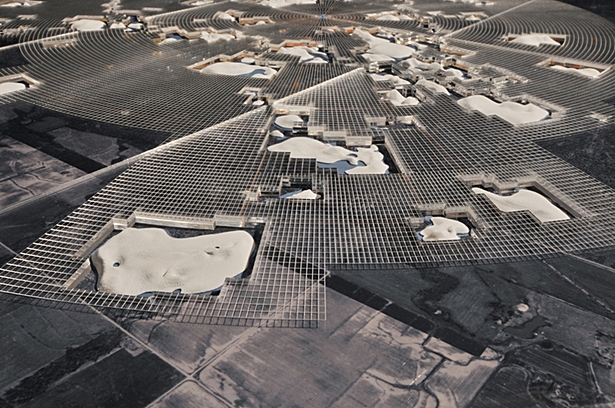

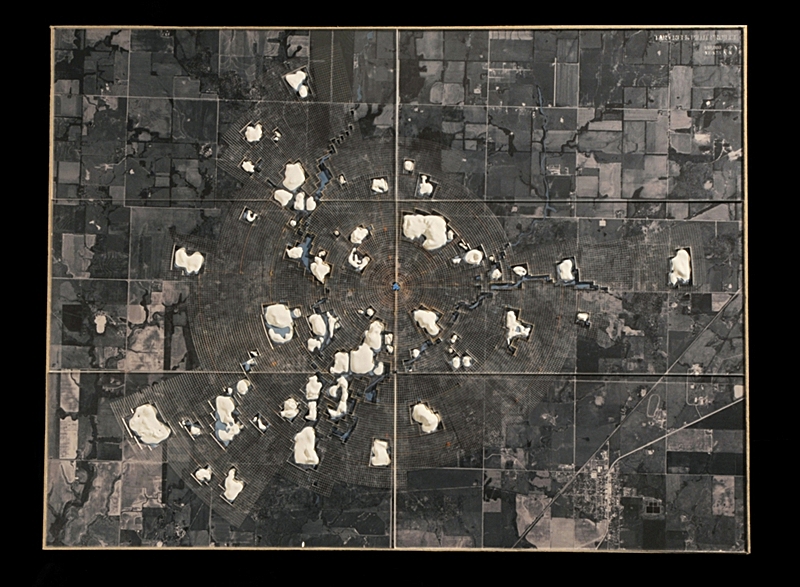

site model (1:10000)
site model (1:10000)
site model (1:10000)
site model (1:10000)
