Gateway Station- North Shore Connector/ EDGE studio, Pfaffmann & Associates
Location: Pittsburgh, PA
EDGE studio: Gary Carlough AIA, Jonathan Golli, Matt Fineout AIA,
Pfaffmann & Associates: Rob Pfaffmann AIA, Carl Bergamini RA, Erik Hokanson
Client: Port Authority of Allegheny County
Photographer: Massery Photography, Inc.

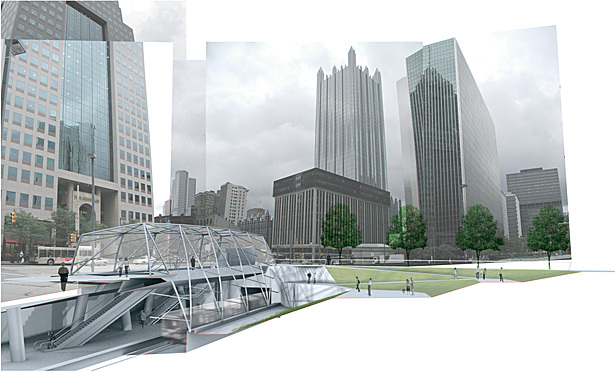

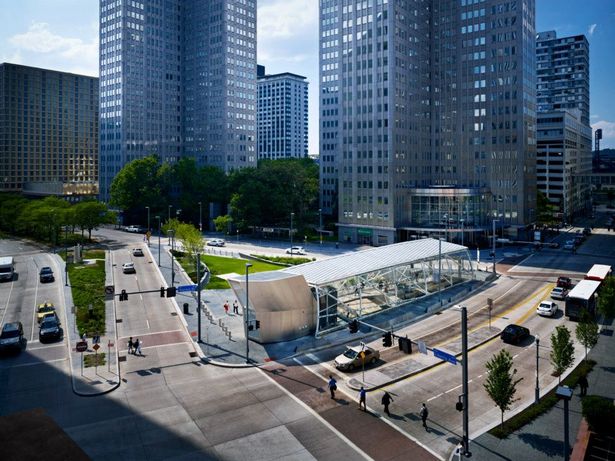

In 2003, EDGE studio and Pfaffmann & Associates formed a collaboration and won a competition to design the Port Authority’s new Gateway LRT Station. The station is located along one side of an under-utilized triangular parcel of land in the heart of Pittsburgh’s famed “Golden Triangle”. It is currently under construction, scheduled for completion in 2011.
For transit stations to be successful in the 21st Century, they must become part of the urban fabric of the city. To achieve this integration, stations must serve as more than just “stops” for passengers to board and depart transit vehicles. They must become part of the overall experience of the city.
Pittsburgh is known for its world renowned view of the city experienced by travelers exiting the Fort Pitt Tunnels and crossing the Fort Pitt Bridge. The new Gateway Station is situated to serve as the terminus to this famous procession of views into Pittsburgh’s city center. Considering the importance if its location, The Port Authority along with its consultants saw the opportunity for the station to serve as the catalyst for development of the entire triangular site, which had previously been an undeveloped “no man’s land”.

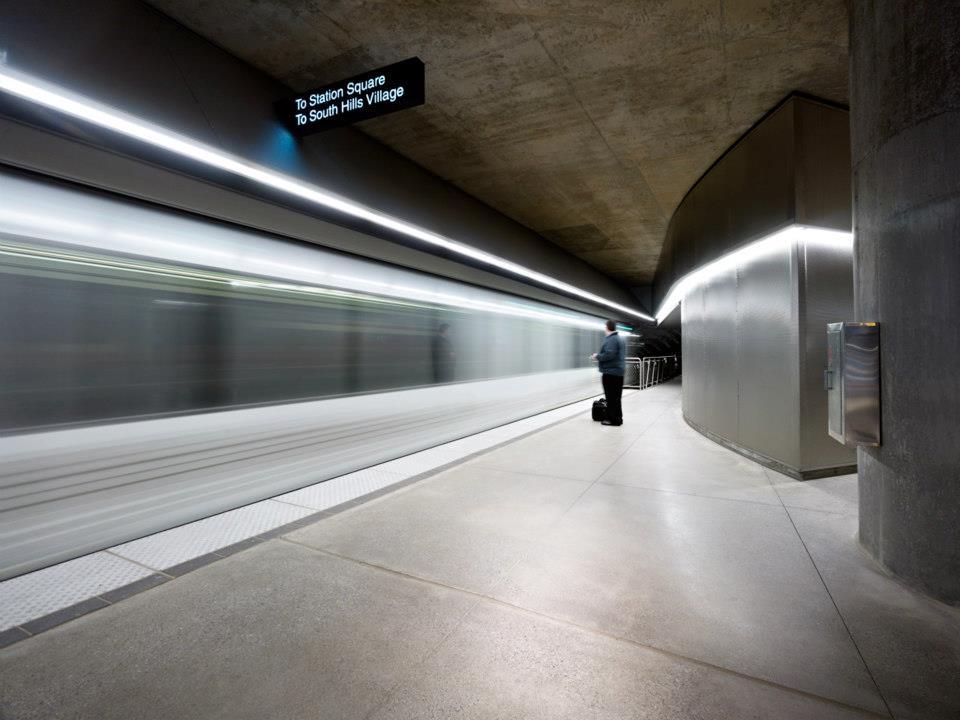

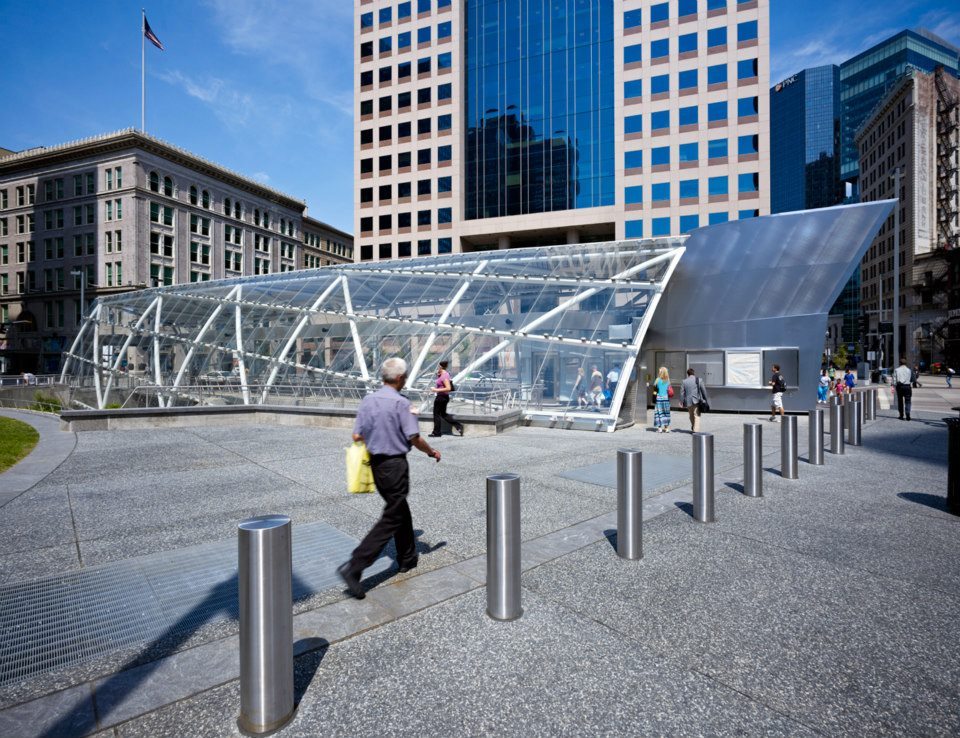

We developed a concept referencing this “Gateway Experience”. Using this term to describe the experience of entering Pittsburgh via the Fort Pitt Tunnels and Bridge, we sought to develop a similar experience when entering the City via the proposed under river transit tunnel of the North Shore Connector Project. A sloped plaza was designed adjacent to the station in the triangular parcel of property allows the underground track level wall of the station to be opened up to permit views out of the station into the city for arriving LRT passengers.
This Gateway Plaza serves as a viewshed through which transit passengers enjoy their first views of the city. Conversely, the station platform serves as a stage for people enjoying the plaza who are able to watch people and trains arriving at and departing Gateway Station.

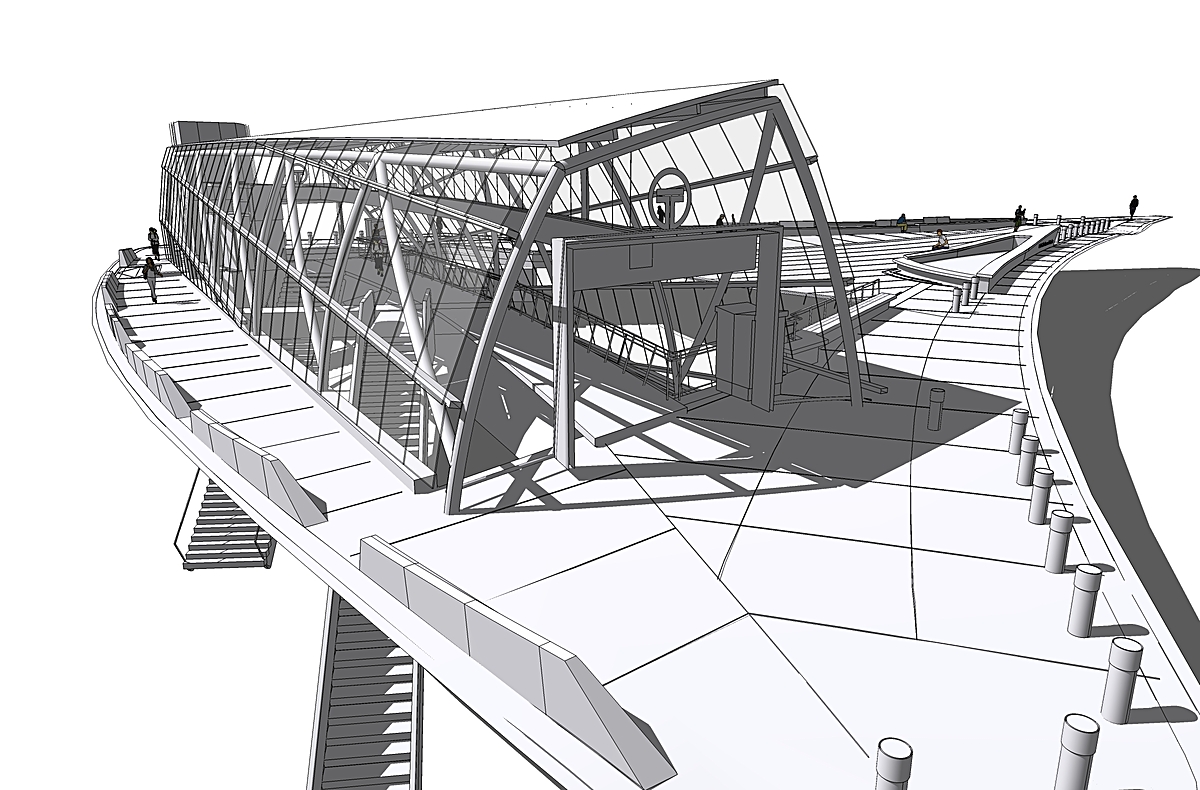

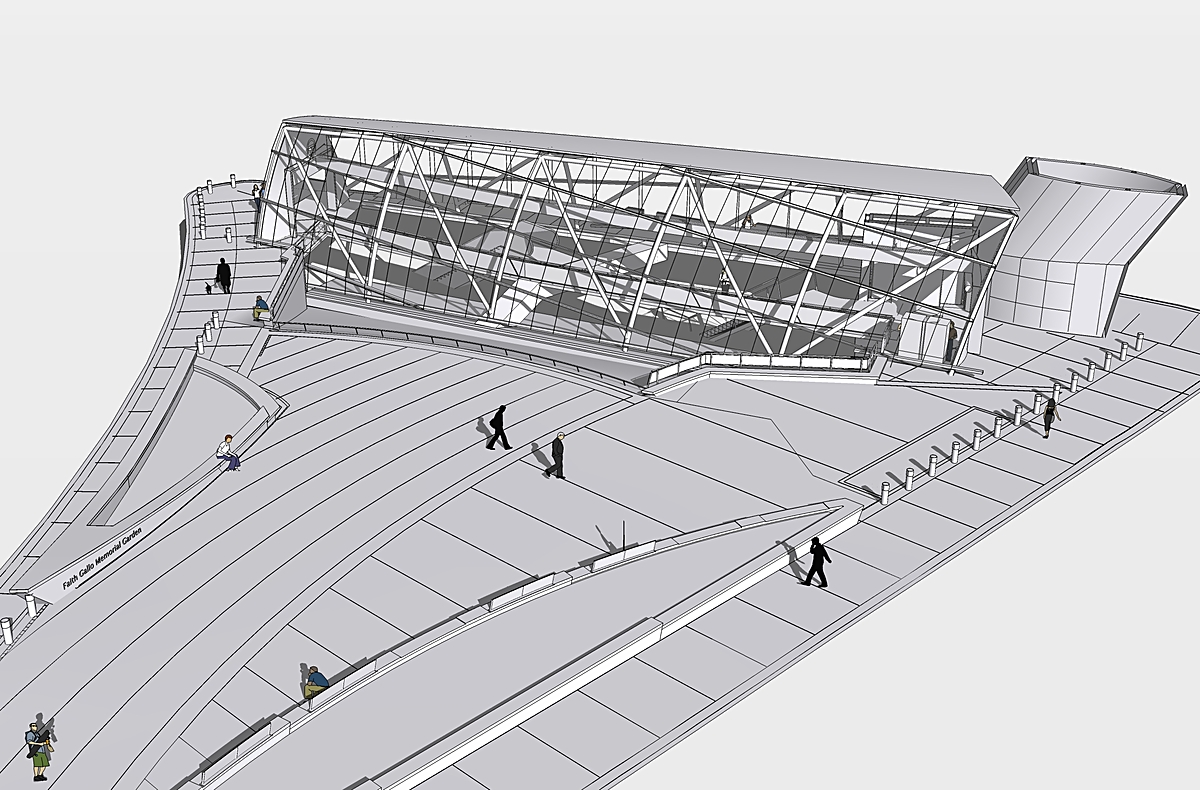

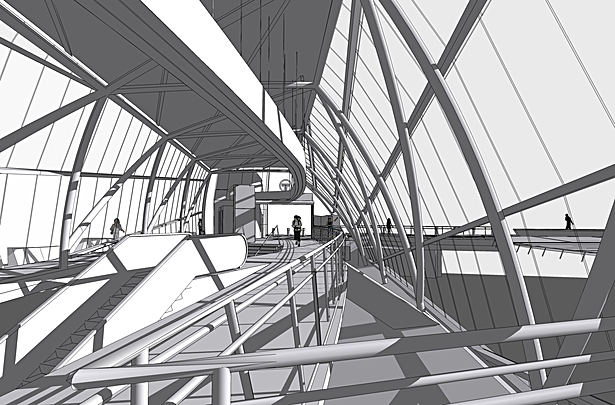

A number of techniques were used to achieve these goals. Working with the lead project engineer, AECOM, we utilized conventional drawing, model building and Building information Modeling (BIM) to establish track alignments in relation to street level arrangements, and to assist in defining the extent and configuration of the station box, the headhouse and proposed civic plaza.
Using the principles defined in the RFP documents and interview process, the proposal evolved into a design solution that responds to both the needs of the Port Authority and the community at large:
• GATEWAY EXPERIENCE: Early on in the design process it was clear to us that establishing the “gateway experience” for passengers arriving at Gateway Station to celebrate their arrival to downtown Pittsburgh, should rival the motorist’s experience having traveled through the Fort Pitt tunnel, over the bridge and arriving in the city.
• SENSE OF PLACE: The Gateway station site is positioned at a critical intersection in the city’s urban fabric.

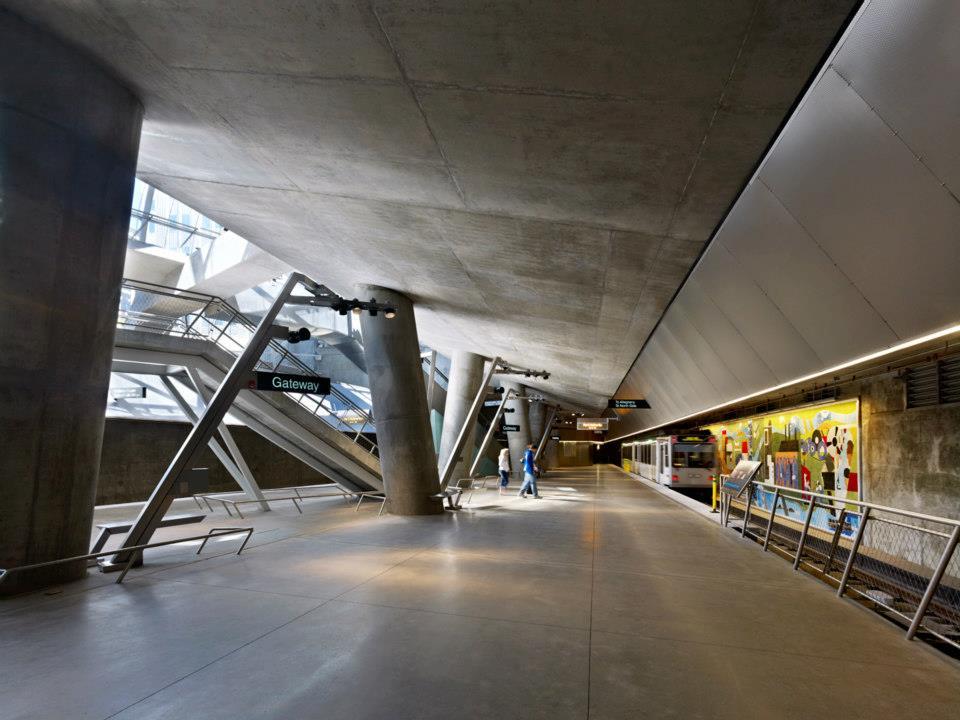

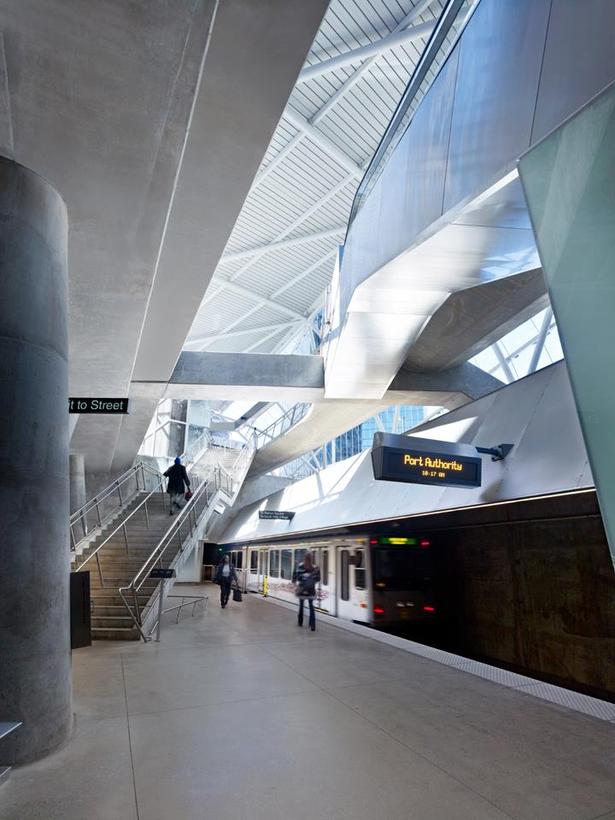

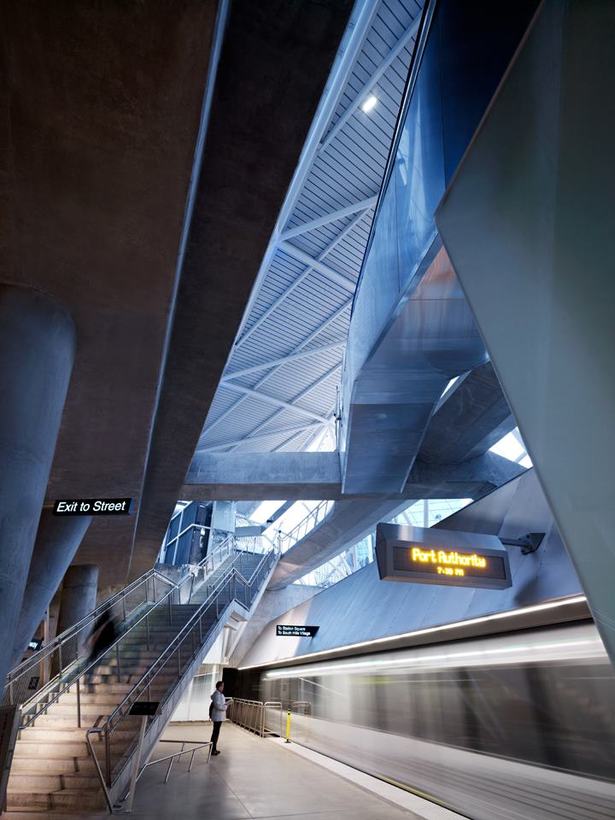

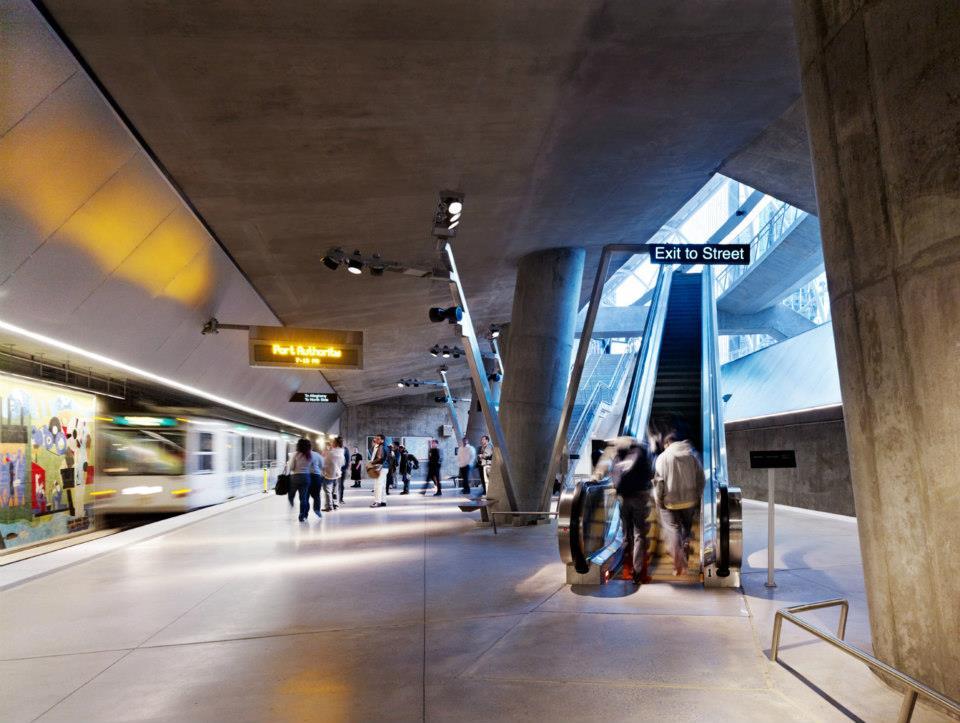

• DAYLIGHTING & VENTILATION: The station box was opened on its western side to introduce daylight to the platform.

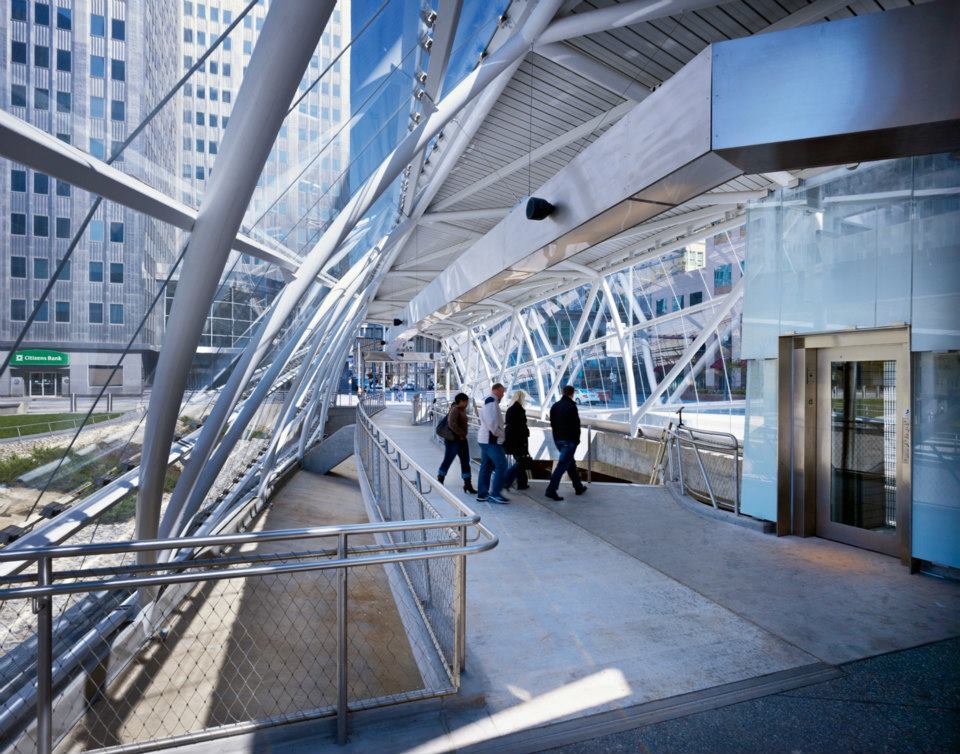

• PEDESTRIAN CIRCULATION: The station headhouse provides clear visual cues to the open-ended structure. As an added benefit the public open space provides additional pedestrian capacity during large events.

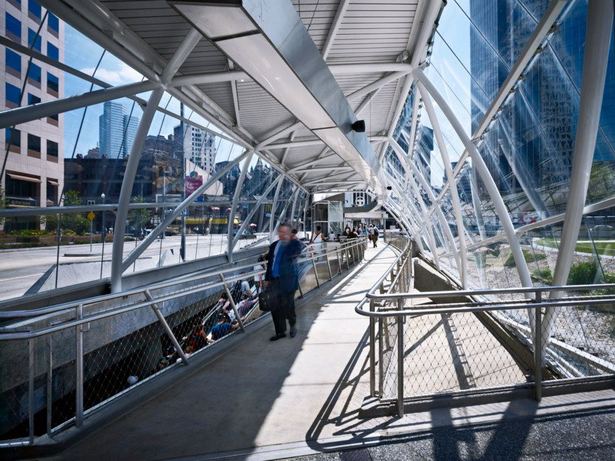

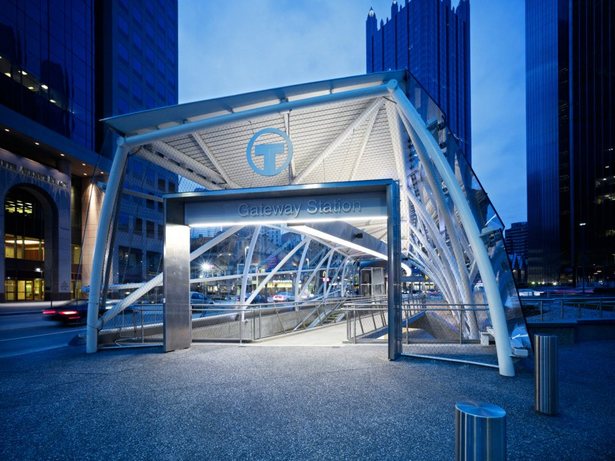

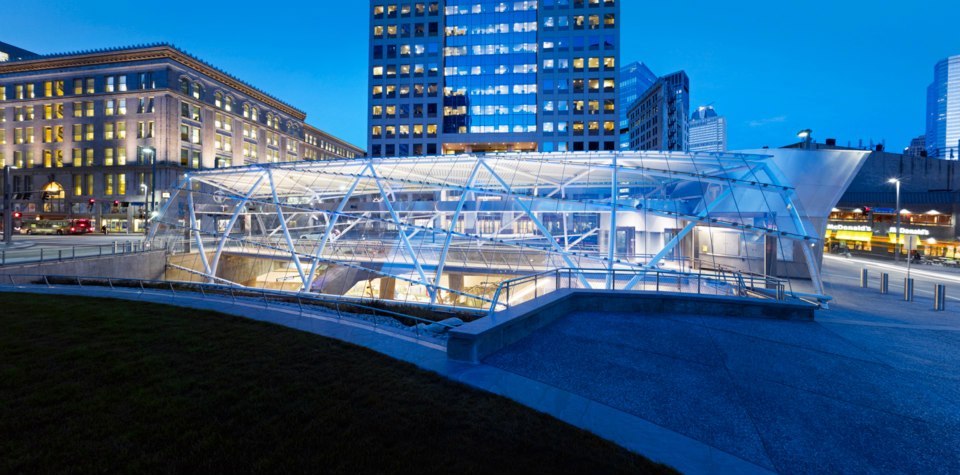

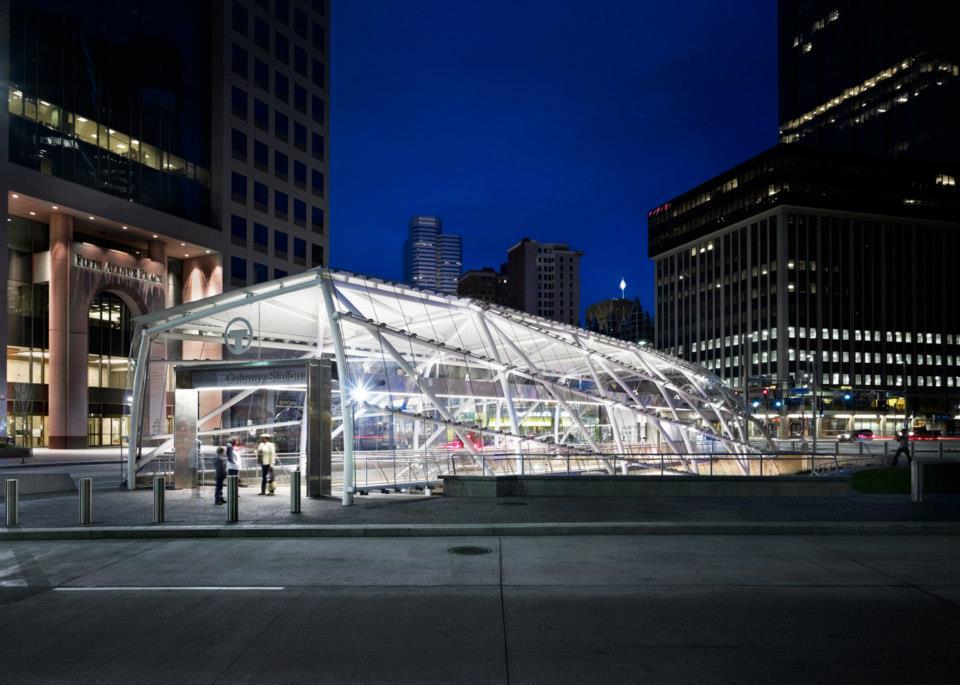

• TRANSPARENCY: We developed a strategy to minimize visual impact of station “headhouse” on surrounding context through use of transparent materials and innovative geometries of the structural system.
Location: Pittsburgh, PA, US
