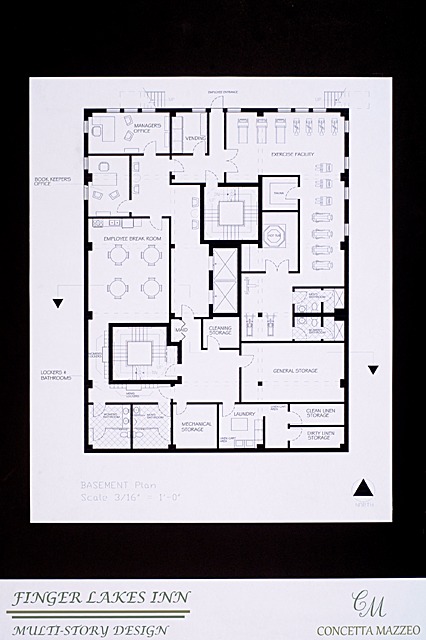

Basement Floor Plan
Basement Floor Plan
6 more images  ↓

Multi-Story Design

Multi-Story Design. School Project to design a 3 story Inn located within the Finger Lakes Region in New York State. Design needd to include a manager's residence, at least one ADA single bed guest room, one ADA double bed guest room, one ADA guest suite, dining area, excerise faculty, coffee shop, gift shop, lounge, min requirement of two fire stairs, elevators, employe area, administration offices, etc.


 Read more

Status: School Project
Location: Finger Lakes Region, New York State

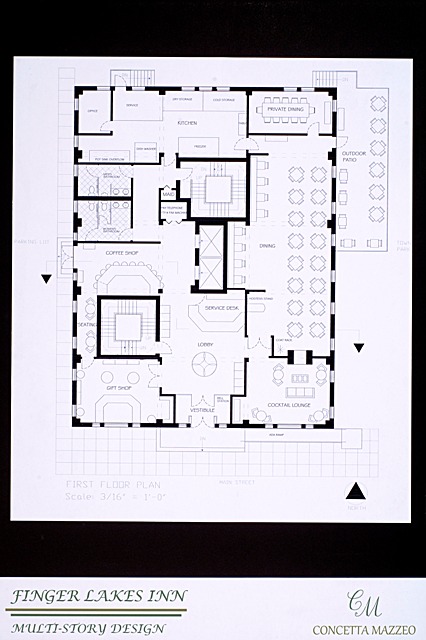

First Floor Plan
First Floor Plan

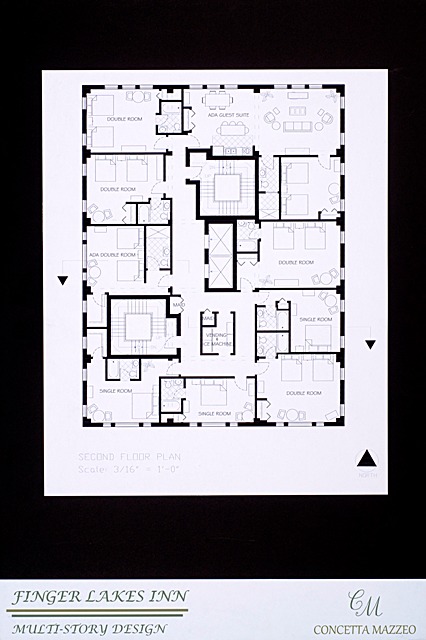

Second Floor Plan
Second Floor Plan

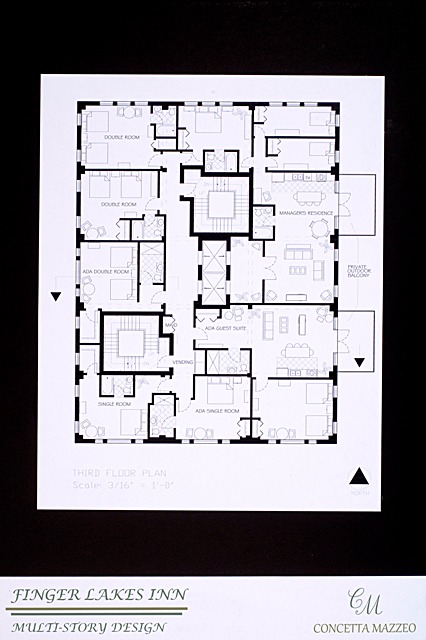

Third Floor Plan
Third Floor Plan

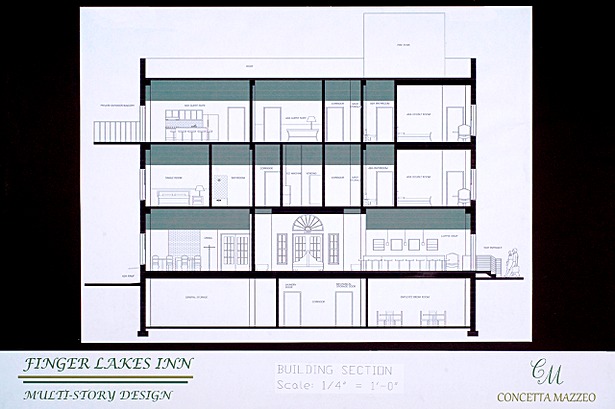

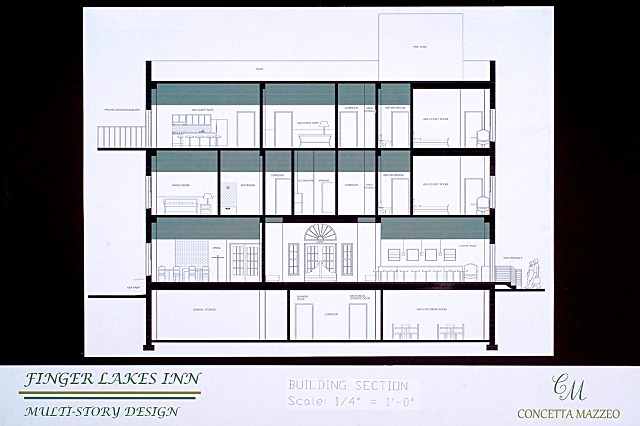

Building Section
Building Section
Typical Guest Room Perspective Rendering
Typical Guest Room Perspective Rendering
Lobby Area Perspective Rendering
Lobby Area Perspective Rendering
