Umed Bhavan Palace - Hand Drawn Documentation

Hand-documentation and analysis competition for the Louis-I-Kahn Trophy  for the National Association of Schools of Architecture, India. I was the head of the construction details team and a part of the hand rendering team.

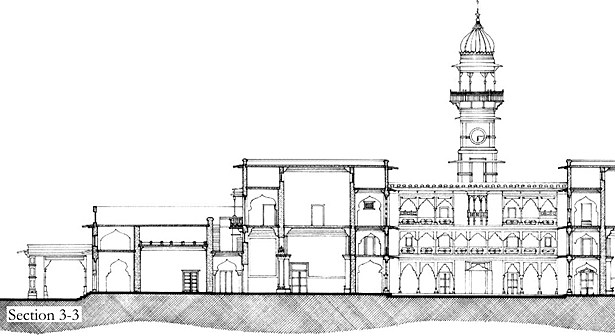

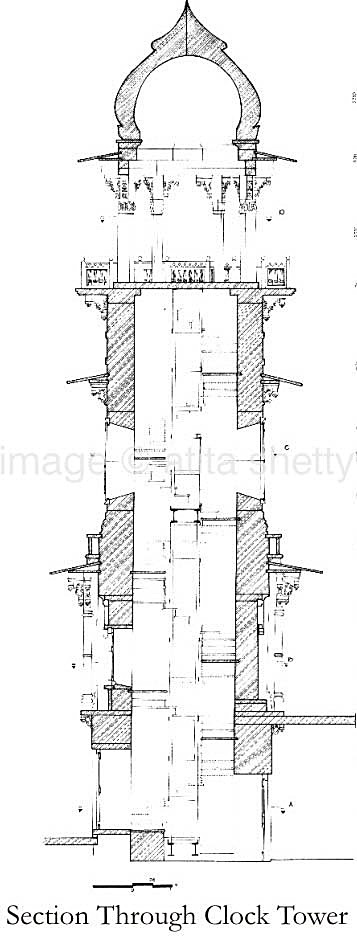

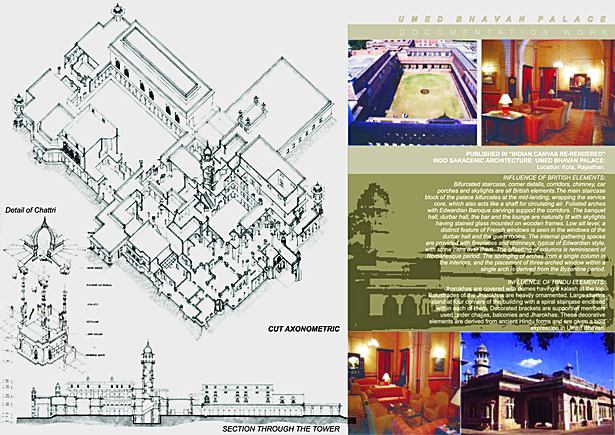

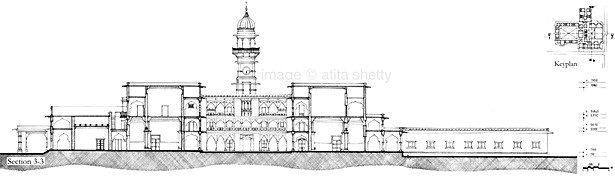

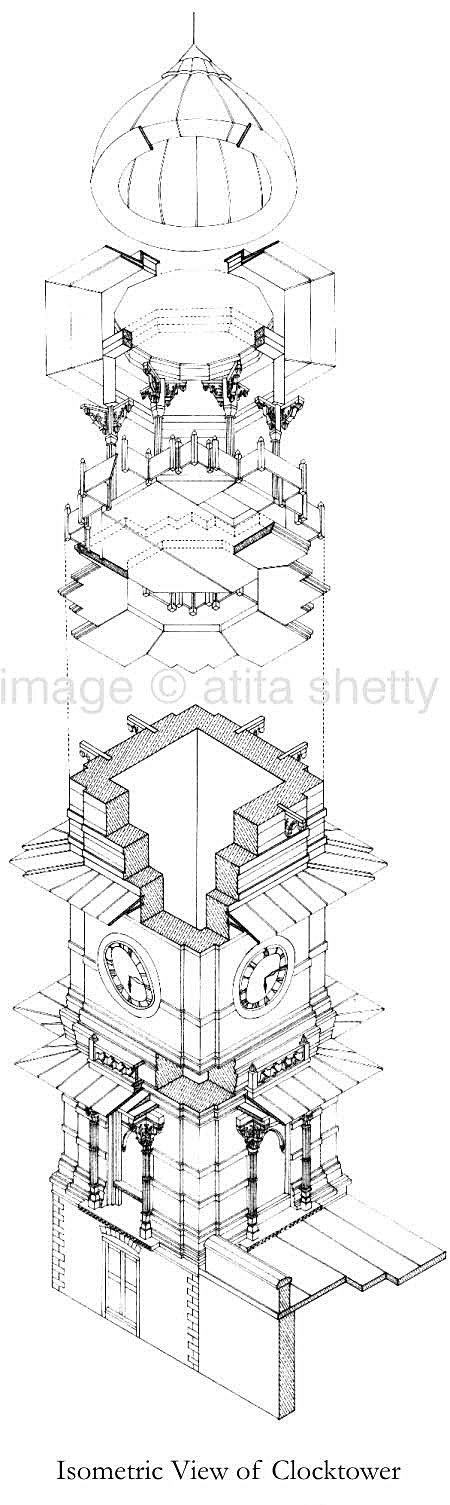

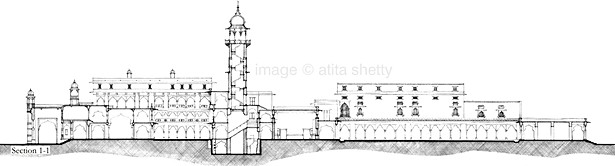

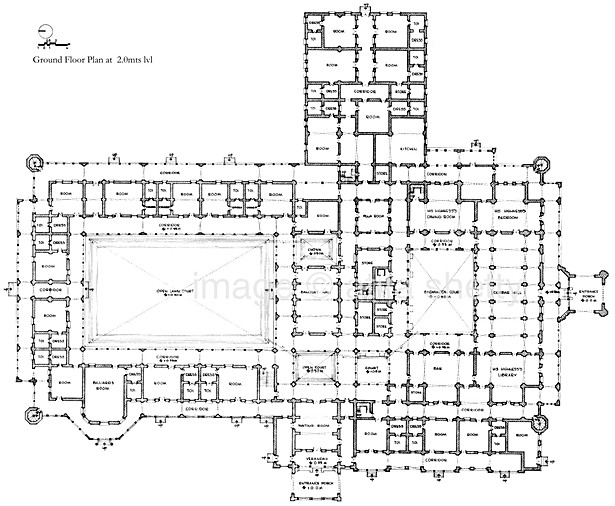

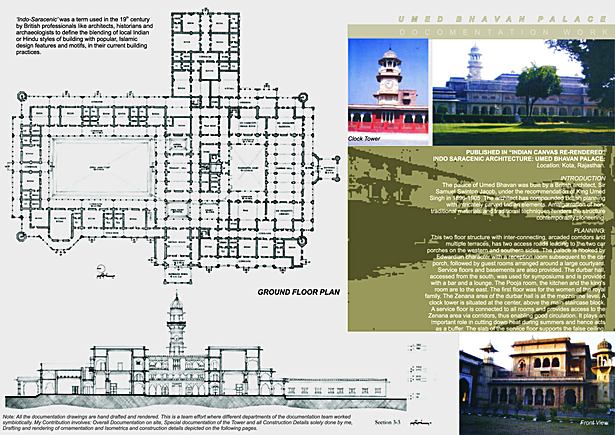

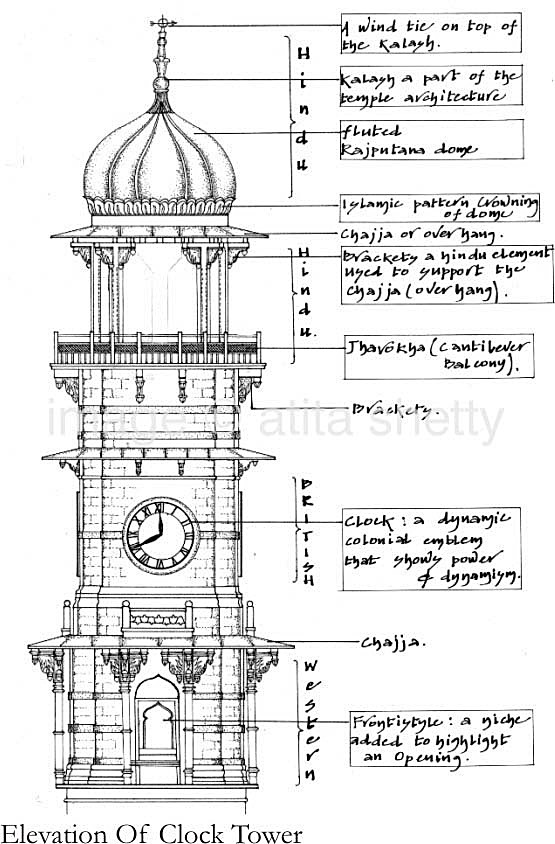

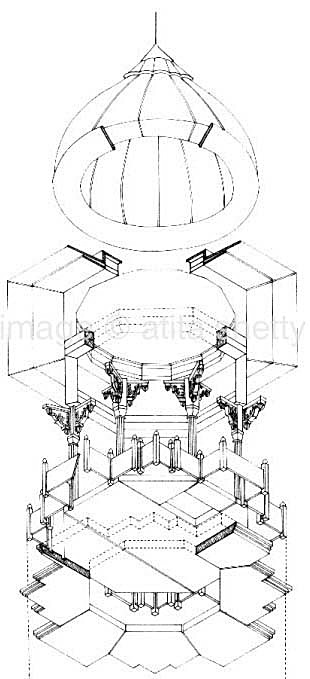

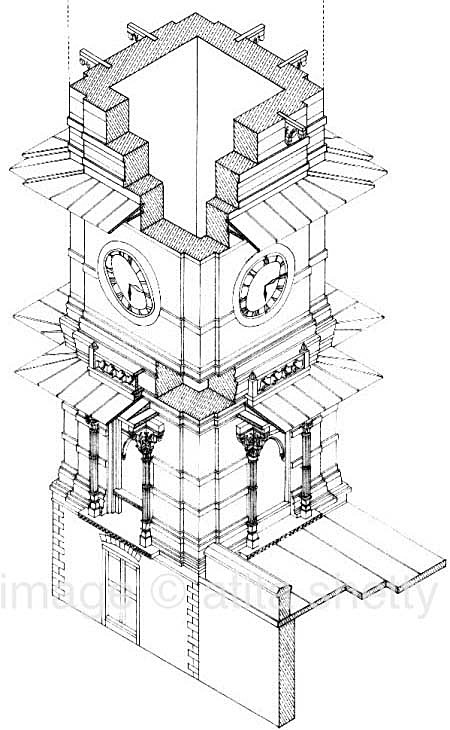

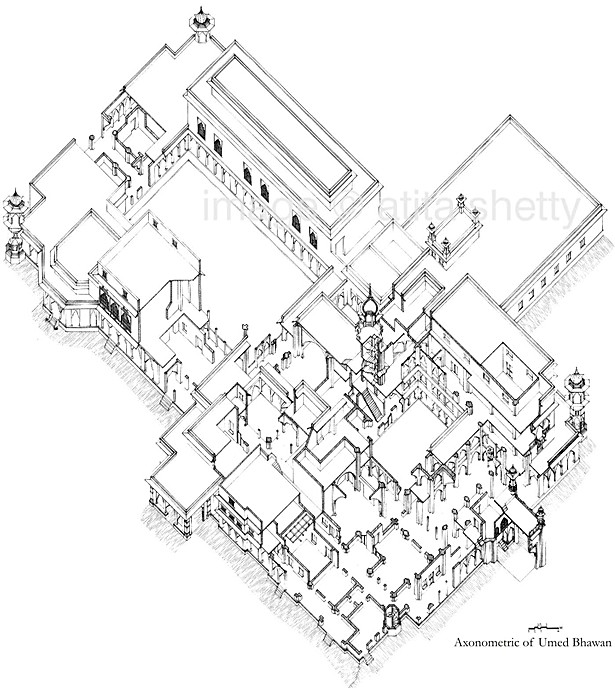

All construction details were documented inch-by-inch on site, rough drafted on site, refined into hand-drawn axonometrics and isometrics, and eventually inked and rendered by hand for presentation sheets.

Theme:

INDO-SARACENIC ARCHITECTURE


 Read more

Status: Competition Entry
Location: Rajasthan, India
