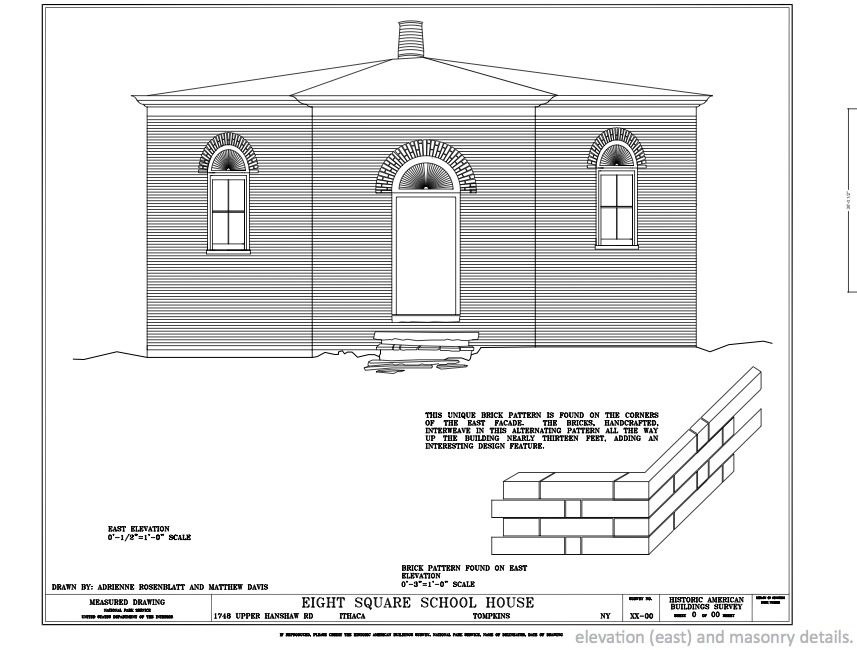

East elevation with masonry details.
East elevation with masonry details.
9 more images  ↓

8 Square School House: April, 2010

The 8 Square School House is a dilapidated single room, 19th-century structure.  Formerly a children's school, it has since been abandoned and more recently used for bi-monthly Historic Ithaca member meetings.  It is planned for history-sensitive repair in the near future.

This project required our two-person team to fully measure and draft (first by hand, then in CAD) the school house, according to the Historic American Building Survey regulations and format.


 Read more

Status: School Project
Location: Ithaca, NY, US
Additional Credits: Matthew Davis, team member.

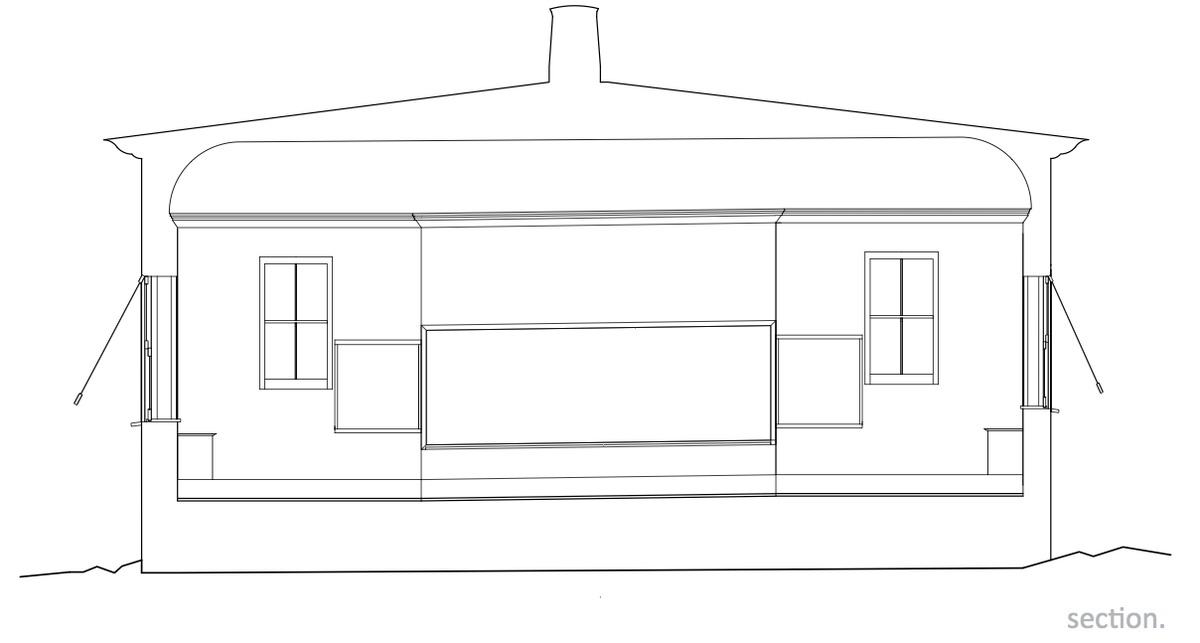

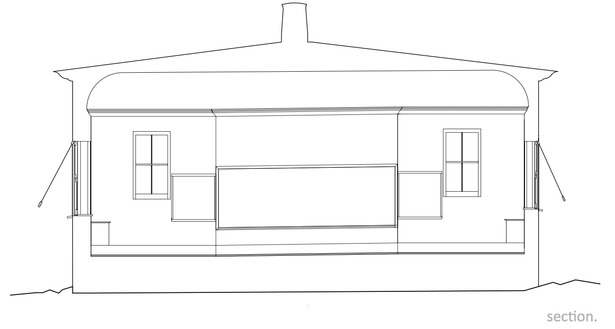

Interior section elevation.
Interior section elevation.

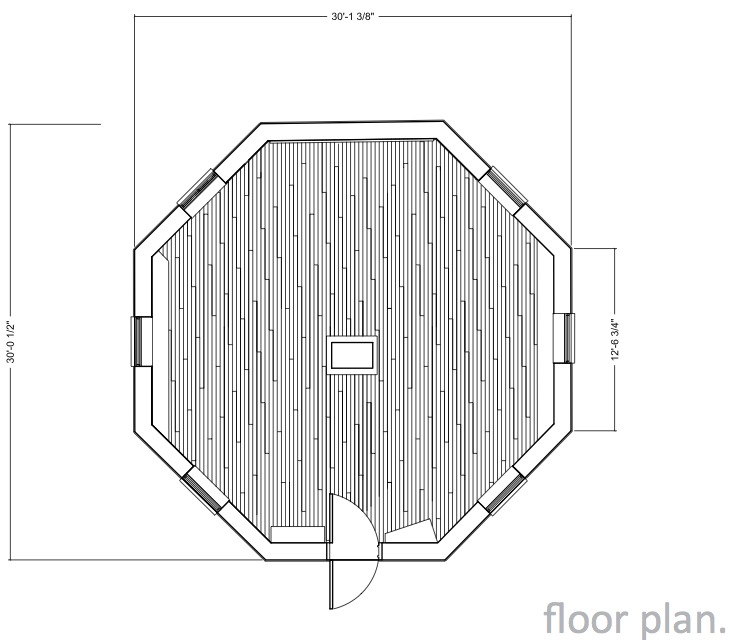

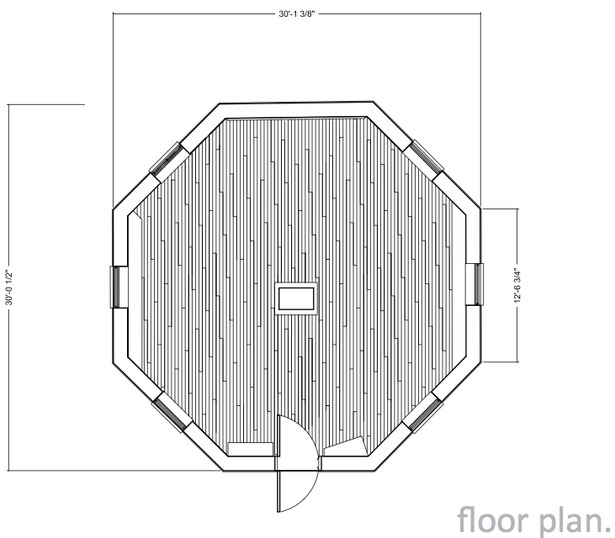

Floor plan.
Floor plan.

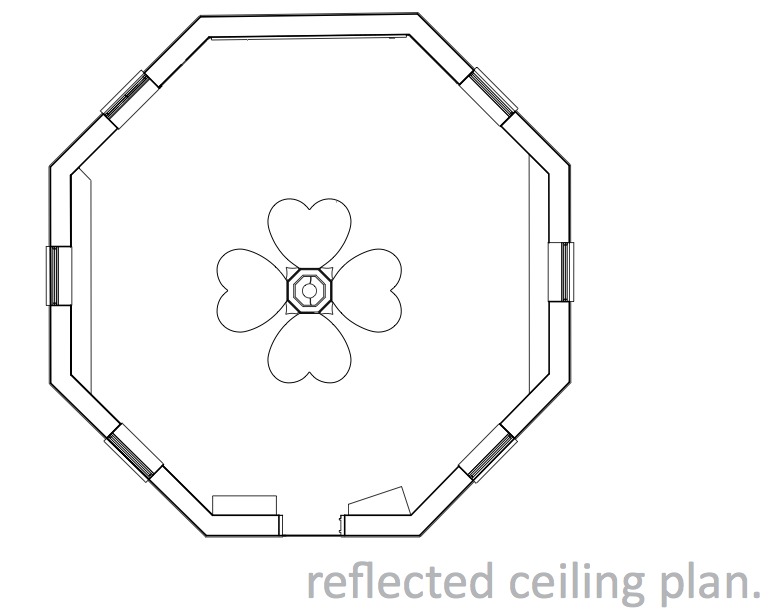

Reflected ceiling plan.
Reflected ceiling plan.

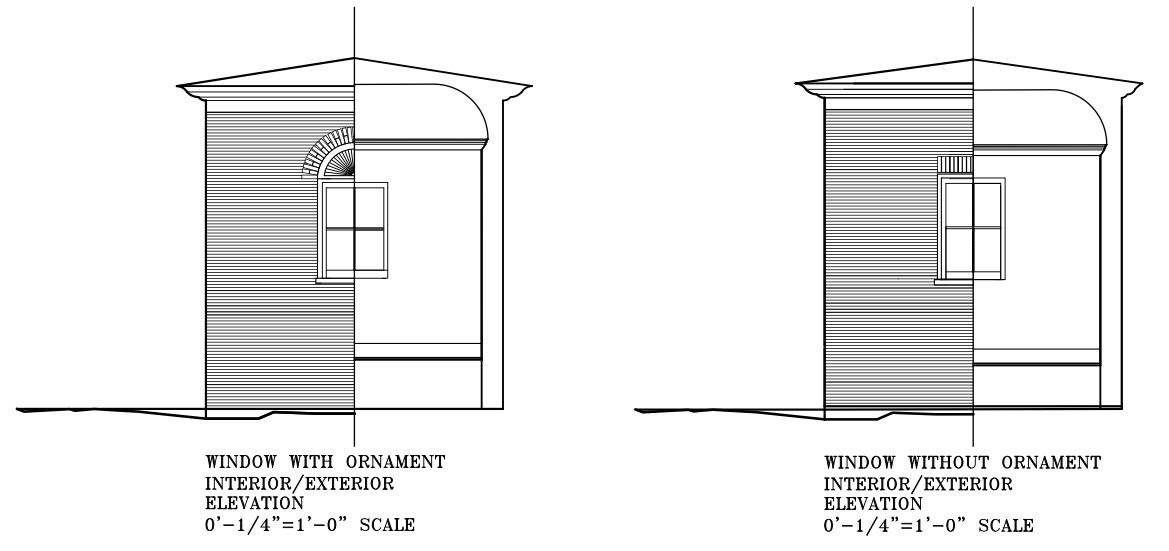

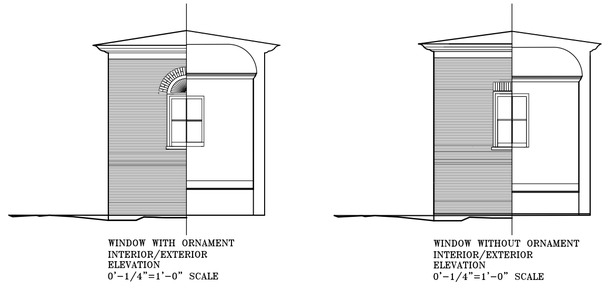

Window elevations.
Window elevations.

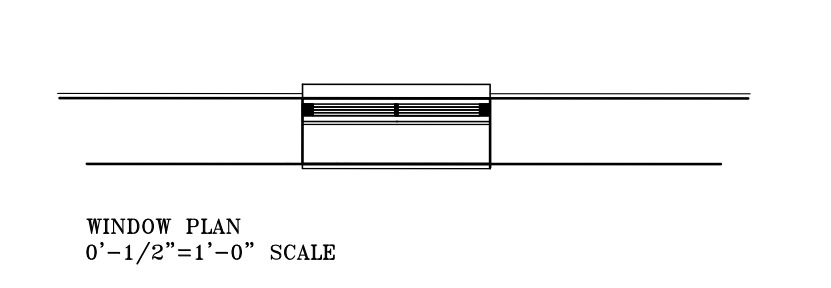

Window plan.
Window plan.

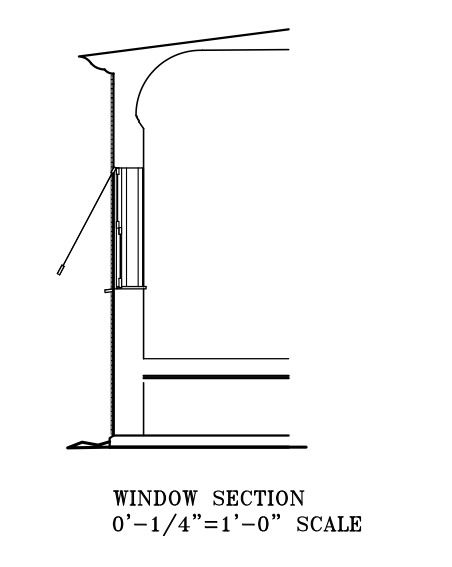

Window section.
Window section.

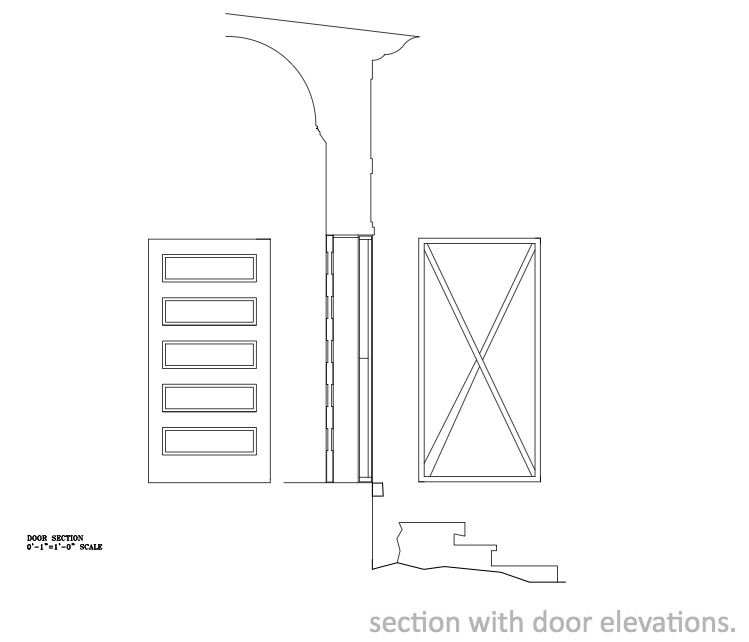

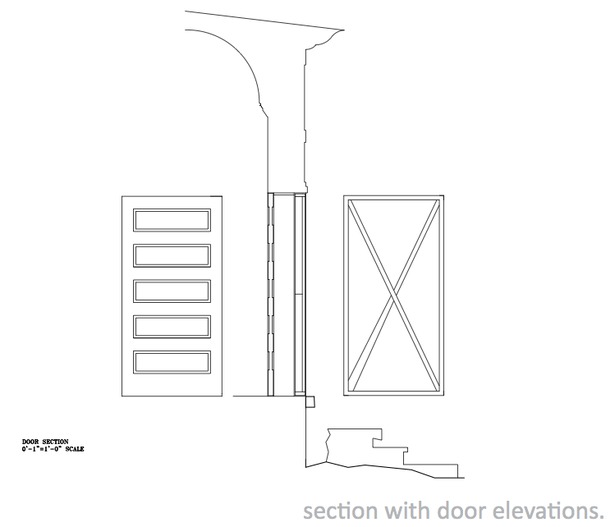

Door section and interior/exterior elevations.
Door section and interior/exterior elevations.

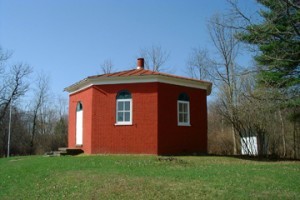

Photograph of school house in its current state.
Photograph of school house in its current state.

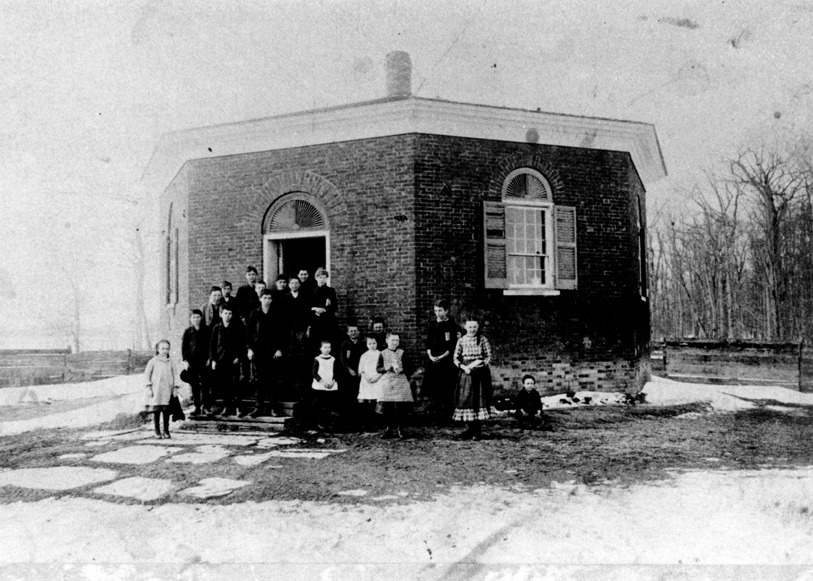

Class photograph, taken 1880.
Class photograph, taken 1880.
