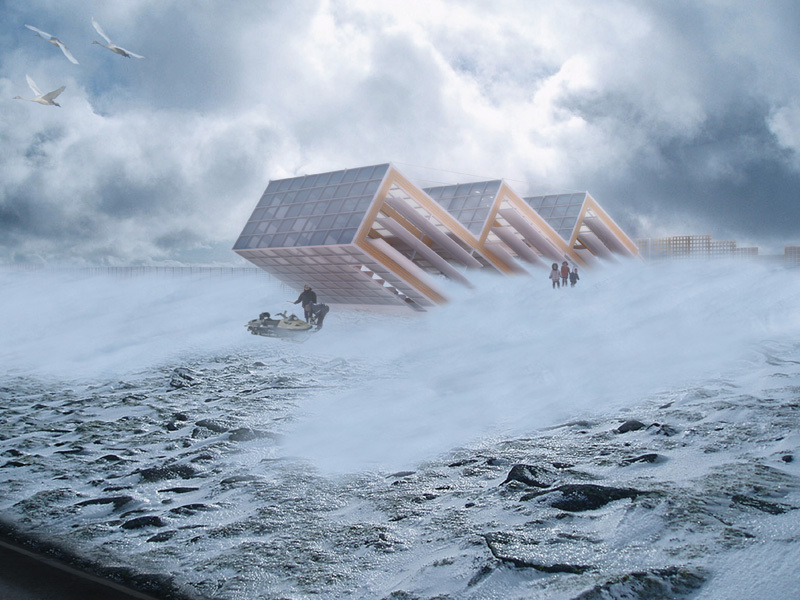

Exterior View from Highway, Winter
Exterior View from Highway, Winter
13 more images  ↓

Drift House: Housing Protoype for Northern Climates

With insufficient core populations to support public structures, dwelling typologies have attained the highest level of refinement within the Arctic’s unique climate. Pre-WWII, indigenous, Inuit housing types not only embraced the nomadic Inuit lifestyle, but with zero ecological footprint, these dwellings employed opportunities from the landscape and atmosphere to form a complex shelter that negotiated thermal performance, local materials, soft construction techniques, program, and cultural values.

Permanent architecture, in the form of prefabricated housing, was employed by the Canadian Government during the Cold War in an effort to assert Arctic Sovereignty. Despite instilling new notions of comfort and durability, this government housing neglected the cultural and sustainable intelligence of traditional dwellings. Importing a ‘southern’ model of dwelling, the housing took the form of hermetic containers, which were highly contingent on imported materials, energy consumption, labor, and transport costs. More significantly, adopting their use forced a transformation on the Inuit lifestyle that severed their connection to the dynamic landscape. These government housing typologies have formed the template for Arctic shelter in Canada that still persists today. Housing in the North is currently undergoing a crisis due to decadent construction and energy costs, and the corresponding ramifications on overcrowding and deprivation. The Drift House hybridizes the intelligence of tradition and technology in both of the above housing systems to provide a possible direction for future constructions in the Arctic.

The Drift House is parasitic to snow fences, a typically static infrastructure that is used to protect roadways from snow accumulation. These fences are recalibrated with differential mesh openings (porosity) and heights to produce a precise pattern of passive snow accumulation from the dynamics of snowdrift. The Drift House is comprised of three surfaces formed from ETFE panels to create a series of enclosed areas calibrated in relation to accumulated snowdrift. During the summer, three enclosed zones with courtyards form a stronger connection with the landscape. During the winter, accumulated snowdrifts activate the house, essentially tipping the three units into a single, thermally nested space. Not only does the snow passively ‘build’ part of the dwelling, it also serves as counterweight to the cantilevered structure, insulation for the envelope, and a source of water for the inhabitants. The resulting, nested environments produce a series of thermal zones related to the interior program and traditional lifestyles. By understanding a malleable system, such as snowdrift, architecture can be formed in response to the landscape — calibrating, mitigating and using once ‘problematic’ environments in an opportunistic manner.


Read more

Status: Unbuilt
Location: Arctic Region, Canada
Firm Role: Project Designer
Additional Credits: Project Research and Design Team: Neeraj Bhatia, Tracy Bremer, Mary Casper, Zachariah Glennon, Alicia Hergenroeder, Brian Lee & Sonia Ramundi

Funded by: Graham Foundation for Advanced Studies in the Fine Arts, MIT Lawrence B. Anderson Award & Rice School of Architecture Research Grant

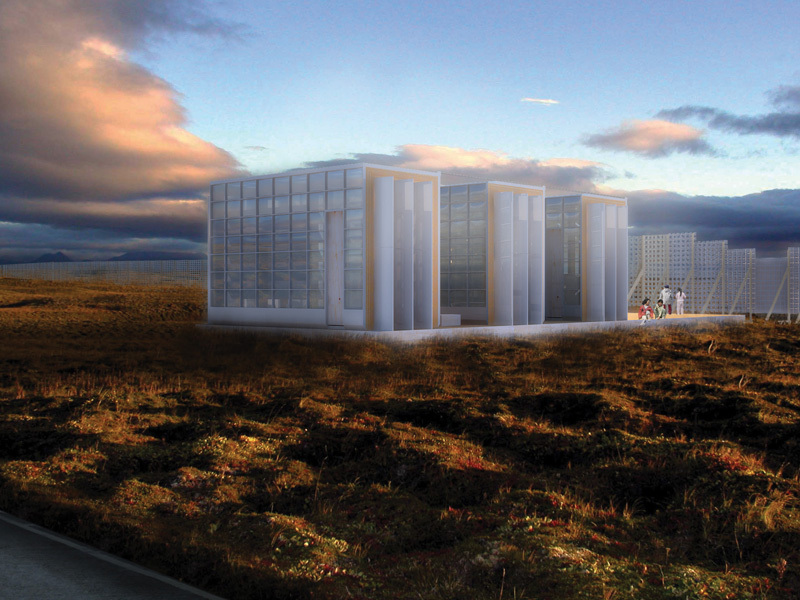

Exterior View from Highway, Summer
Exterior View from Highway, Summer

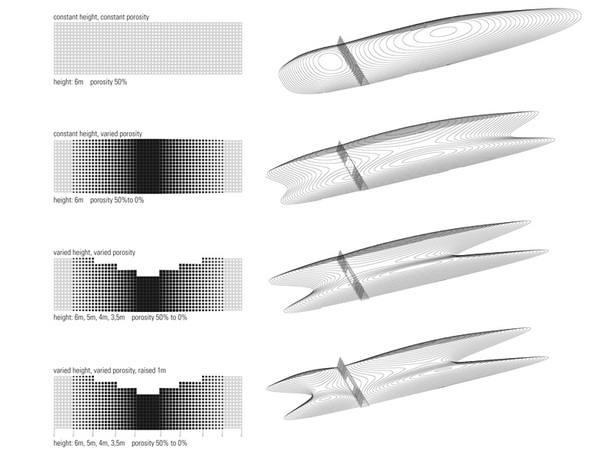

Manipulation to Snowfence to set a specific drift accumulation
Manipulation to Snowfence to set a specific drift accumulation

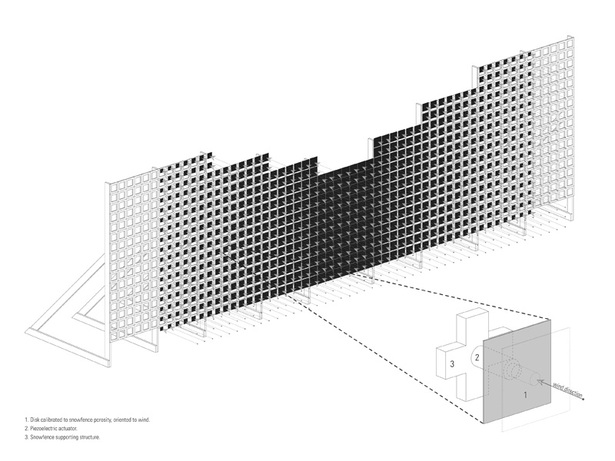

Piezoelectric wind harvestors built into the fence structure
Piezoelectric wind harvestors built into the fence structure

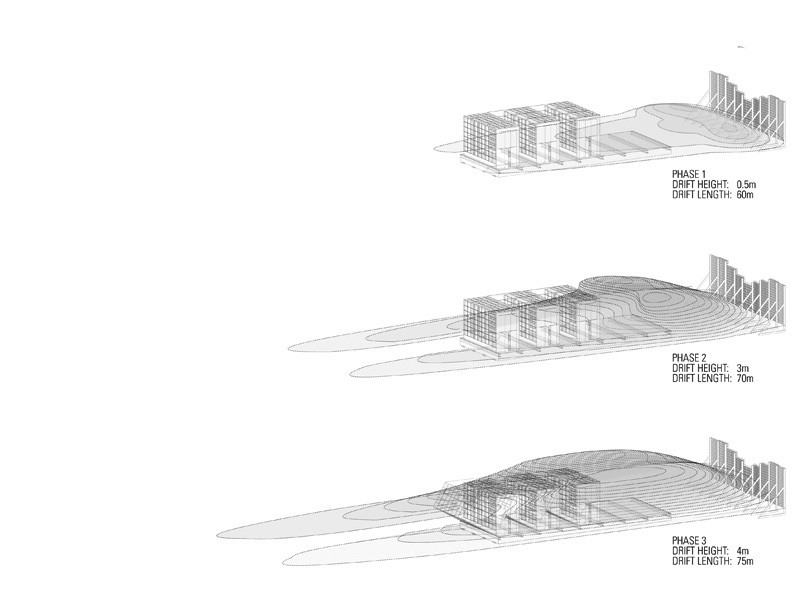

Accumulation Process 01
Accumulation Process 01

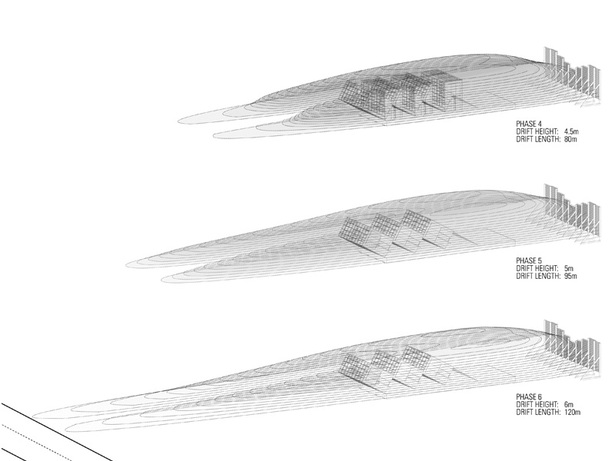

Accumulation Process 02
Accumulation Process 02

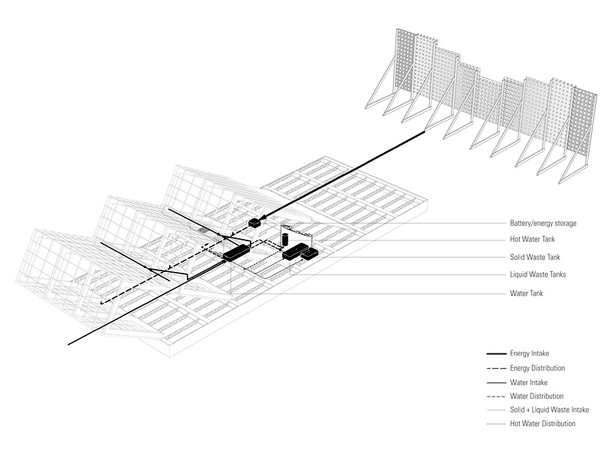

Servicing
Servicing

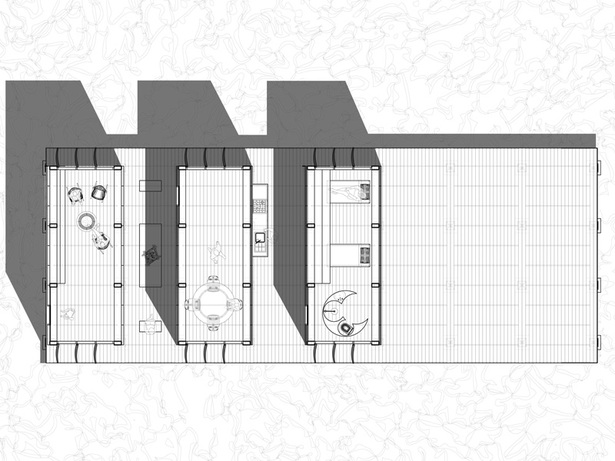

Floor Plan, Summer
Floor Plan, Summer

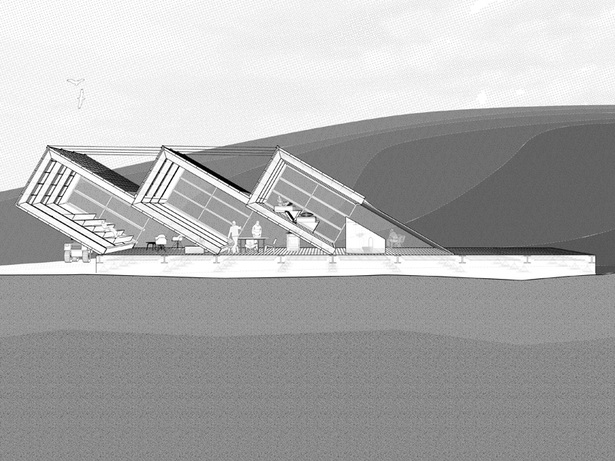

Section, Winter
Section, Winter

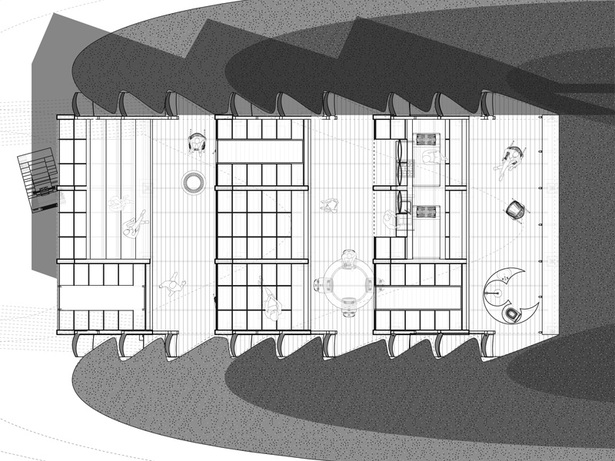

Floor Plan, Winter
Floor Plan, Winter

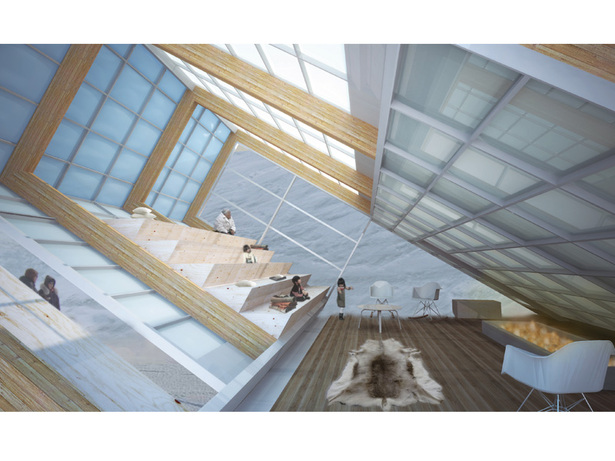

Interior View, Winter
Interior View, Winter

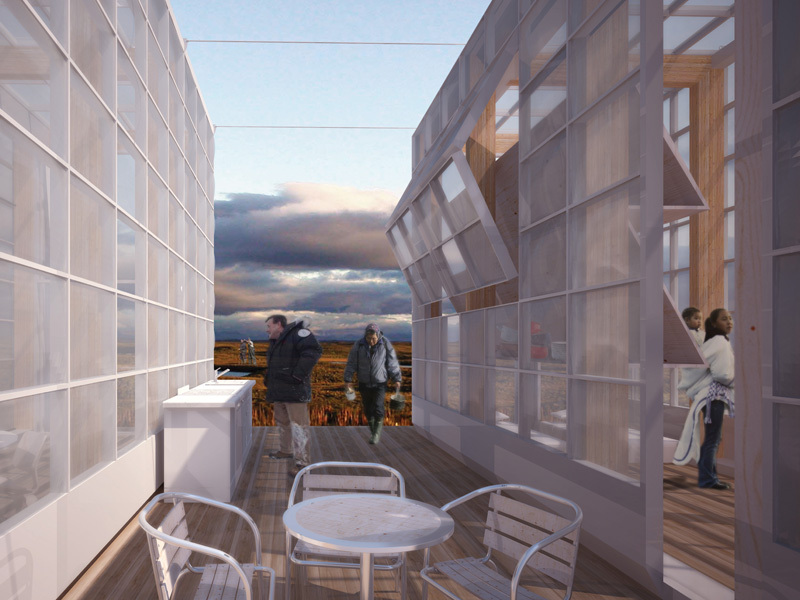

Courtyard View, Summer
Courtyard View, Summer

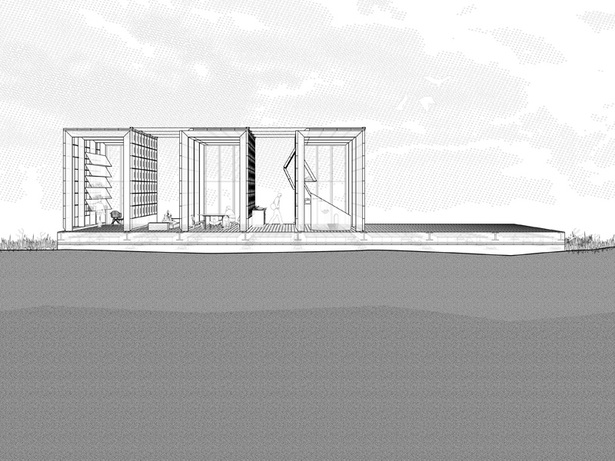

Section, Summer
Section, Summer
