Off-Grid Scenarios: solutions for the endless city was recently chosen by Mark Linder of Syracuse University, Stanley Tigerman of Tigerman McCurry Architects and Sarah Whiting of Princeton University as "best in show" at UIC, an annual award given to the top project of the school. The studio, which was led by Alexander Lehnerer of the ETH Zurich, was titled Chicago Rules: inclusionary regimes within the American city .
Capable of existing in any American city, ‘off-grid scenarios’ is tested in Chicago, the city that has been historically described as the endless city. In Chicago, disturbances within the grid provide foundations for opportunities and create difference for the city. In order to emphasize these moments, we propose turning them into a new monumental system or infrastructure, which reflects its context and re-uses it in a new, experimental way. These new urban monumental infrastructure questions ‘building-as-landscape’ scenarios, begging the question of what kind of building the city becomes. Historically, the pre-existing layered infrastructures of American cities like Chicago have already informally addressed this phenomenon. Our proposal takes this notion of city-as-building to the next level, giving it a sense of monumental importance. In addition, the proposed scenarios establish new connections with the existing urban grid, a defining characteristic of American cities.
↑ Click image to enlarge

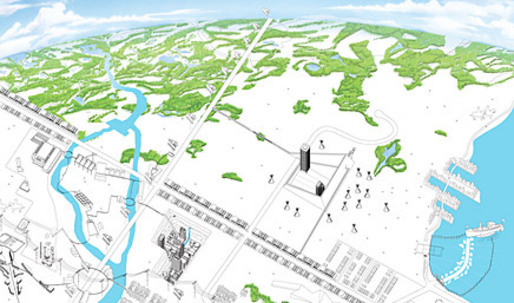

Chicago Is All There Is. (Urban Interpretations on the city - Studio Alex Lehnerer)
American cities, like Chicago, are about to gain new additions to their skylines. Except this time it is different: no one can find them; they seem to be invisible and unnoticeable amongst a crowded downtown.
↑ Click image to enlarge
A new kind of building for the city - Grant Park perspective
The buildings’ height is revealed; an astonishing (negative) 1200 ft. Slowly an inversion occurs, skylines no longer tower to the clouds, but instead, extend far below the surface of the earth. Alleys turn to bridges, garages to entries and what we used to know as ground turns to rooftop. They have become endless cities surpassing any norms of traditional urban planning.
↑ Click image to enlarge
The City becomes the building - Michigan Avenue
Because these inverted moments exist within the grid but act beyond it, they allow for new freedoms to evolve. The strange duality of these inverted monuments is that, for all practical purposes, they remain invisible to a city’s skyline, but at the same time the grid and the city cannot exist without them.
↑ Click image to enlarge
A hypothetical city – off-grid arrangements
Their substantial presence within the city gives them a monumental quality, becoming not upright monuments, but inverted ones. Within the inversion, the existing infrastructures and buildings become integrated into a single interconnected space, which acts simultaneously as a new infrastructure, architecture and city. Transportation no longer exists as a freestanding system, but becomes an interconnected built mass.
↑ Click image to enlarge
Residential neighborhood Section perspective
These new urban monumental infrastructures begin to challenge ‘building-as-landscape’ scenarios, begging the question of what kind of building the city becomes. Off-grid scenarios take this notion of city-as-building, building-as-city to a suggestive level, giving it a sense of monumental importance with monumental ramifications.
↑ Click image to enlarge
The Chicago Grid
↑ Click image to enlarge
Diagrammatic arrangements of the city
Urban Interpretations at UIC, Chicago – 12 Basic Points
by Alex Lehnerer
↑ Click image to enlarge
Off-Grid moments in Chicago
↑ Click image to enlarge
Grid becomes the exception in the city
↑ Click image to enlarge
Realities - A collection of Off-Grid moments
↑ Click image to enlarge
New Urban Skyline - City becomes the building
↑ Click image to enlarge
Urban and Mixed-Use inversion
↑ Click image to enlarge
Off-Grid Advantage, residential inversion
↑ Click image to enlarge
New residential topography
↑ Click image to enlarge
New Monuments in the city
↑ Click image to enlarge
Conceptual model
↑ Click image to enlarge
Model - residential section
↑ Click image to enlarge
Model - residential section
↑ Click image to enlarge
Model - A new Chicago Row House
↑ Click image to enlarge
Model - new living scenarios
