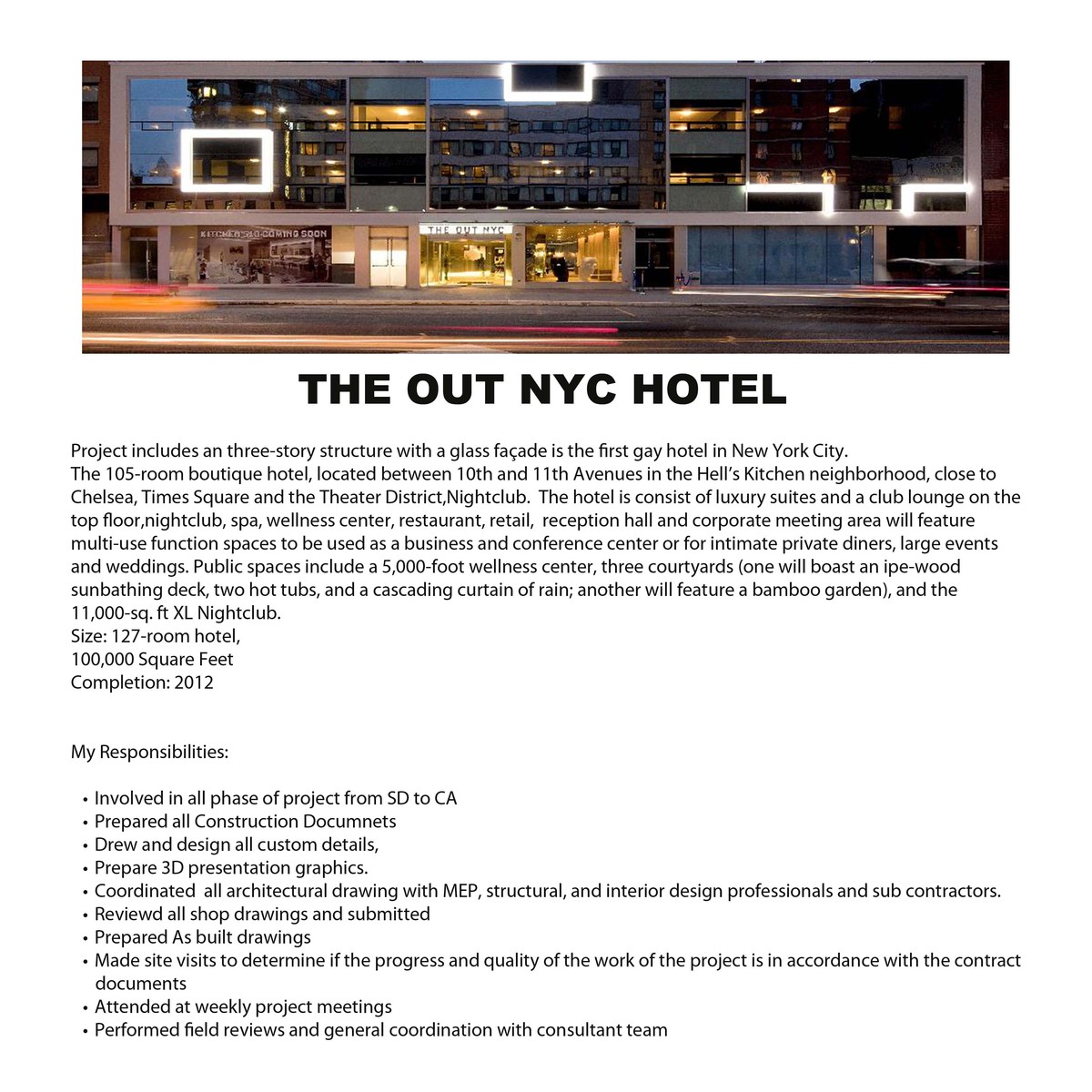

THE OUT NYC HOTEL- NEW YORK


Project includes an three-story structure with a glass façade is the first gay hotel in New York City.
The 105-room boutique hotel, located between 10th and 11th Avenues in the Hell’s Kitchen neighborhood, close to Chelsea, Times Square and the Theater District,Nightclub.  The hotel is consist of luxury suites and a club lounge on the top floor,nightclub, spa, wellness center, restaurant, retail,  reception hall and corporate meeting area will feature multi-use function spaces to be used as a business and conference center or for intimate private diners, large events and weddings. Public spaces include a 5,000-foot wellness center, three courtyards (one will boast an ipe-wood
Sunbathing deck, two hot tubs, and a cascading curtain of rain; another will feature a bamboo garden), and the 11,000-sq. ft XL Nightclub.
Size: 127-room hotel,
100,000 Square Feet
Completion: 2012


Read more

Status: Built
Location: 510 West 42nd Street New York, NY 10036


First floor Plan - Club,Dance Floor,Bar,Hotel Lobby,Reception
First floor Plan - Club,Dance Floor,Bar,Hotel Lobby,Reception

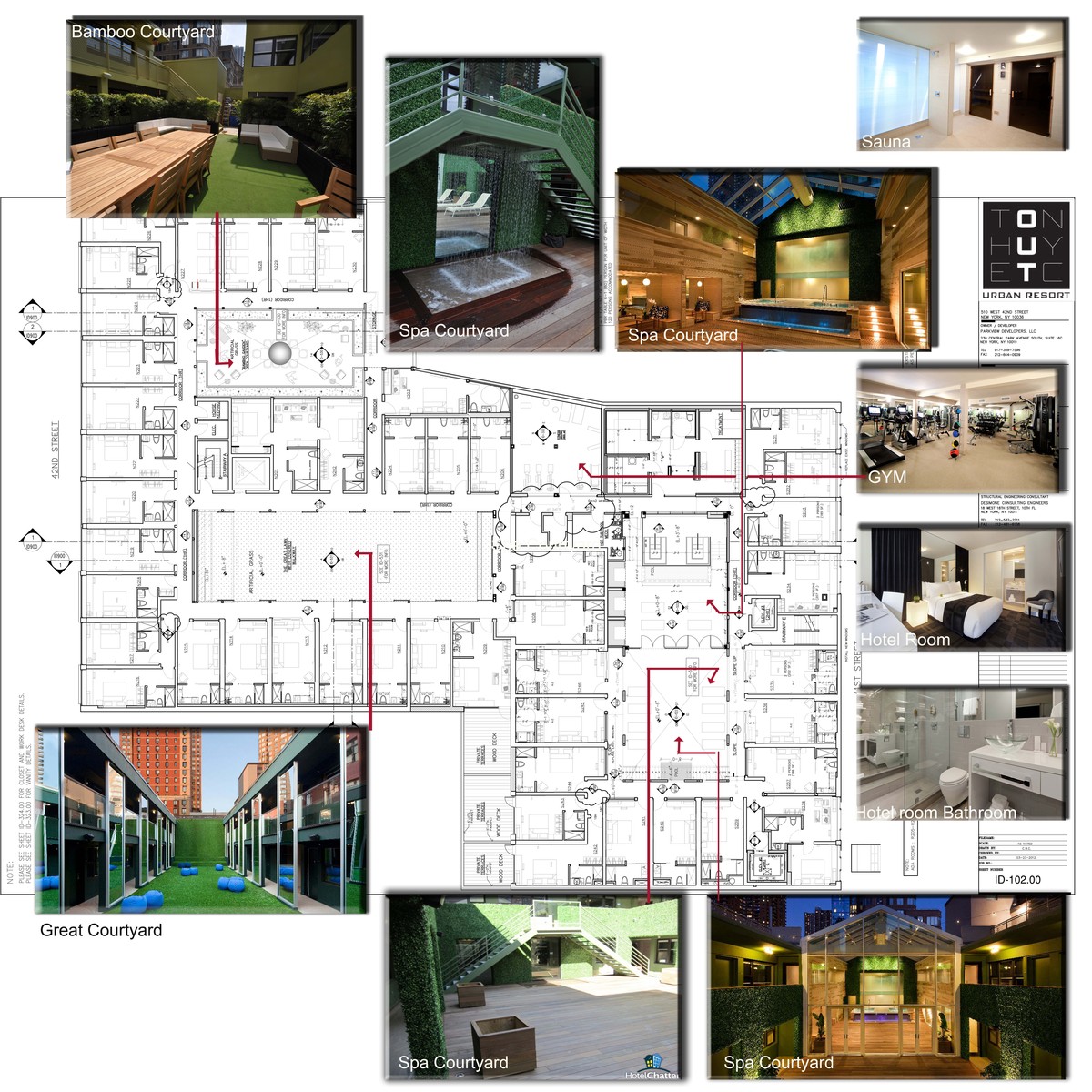

Second Floor Plan- Hotel Rooms, Out Door Courtyards,GYm,Sauna
Second Floor Plan- Hotel Rooms, Out Door Courtyards,GYm,Sauna

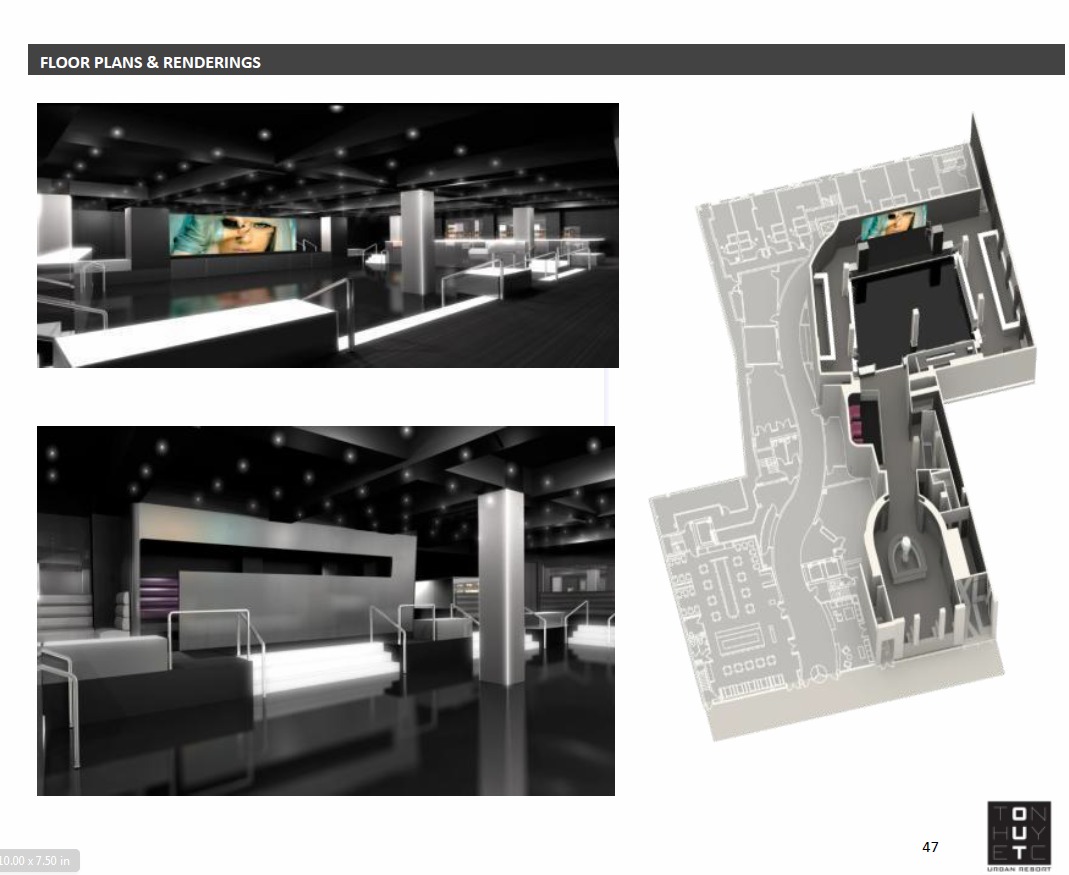

Club - Dance Floor
Club - Dance Floor

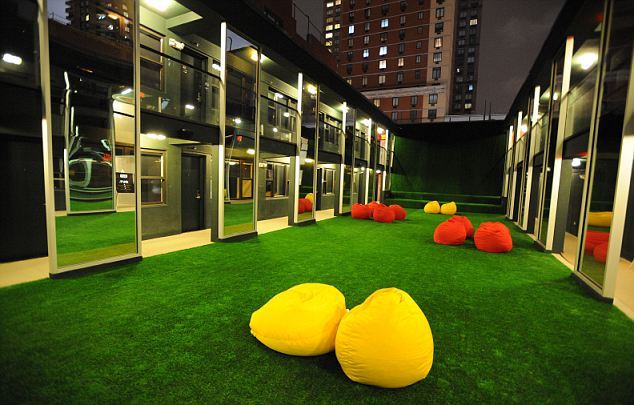

Great Courtyard
Great Courtyard

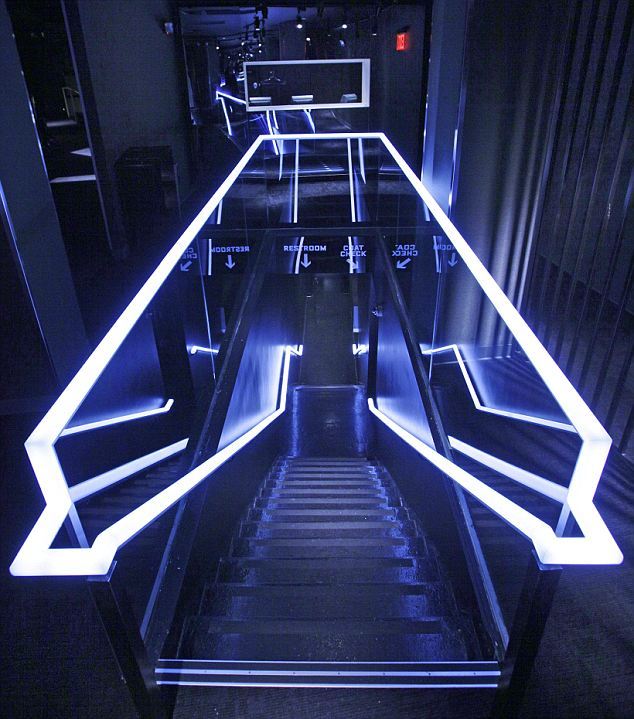

Stairway (club to the bathroom)
Stairway (club to the bathroom)
Hotel Corridor
Hotel Corridor
Spa Courtyard
Spa Courtyard

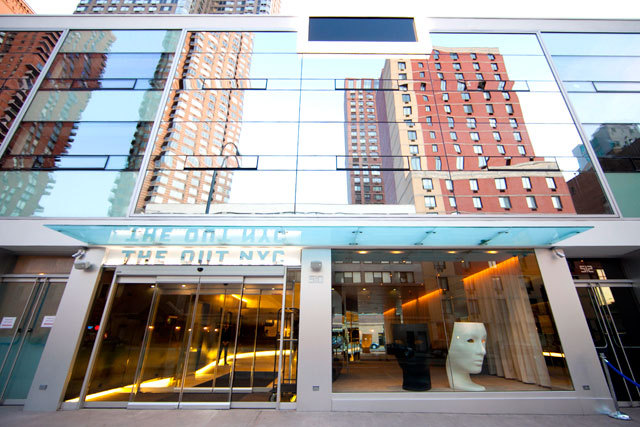

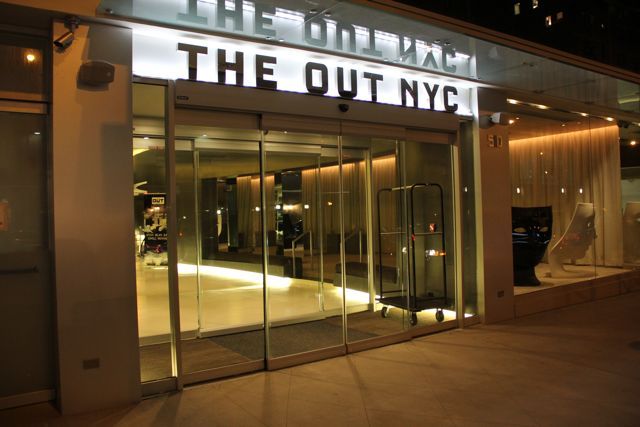

Hotel Entrance
Hotel Entrance

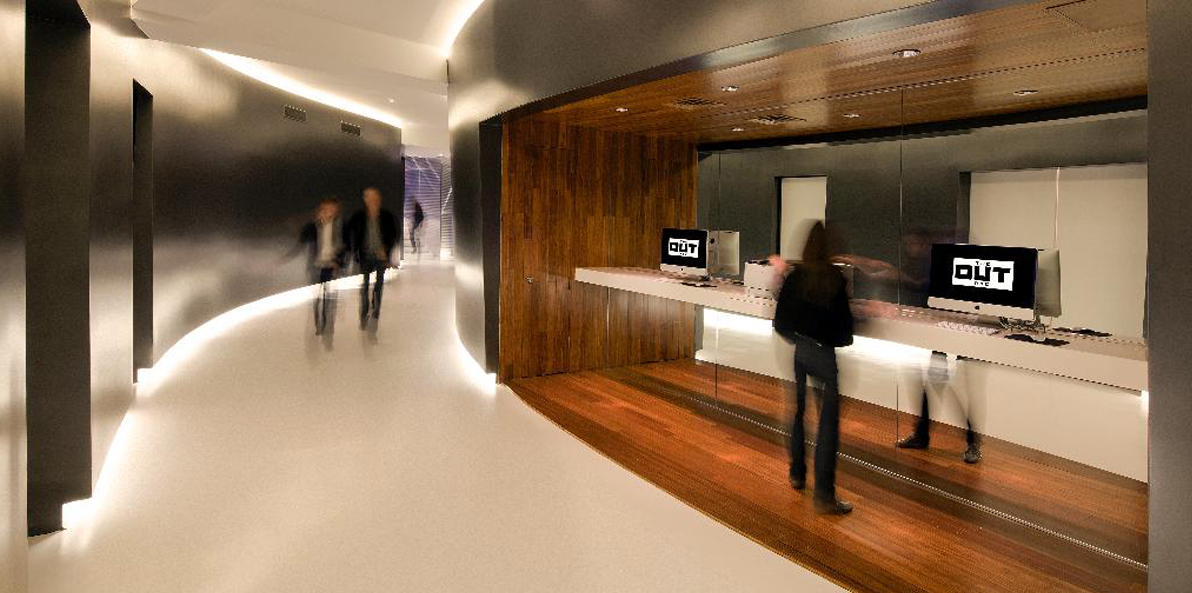

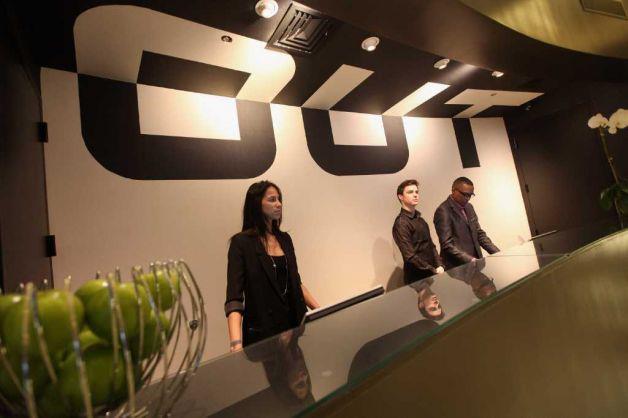

Hotel Reception
Hotel Reception

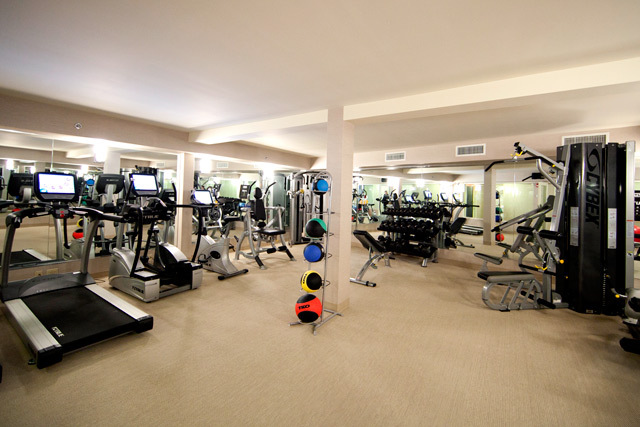

GYM
GYM
Spa Courtyard (Out door)
Spa Courtyard (Out door)
Hotel Entrance
Hotel Entrance

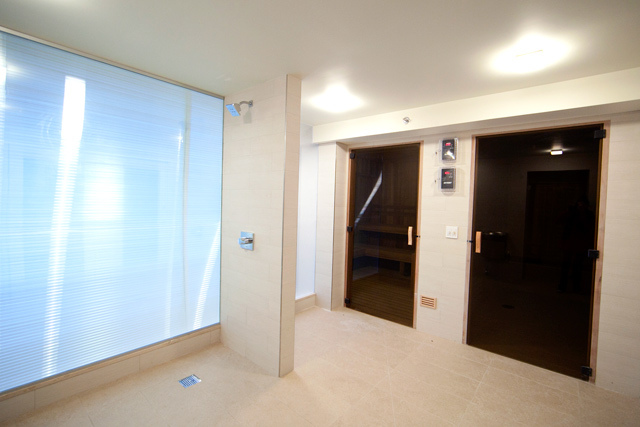

Sauna
Sauna
Restaurant (Front Bar)
Restaurant (Front Bar)
Restaurant (DIning Room)
Restaurant (DIning Room)

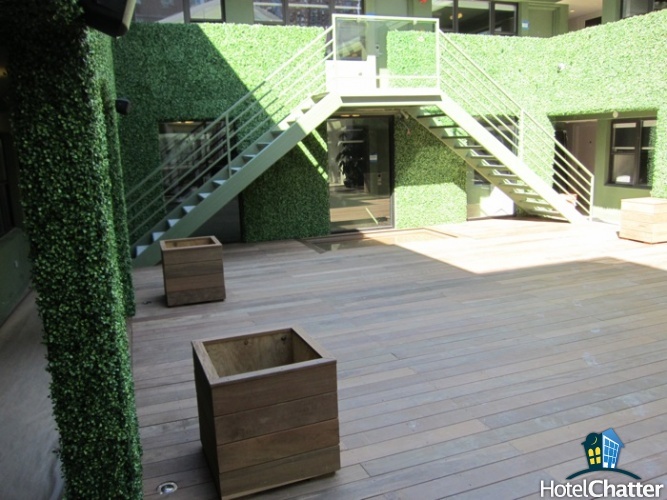

Spa Courtyard
Spa Courtyard

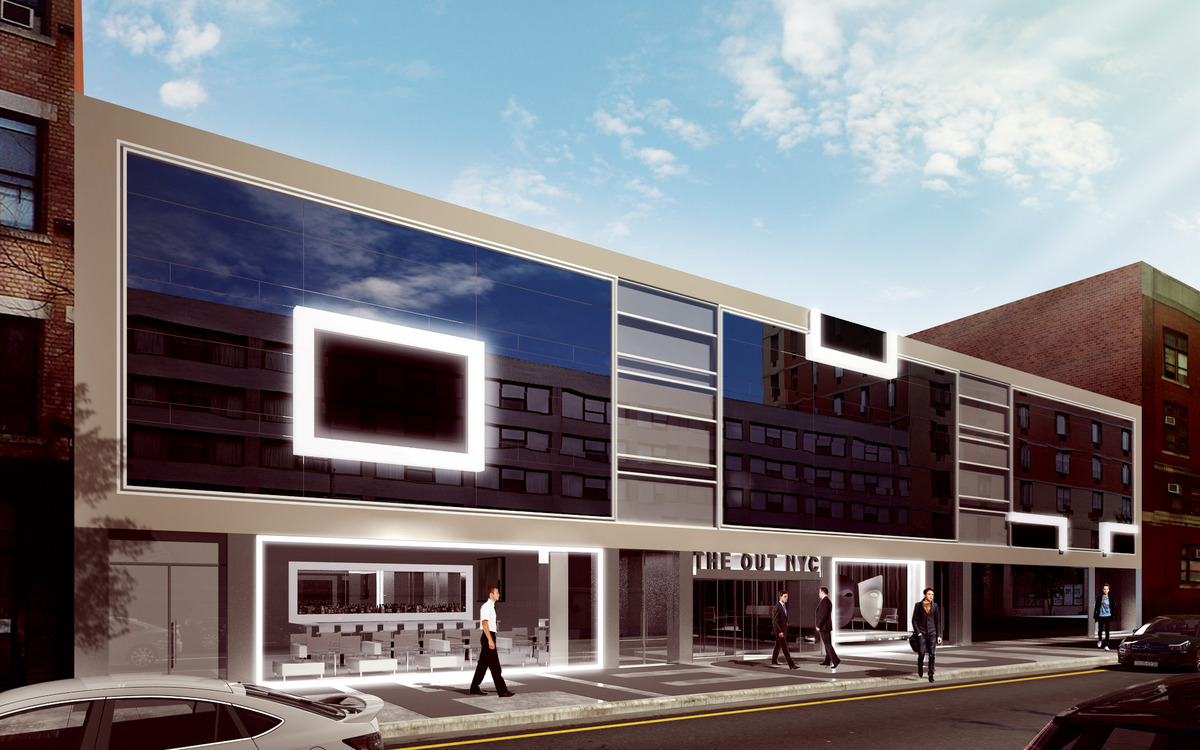

Facade Rendering
Facade Rendering

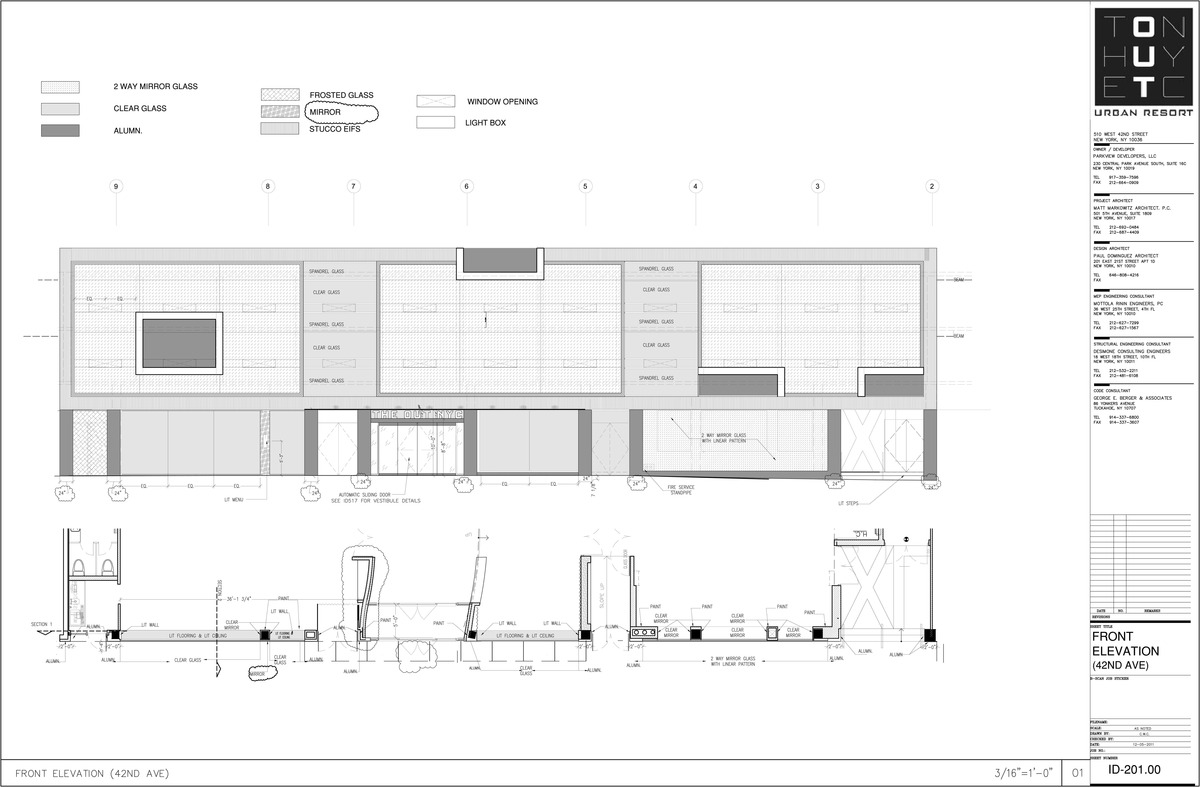

Elevation - My sample drafting
Elevation - My sample drafting

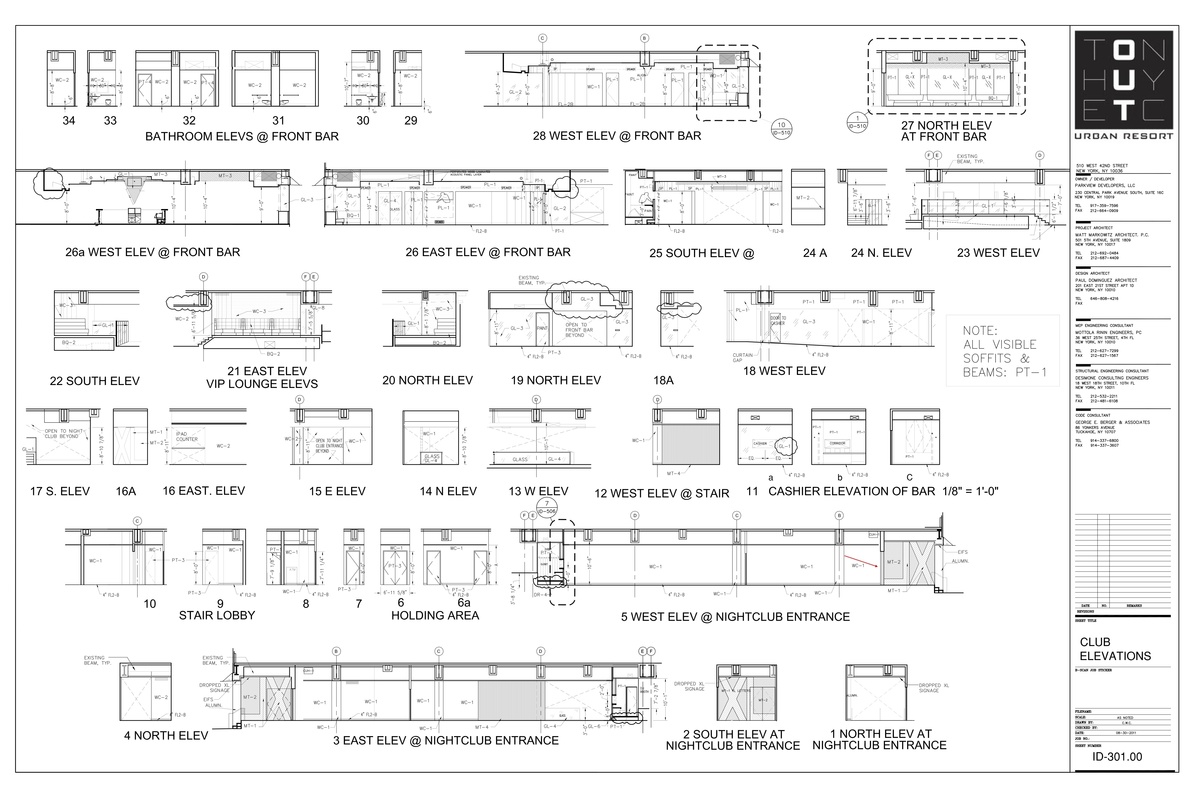

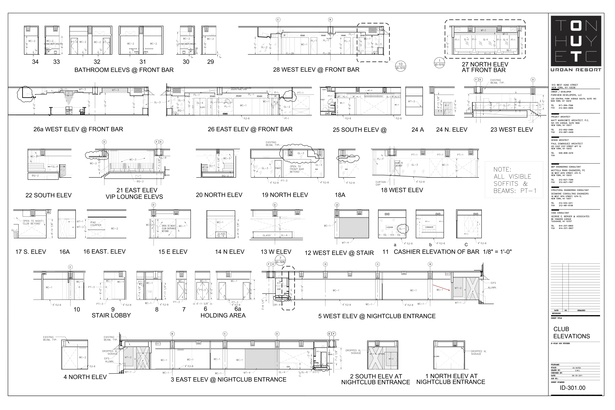

Interior Elevations- My sample drafting
Interior Elevations- My sample drafting

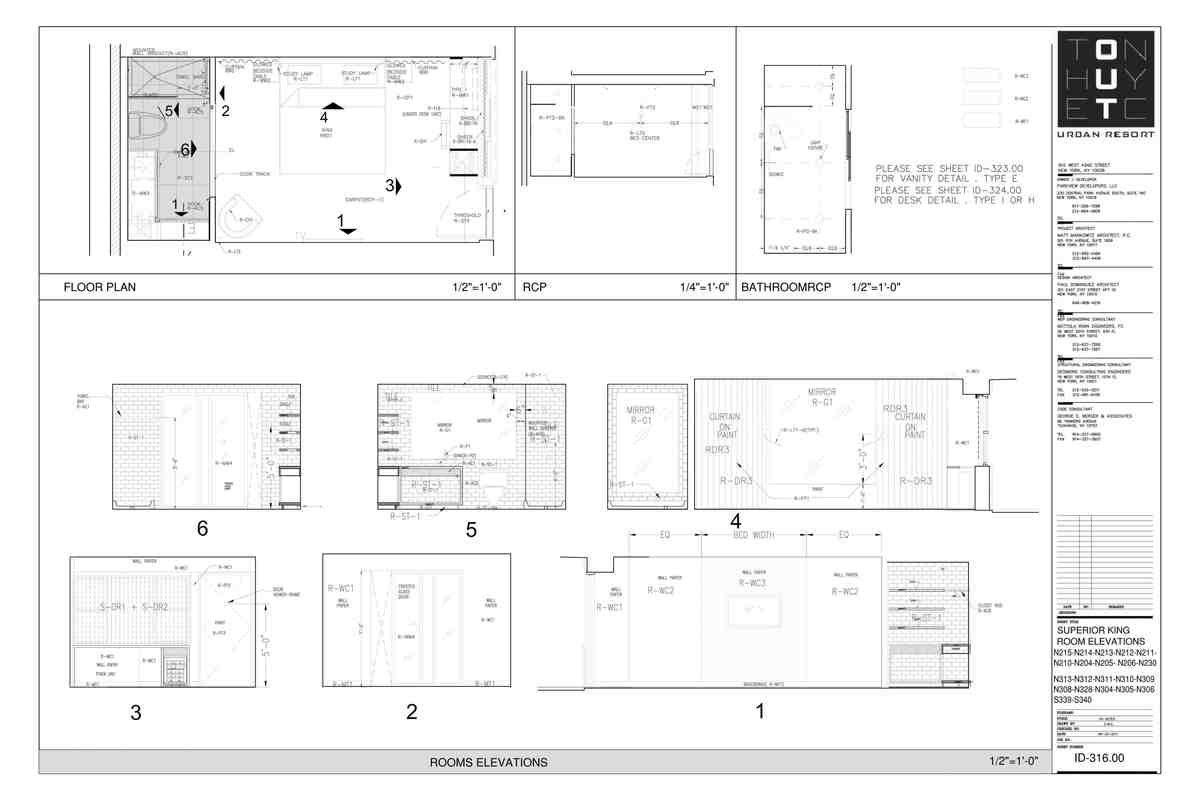

Enlarged hotel room- My sample drafting
Enlarged hotel room- My sample drafting

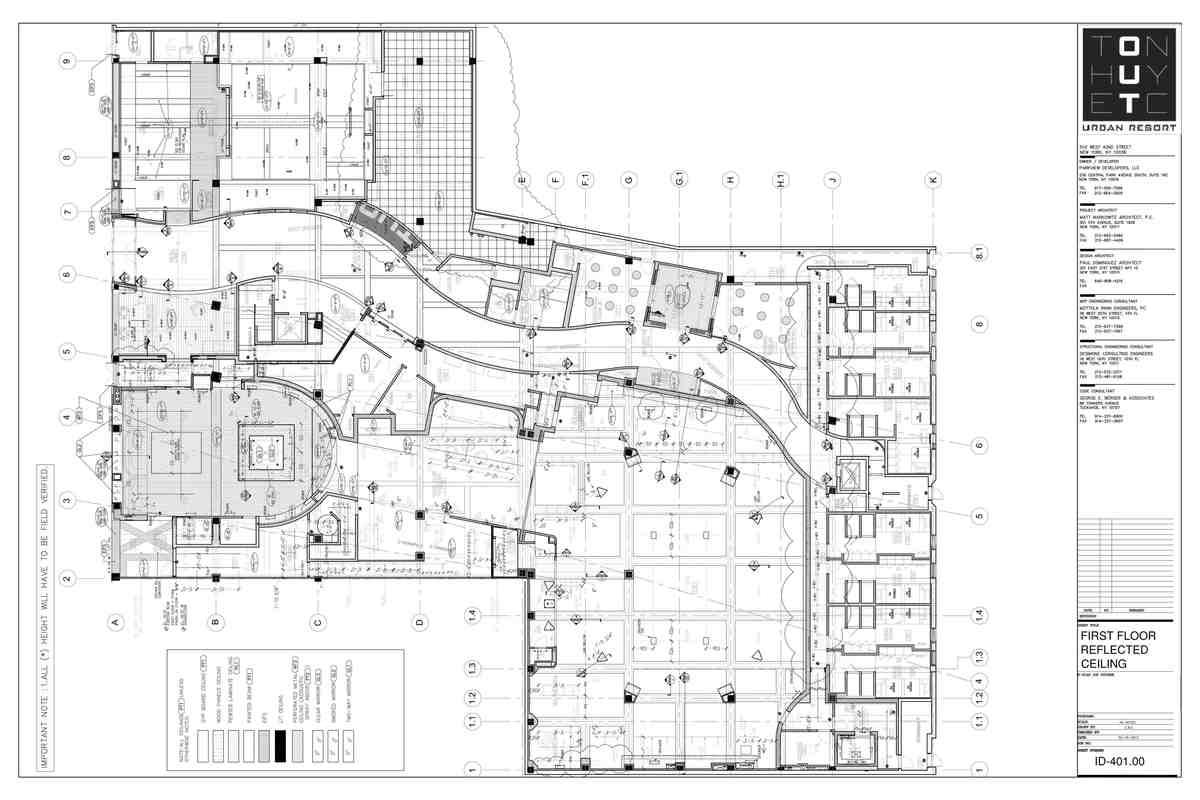

First Floor Reflected Ceiling Plan- My sample drafting
First Floor Reflected Ceiling Plan- My sample drafting

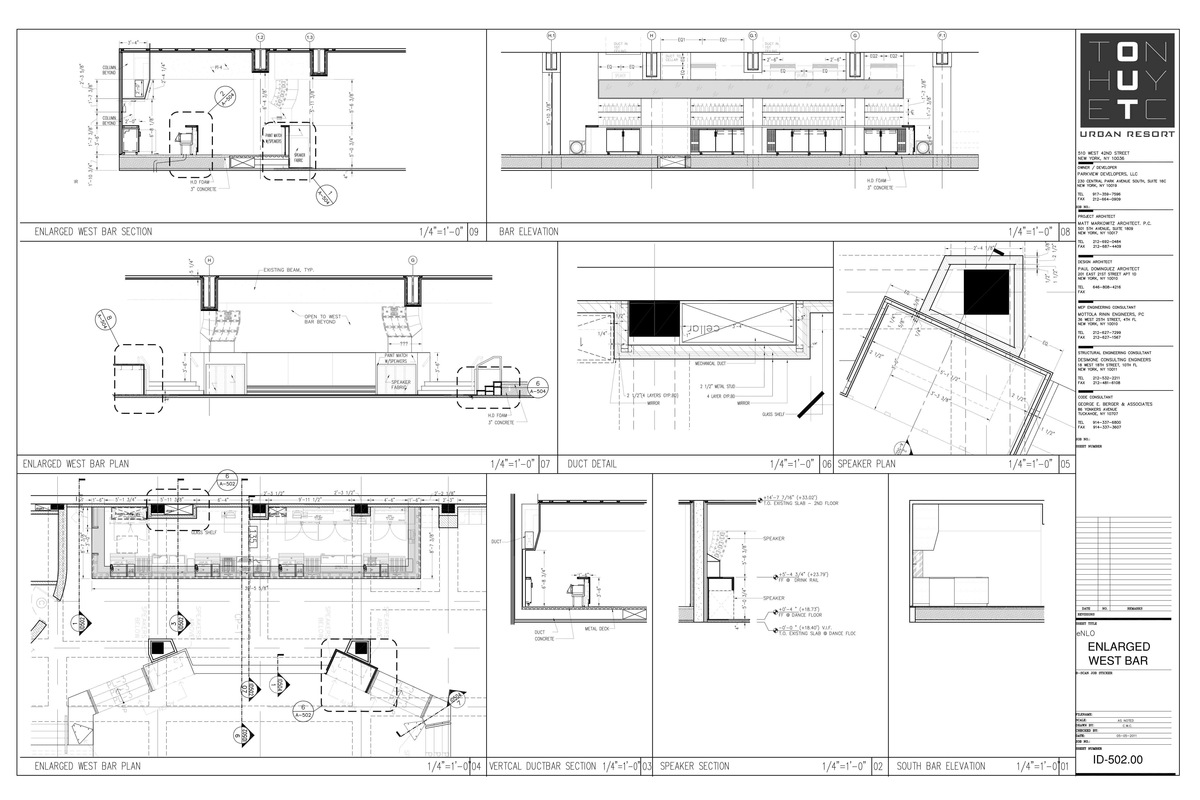

West Bar Detail- My sample drafting
West Bar Detail- My sample drafting

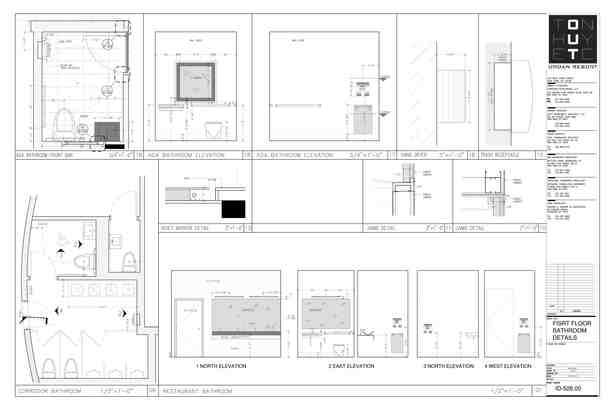

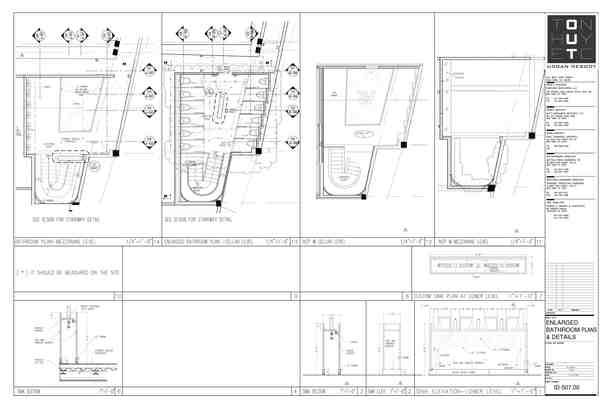

Bathroom details - My sample drafting
Bathroom details - My sample drafting

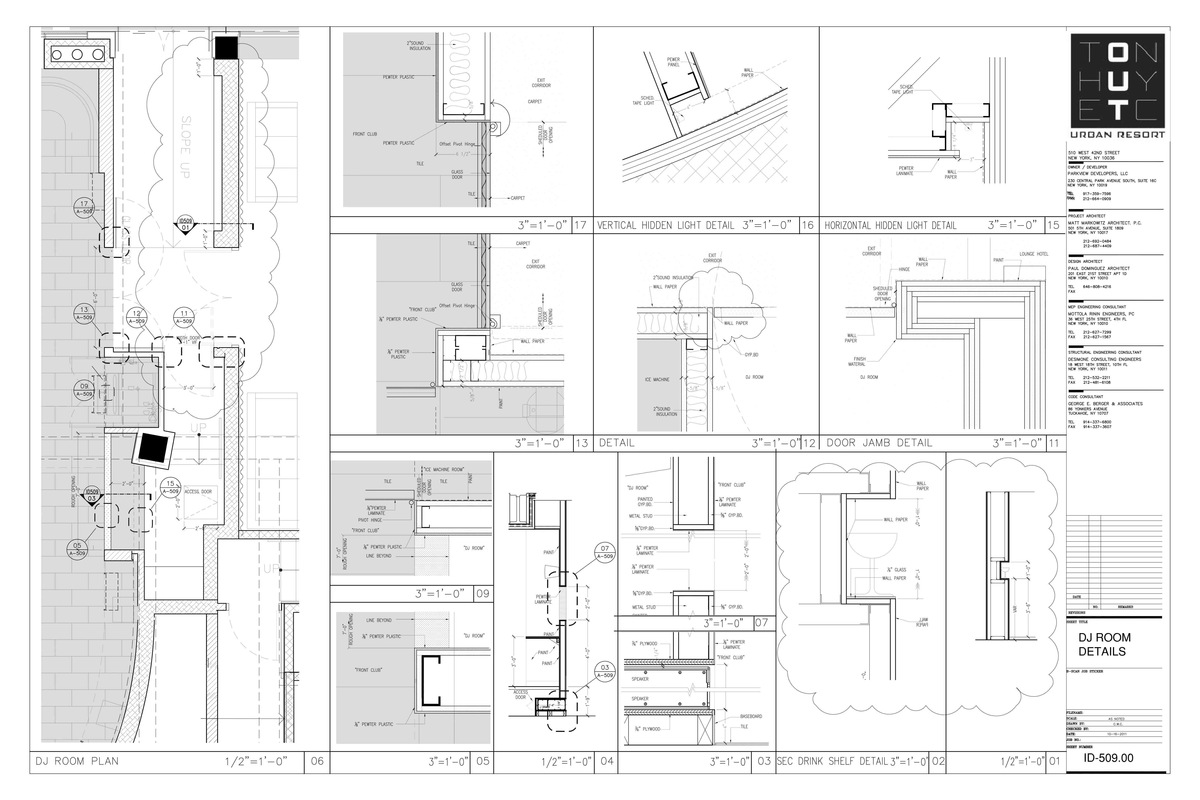

Enlarged Dj Room & Details- My sample design of custom details
Enlarged Dj Room & Details- My sample design of custom details

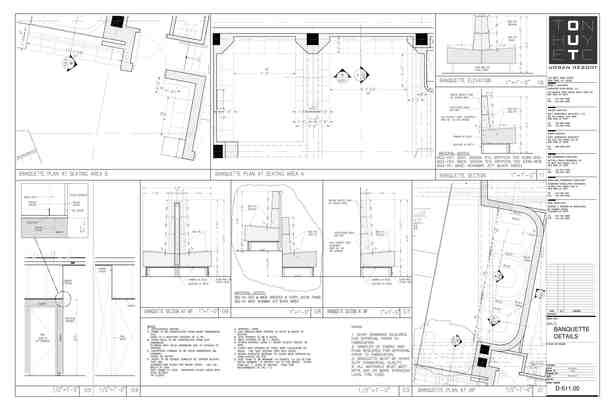

Seating Area Details- My sample design of custom details
Seating Area Details- My sample design of custom details

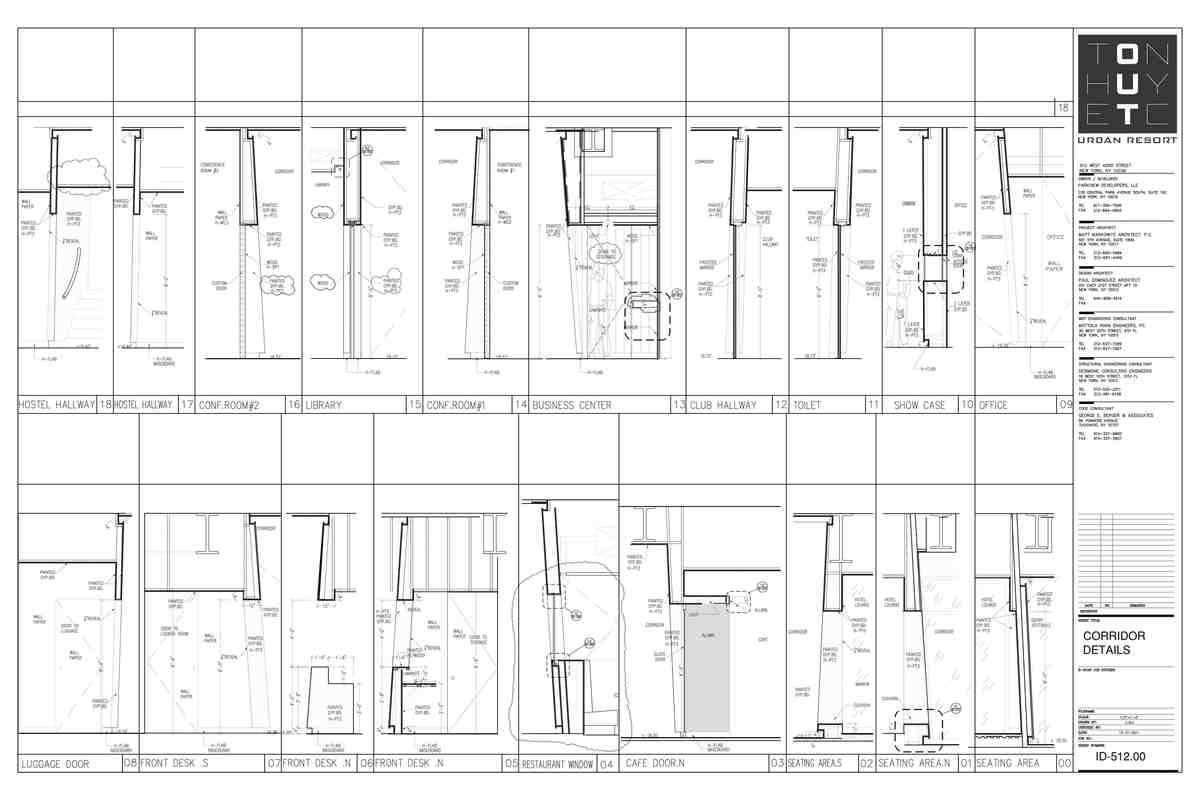

Hotel Corridor wall Sections and Details- My sample design of custom details
Hotel Corridor wall Sections and Details- My sample design of custom details

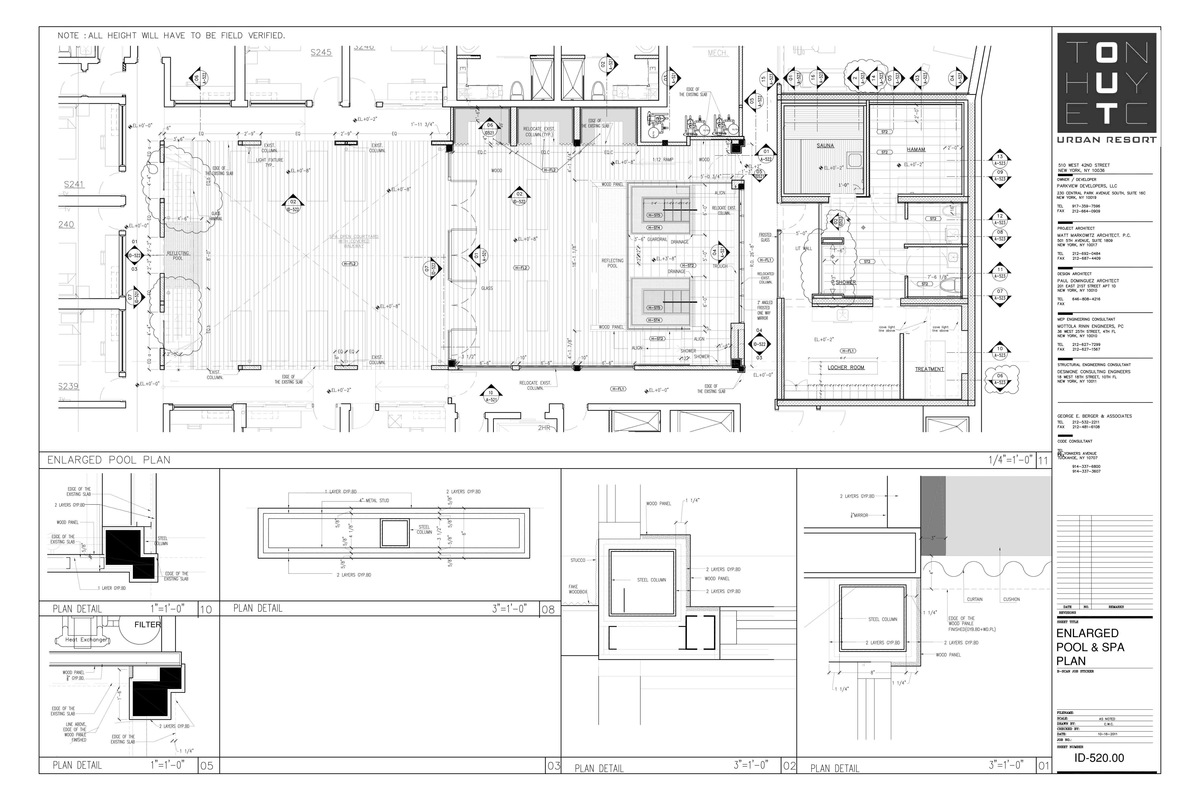

Enlarged Spa Area & Details- My sample design of custom details
Enlarged Spa Area & Details- My sample design of custom details

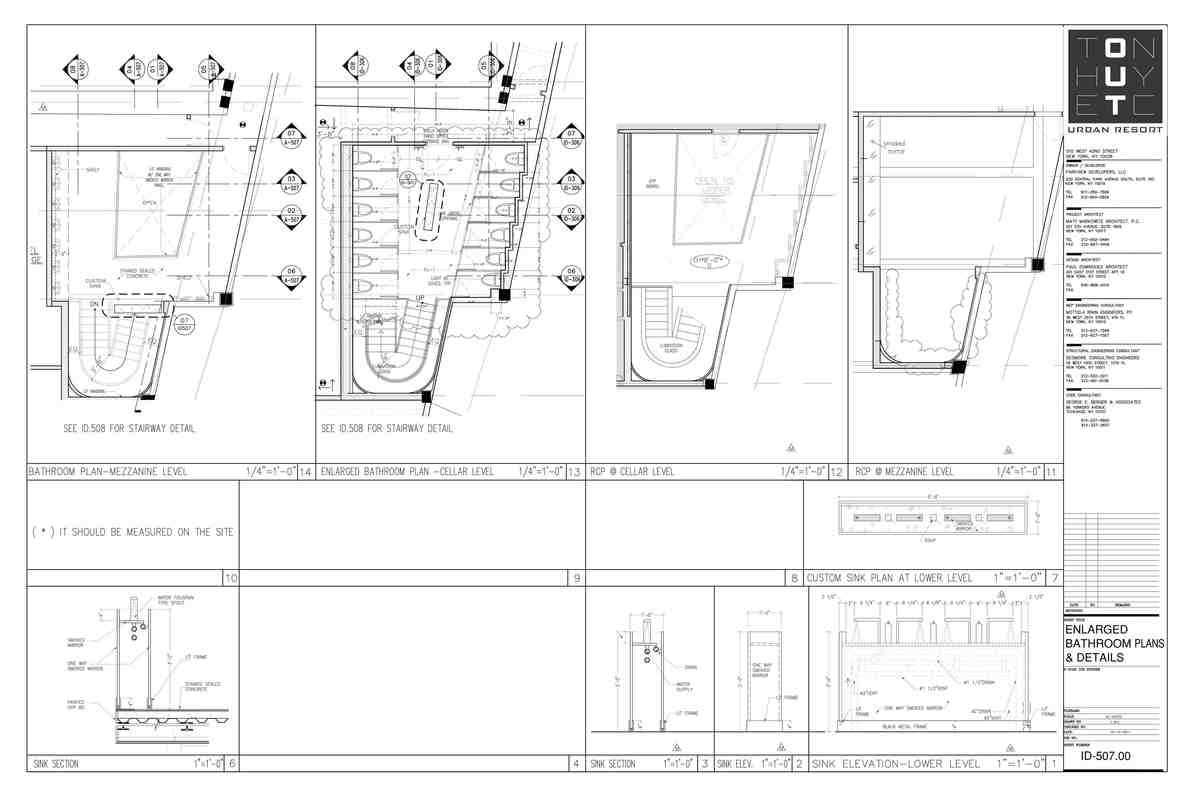

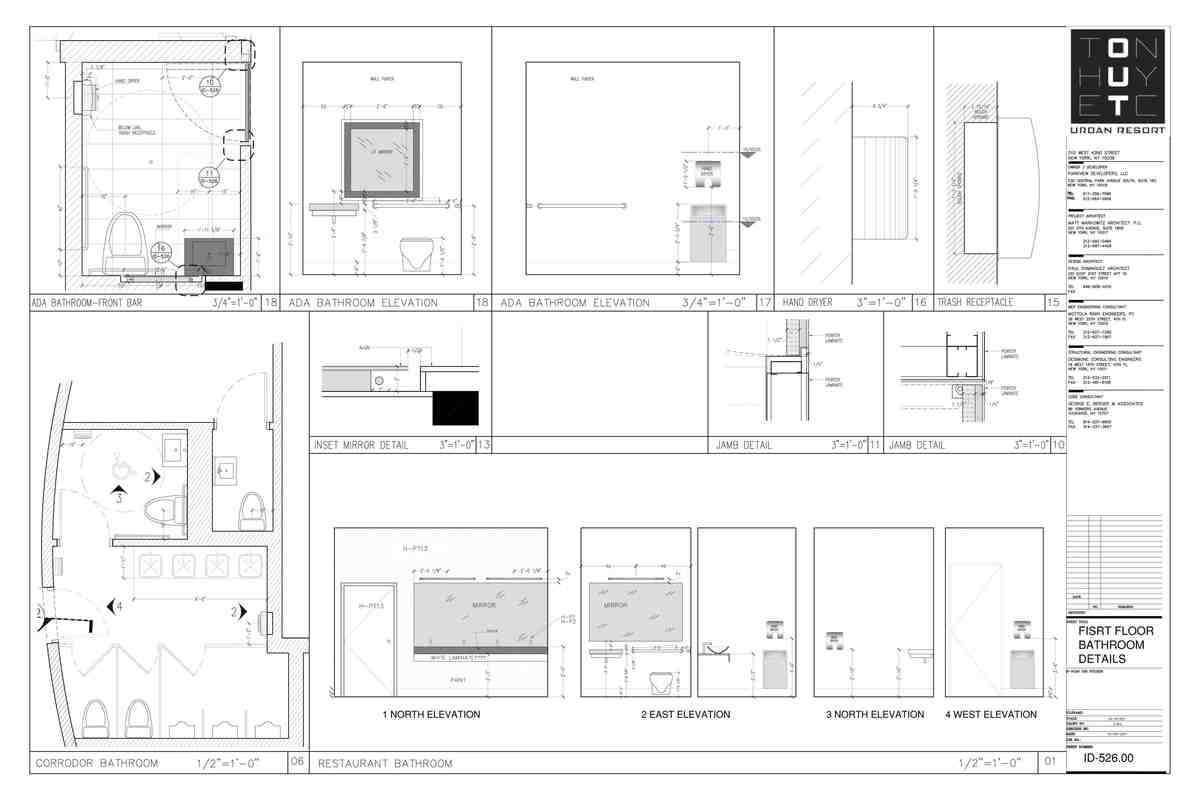

Enlarged Bathroom area- My sample drafting
Enlarged Bathroom area- My sample drafting

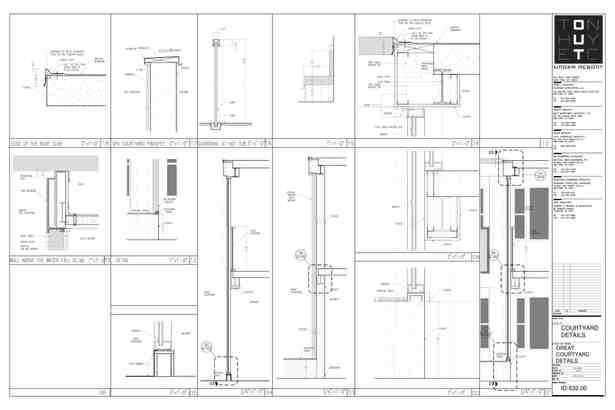

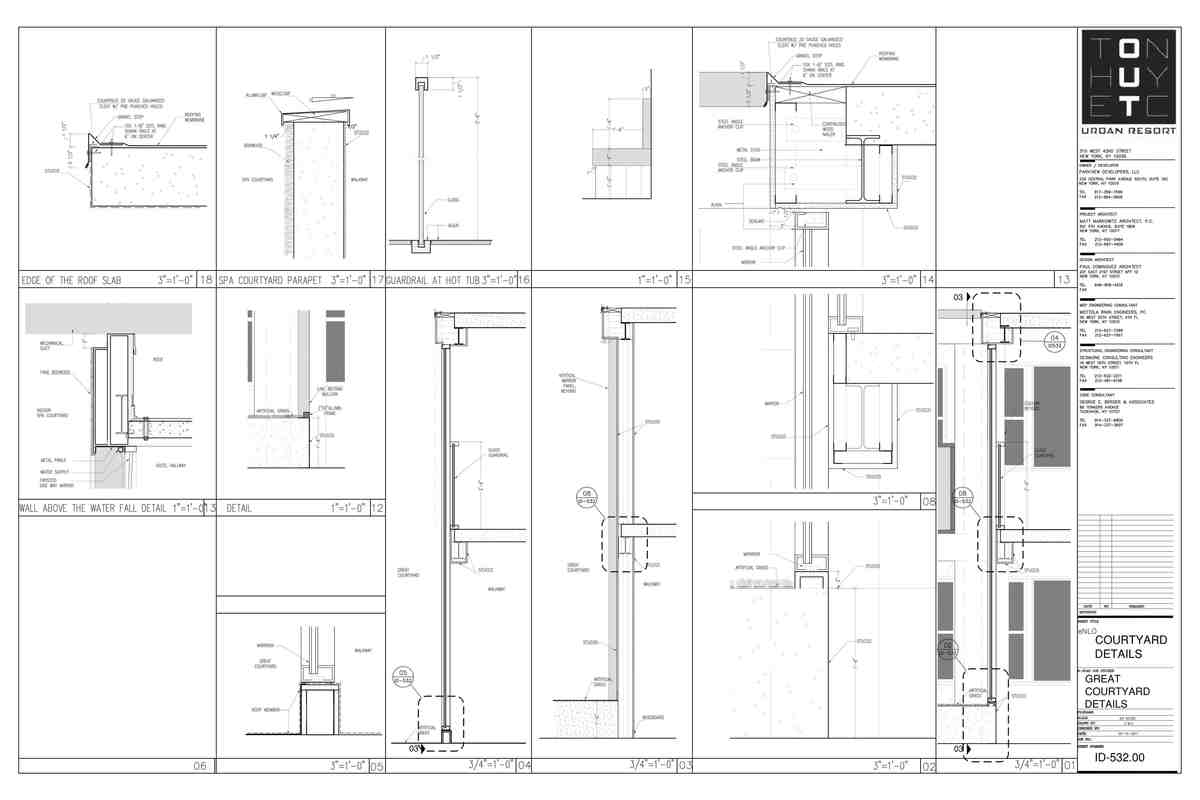

Enlarged Great Courtyard -My sample design of custom details
Enlarged Great Courtyard -My sample design of custom details

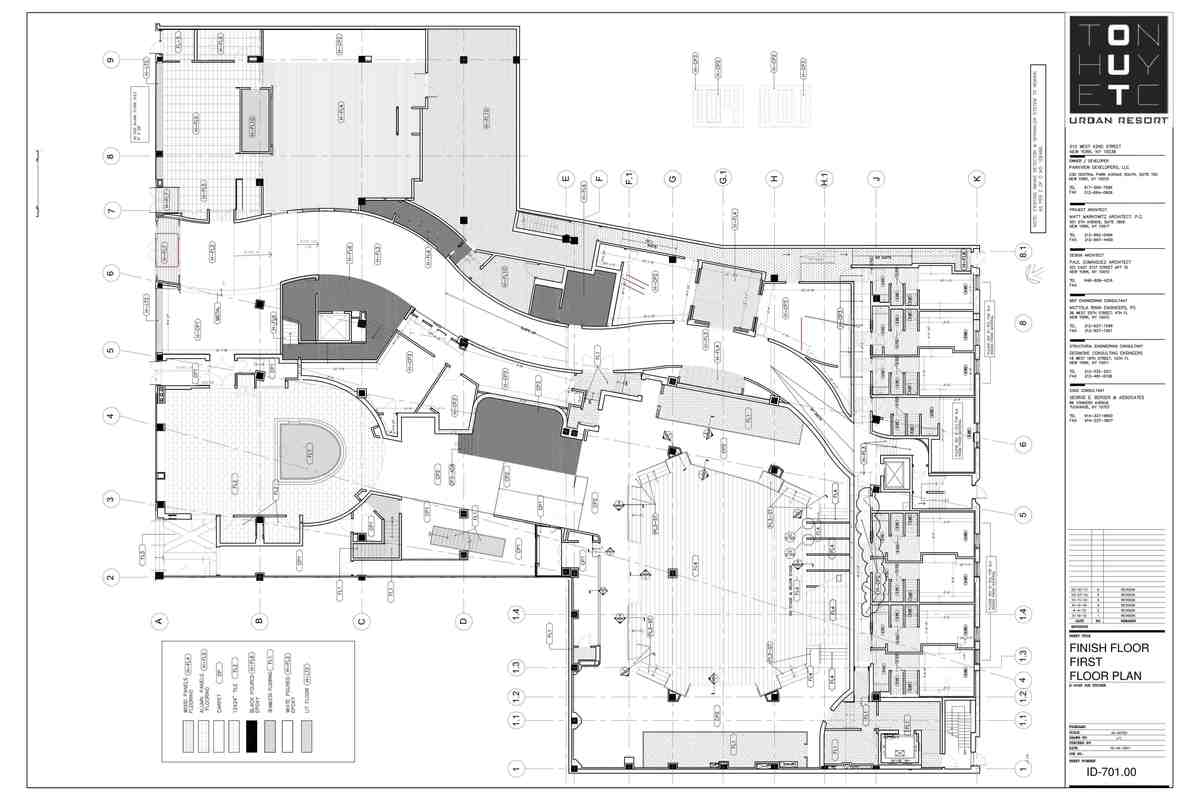

Finish Floor Plan - My Sample Drafting
Finish Floor Plan - My Sample Drafting
