WLL Bloc

The Work Live Learn bloc occupies the burgeoning South Lake Union neighborhood in Seattle. It's a high density mixed use solution housing art students, working artists, wood/metal shops, and ground floor gallery spaces.



The section and verticality of the unit was considered the most vital and this aspect was exploited in order to maximize the site’s potential. Stepping and vertical expansion was utilized in order to create spatial thresholds. This creates a section that flares out towards the end, where the most prized of spaces is to be: the work space.

Each unit is also rotated about the stack’s core, creating a natural daylighting slit for each unit’s work space. This ‘twisted jigsaw stack’ also allows tenants to feel a sense of ownership for their views, as each unit is orientated differently.



The ground floor hosts additional leasable studio and gallery space. Also, the adjacent church parking lot will be acquired (with their parking relocated to the below grade garage) in order for the creation of a sculpture park, thus amplifying the bloc's urban draw.

Number of units: 96

Professional unit: 950 sq. ft.

Dorm unit: 450 sq. ft.

F.A.R.: 4.53


 Read more

Status: School Project
Location: Seattle, WA, US
My Role: Designer


Concept Sketch
Concept Sketch

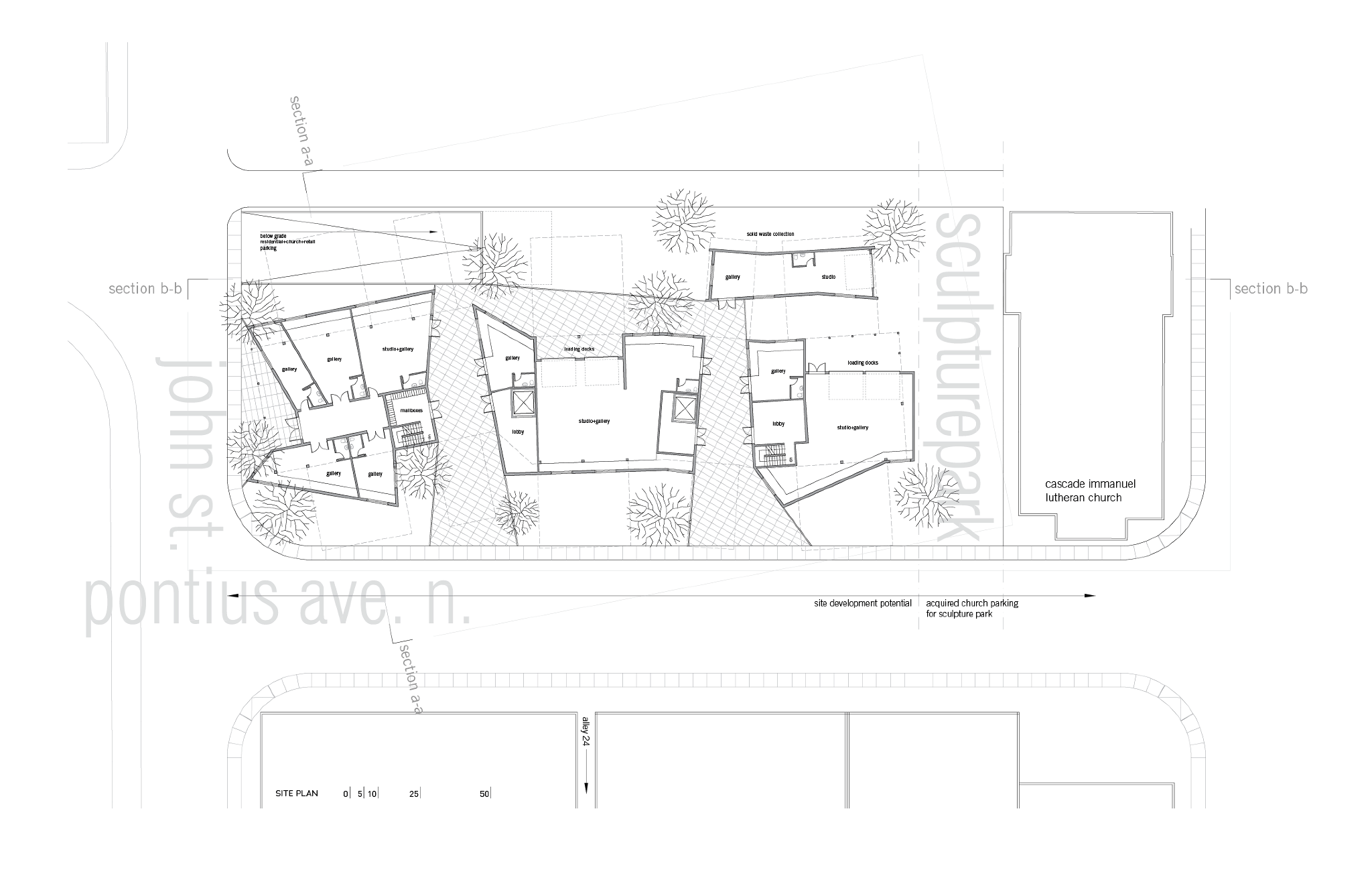

Site Plan
Site Plan

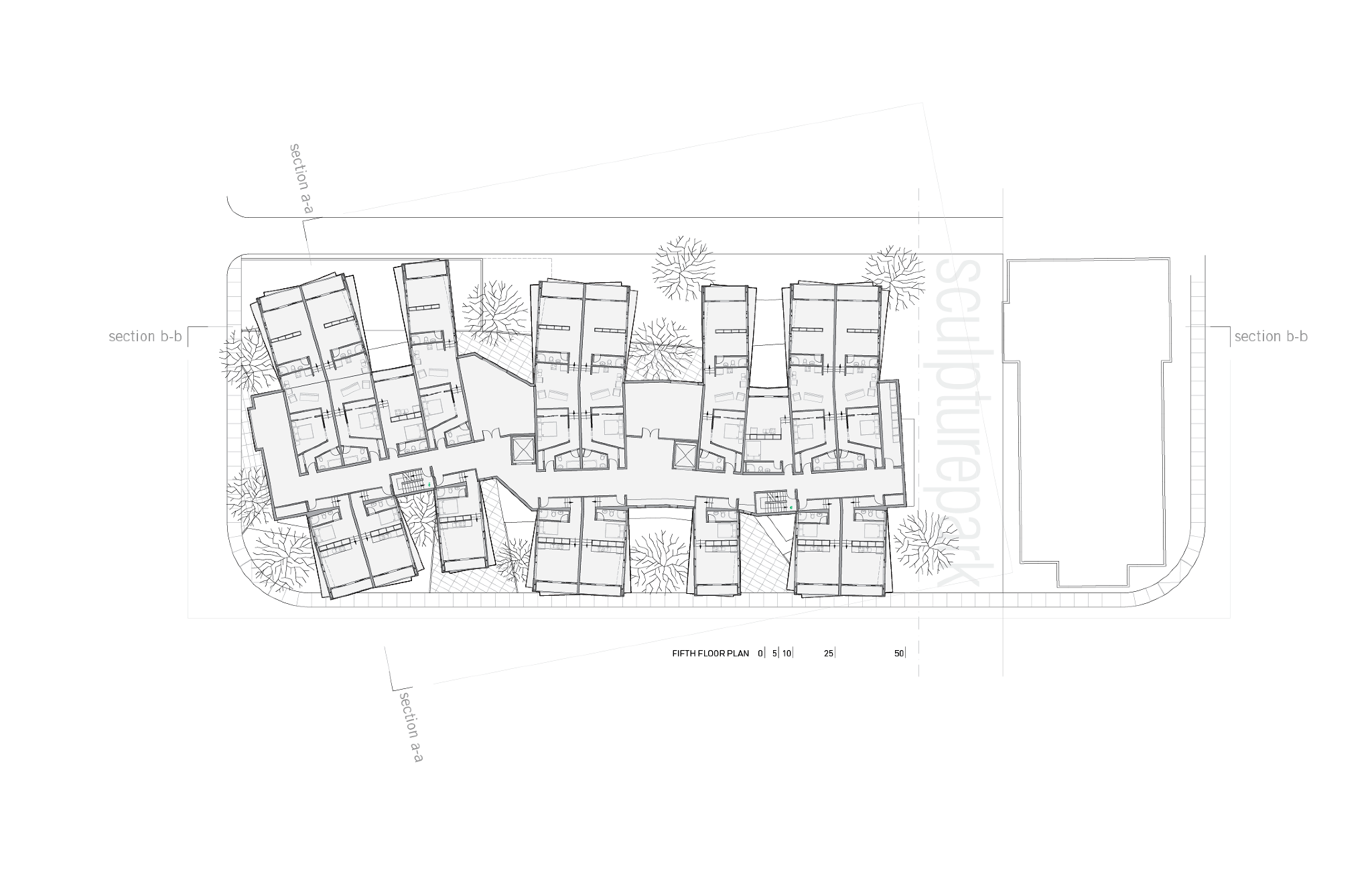

Fifth Floor Plan
Fifth Floor Plan

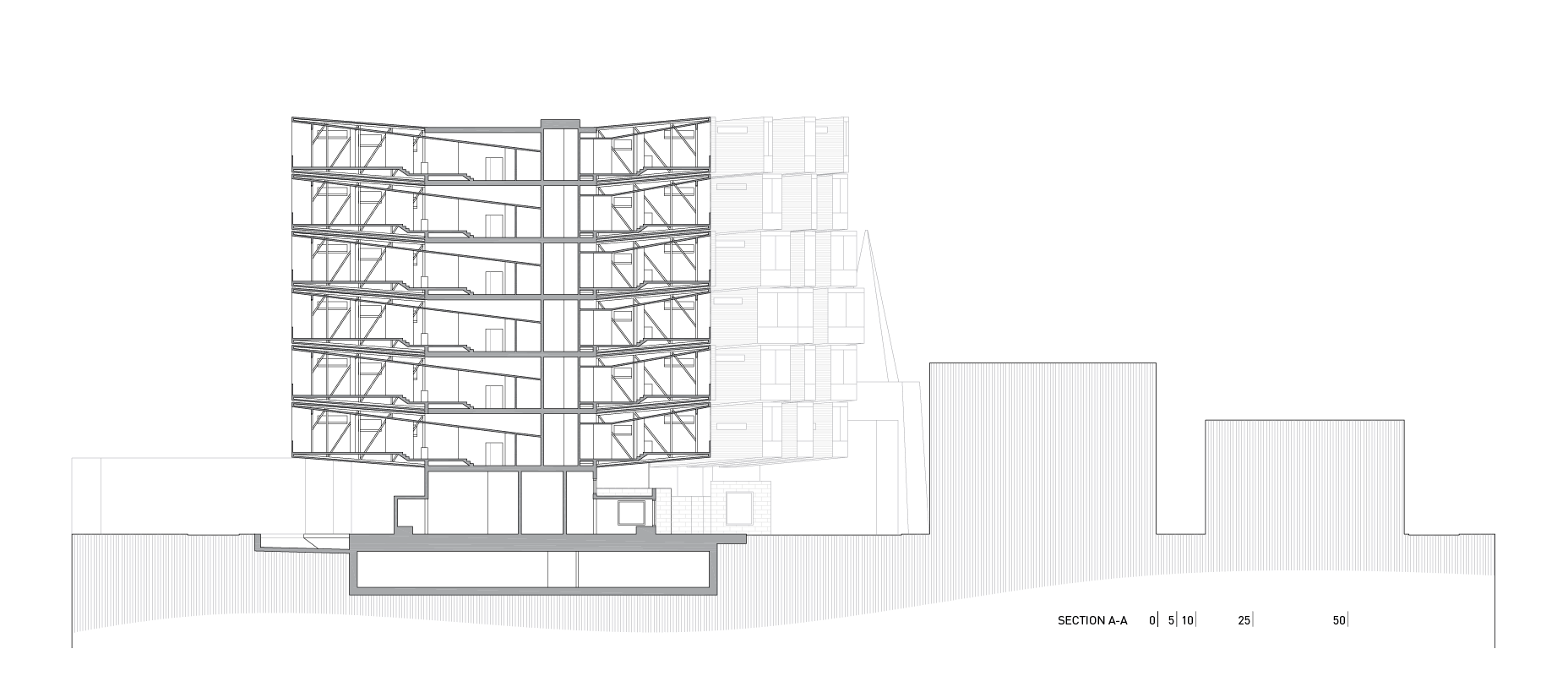

Section
Section

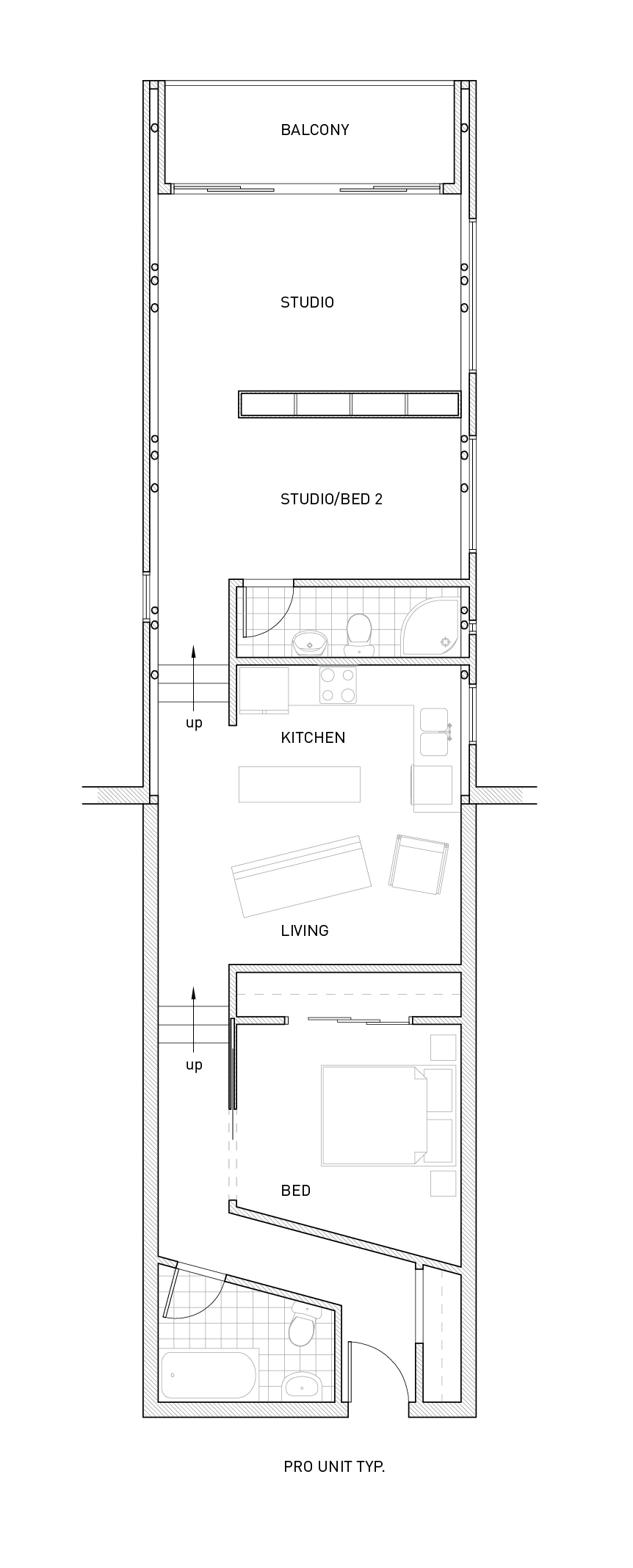

Typ. Professional Unit Plan
Typ. Professional Unit Plan

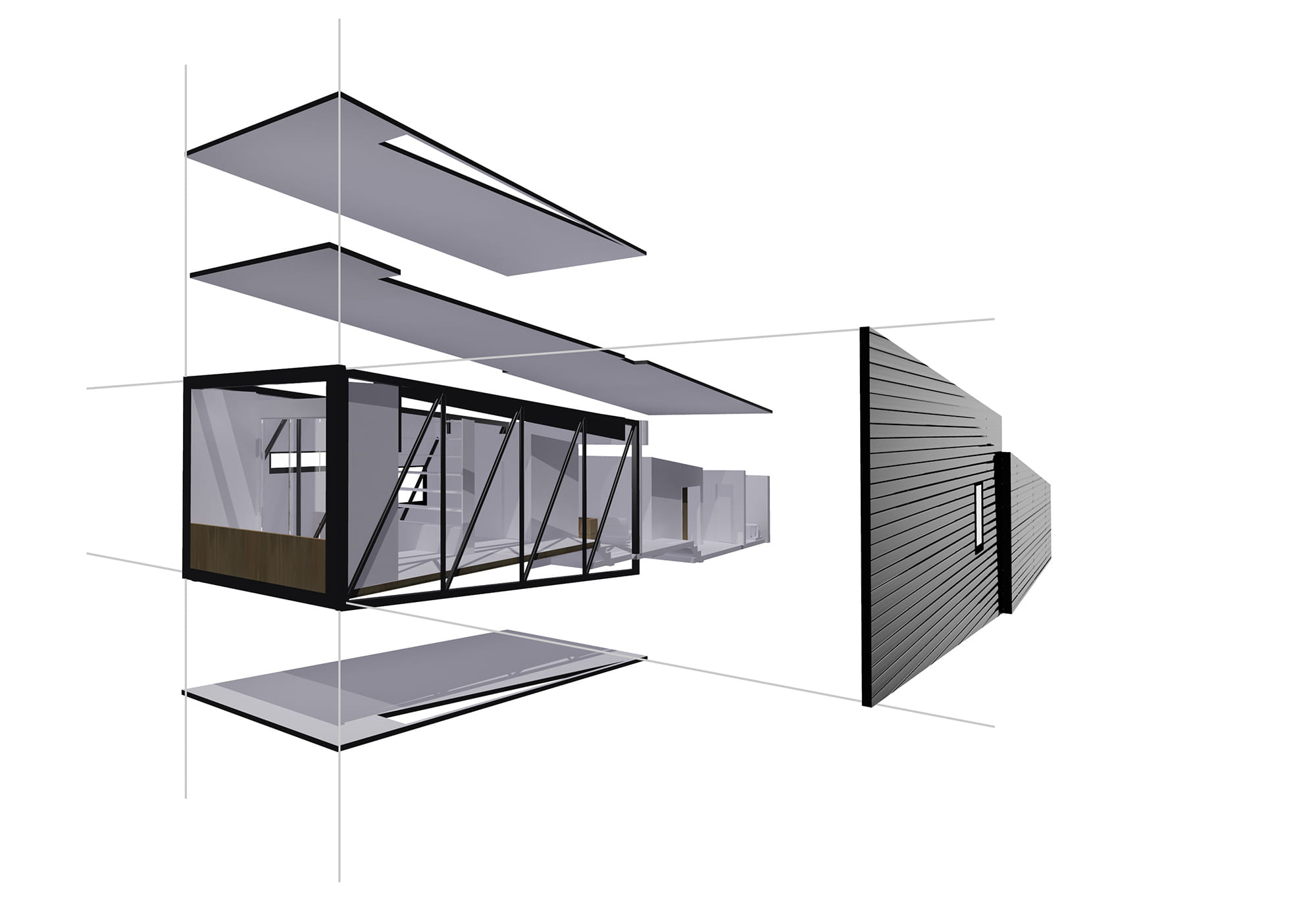

Exploded Assembly Diagram
Exploded Assembly Diagram

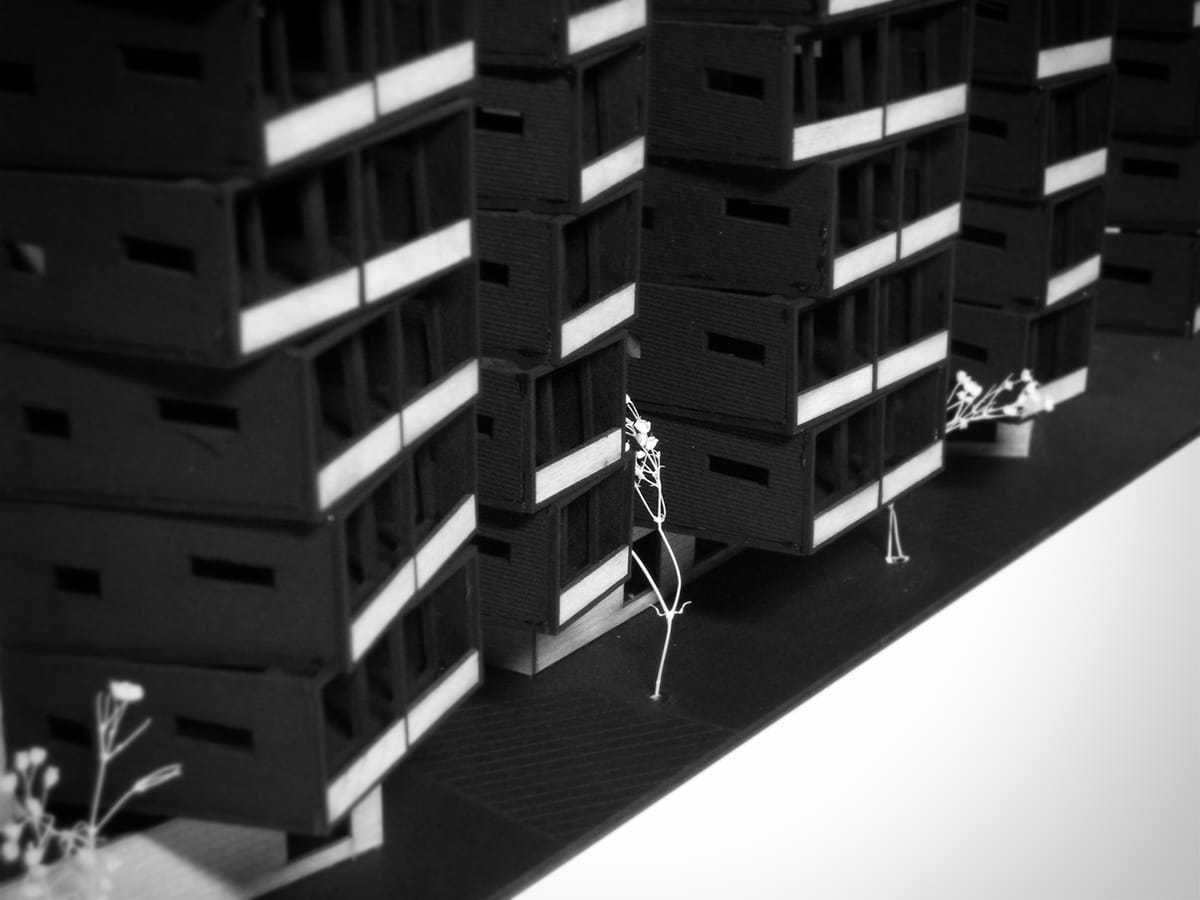

Physical Model
Physical Model

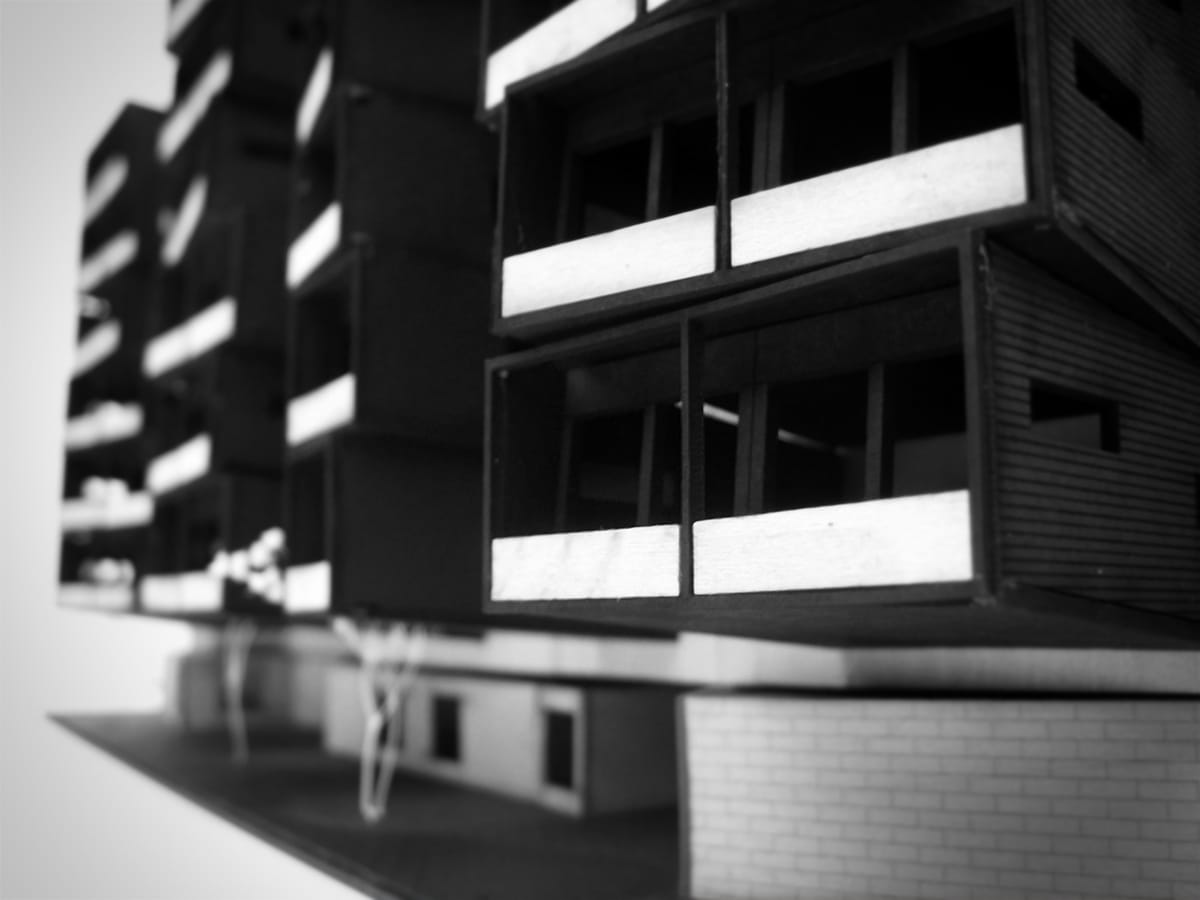

Physical Model
Physical Model
