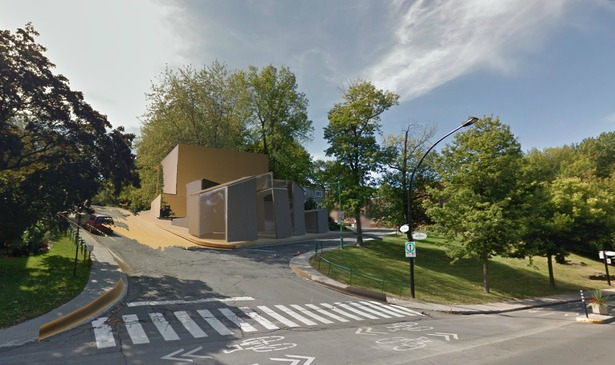

Photo montage on site
Photo montage on site
25 more images  ↓

Understanding Architecture through Human Behaviour

This university project was developed in two phases.

-  The first part was about understanding the general atmosphere of Montreal, I emphasized my attention on interesting architectural details. From my analysis, two characteristics struck me the most: the repetition of motifs and shapes and the mix of order and messiness. To start designing, I developed these ideas into a simulacrum, a model that describe these notions. I got really interested how the site could actually become the center of the design.

-  We were then assigned a site at Outremont, a complicated one, where cultures and eras interlink. I used the axis, given by the connections between buildings, the views, the reference points and the history to start carving in the site. The point where an axis hits the site is created a view. The carved openings are based on verticality and lightness (in reference to the church St Viateur) and the shell is made to look heavy by emphasizing the layering of the load bearing brick walls (in reference to local building traditions). As for the interior, I tried to find new connections between space and activities. If all relationships between people and activities are clarified, interesting features can be developed in the connections of spaces. (light, circulation, privacy, display...) The client specified he would like a music room to listen to Wagner. So I tried to design the room to accomodate acoustically Wagner's operas. To do so, I developed the three main features of Wagner's opera house: the Bayreuth Festspielhaus.


 Read more

Status: School Project
Location: Montreal, QC, CA

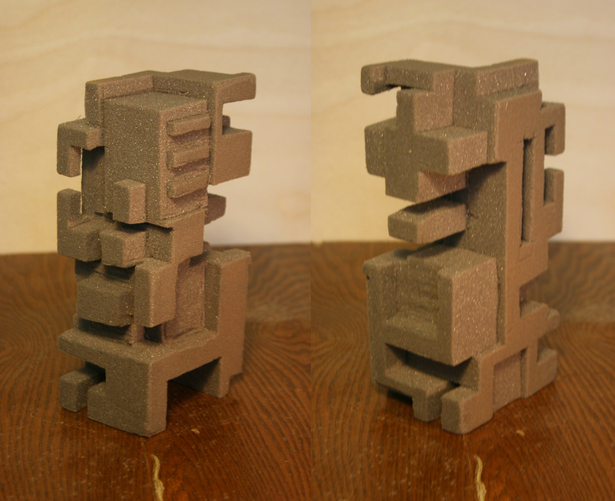

Understanding the material
Understanding the material

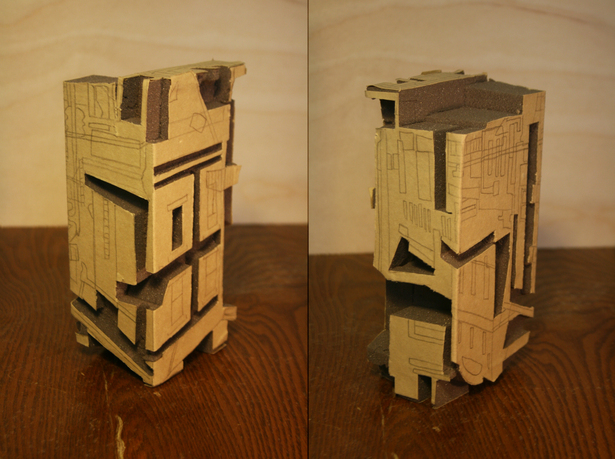

Simulacrum, Montreal's architecture ambiance
Simulacrum, Montreal's architecture ambiance

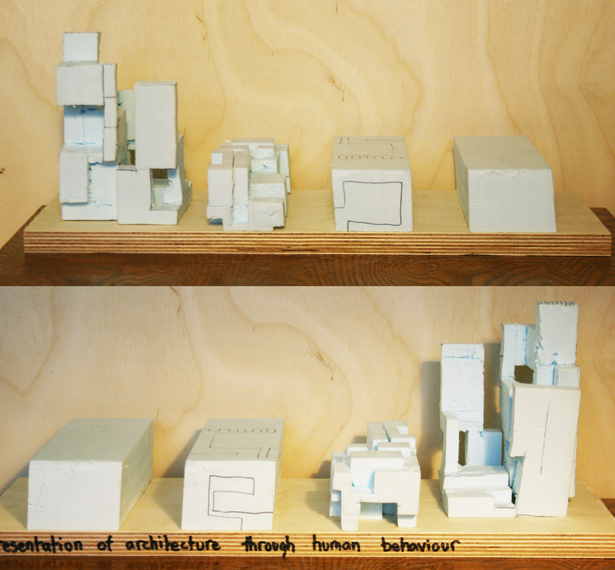

Exploding and rebuilding model
Exploding and rebuilding model

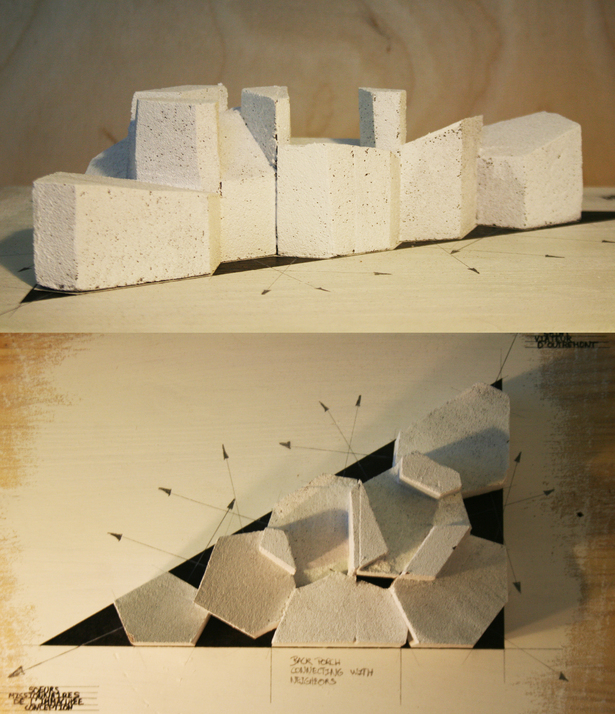

Process model
Process model

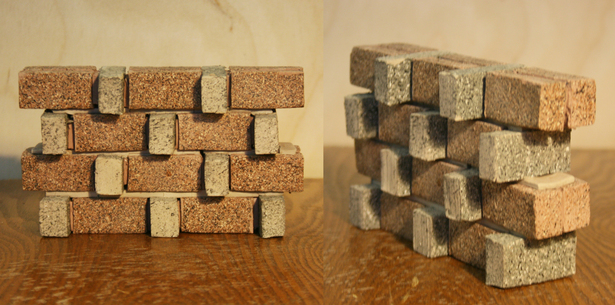

Material model, 2 types of brick, 2 types of mortar
Material model, 2 types of brick, 2 types of mortar

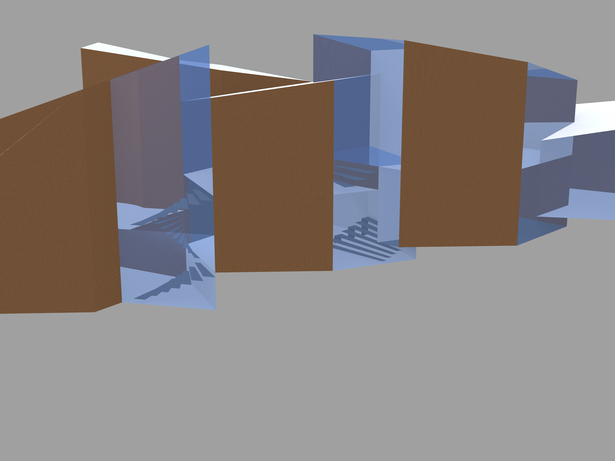

Sketchup rendering
Sketchup rendering

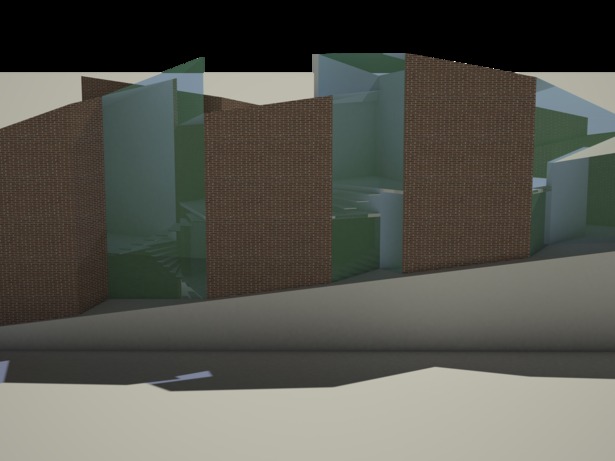

North elevation
North elevation

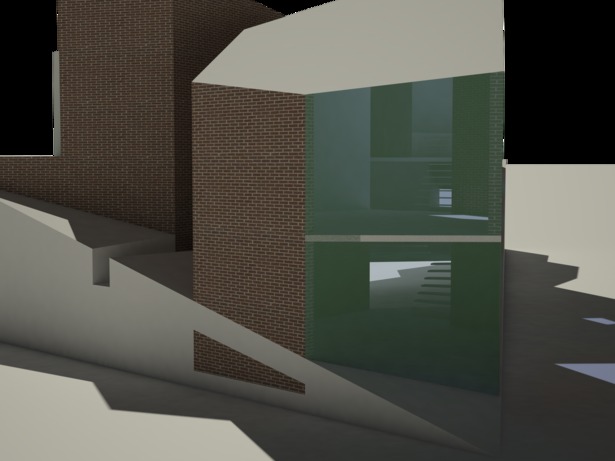

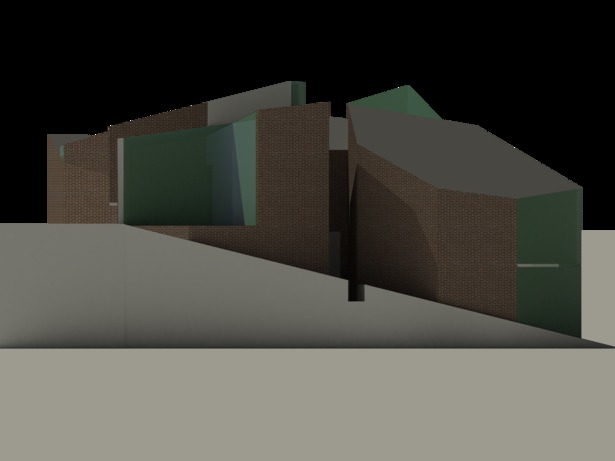

East elevation
East elevation
East elevation
East elevation

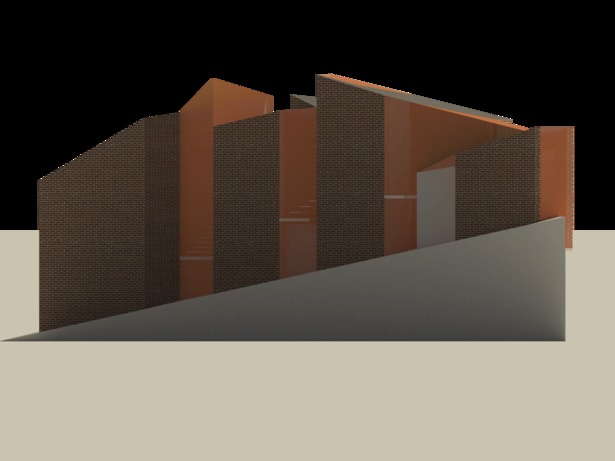

West elevation
West elevation

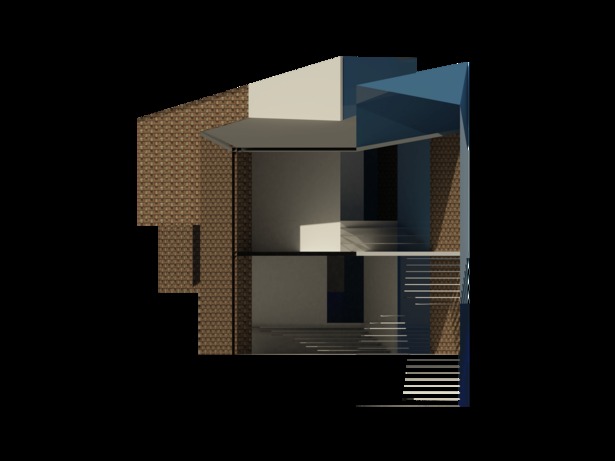

East section
East section

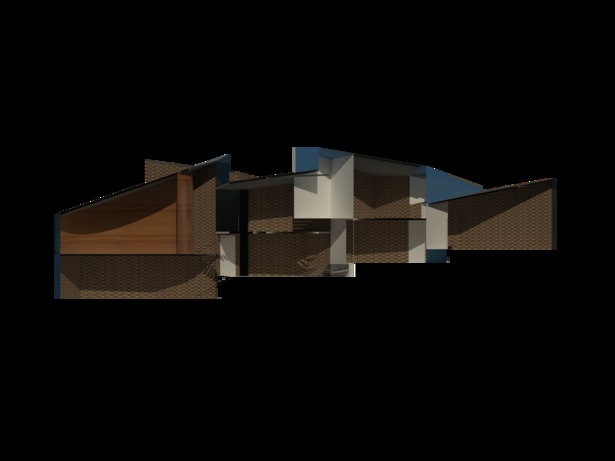

North section
North section

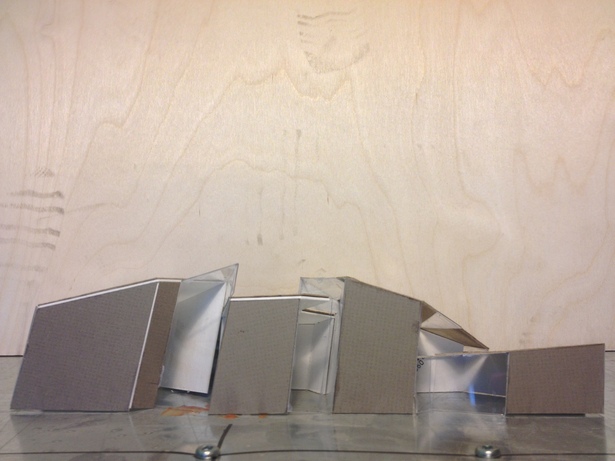

Final model
Final model

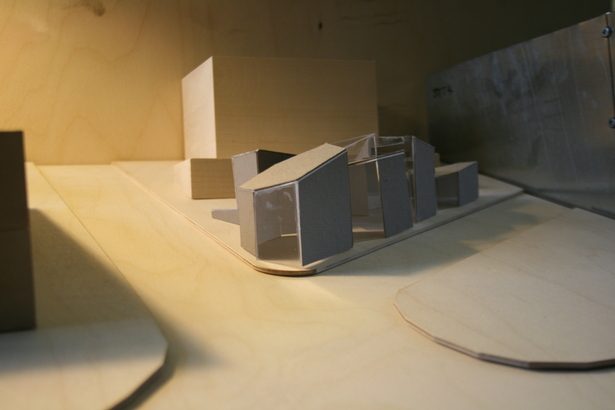

Final model on site
Final model on site
Bayreuth Festspielhaus, inspiration for the music room
Bayreuth Festspielhaus, inspiration for the music room

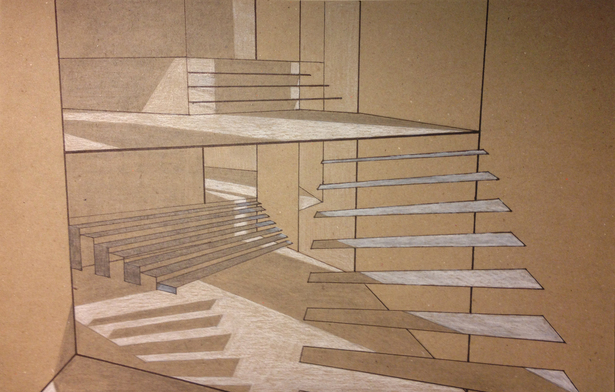

Perspective 1
Perspective 1

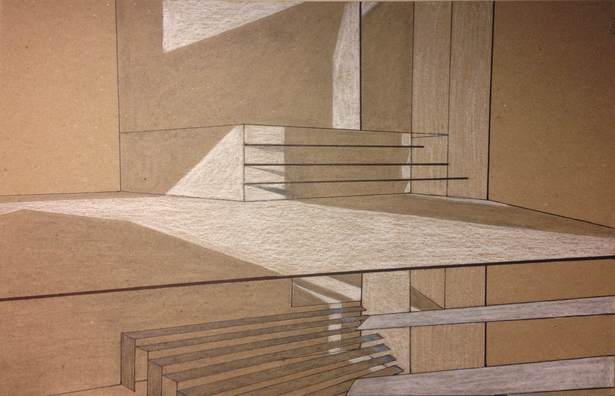

Perspective 2
Perspective 2

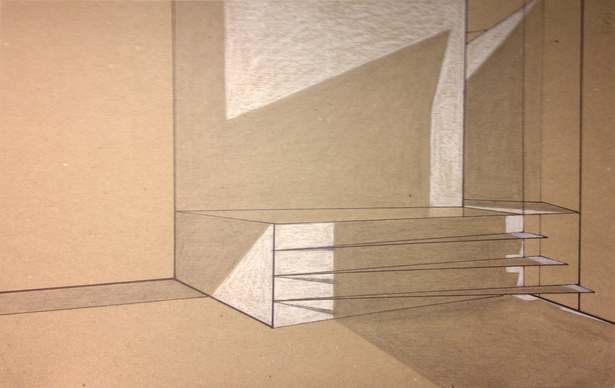

Perspective 3
Perspective 3

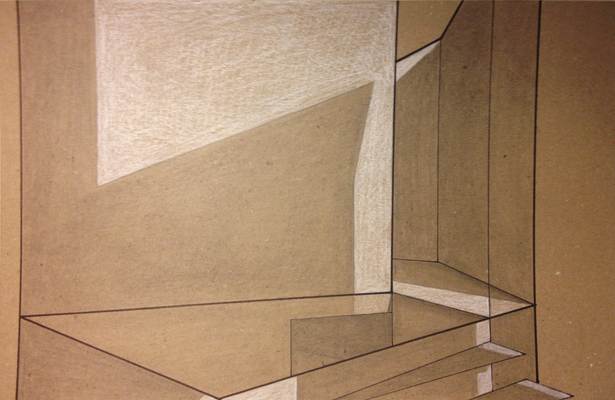

Perspective 4
Perspective 4
Perspective 5
Perspective 5

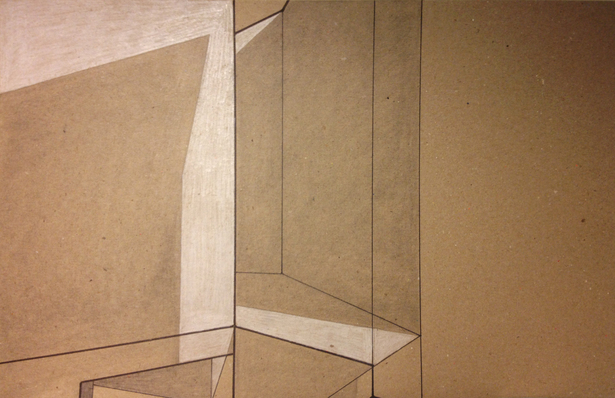

Perspective 6
Perspective 6

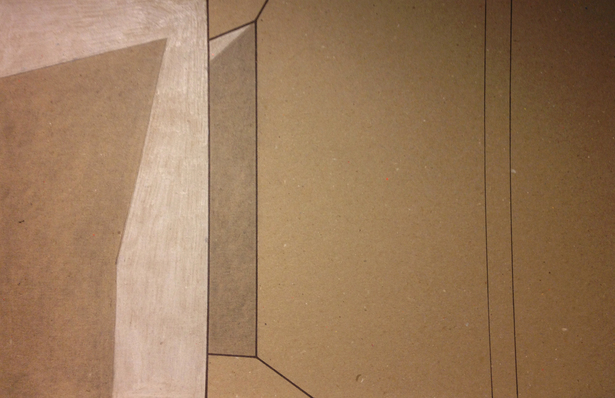

Perspective 7
Perspective 7
Perspective 8
Perspective 8

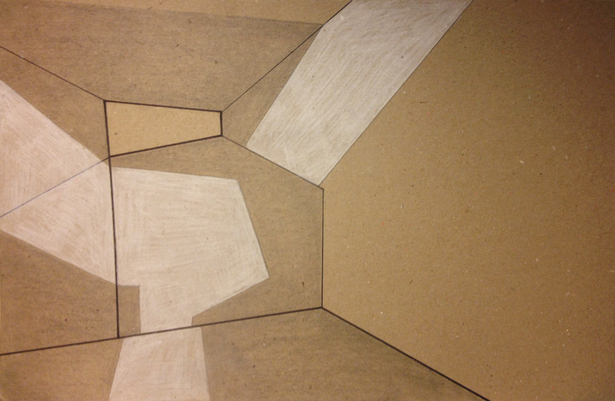

Perspective 9
Perspective 9

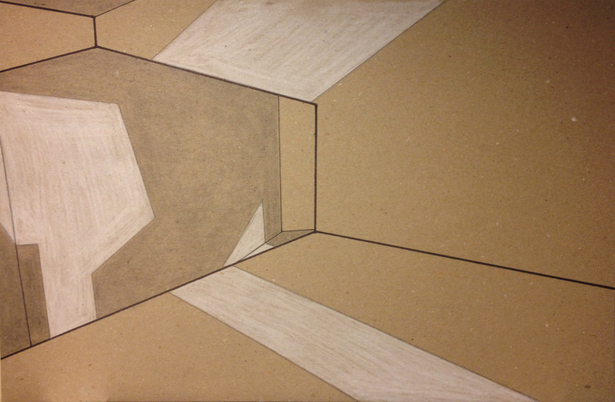

Perspective 10
Perspective 10
