Hospital Chicho Fábrega in Panama

I was employed as an intern at Estudio Lamela Arquitectos and my first assignment was to work inside the team for the completion of the detail design project for a hospital in Panama. The project consisted on the extension and partial demolition of a pre-existing hospital and the aims of our proposal where:
-Programatric complexity
-Flexible design:
-Accesibility and adaptation to needs
-Environmentally friendly and energy saving
-Grouth possibility
-Integration with surroundings.

The building consists of two differentiated volumes. A horizontal basis with all Central Services of the hospital and a a vertical volume accomodating Hospitalization and Doctors on Duty. ‘Fissures’ in the basis provides with daylight to the deepest areas inside the hospital.

technical data
Site: Province of Veraguas, Panama
Gross building area: 44806m2
Client: Ministry of Health, Republic of Panama

duties
_design of construction and typical hospital rooms details.
_3d modelling and rendering of inside and outside specific areas of the building.
_layout of the slides used for the presentation.



 Read more

Status: Under Construction
Location: Province of Veraguas, Panama
My Role: Detail design project in collaboration
Additional Credits: Estudio Lamela Arquitectos


Résumé 01
Résumé 01
Résumé 02
Résumé 02

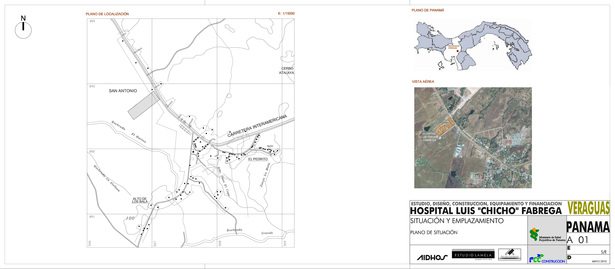

Situation plan
Situation plan

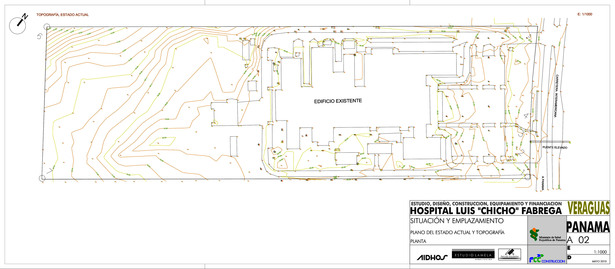

Current state and topography
Current state and topography

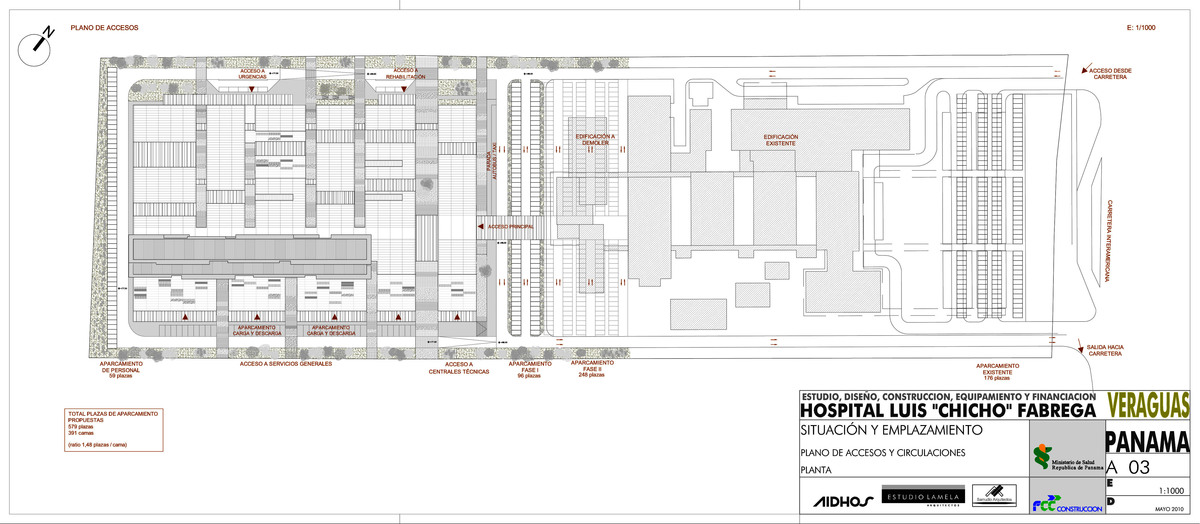

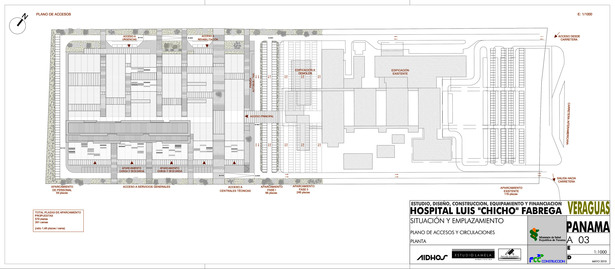

Access and traffic plan
Access and traffic plan

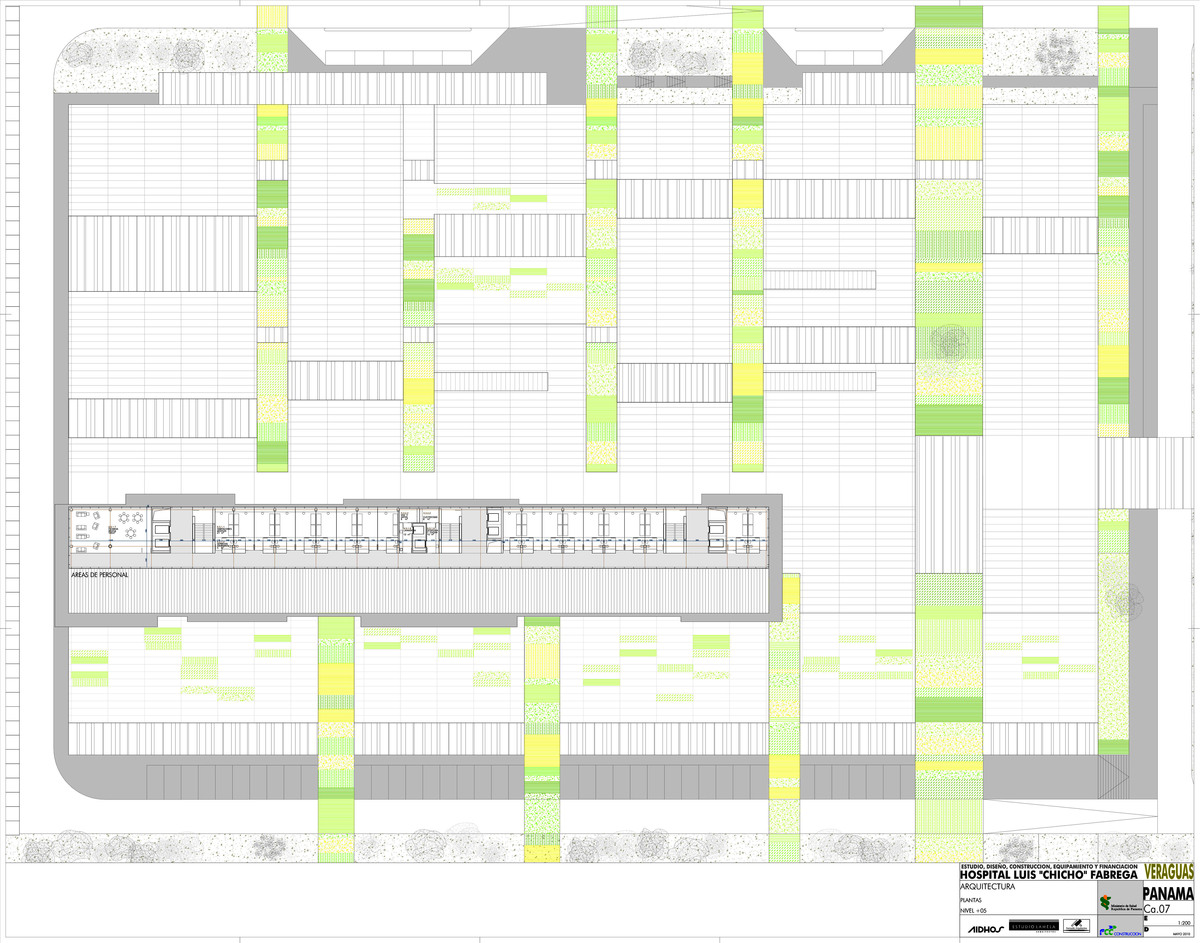

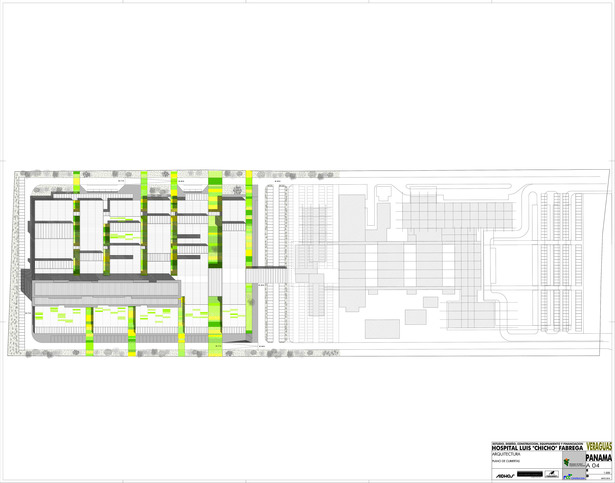

Deck plan
Deck plan

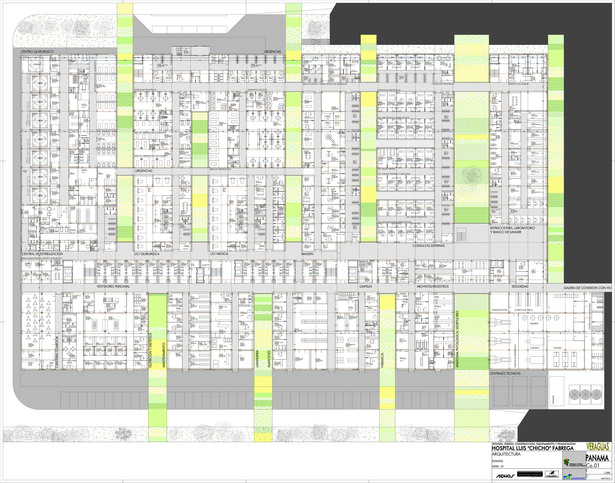

Basement floor plan
Basement floor plan

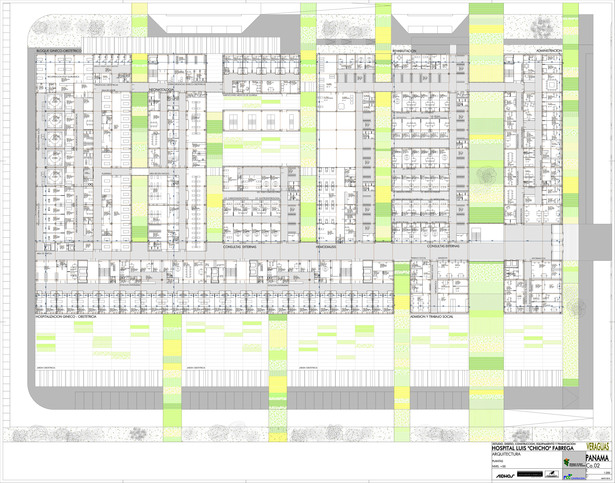

Ground floor plan
Ground floor plan
First floor plan
First floor plan

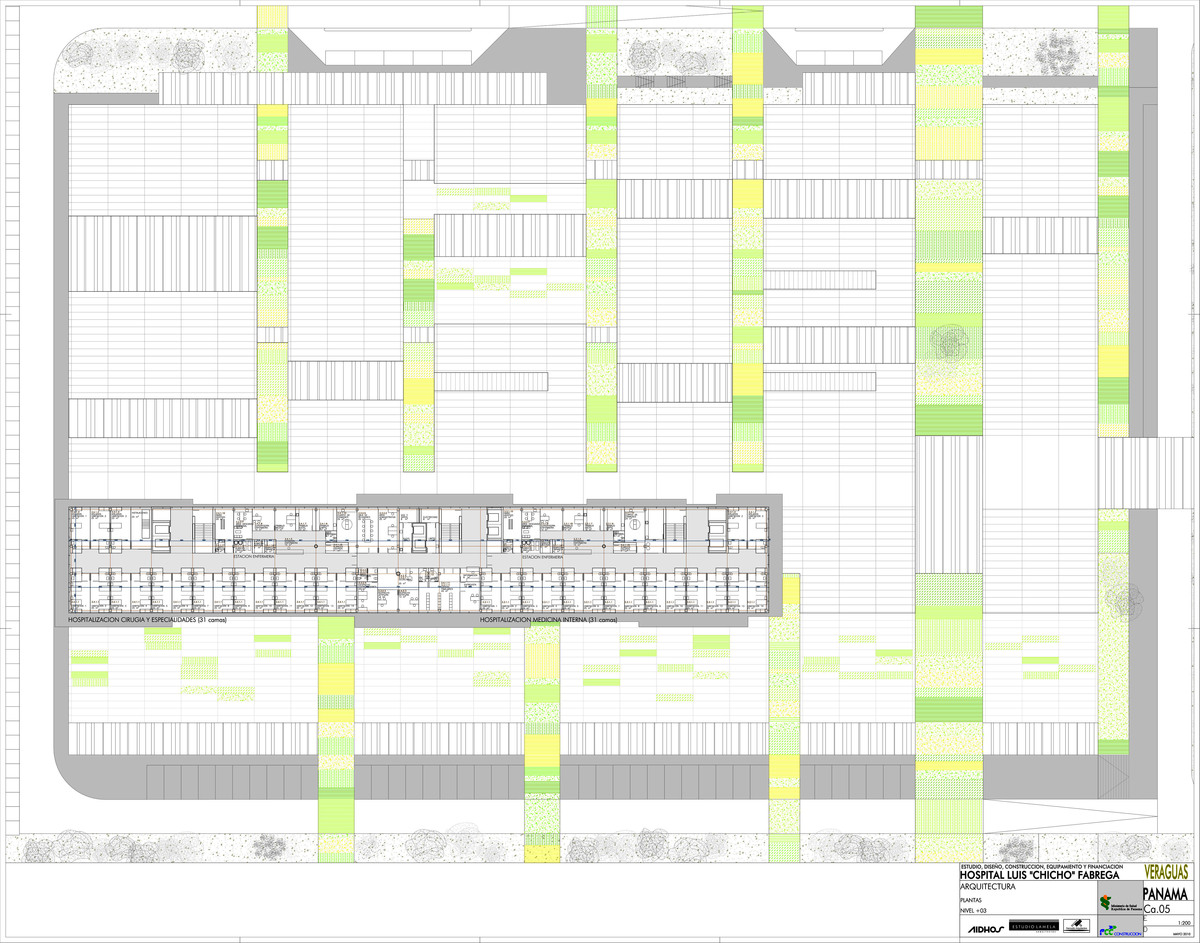

Second floor plan
Second floor plan
Third floor plan
Third floor plan

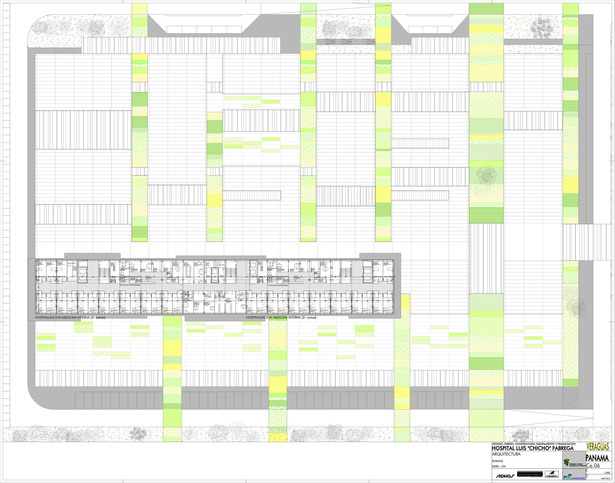

Fourth Floor plan
Fourth Floor plan

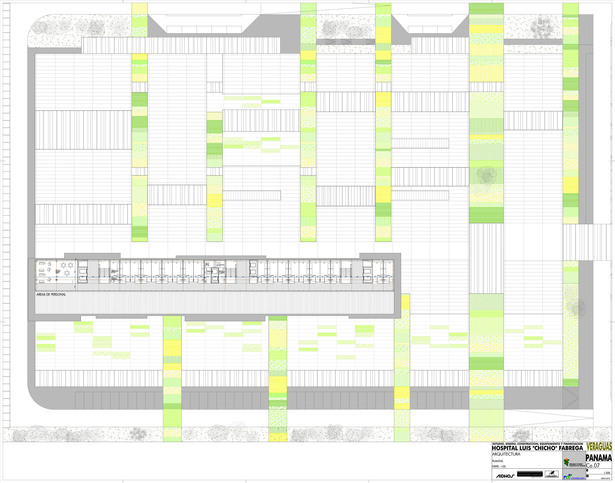

Fifth floor plan
Fifth floor plan

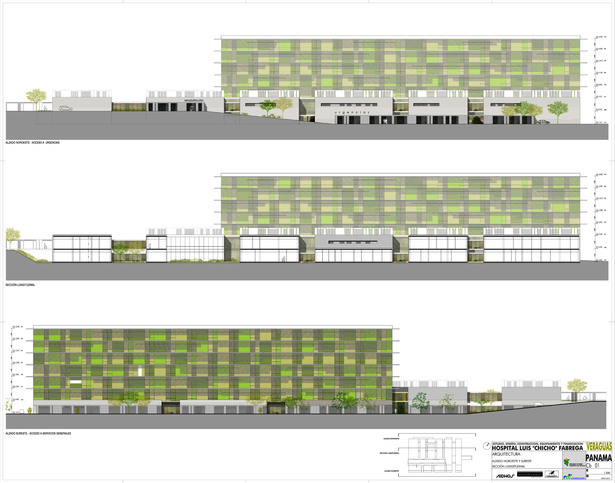

Northwest and Southeast elevations and longitudinal section
Northwest and Southeast elevations and longitudinal section

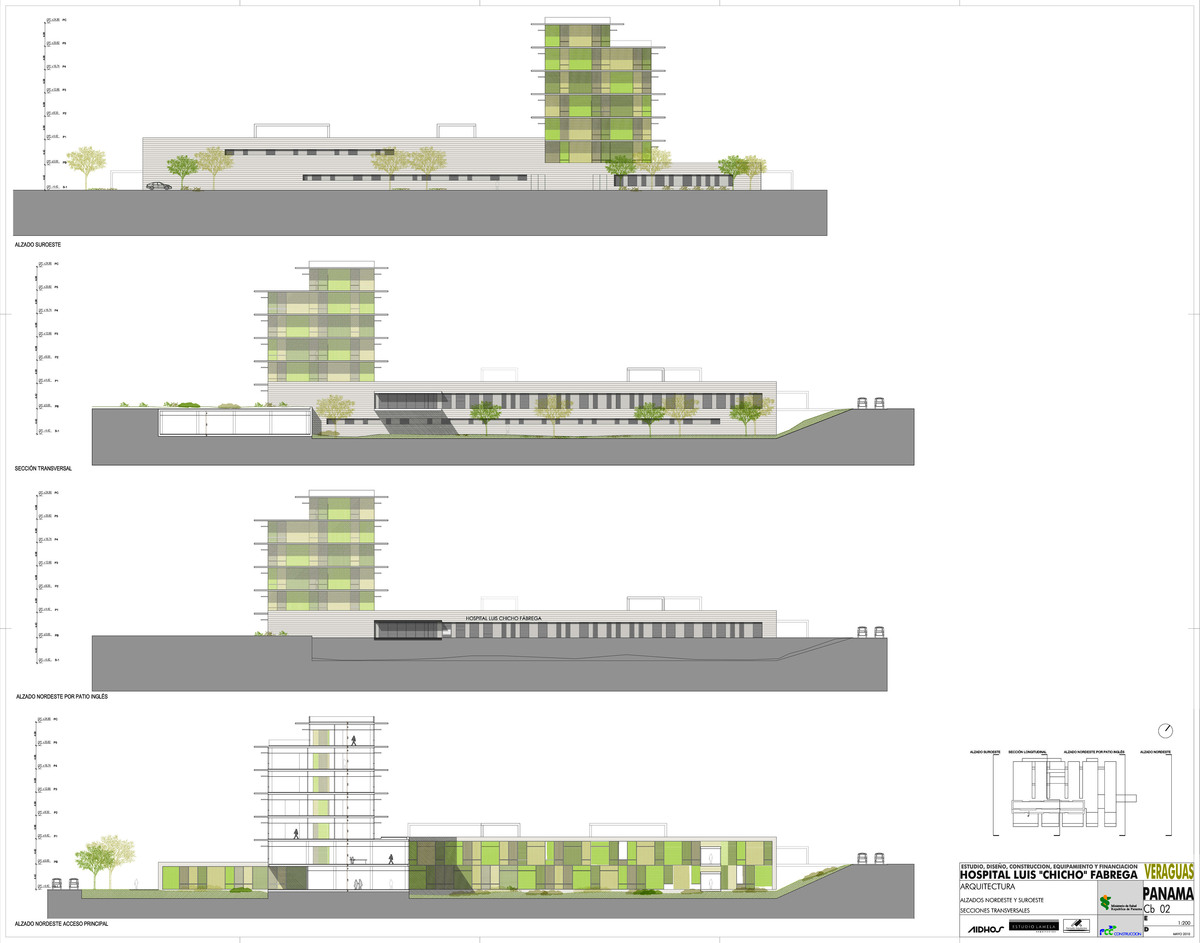

Northeast and Southwest elevations and transversal sections
Northeast and Southwest elevations and transversal sections

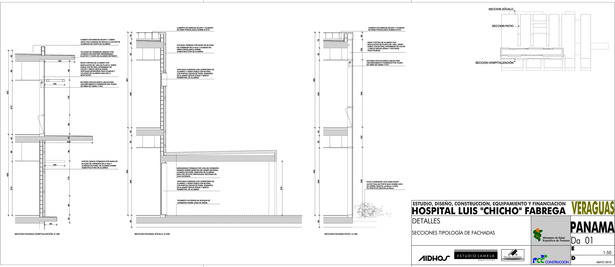

Façade type sections
Façade type sections

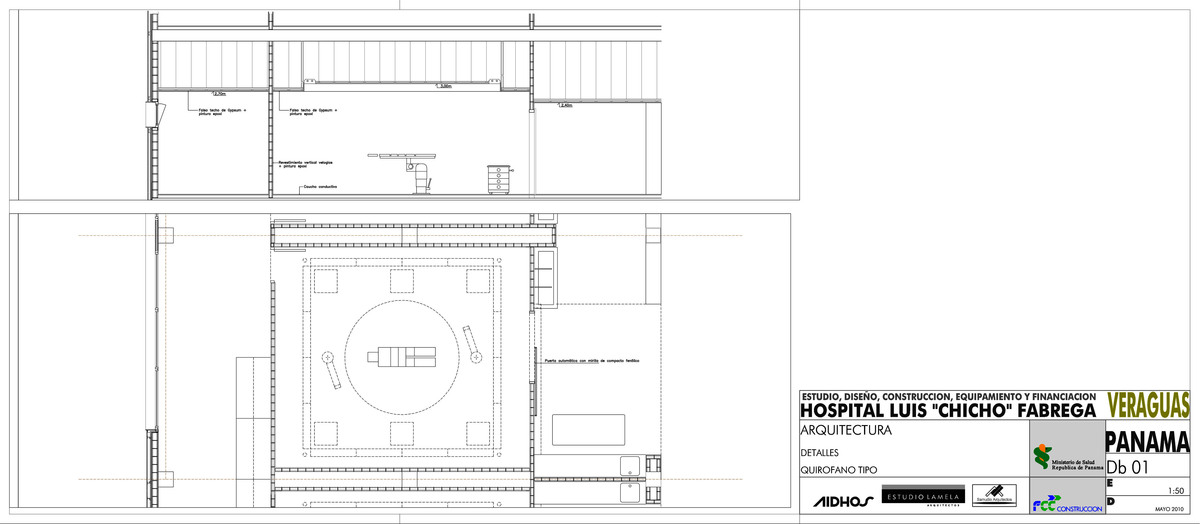

Details 01. Surgery room
Details 01. Surgery room

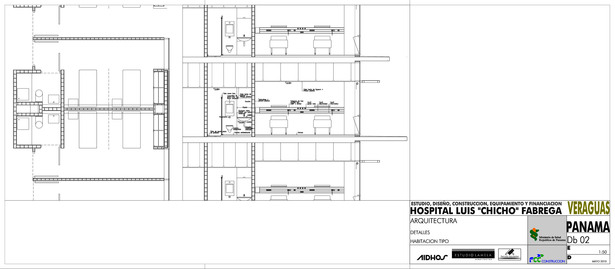

Details 02. Typical consulting room
