H2L2 (Con.Doc.) NY City, 81st Str Pedestrian Bridge

This was a project of a pedestrian Bridge over a highway at East 81st Str in New York, NY. I was responsible for the design shown in this portfolio, but this was not the option chosen by client and executed in CD's. I was also responsible for approximately 20% of the CD's of the final design.


 Read more

Status: Unbuilt
Location: 81st Str, New York, NY
My Role: Architect designer of a concept shown in this portfolio
Additional Credits: Partner in charge: Tom Piotrowski
Final design executed in CD's by Andrew Goldberg


Side Elevation
Side Elevation

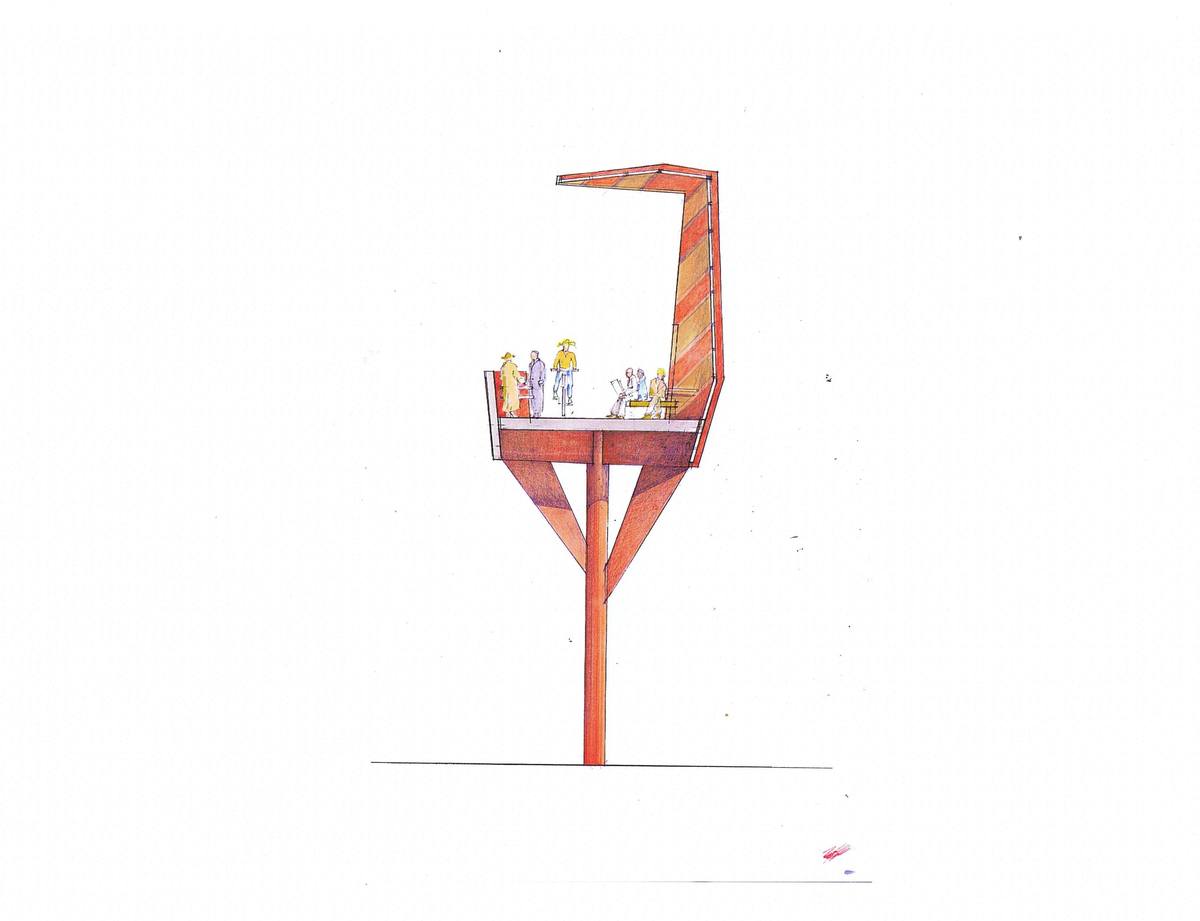

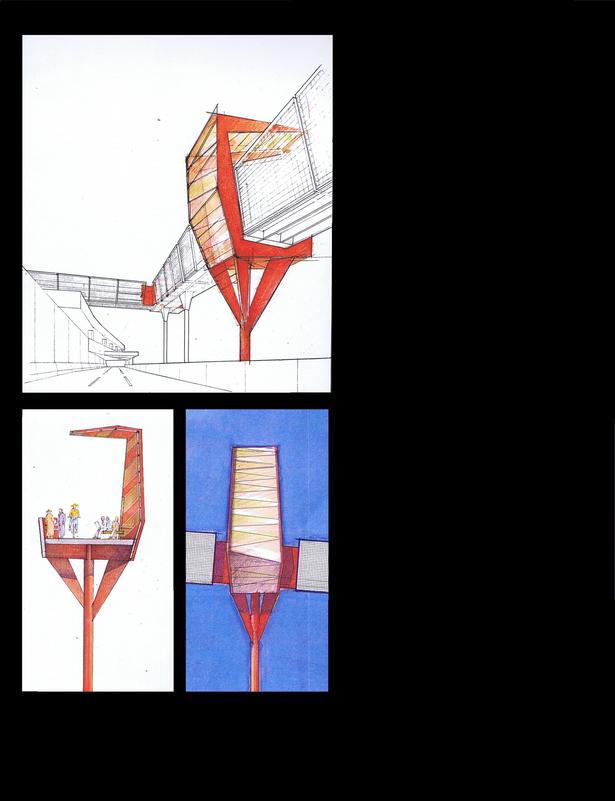

Viewing and sitting places, Perspective and Elevations
Viewing and sitting places, Perspective and Elevations

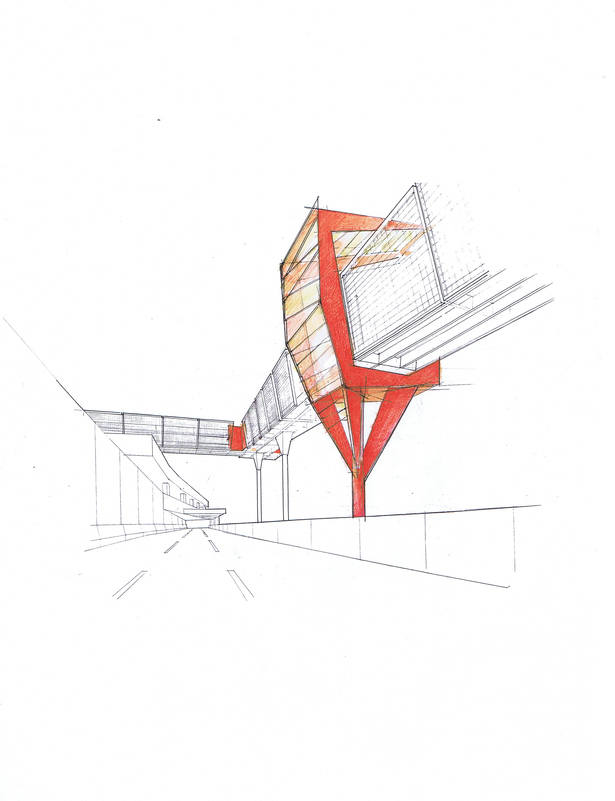

Viewing and sitting area seen from roadway
Viewing and sitting area seen from roadway

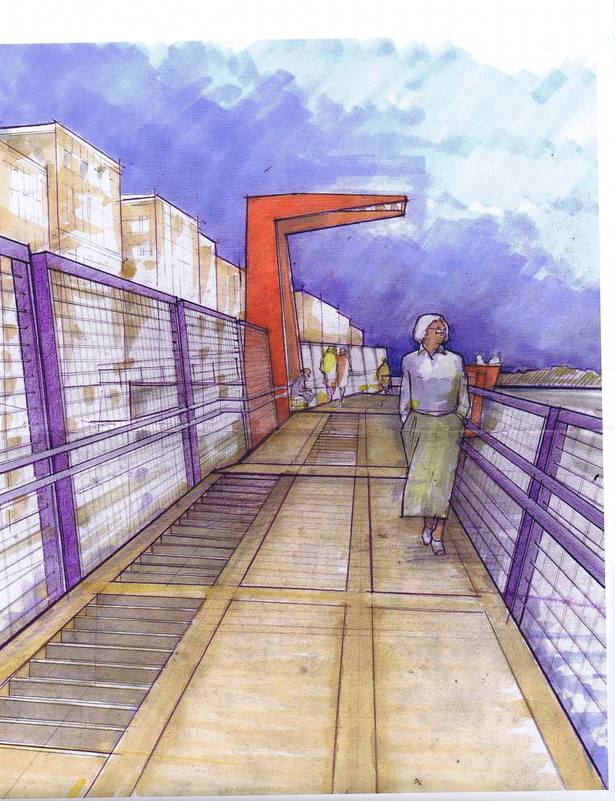

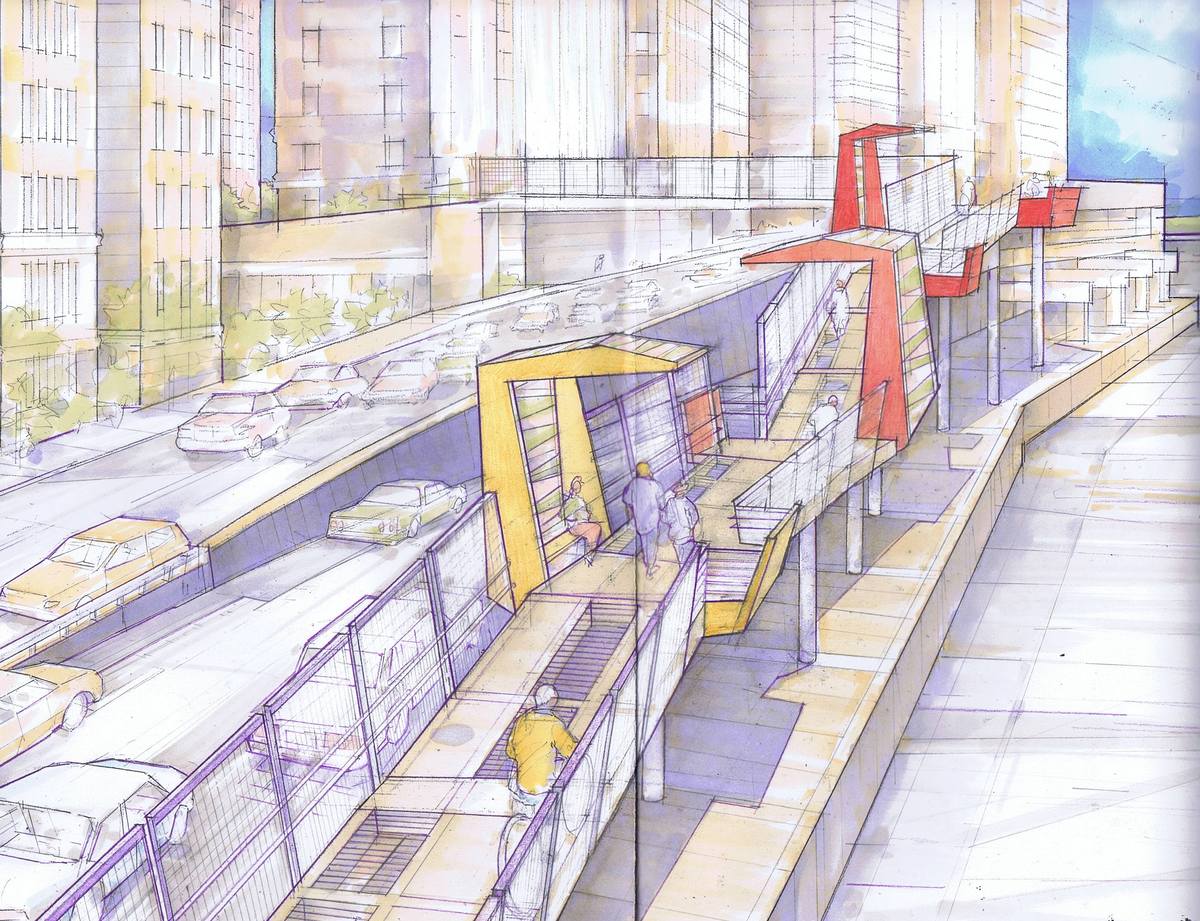

Perspective view from a ramp
Perspective view from a ramp

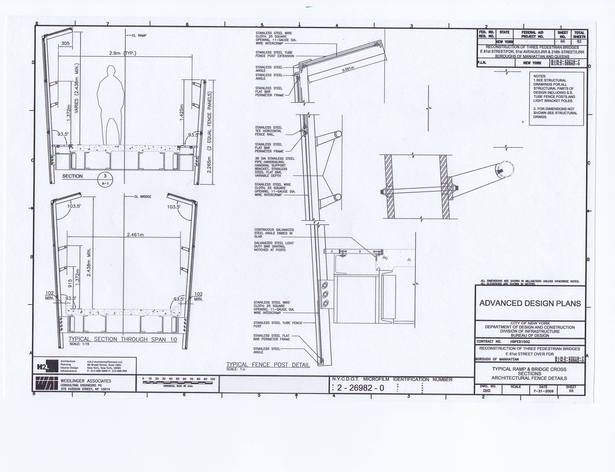

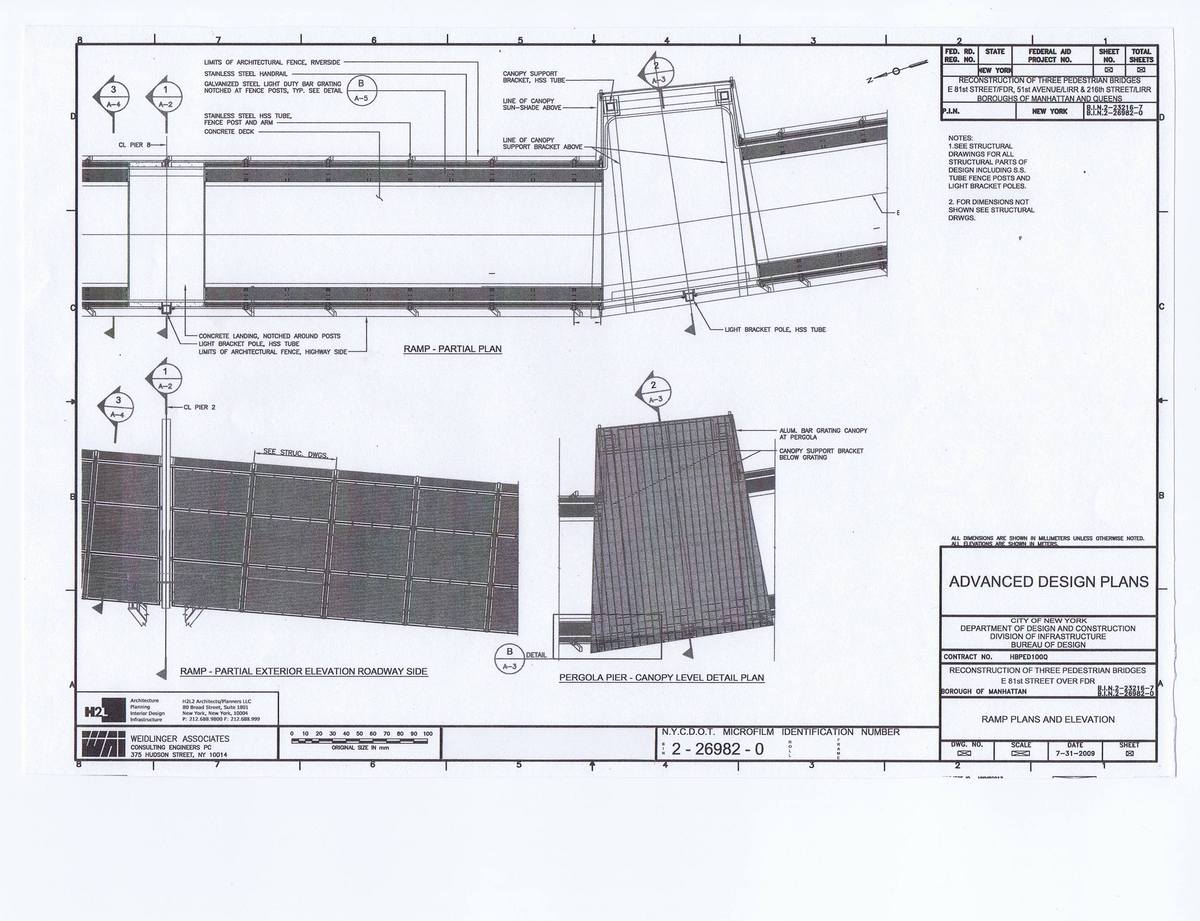

Plans, Elevations and Details
Plans, Elevations and Details

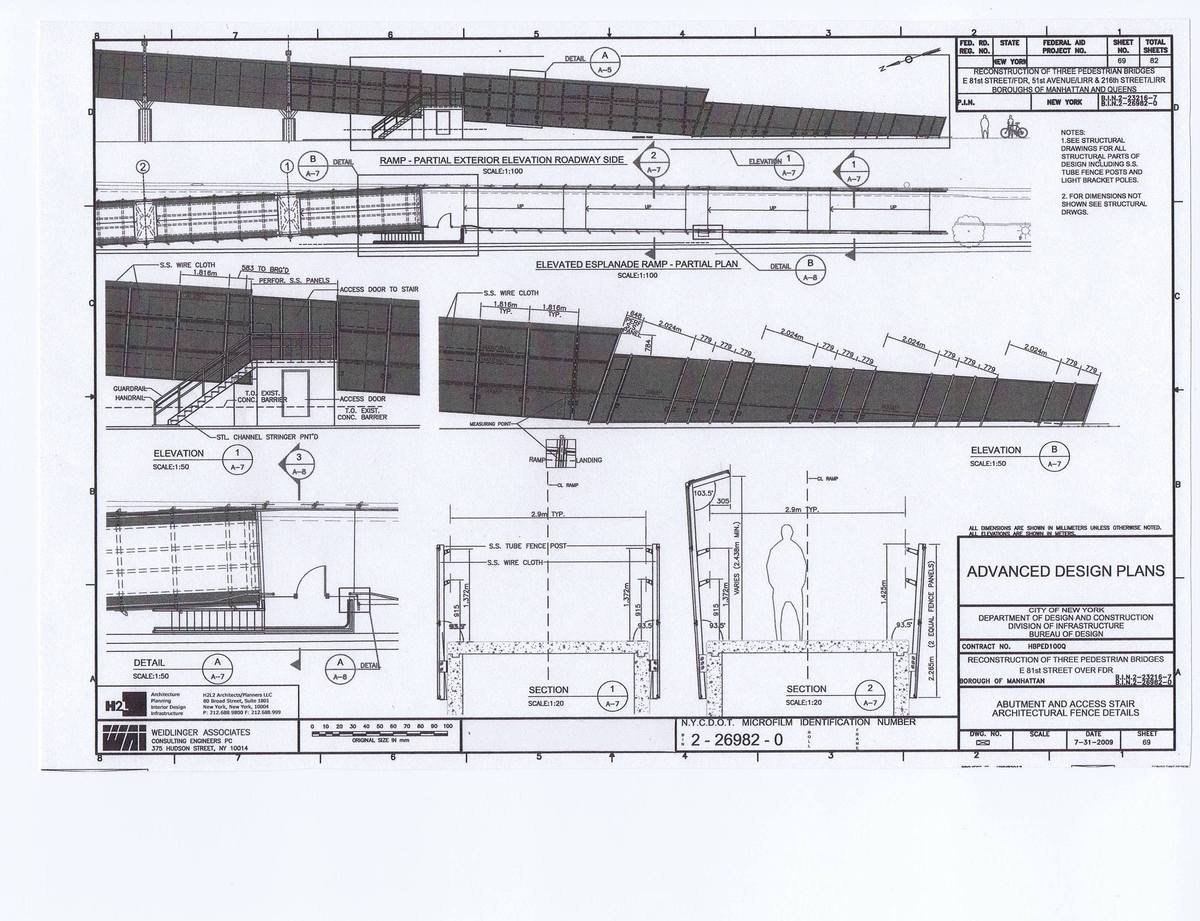

Partial Plans
Partial Plans

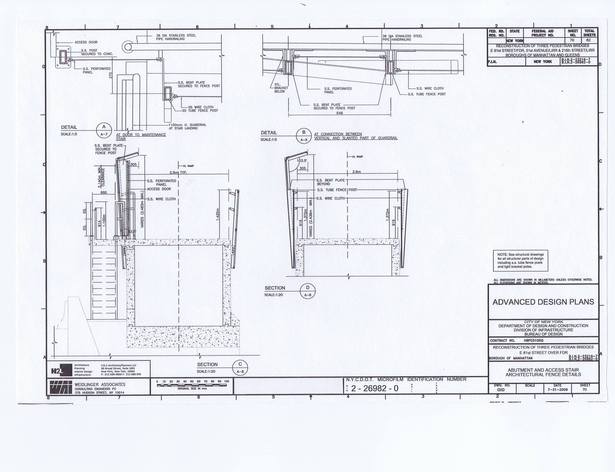

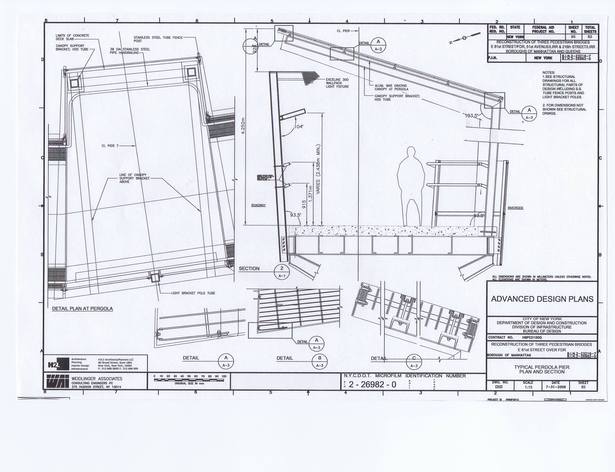

Details
Details

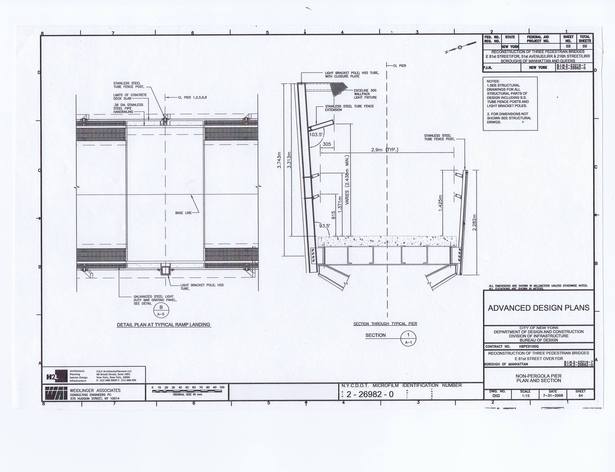

Details
Details
Details
Details
Details
Details
