Roundabout Hotel

For this project,  students were asked to find a “fetish object” that would inspire the design of a boutique hotel in New York.  A carousel was chosen as the fetish object.  The floor plans developed include a lower lobby, upper level lounge, reception and bar area, storage, coat check, and bellhop area.
After the floor plan was developed, a 3D Max model was created in order to present the plan in 3D with texture, color, finishes, and depth of space.


Read more

Status: School Project
Location: New York, NY, US


View-1st Floor Lobby, looking North-East
View-1st Floor Lobby, looking North-East
View-1st Floor Lobby, looking North-West
View-1st Floor Lobby, looking North-West
View-2nd Dloor Lounge
View-2nd Dloor Lounge
View-2nd Floor Lounge, looking East
View-2nd Floor Lounge, looking East
View-2nd Floor Lounge, looking South-East
View-2nd Floor Lounge, looking South-East
View-2nd Floor Bar Area
View-2nd Floor Bar Area

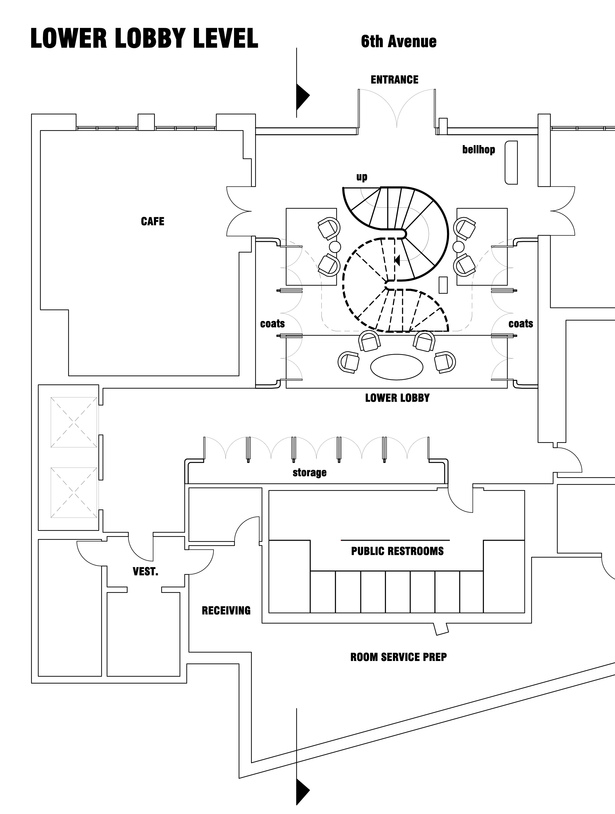

Lobby Floor Plan
Lobby Floor Plan

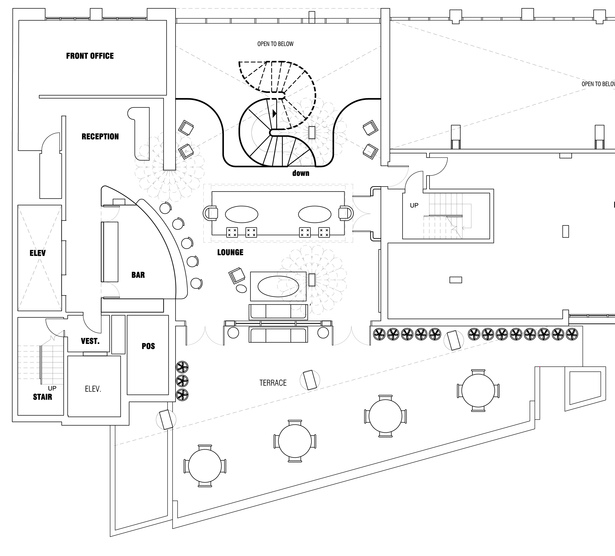

2nd Floor Lounge Plan
2nd Floor Lounge Plan
View-Bedroom Elevation 1
View-Bedroom Elevation 1
View-Bedroom Elevation 2
View-Bedroom Elevation 2
View-Bathroom
View-Bathroom

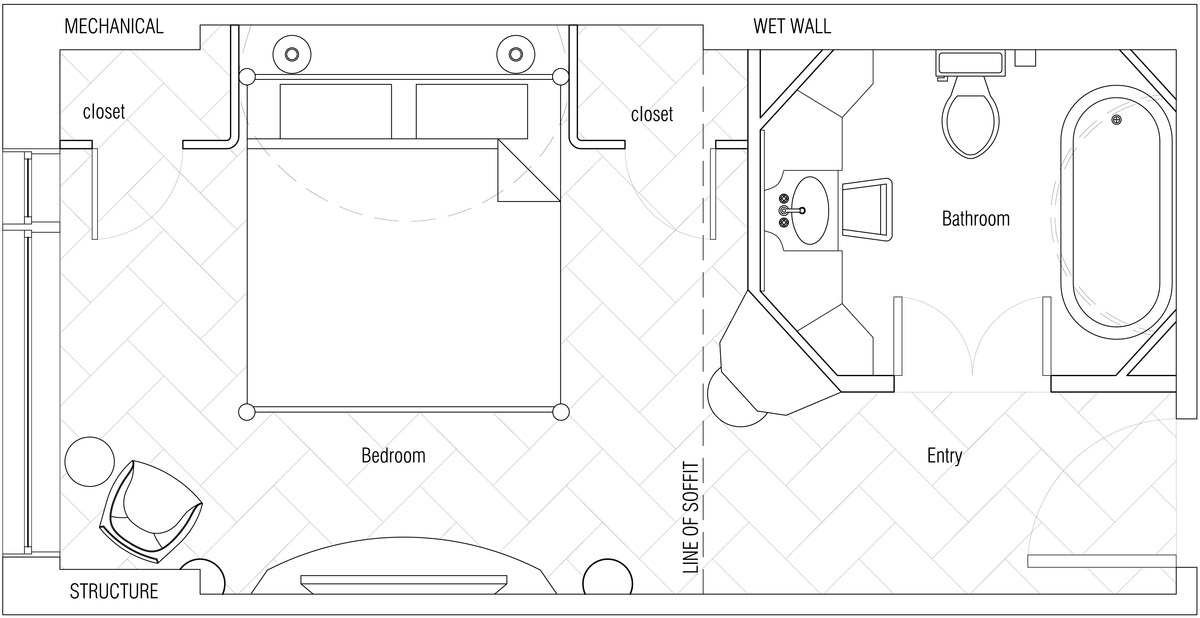

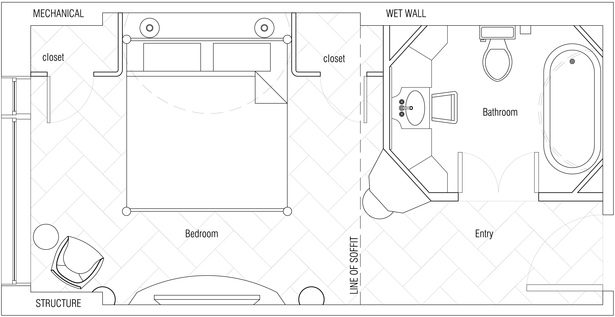

Bedroom Floor Plan
Bedroom Floor Plan
