Medical Office

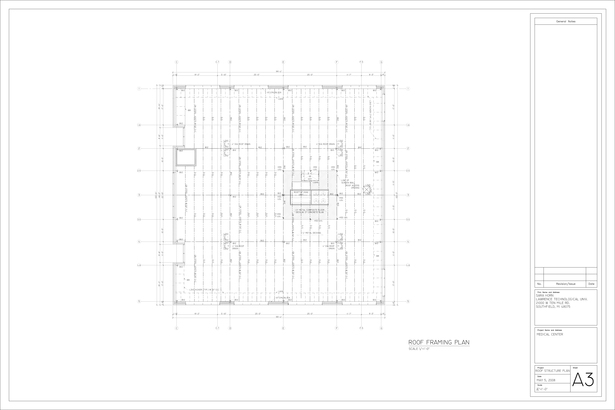

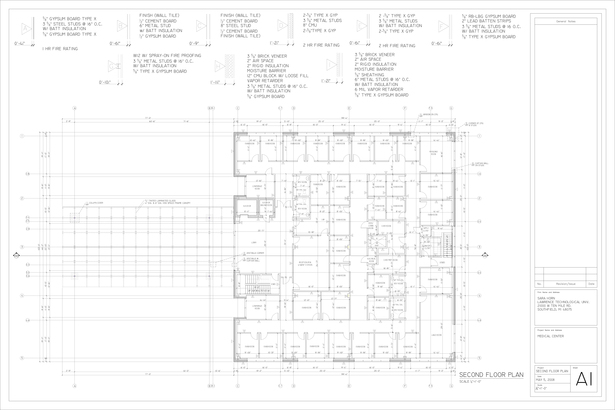

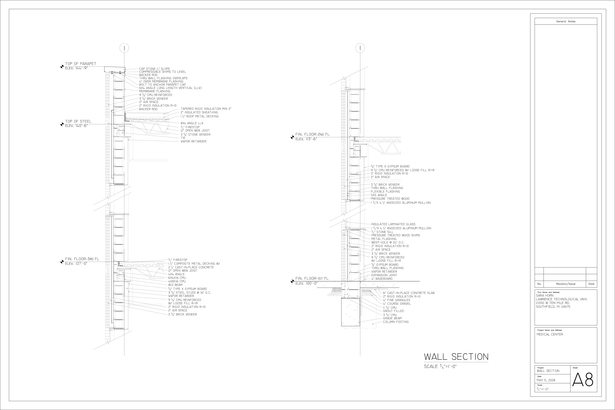

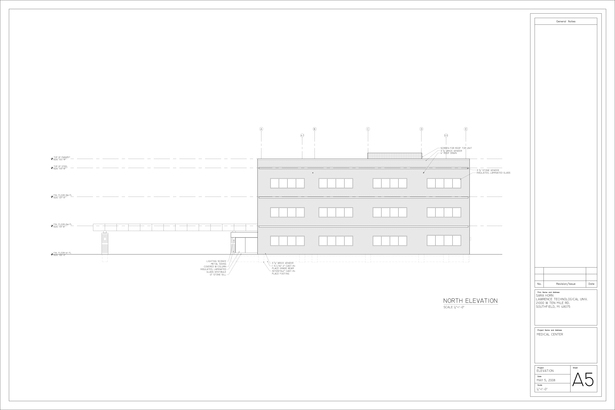

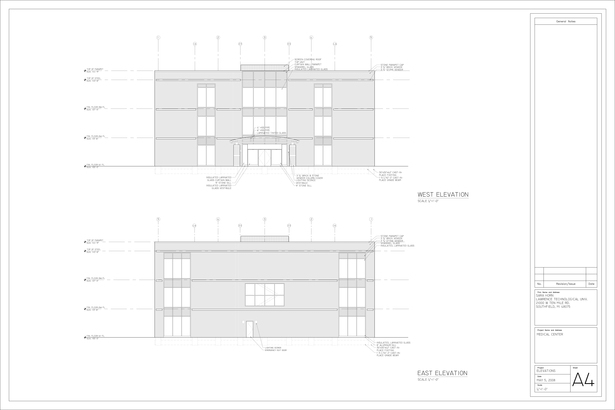

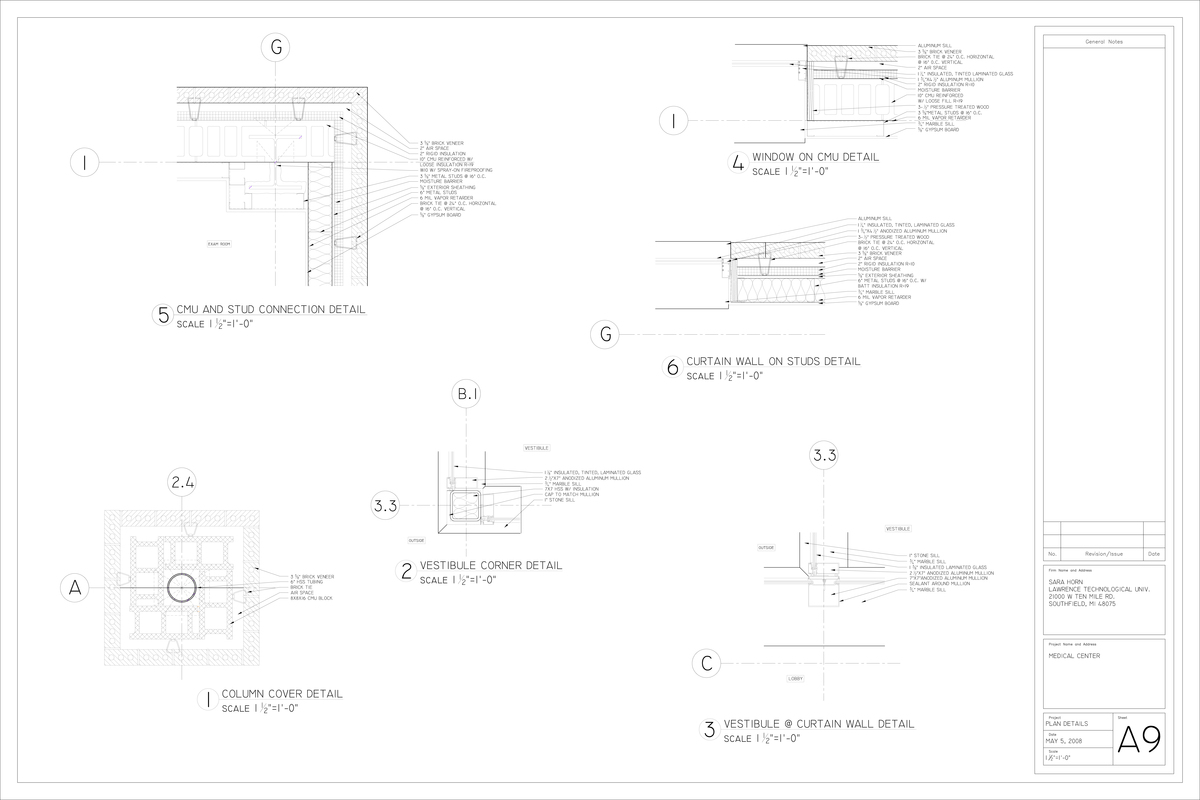

The goal of this project was to create pieces of the construction documentation for a small medical center. The basic form of the building was given, with a limited amount of design allowances beyond the given. The structure has three different wall types: curtain wall, steel frame, and CMU with a brick veneer. The main focus of the project was the construction details because if I can understand the details of a project, I can understand how the systems work as a whole.


 Read more

Status: School Project
Location: Southfield, MI, US

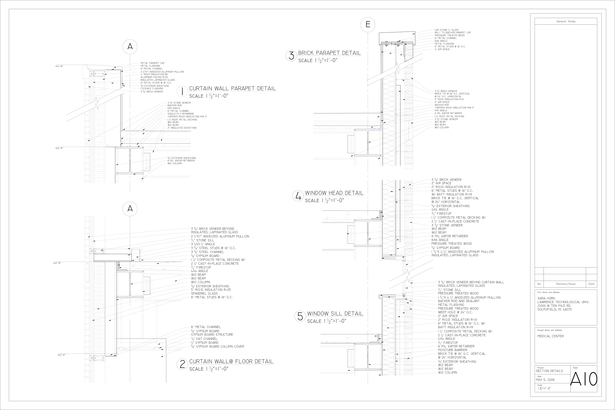

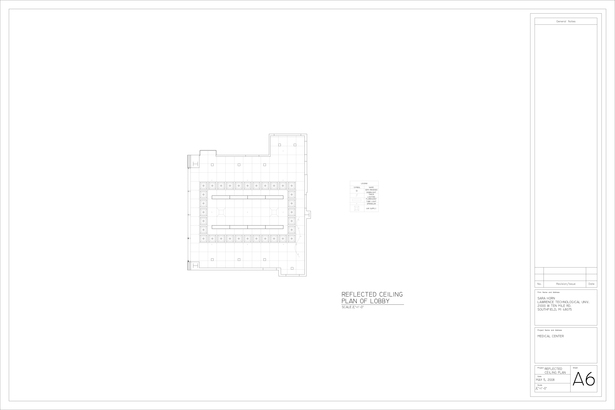

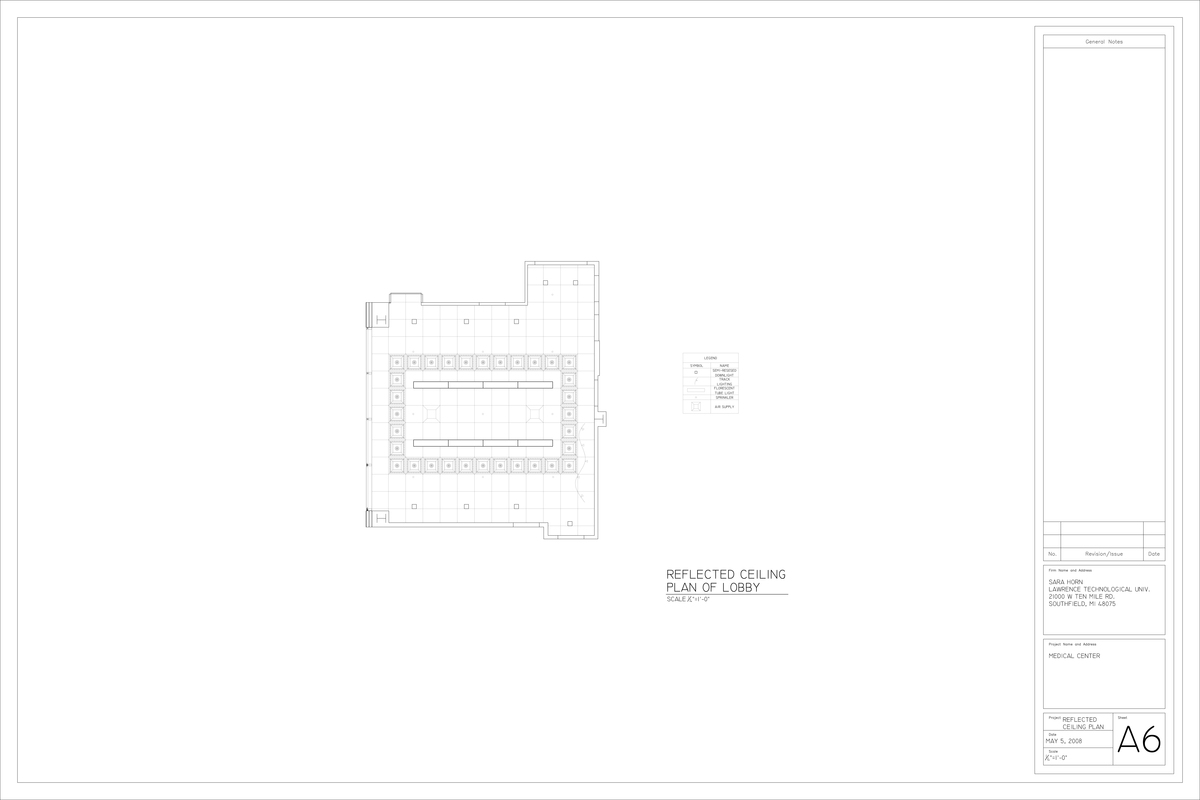

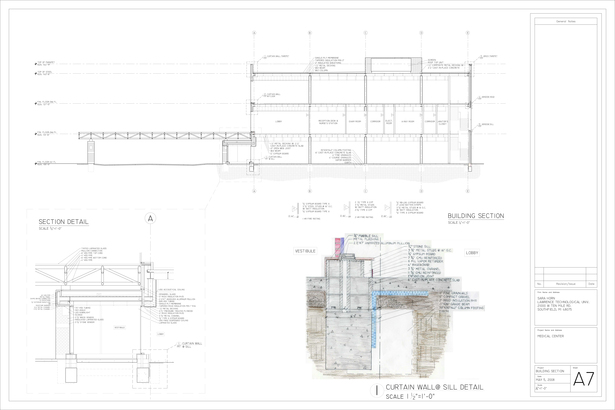

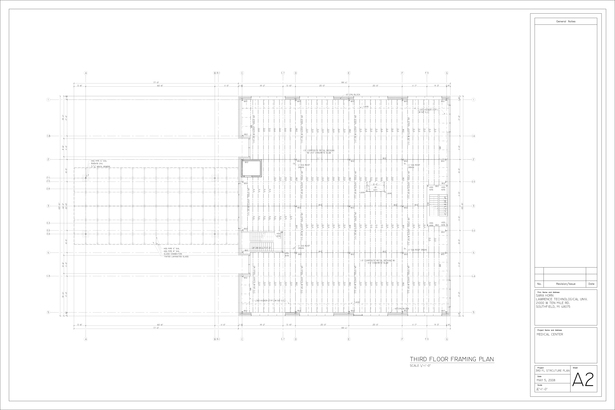

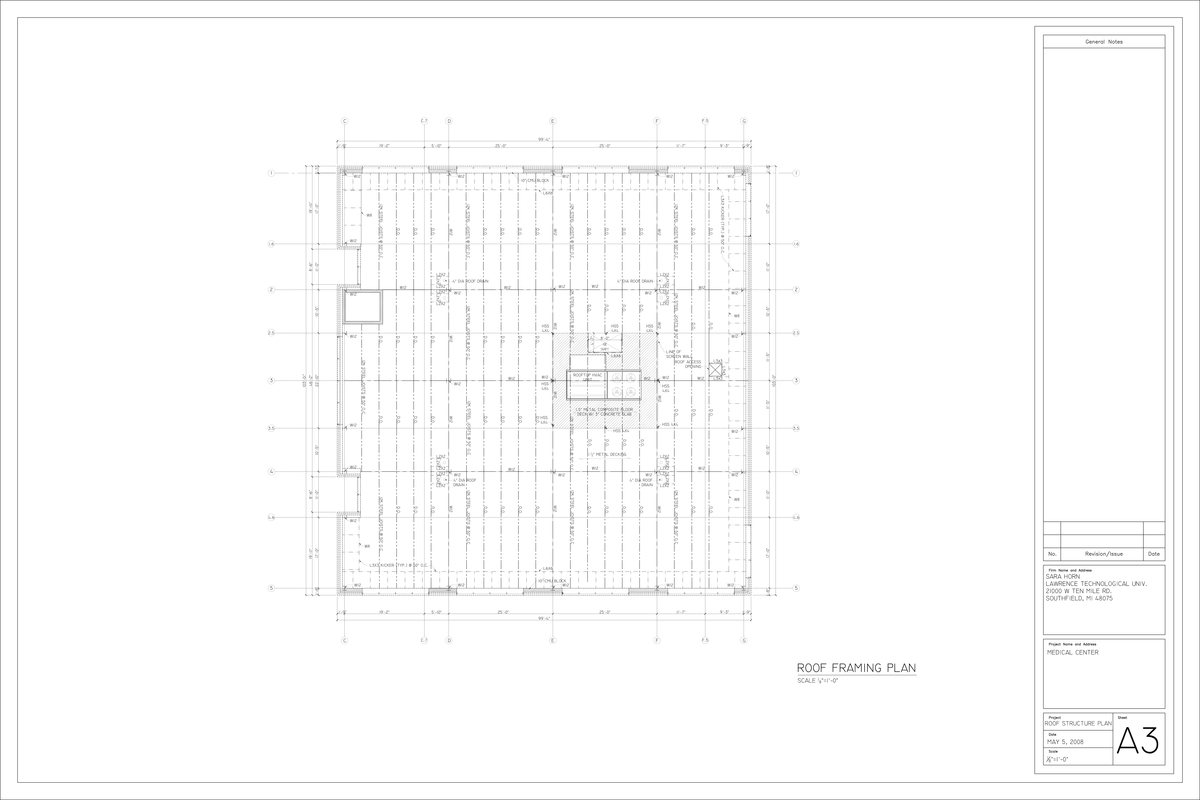

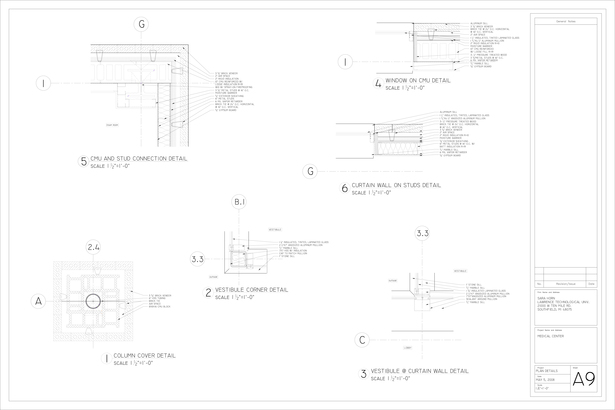

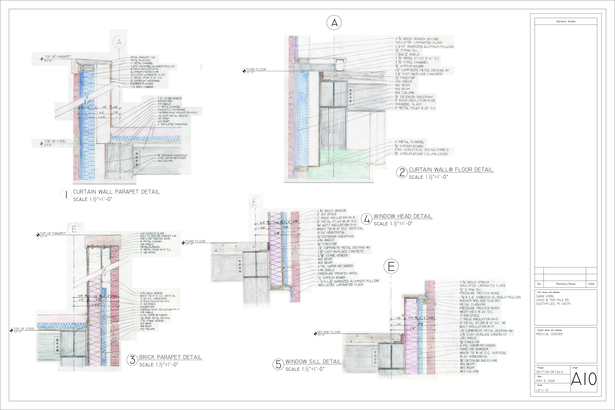

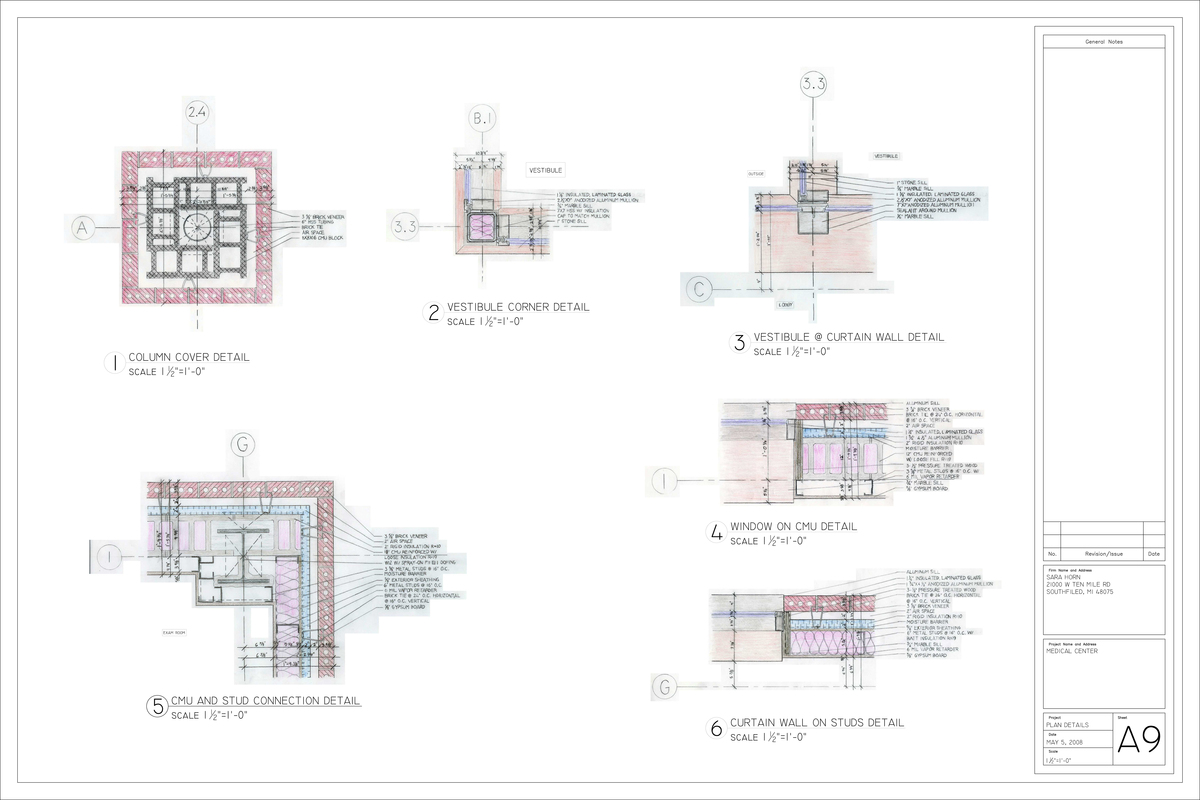

Hand drafted and colored to show understanding of the components and how they relate to each other.
Hand drafted and colored to show understanding of the components and how they relate to each other.
