Office X

Studying high-rise architecture and structural systems for tall building I was impressed by the efficiency of cross bracing systems and diagrid. Hence I wanted to explore such structural system in a high-rise office building. The shape of the tower is composed of three hexagon tubes each one of which ends as the elevator shafts end at different levels.
Office Tower:
- 49 floors;
- 22 elevators;
- Gross floor area
- 1 083 000 sq.ft.
- Building height 676 ft.
- Floor-to-floor height 13 ft.


 Read more

Status: School Project
Location: Chicago, IL, US

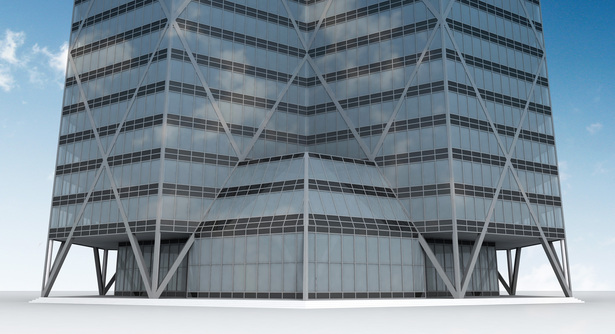

Entrance
Entrance

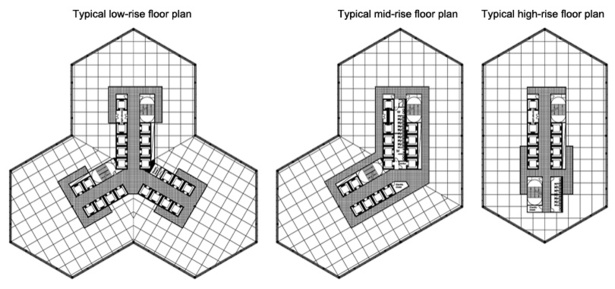

Typical floor plans
Typical floor plans

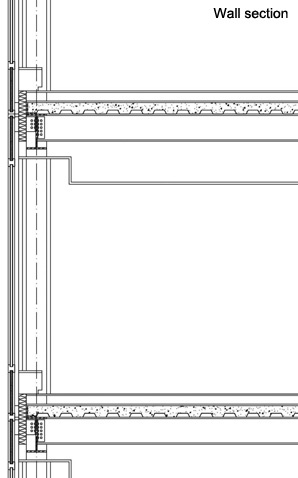

Curtain wall section
Curtain wall section
