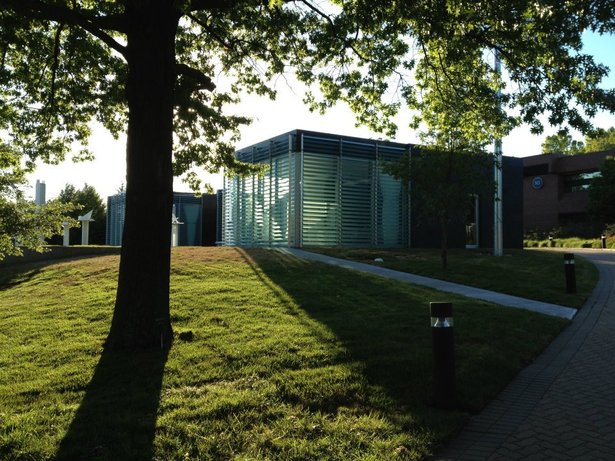

Final Photo Southeast Corner
Final Photo Southeast Corner
10 more images  ↓

Galileo's Pavilion

The Galileo Pavilion, located on the Johnson County Community College campus, is a response to the goals of the JCCC Center for Sustainability combined with the need for additional classrooms at the ever-expanding college. It is a unique opportunity to create an inspired learning space which also serves as an information center for the campus and the community at large. The Galileo Pavilion will become a landmark for JCCC's sustainable initiatives, acting as a node from which students and the public can interact and learn of the institution's environmental integrity that extends to every corner of the campus.



The new building is not simply one among many, but an icon that leads the rest of the campus by example. The interior spaces function as classrooms, student lounge/coffee bar, and interactive display space. The facade of the pavilion is clad in slate panels which are reclaimed chalkboards from regional school districts. Other design features include the use of passive heating and cooling systems such as thermal mass, rainwater harvesting, living wall and green roof trays in addition to active systems such as photovoltaics and a wind turbine. The Galileo Pavilion is expected to be Studio 804's fifth LEED Platinum and third Passivhaus certified building.


 Read more

Status: Built
Location: 12345 College Blvd, Overland Park, KS

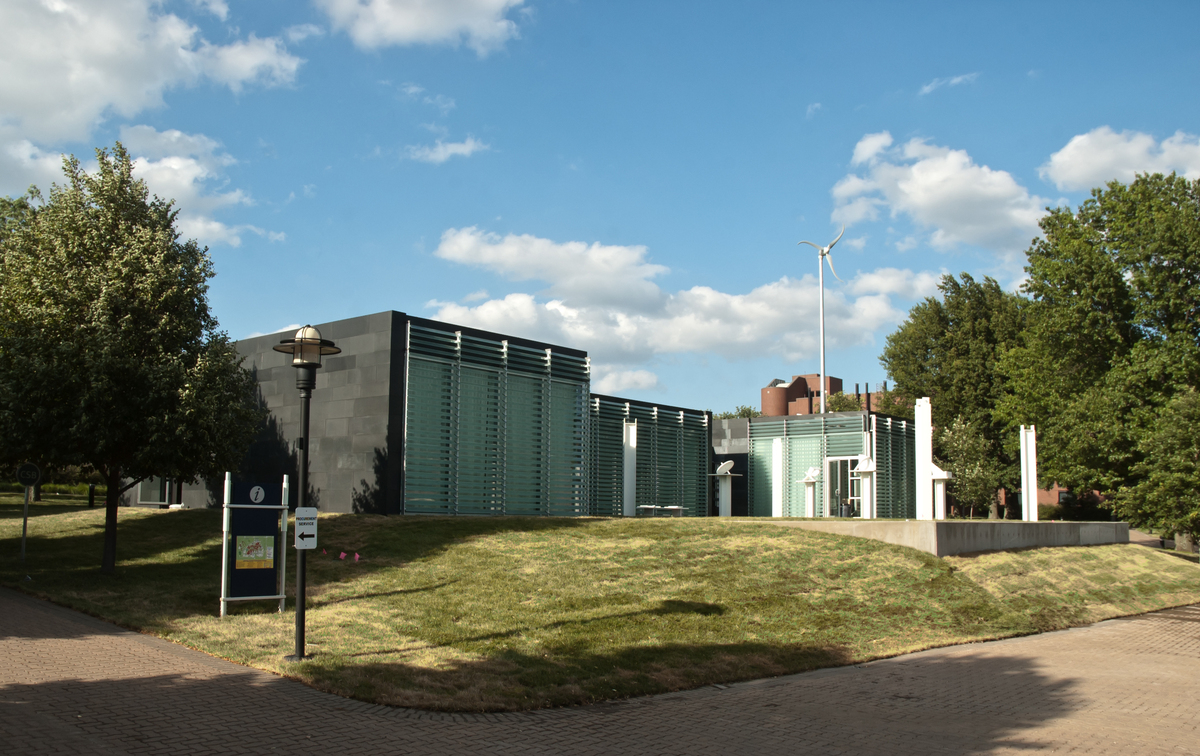

Final Photos Southwest Corner
Final Photos Southwest Corner

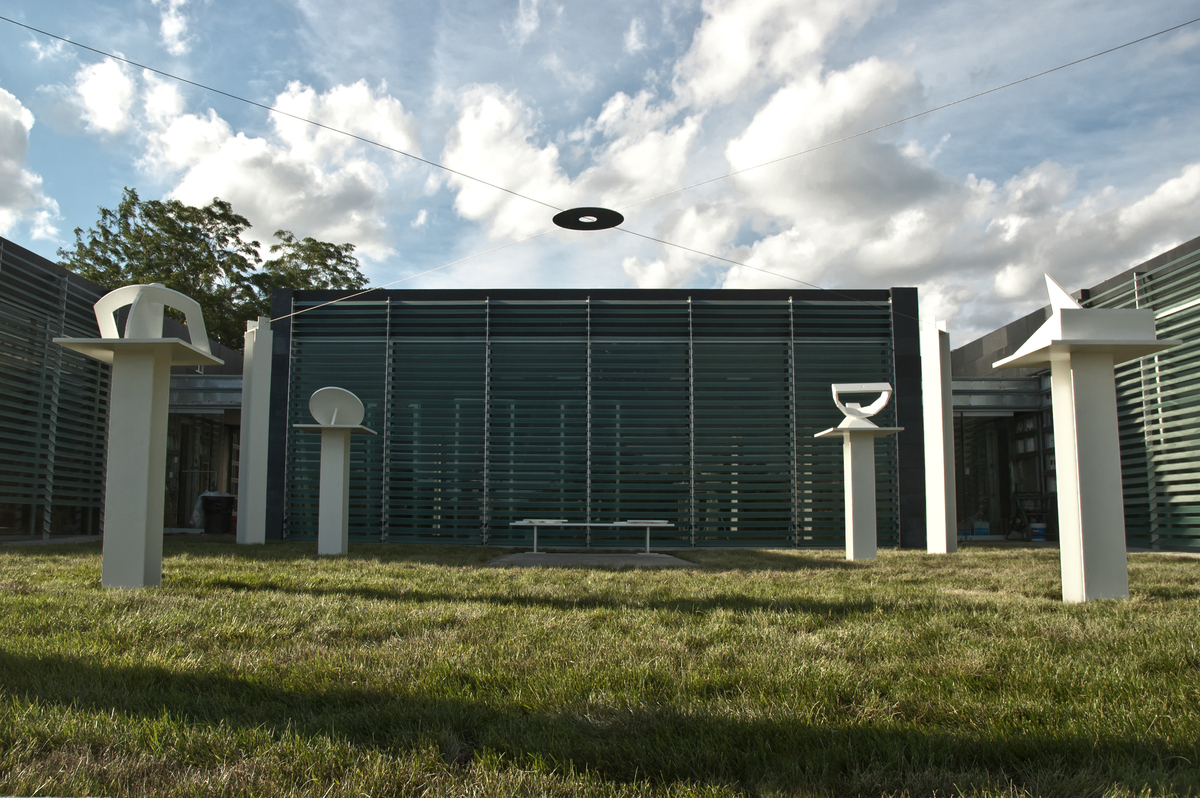

Final Photo South Existing Dale Eldridge Sundial Sculpture
Final Photo South Existing Dale Eldridge Sundial Sculpture

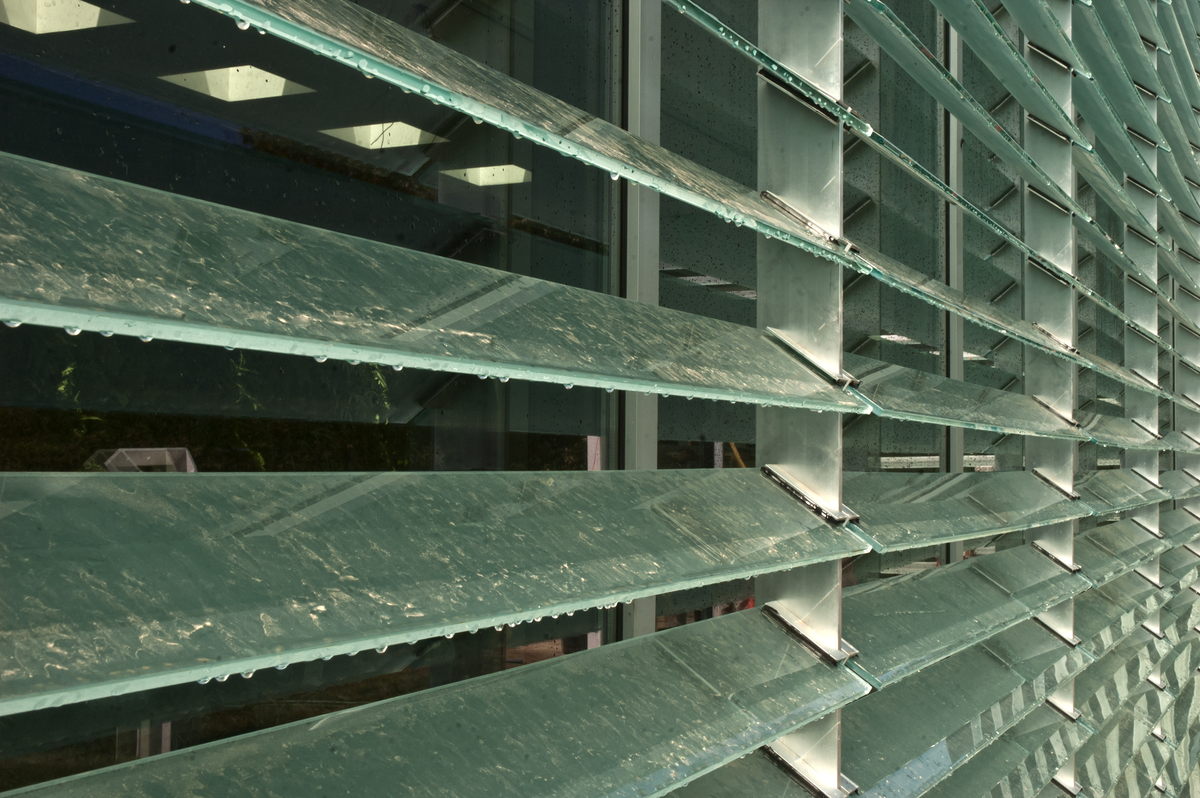

Final Photo Frosted Louvres
Final Photo Frosted Louvres

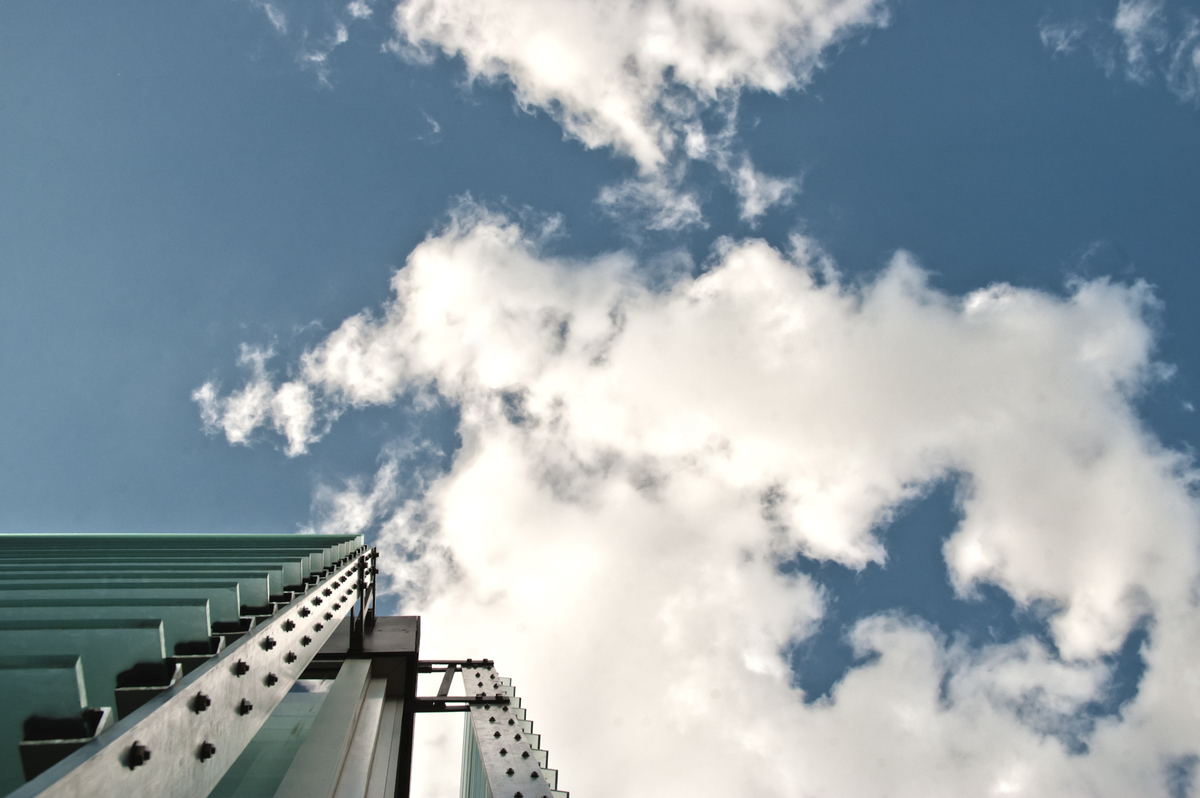

Aluminum Detail Supporting Glass Louvres
Aluminum Detail Supporting Glass Louvres

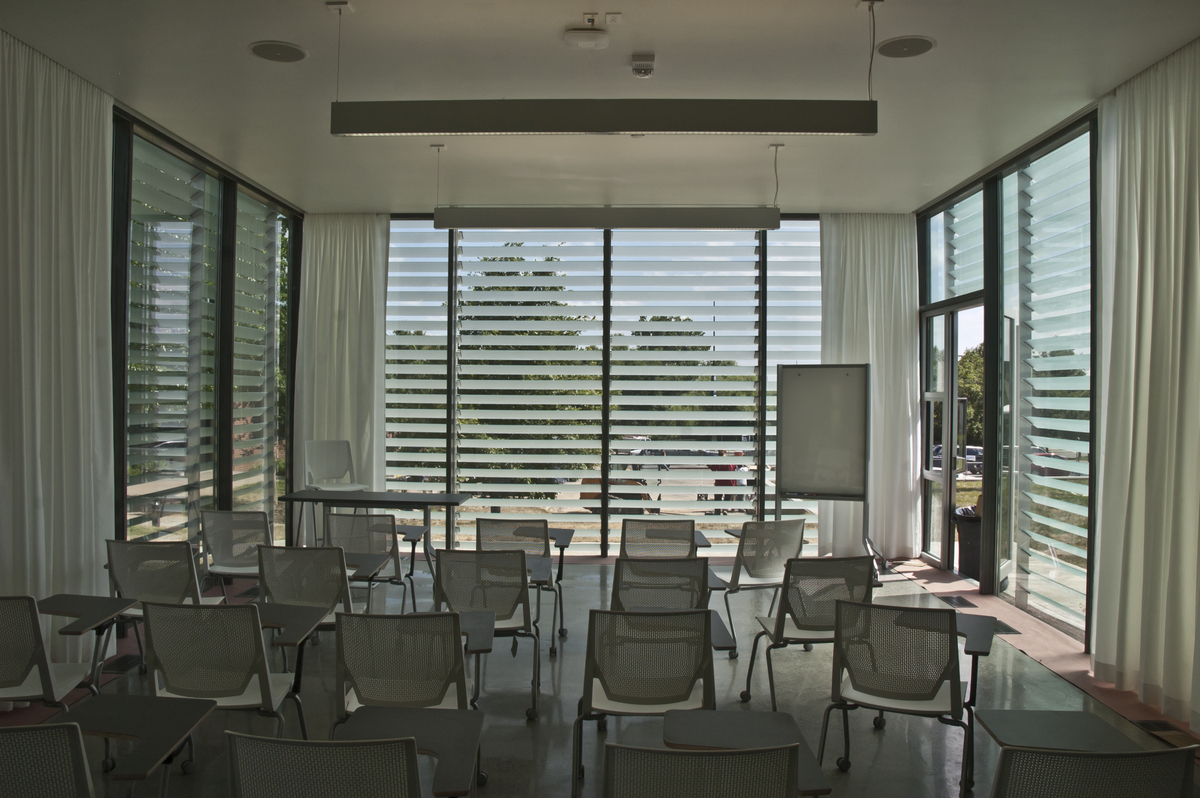

Interior Classroom Space
Interior Classroom Space

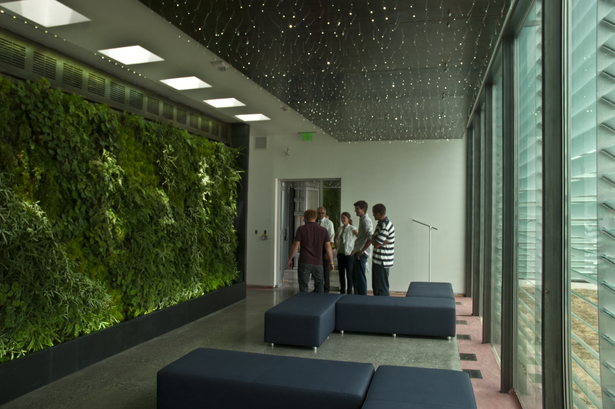

Interior Lobby Continuous Green Wall
Interior Lobby Continuous Green Wall

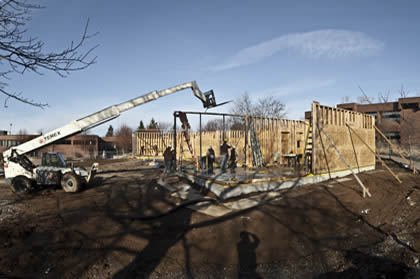

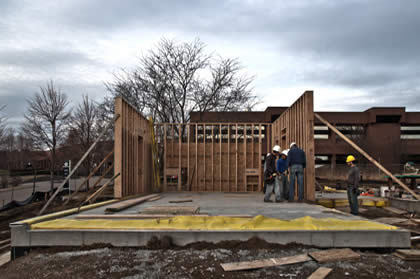

Initial Wall Framing
Initial Wall Framing
Steel Structure
Steel Structure
Rendering from Revit to 3ds Max
Rendering from Revit to 3ds Max

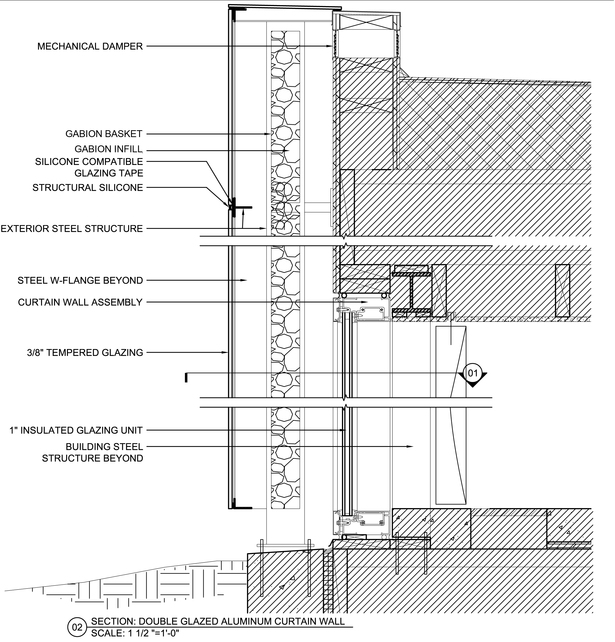

Early Curtain Wall Detail
Early Curtain Wall Detail
