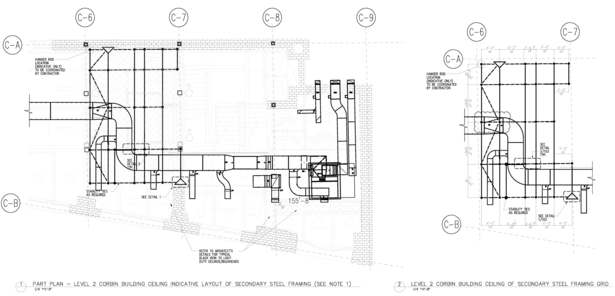

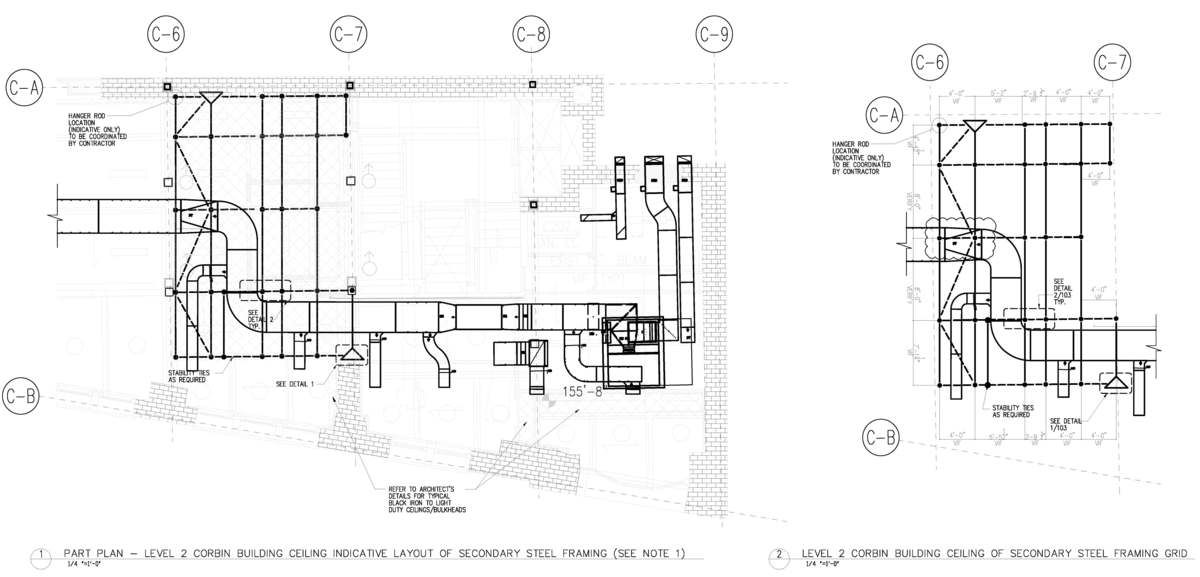

Ceiling Support

Design ceiling support to an 8 floor building.My duties was to field survey, design ceiling support, coordinate with structure engineer and general contractor. I got to made sure that ceiling support will be stable and will not affect the ductwork. After approval of shop drawings, I will manage all fabrication of ceiling support as well as installation.


 Read more

Status: Built

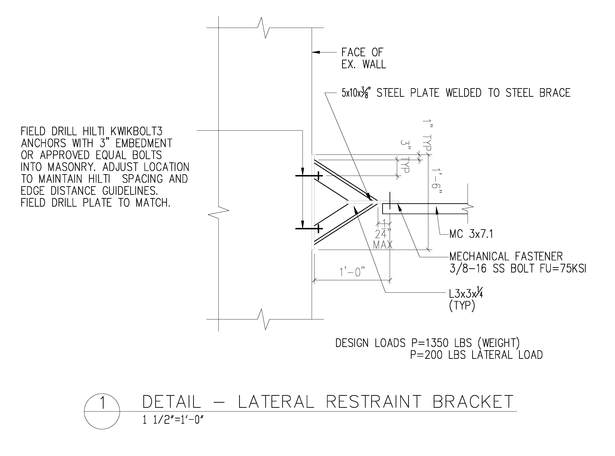

detail of wall connection
detail of wall connection

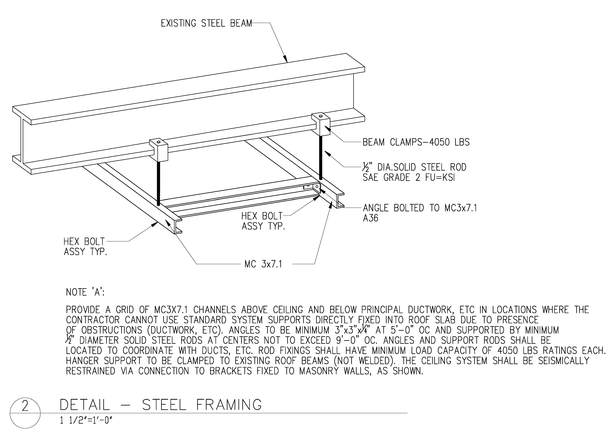

detail of ceiling support
detail of ceiling support

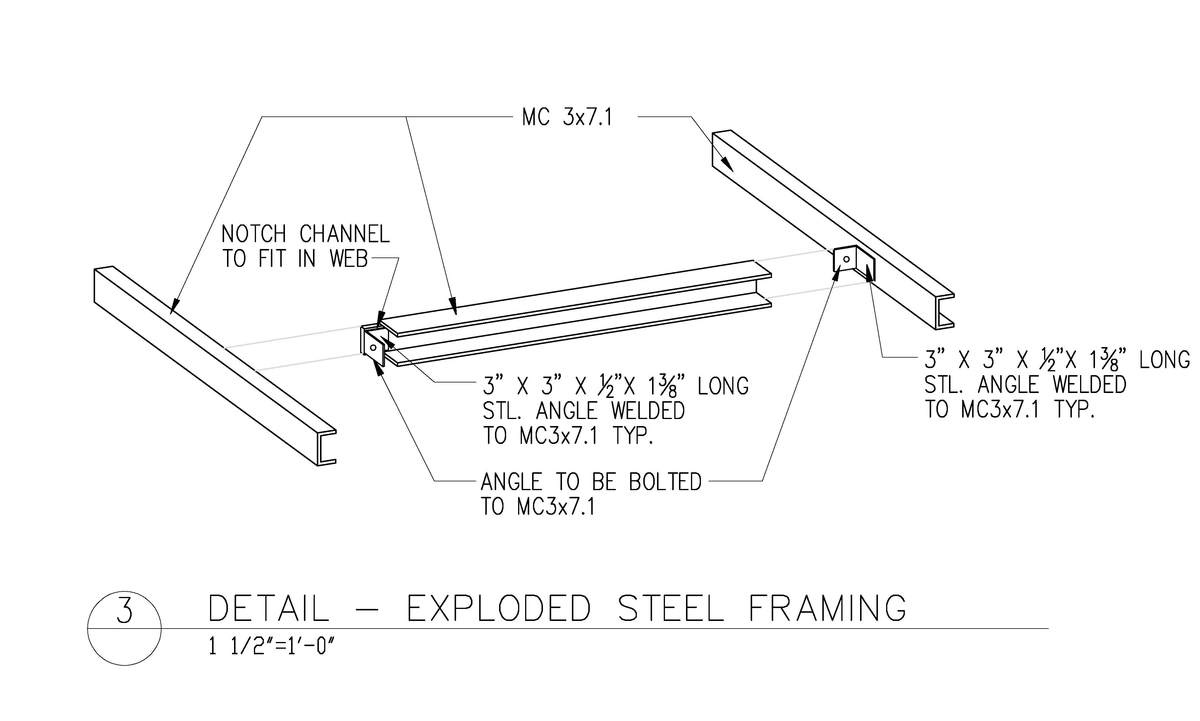

exploded detail
exploded detail

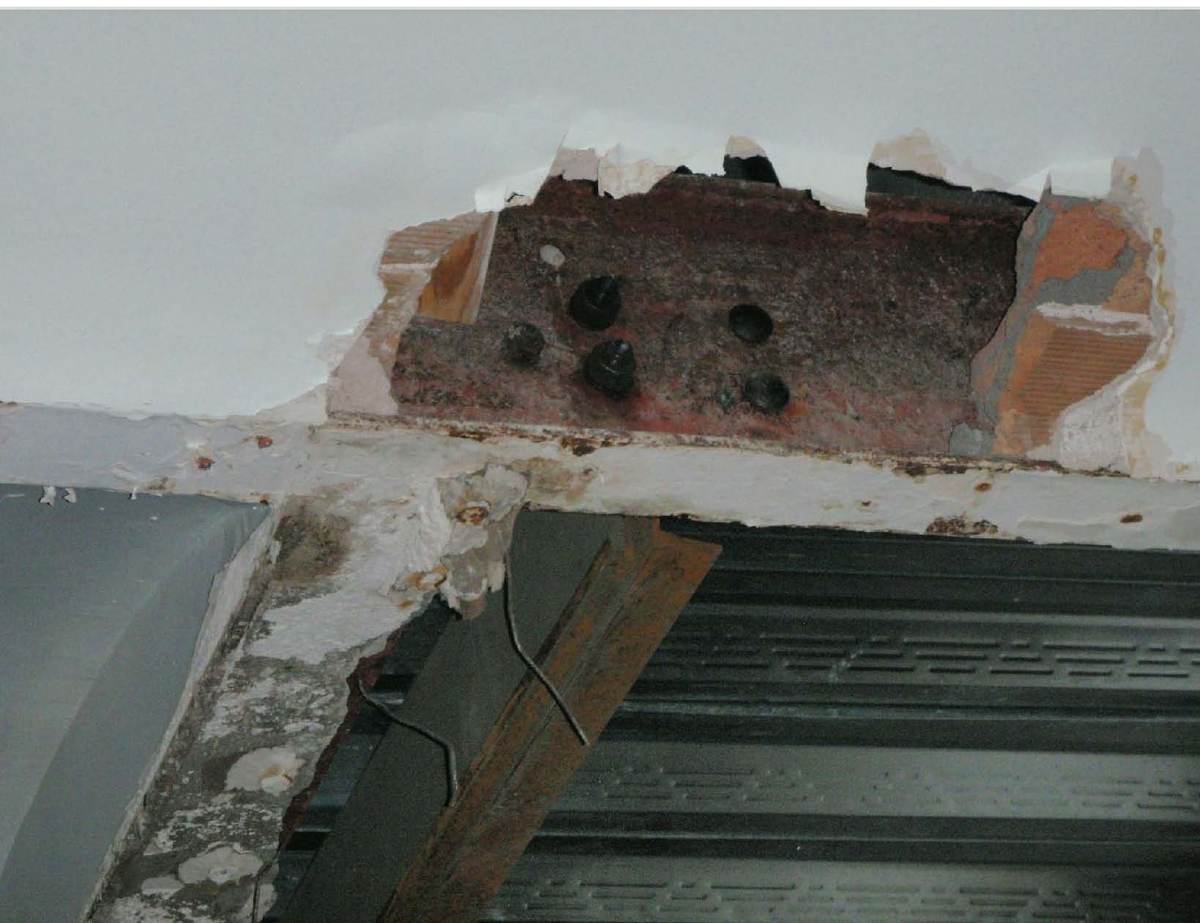

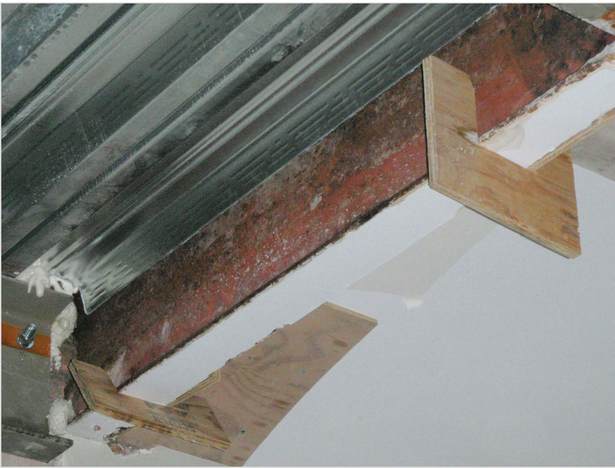

picture of current ceiling
picture of current ceiling
picture of current ceiling
picture of current ceiling
