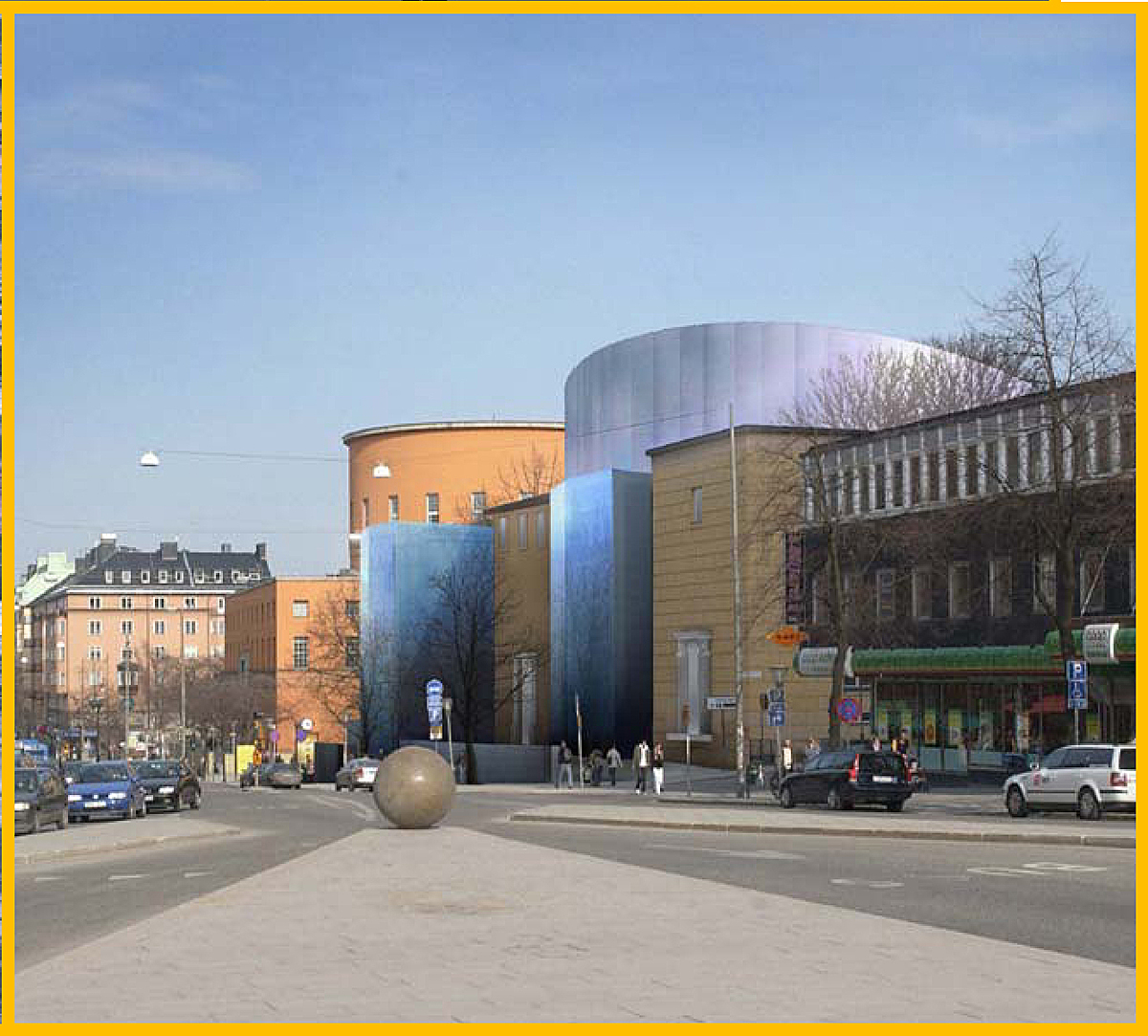

Proposed Facade
Proposed Facade
11 more images  ↓

Stockholm Library Competition

The world-famous Stockholm Public Library, designed by Swedish architect Gunnar Asplund, was built in 1928 in the Swedish capital. In 2006, the city of Stockholm announced an international architectural competition for a grand expansion of the library. My entry in the competition was titled “City of Knowledge.”

I remembered the open double-helix staircase—a brilliant work of Leonardo da Vinci—in the royal Château de Chambord at Loir-et-Cher, France, from history lessons. I imagined Leonardo's staircase afresh as the establishing design element of the library extension. The two stairs at Chambord ascend three floors without ever meeting, with one staircase dedicated to the royal family and the other to the servant floors, cleverly separating the two building uses. Within my proposed City of Knowledge, the various public spaces rise around the rotunda and are reachable via a gently sloped ramp dedicated to visitors; staff areas, on the other hand, are accessible via a separate ramp. The two ramps together form the double helix, providing a separation of visitor, staff and media circulation, as it is necessary to segregate these important flows and uses. The floor levels are thus divided between visitors and staff.  The experience produced in the public areas is one of being in a familiar place: residential-like, serene and intimate.

The two ramps of the helix additionally provide sectional complexity, while forming a large central atrium that provides a continuous point of reference. A glass roof allows the atrium—a second rotunda, to complement the library's original rotunda— to fill with an abundance of light. The elliptical walls that define the atrium consolidate all of the various mechanical and building systems, as well as a major structural system. The rhythmic patterns of wall openings that may appear arbitrary are to the contrary strategic: the walls control levels of illumination, and create passages and openings while sometimes also forming resting and seating areas.


Read more

Status: Competition Entry
Location: Stockholm, Sweden

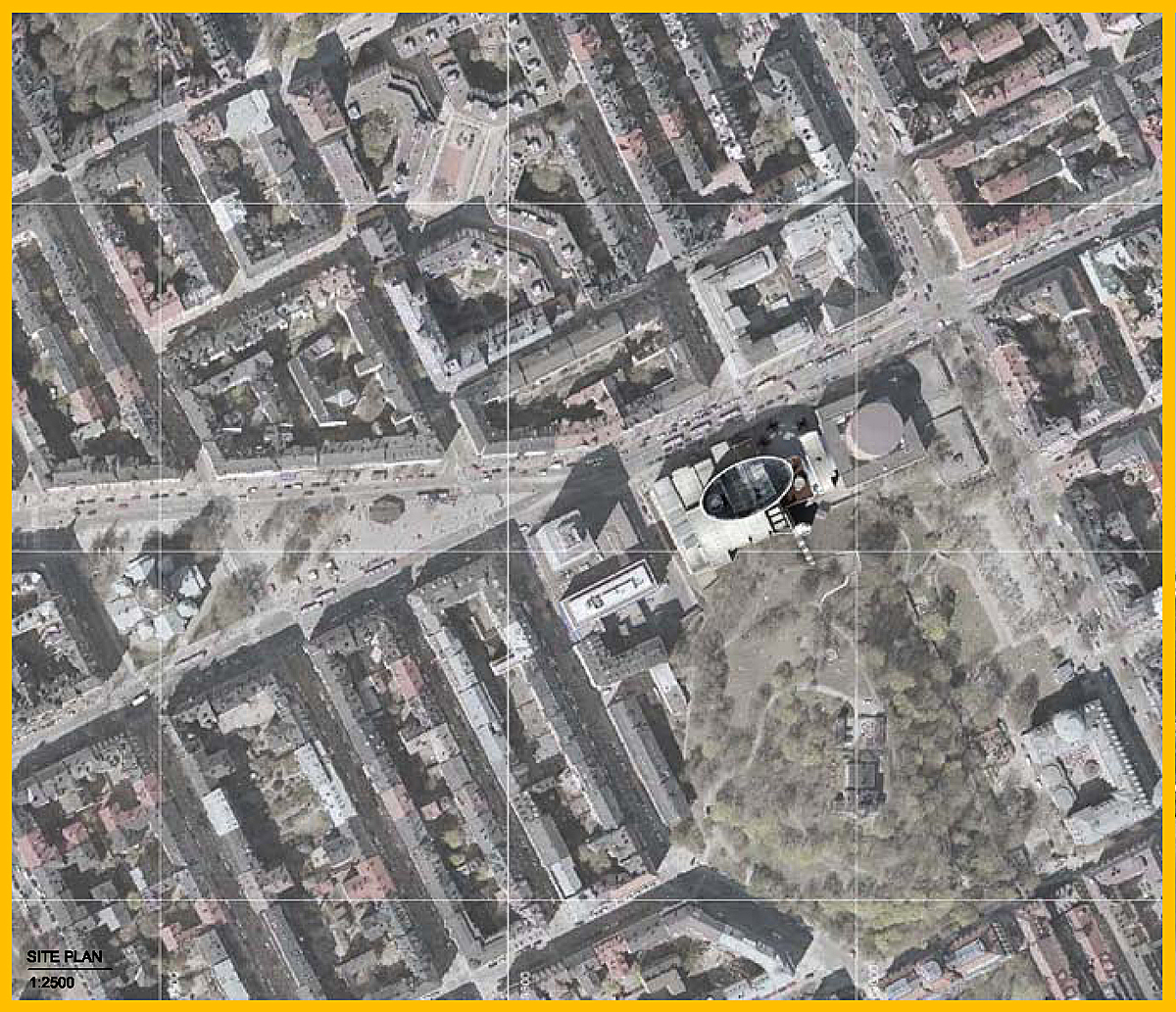

Site
Site

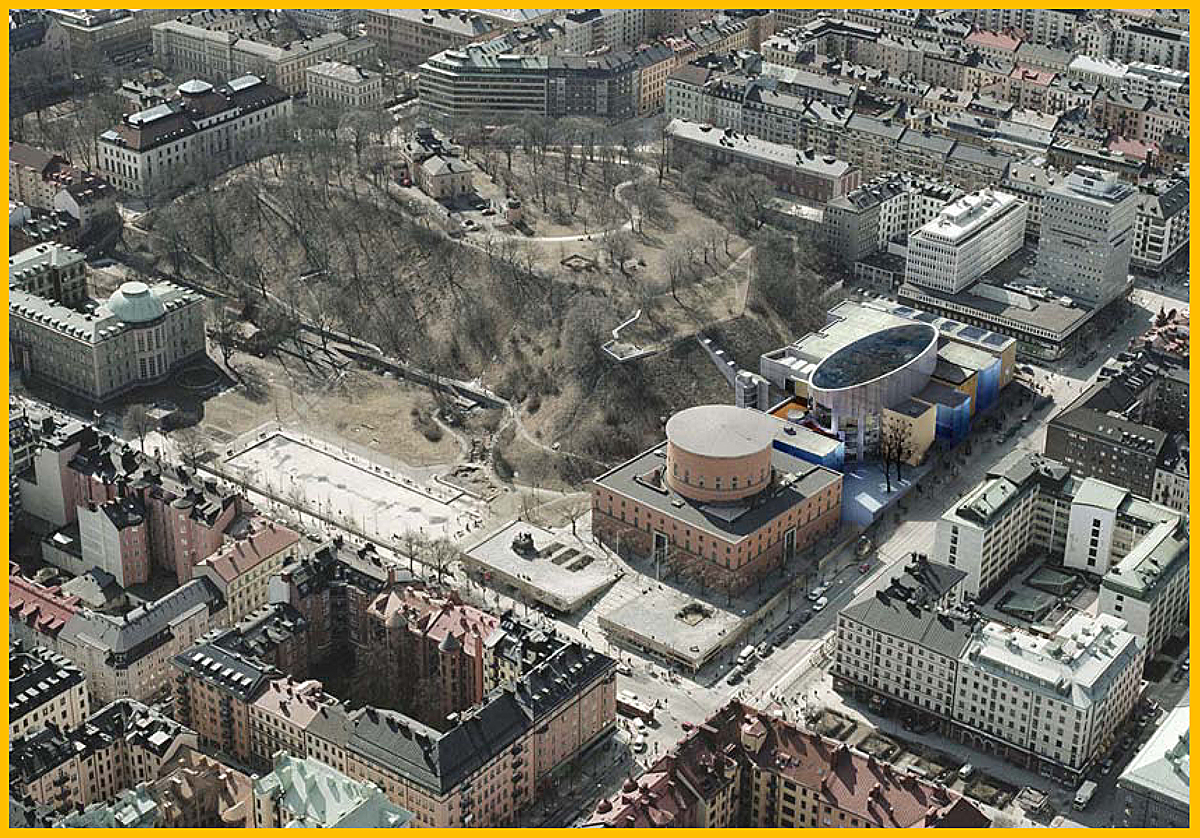

Arial View of Site
Arial View of Site

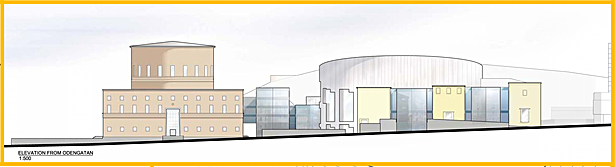

Elevation of Library Extension
Elevation of Library Extension

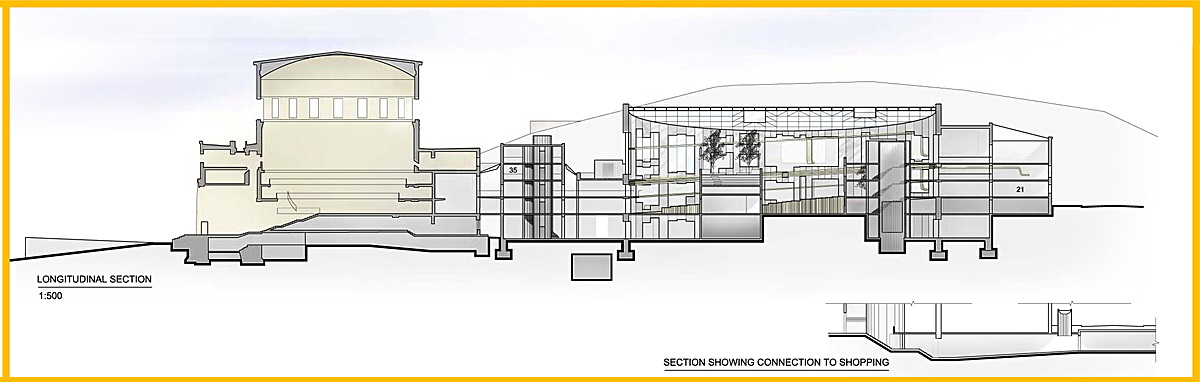

Section of Library Extension
Section of Library Extension
Interior View
Interior View

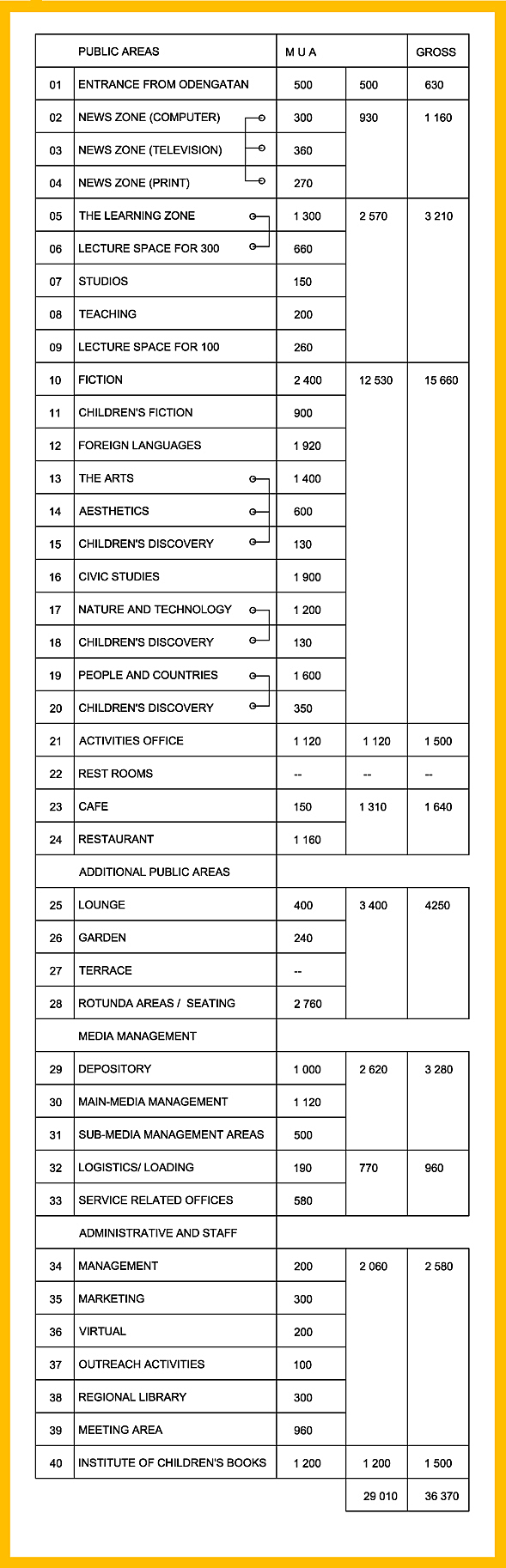

Space Allocation
Space Allocation

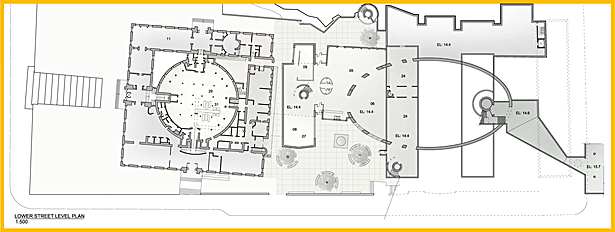

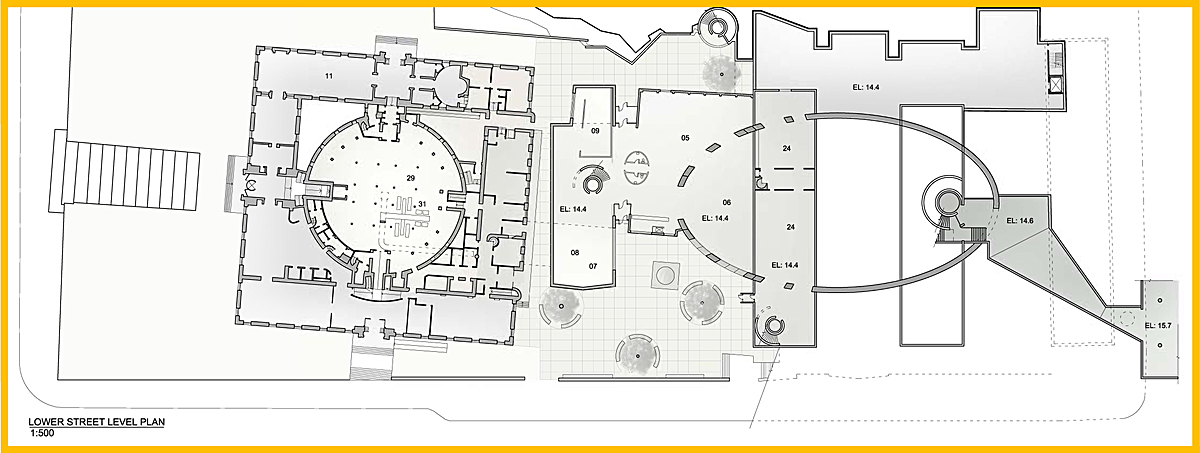

Lower Level Plan
Lower Level Plan

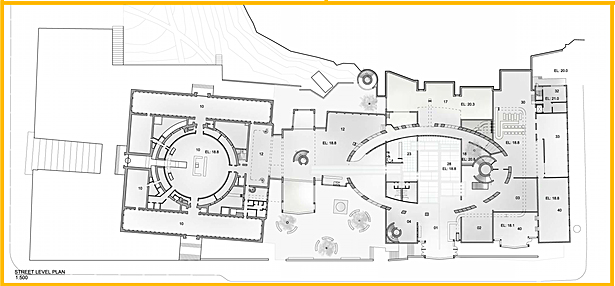

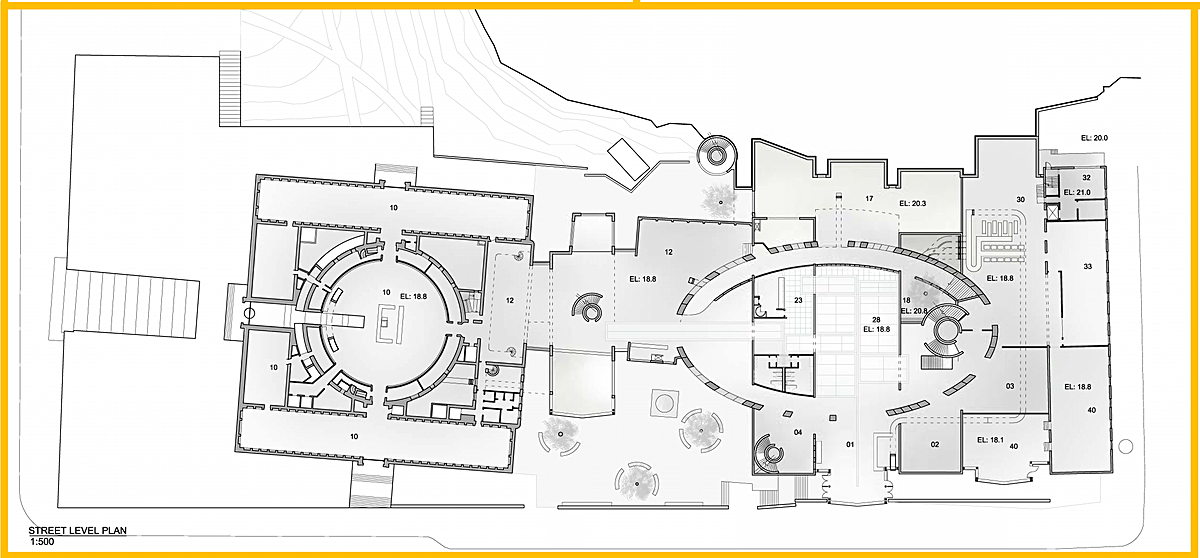

Street Level Plan
Street Level Plan

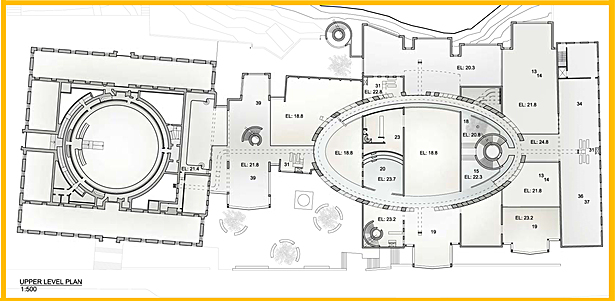

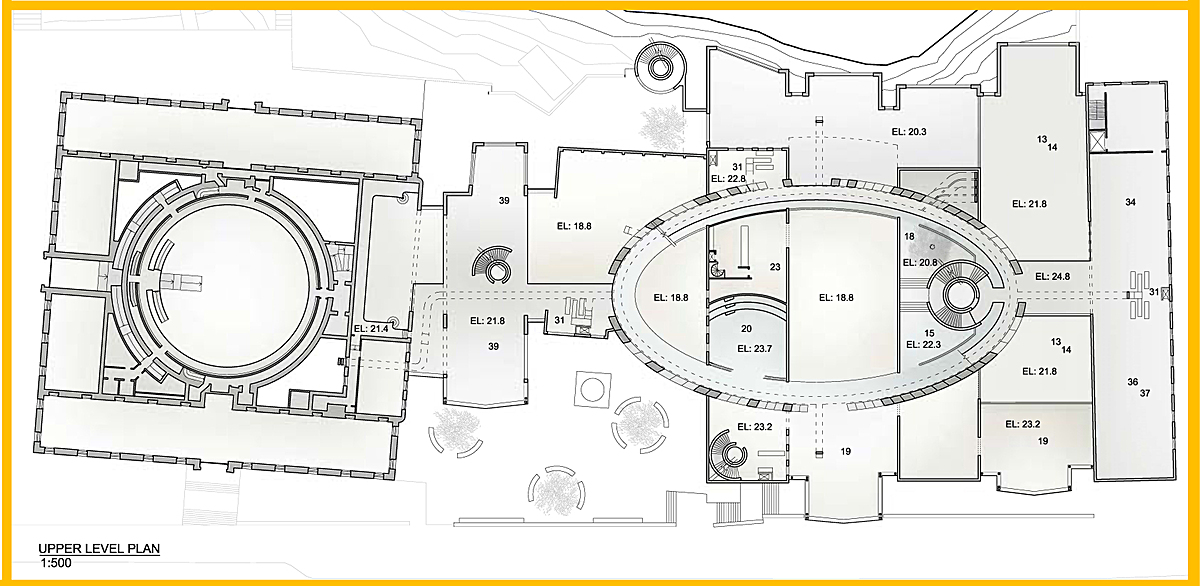

Upper Level Plan
Upper Level Plan

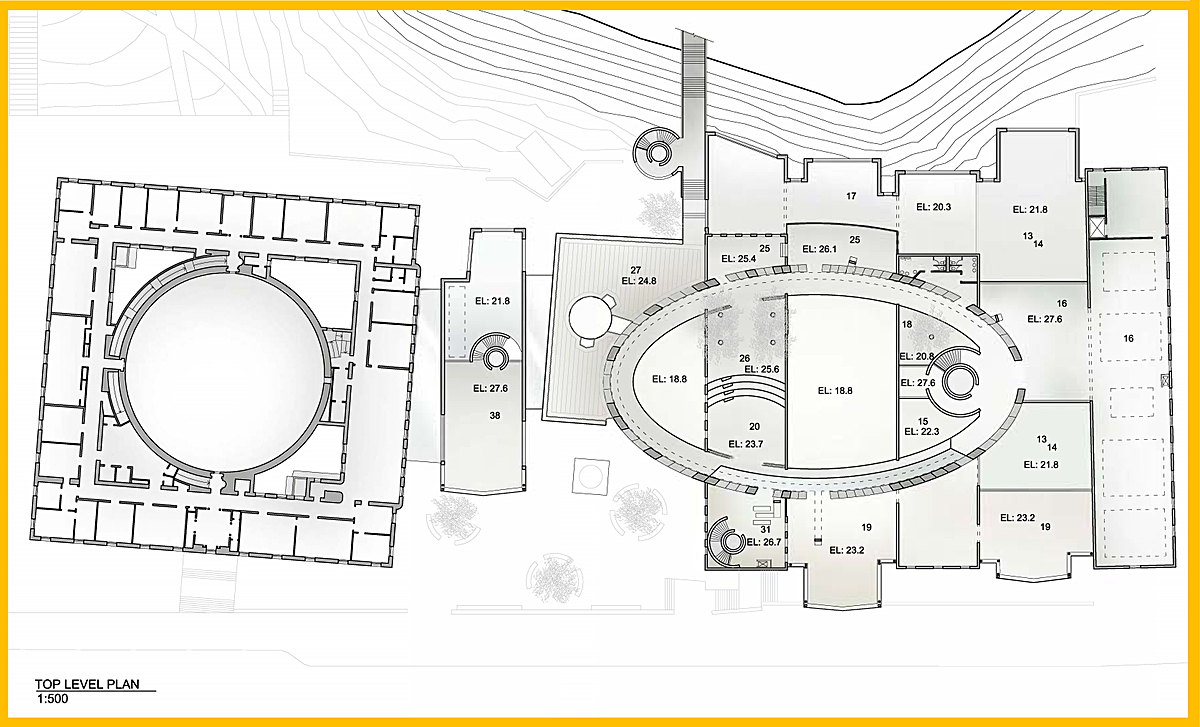

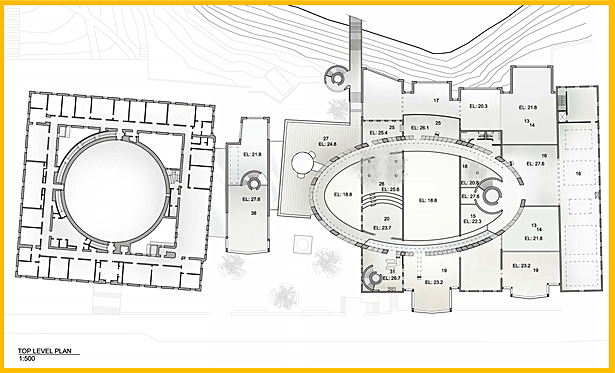

Top Level Plan
Top Level Plan

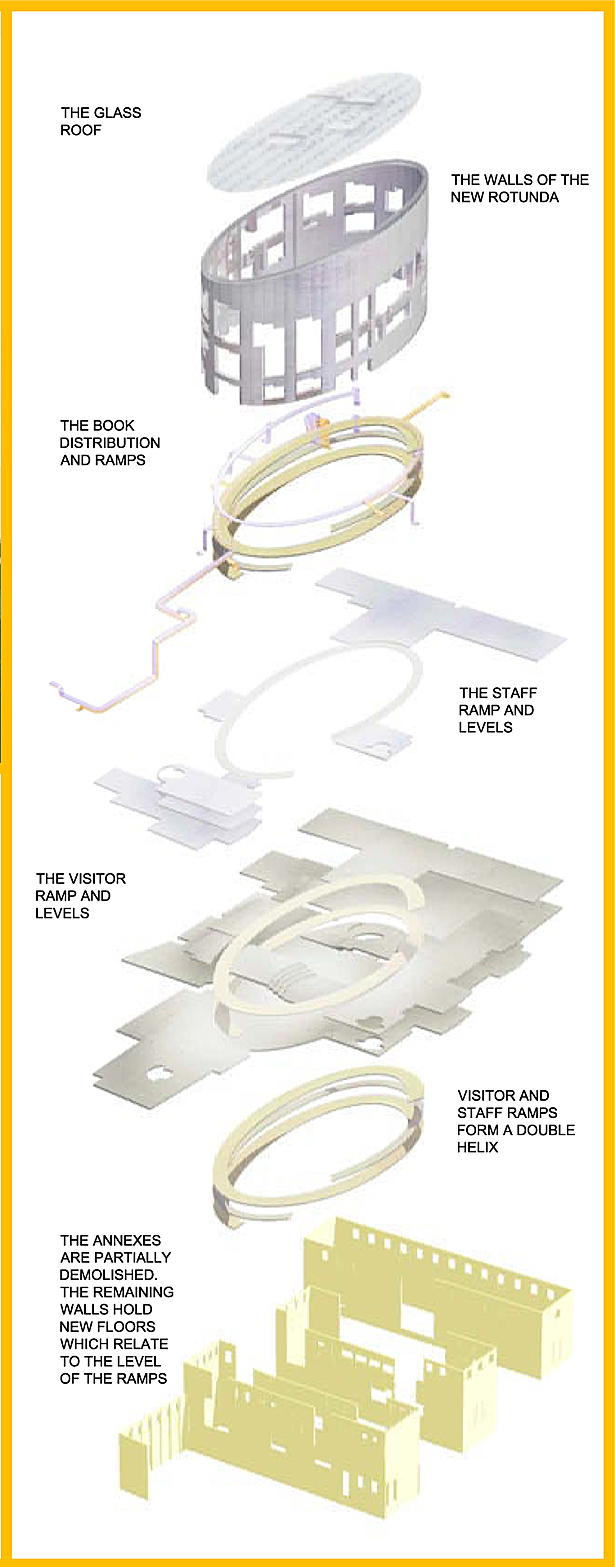

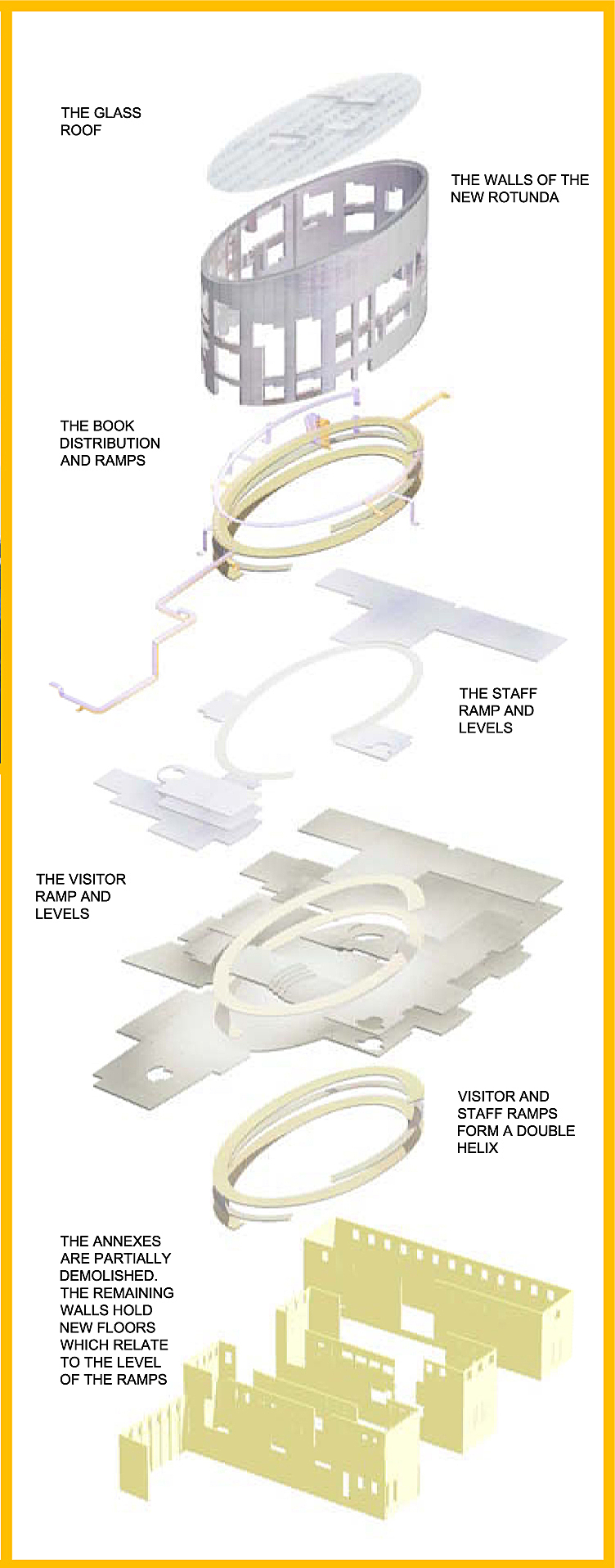

Main Building Parts
Main Building Parts
