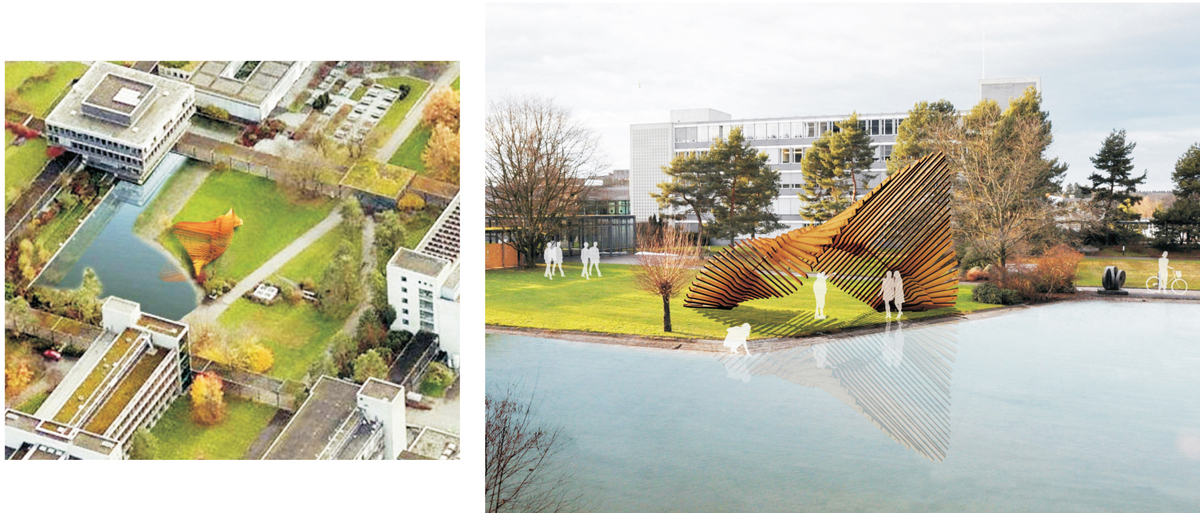

Shading Spine 01
Shading Spine 01
1 more images  ↓

Shading Spine

Collaboration of 5 EmTech Students

The design of this pavilion was developed from a helicoidal arch, made through the digital fabrication of spacers between plywood fins. Each fin in independently tensioned to the fin preceding it using the tension cable to create compression within the arch. This segmented tensioning optimises the forces acting on the tension elements of the arch by creating straight lines of tension to create the curve.


 Read more

Status: Competition Entry
Location: Zürich, CH
Additional Credits: Nicolas Leguina de Enterria, Gabriel Ivorra, Sherwood Wang, Dominik Lisik

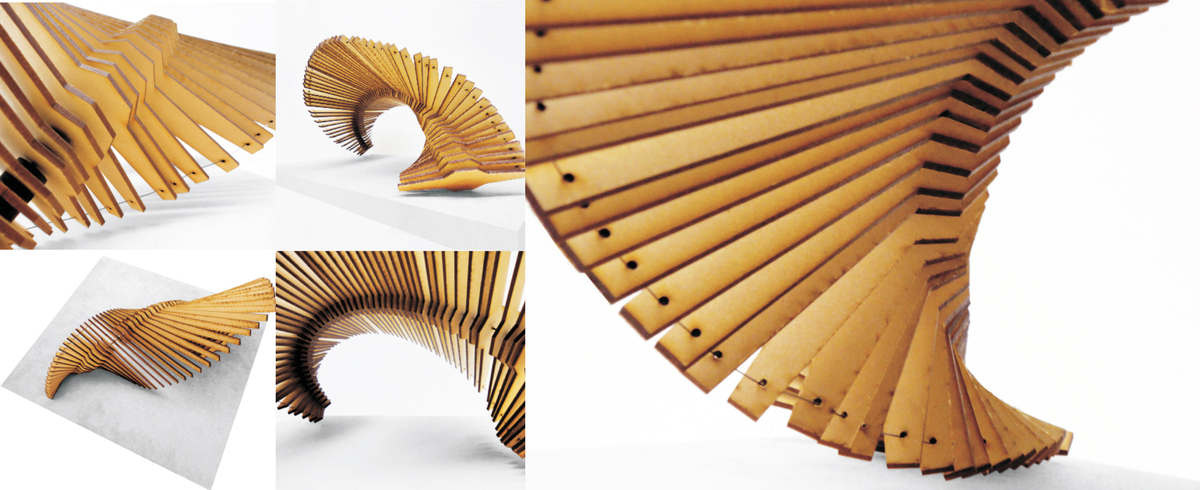

Shading Spine 02
Shading Spine 02
