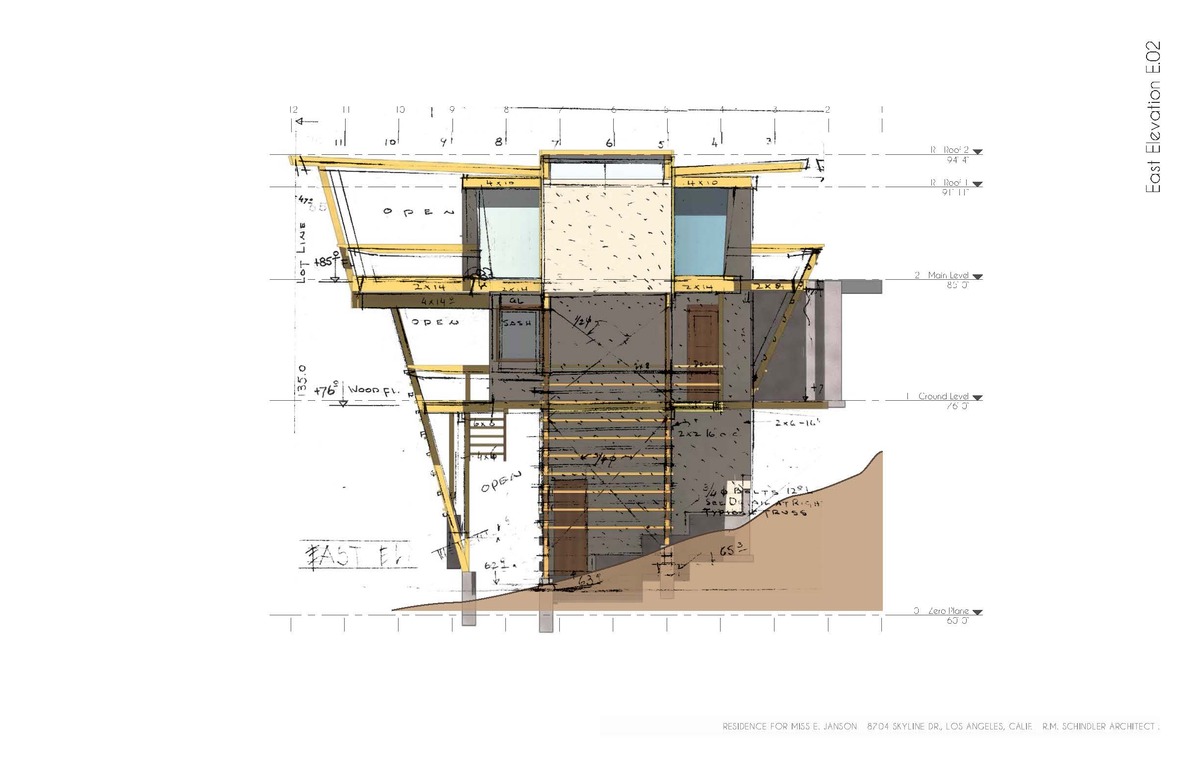

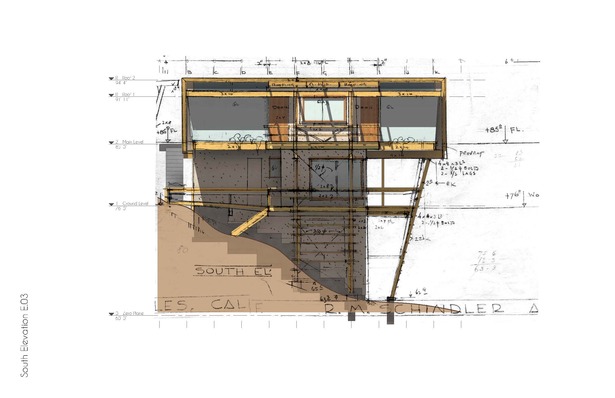

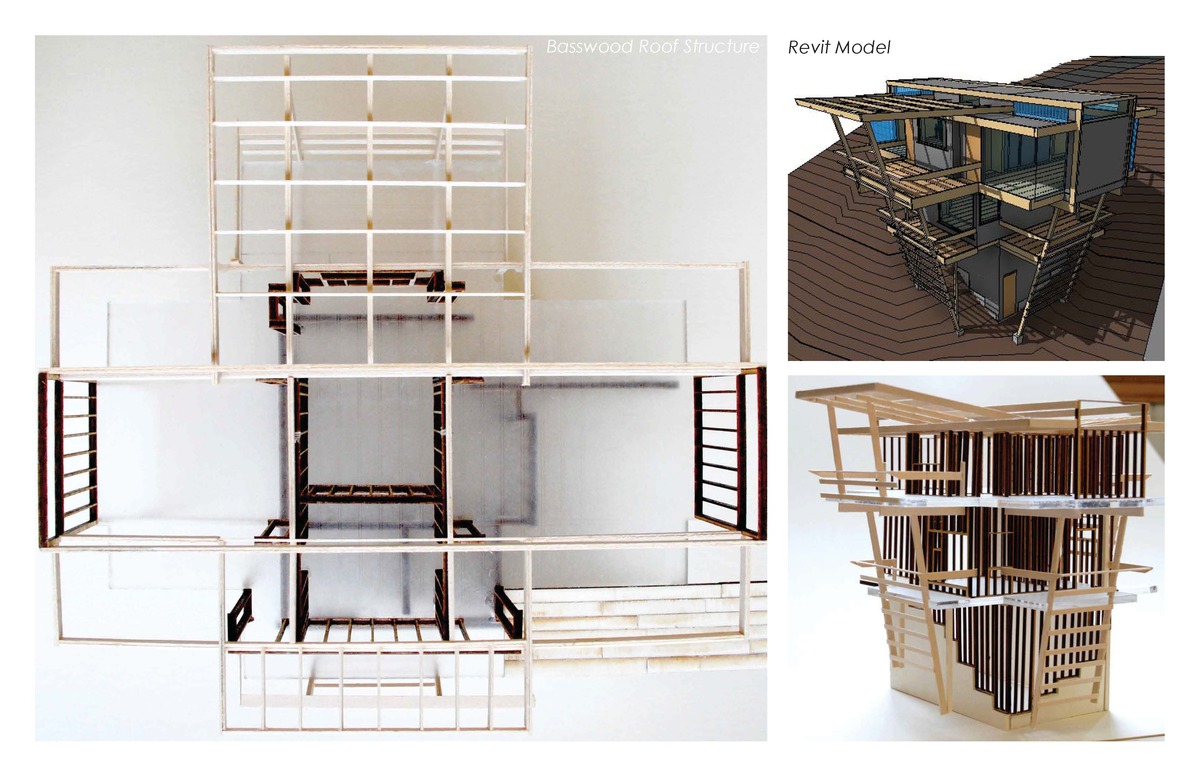

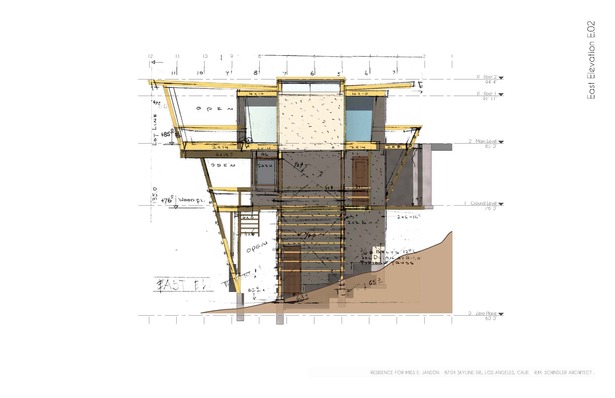

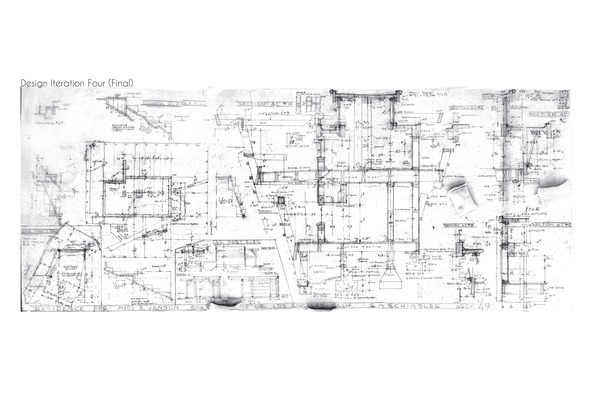

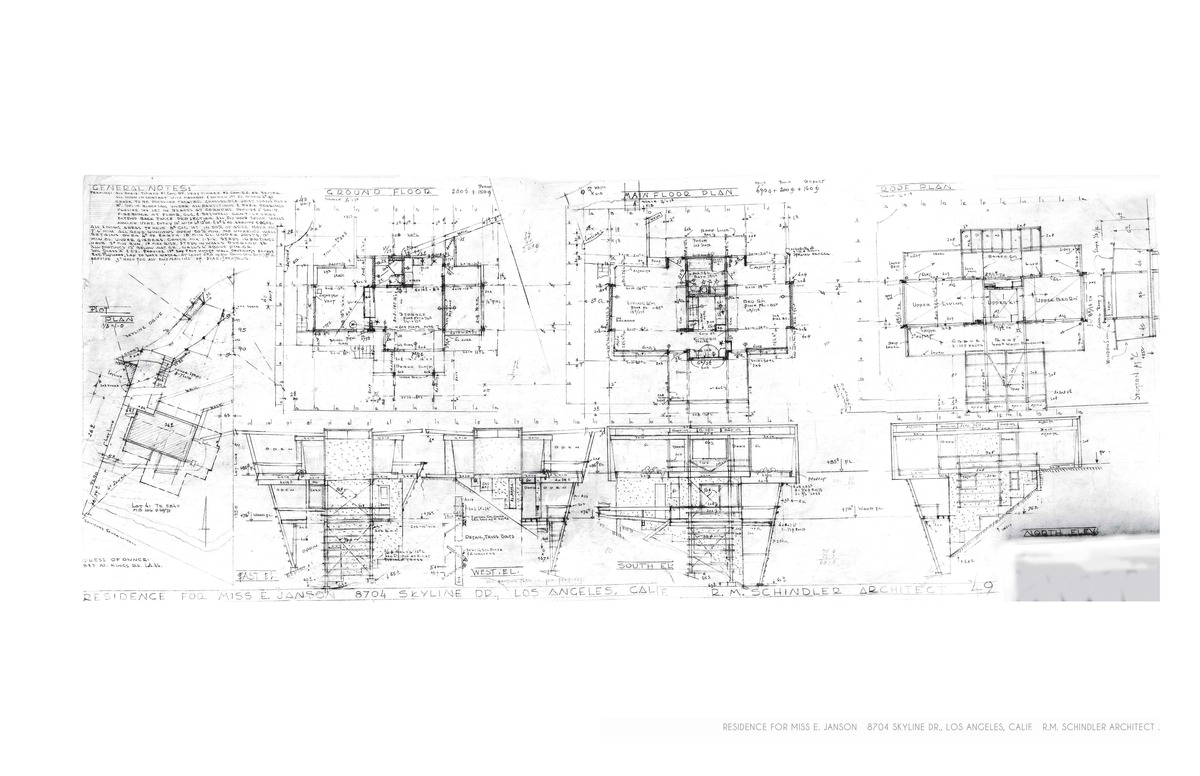

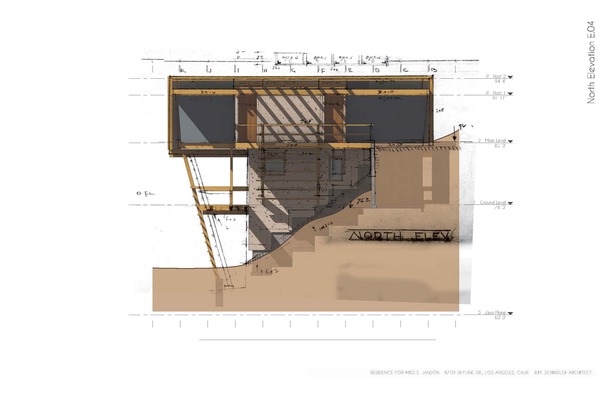

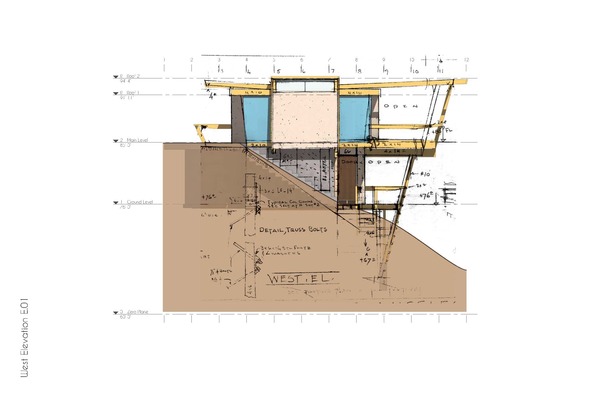

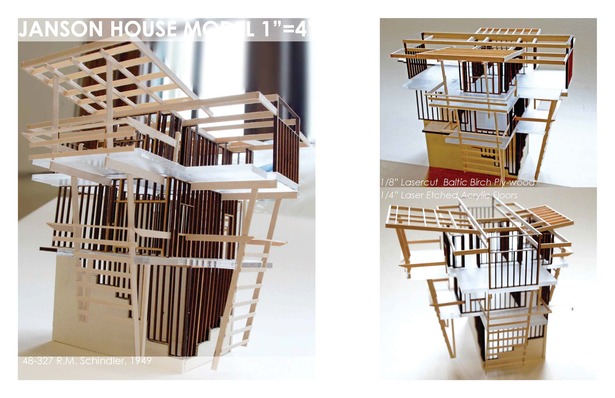

This model was the culmination of our extensive BIM modeling of R.M. Schindler's Janson House (1949). We were provided access to the orginal construction documents from USC Archives and were charged with reproducing the plans, sections, and elevations by building a comprehensive 3d model in Revit and thn extracting the drawings and refining them to full resolution.
Status: School Project
Location: Pittsburgh, PA, US
