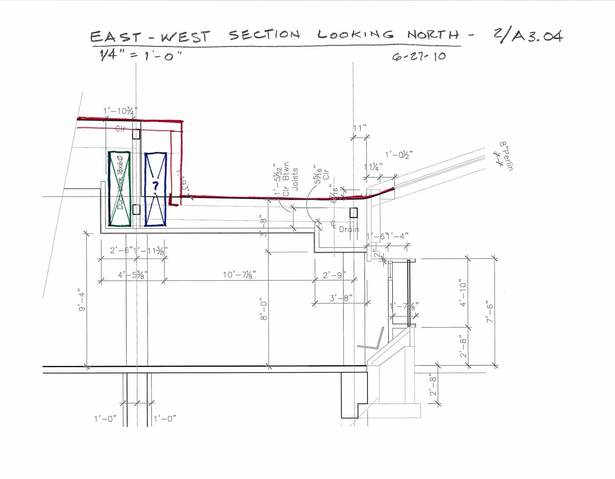

7. Section Diagram of Zone for Ductwork in Front Entry

Marker diagram on a working section through Front Entry communicates the area reserved for ductwork mains to the mechanical engineers on the project.


 Read more

Status: Unbuilt
Location: Lebanon, OH, US
