3. Diagram of Front Entry Roof Systems

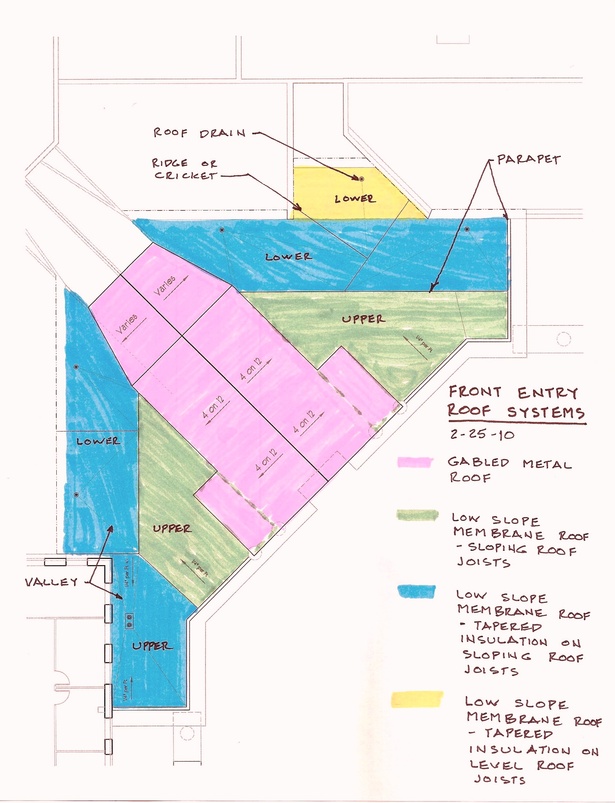

Representation of the types of roof assemblies at the Front Entry.  These systems are designed to achieve design intent of the new entry and to accommodate conditions of the existing main gable roof assemblies & a portion of existing front entry to remain.  Gabled and low slope roofs above the secure entry and waiting areas achieve the desired volumes and natural lighting below.  A band of new roof at a level slightly lower than the bottom of main gable roofs of the existing buildings diverts runoff away from existing leak prone box gutters and avoids retrofitting of the existing roofs for additional snow loads.


 Read more

Status: Unbuilt
Location: Lebanon, OH, US
