11. Section Detail of Tunnel at Soil / Turf Cover

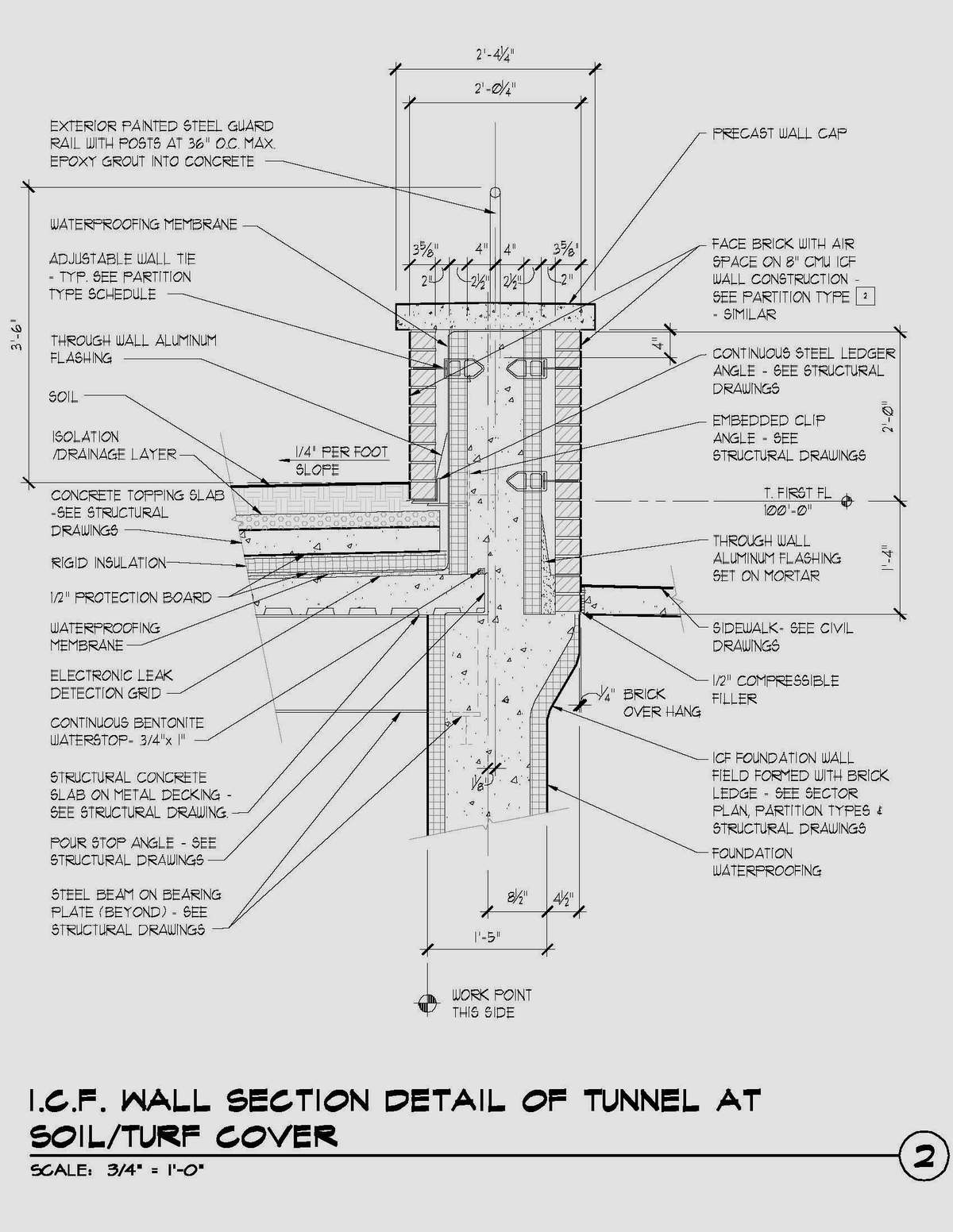

Detail describes the construction of a portion of the tunnel lid that is covered with soil, and its relationship to its side wall.  The side wall extends above the lid to achieve fall protection (in conjunction with a guard rail assembly), in an area adjacent to surface parking at a lower elevation.


 Read more

Status: Unbuilt
Location: Lebanon, OH, US
