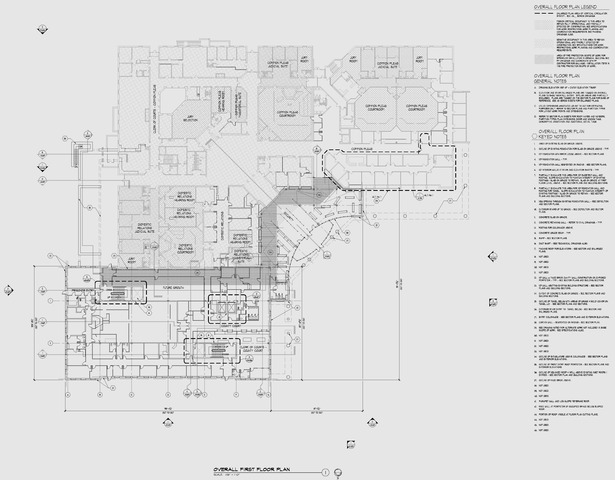

1. Overall Project First Floor Plan (A0.2)

The overall plans in this project are annotated with information that addresses the buildings as a whole and that introduces the general building systems such as vertical circulation, overall dimensions, building sections and mission critical areas in the existing buildings.  In deference to the manner in which the client is accustomed to perceiving the complex, the plans in this project are oriented with north downward.


 Read more

Status: Unbuilt
Location: Lebanon, OH, US
