Club Fit Racquet Club

Entry Alterations to the Club Fit Racquet Club

I took over the project after initial schematic design sketches.  The sketches went to the computer where I drafted all the architectural drawings from design development through construction documents.  I attended weekly meetings at the site and handled all the CA documents, questions and approvals all the way through the end of construction and re-opening of the main entrance to the Club.

This project was completed late in 2011 and it being enjoyed by the Club and its members.


 Read more

Status: Built
Location: Briarcliff, NY
My Role: Project Architect
Additional Credits: Erik Kaeyer, Principal in charge
KG&D Architects & Engineers, PC.

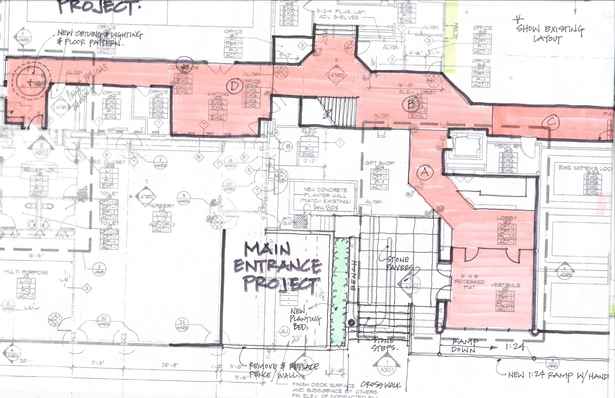

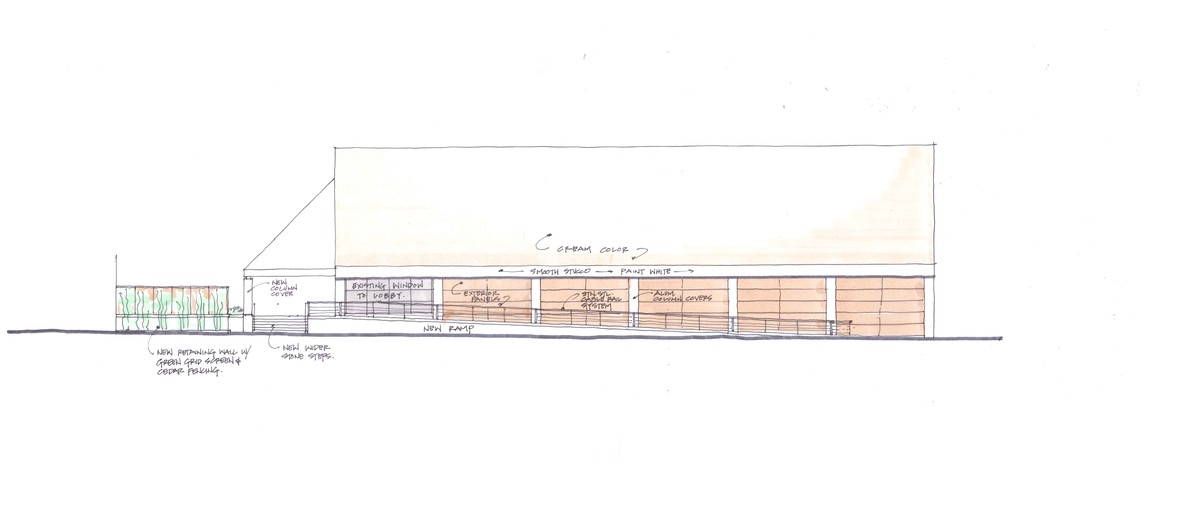

Entry design sketch
Entry design sketch

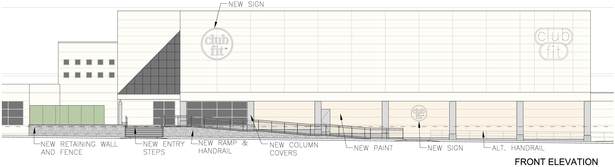

Elevation concept for the Club to display to its members
Elevation concept for the Club to display to its members

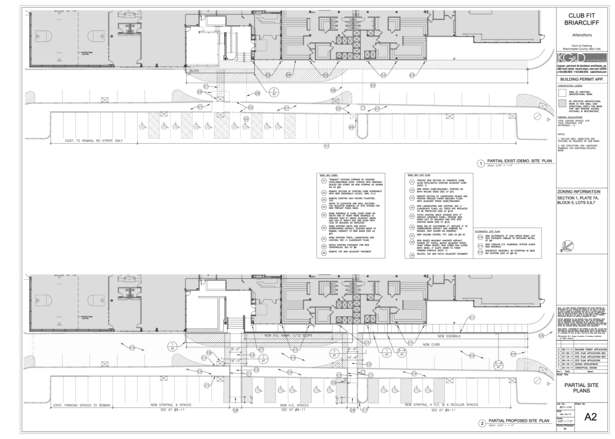

Project site plans
Project site plans

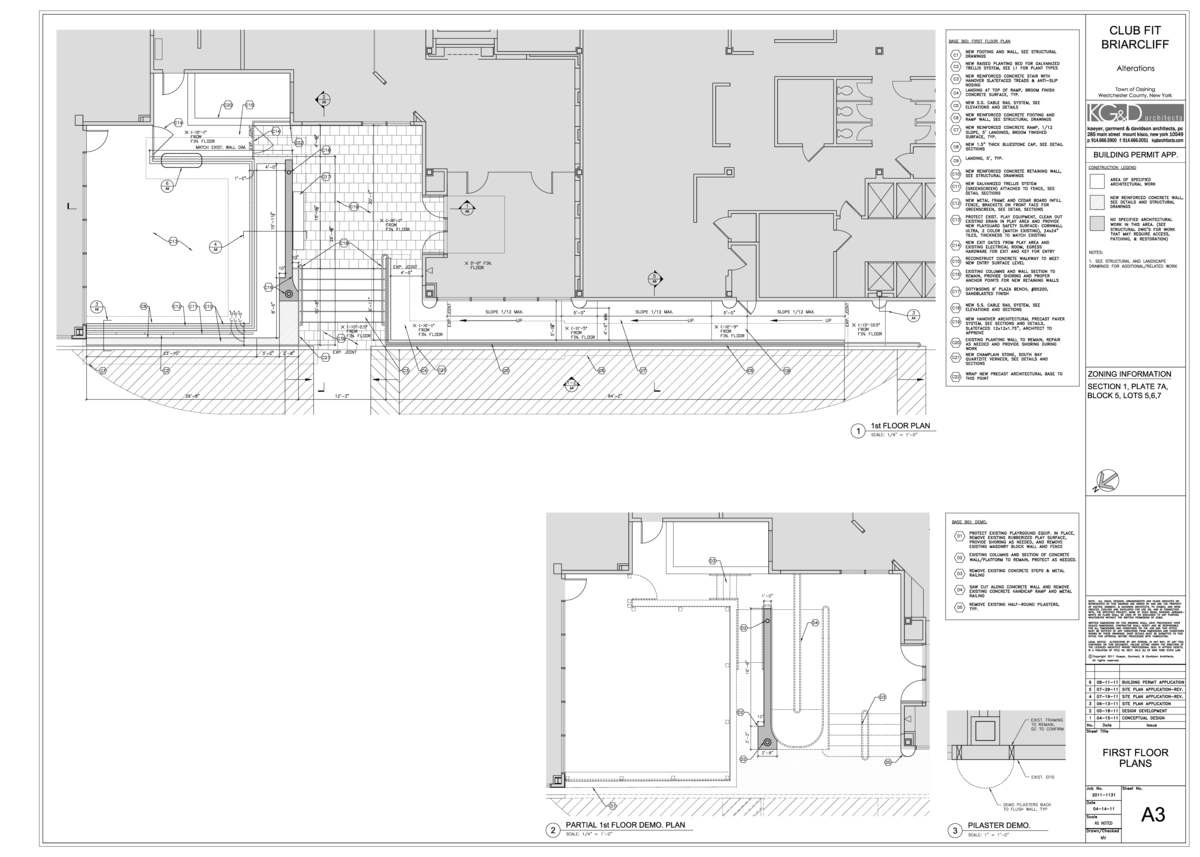

Entry floor plans
Entry floor plans

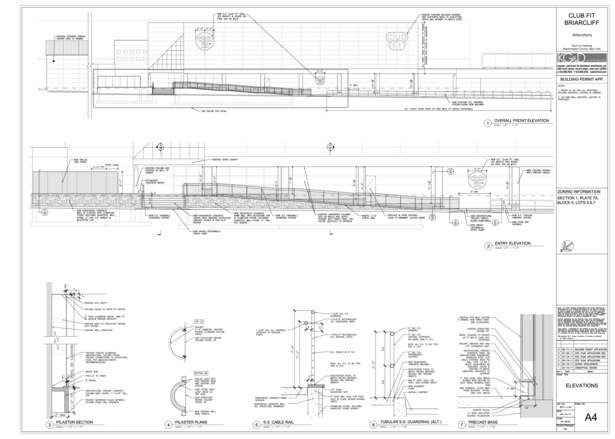

Elevations and details
Elevations and details

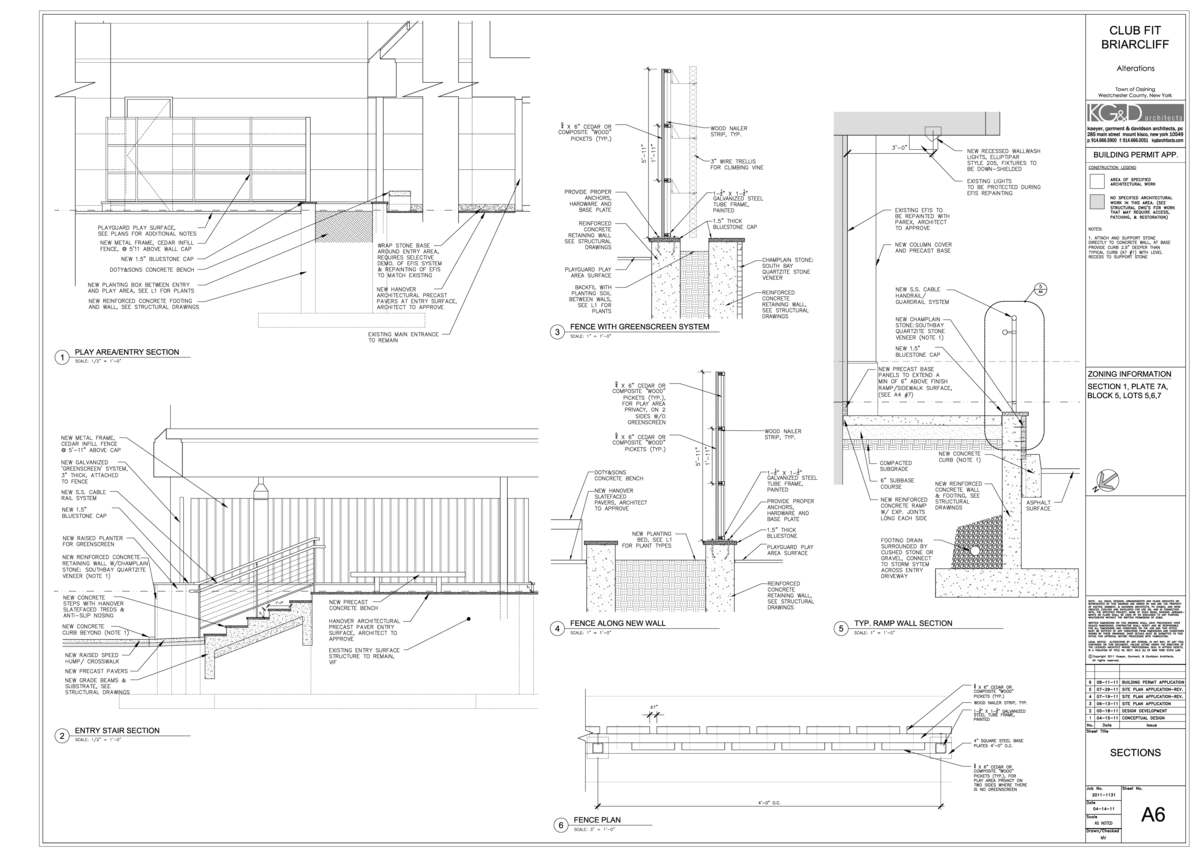

Sections and details
Sections and details

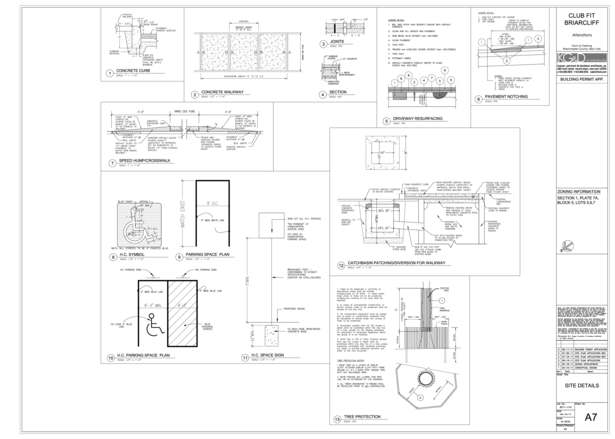

Site/Civil details
Site/Civil details

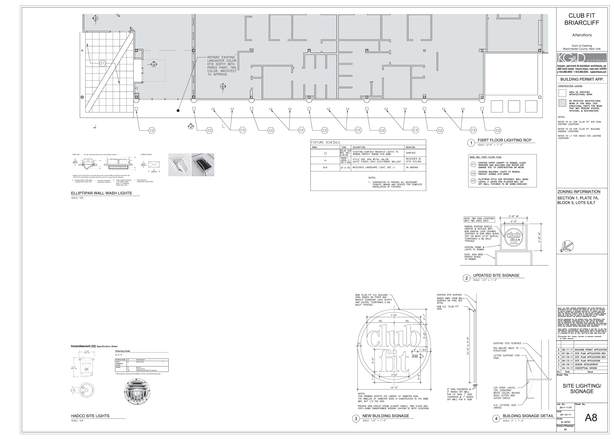

RCP and lighting details
RCP and lighting details

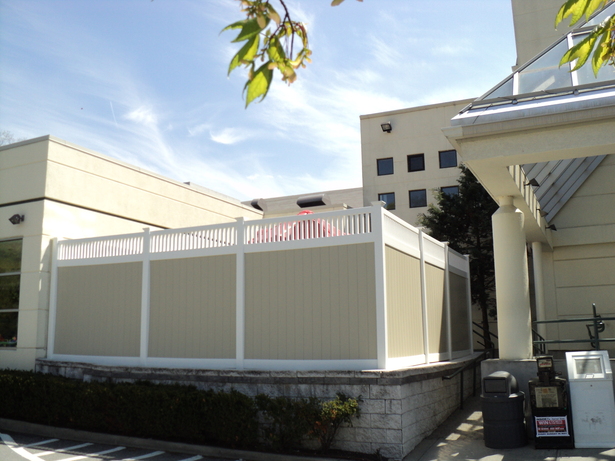

Kids playground before work
Kids playground before work

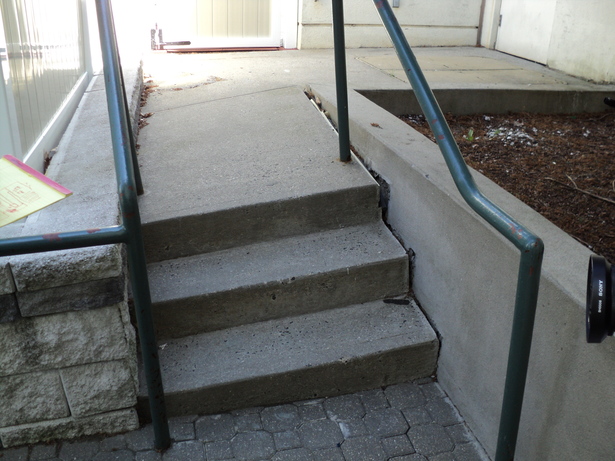

Access stairs before work
Access stairs before work

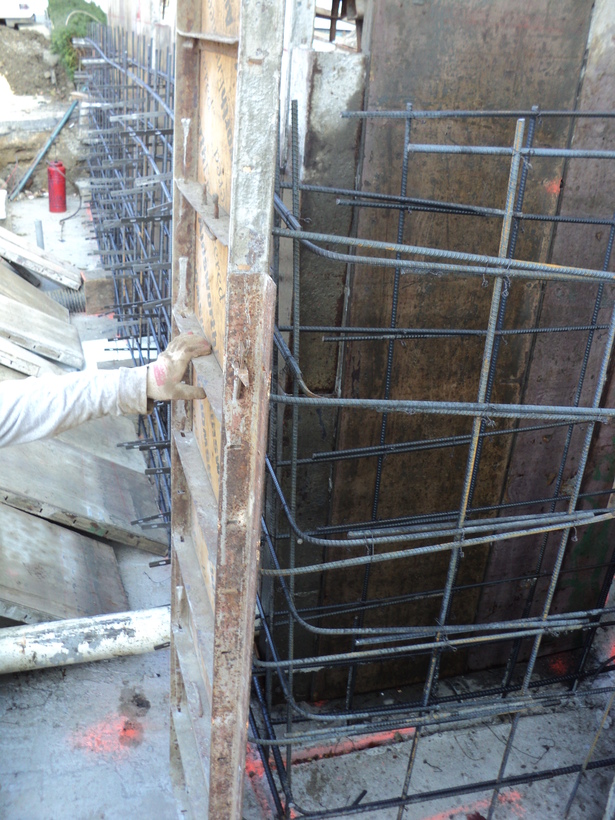

Rebar inspection
Rebar inspection

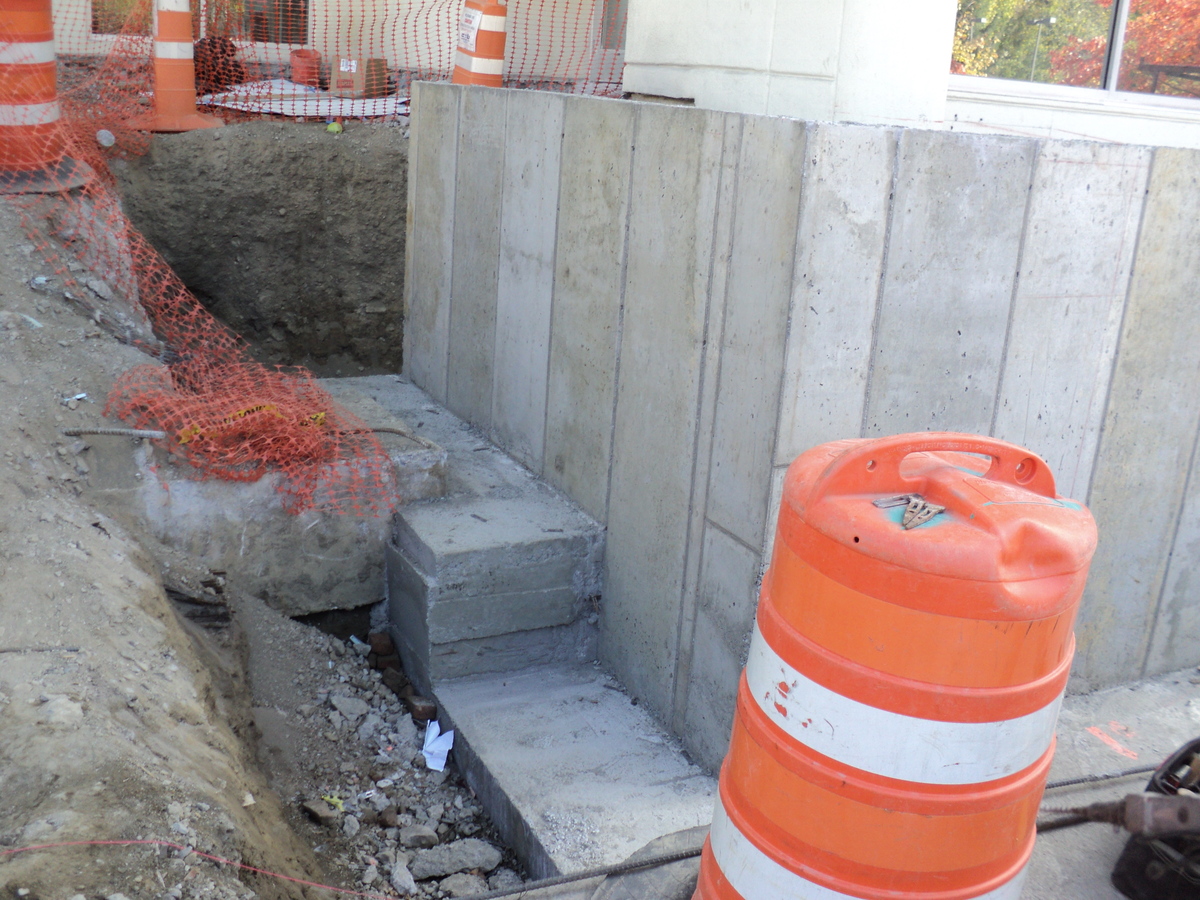

Concrete for ramp/steps in place
Concrete for ramp/steps in place

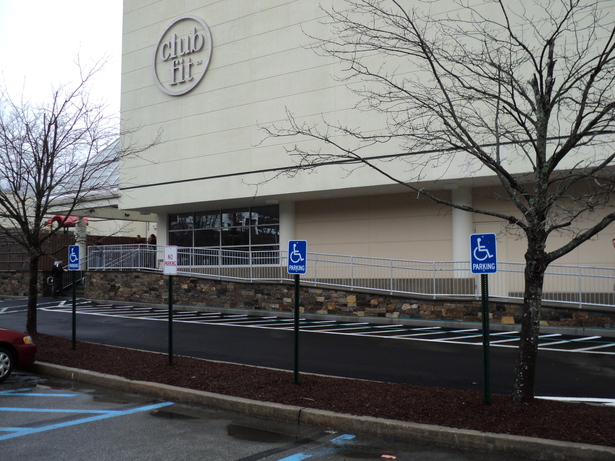

Completed entry project
Completed entry project

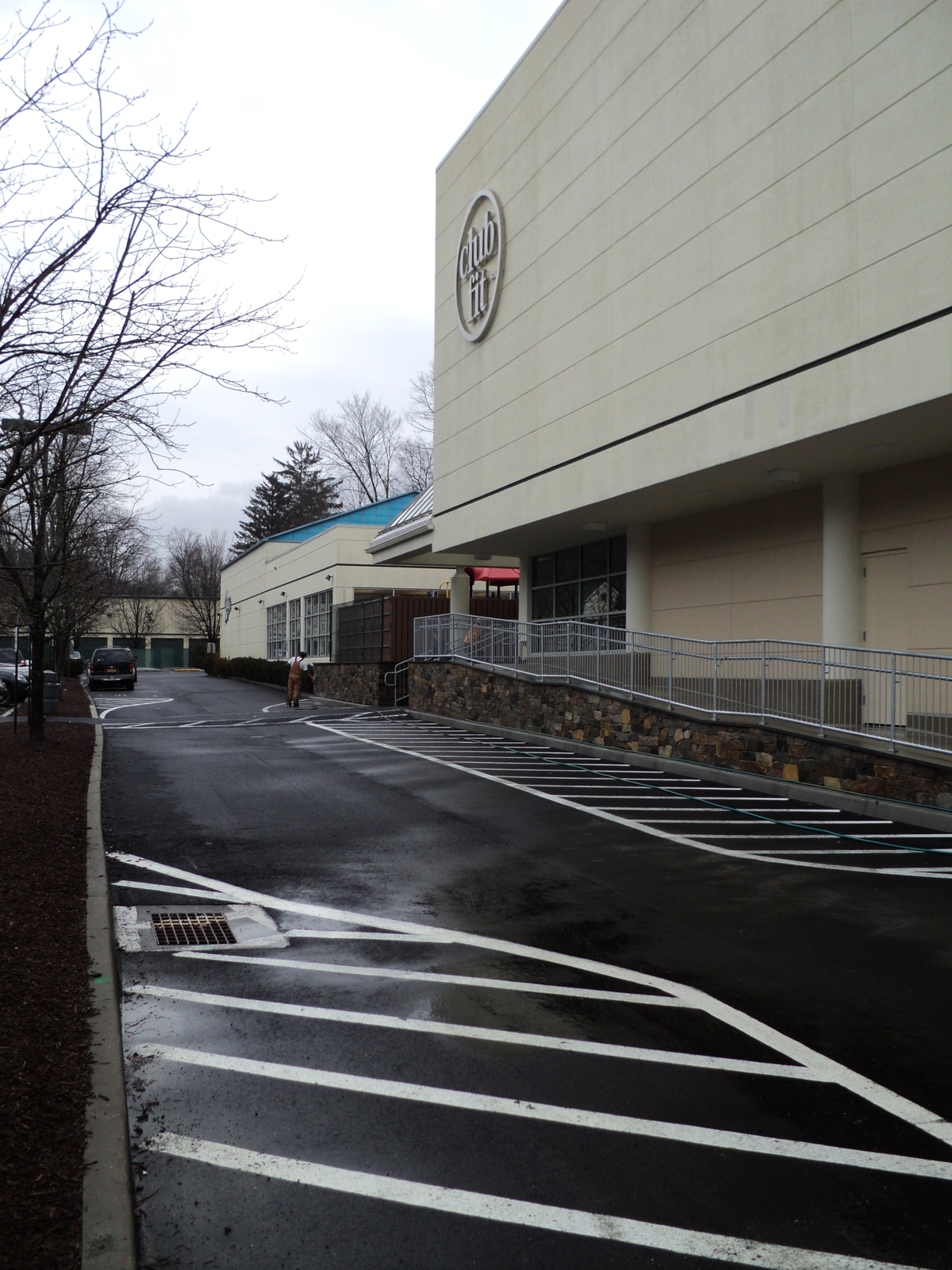

New entry and pavement
New entry and pavement

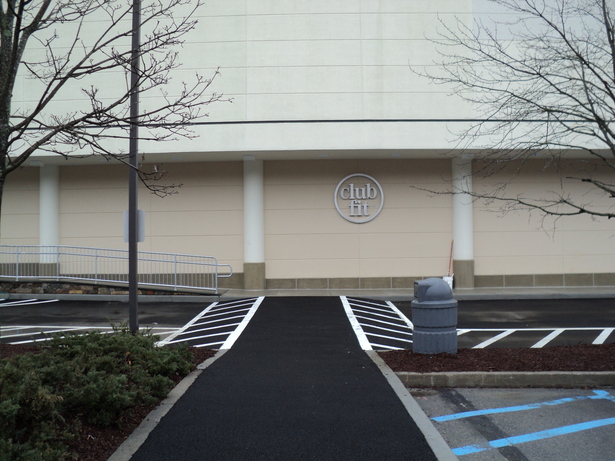

Raised walkway
Raised walkway

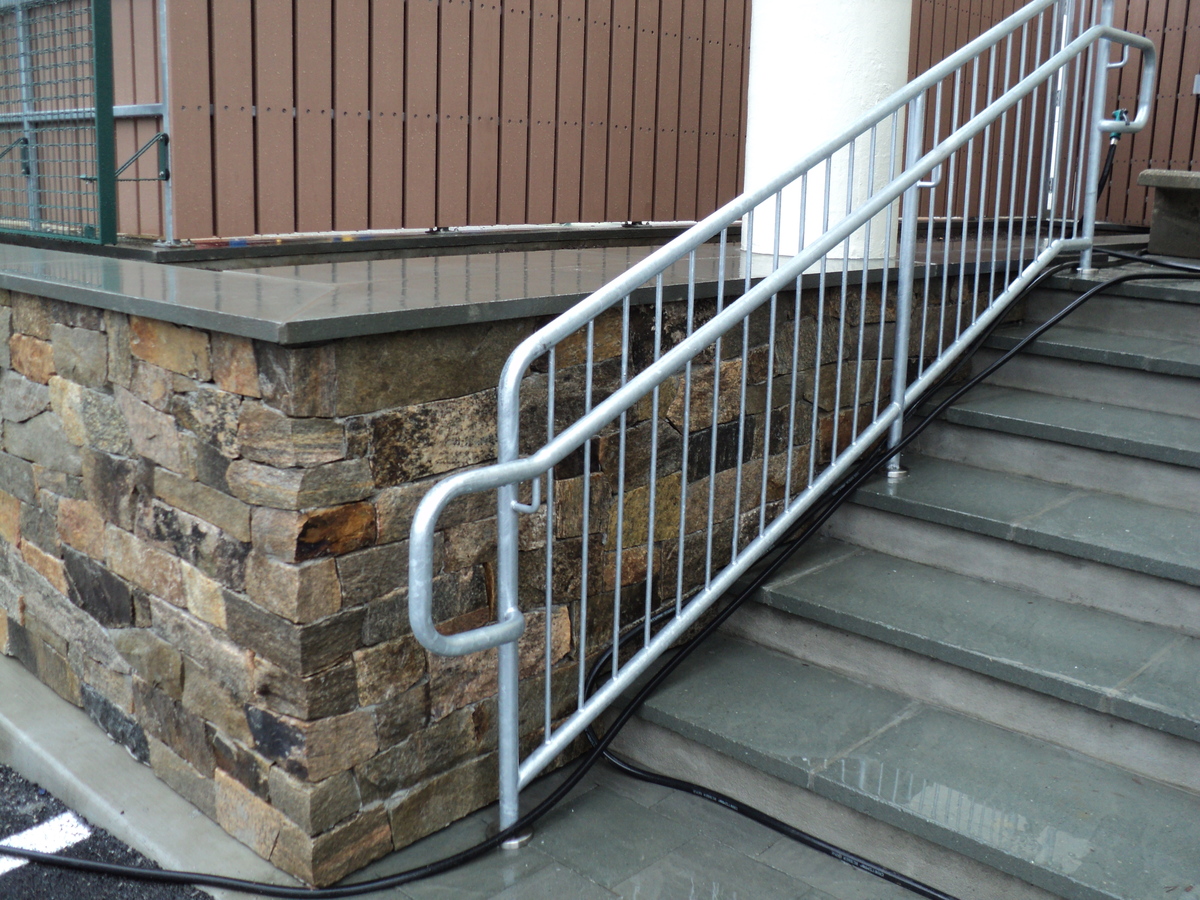

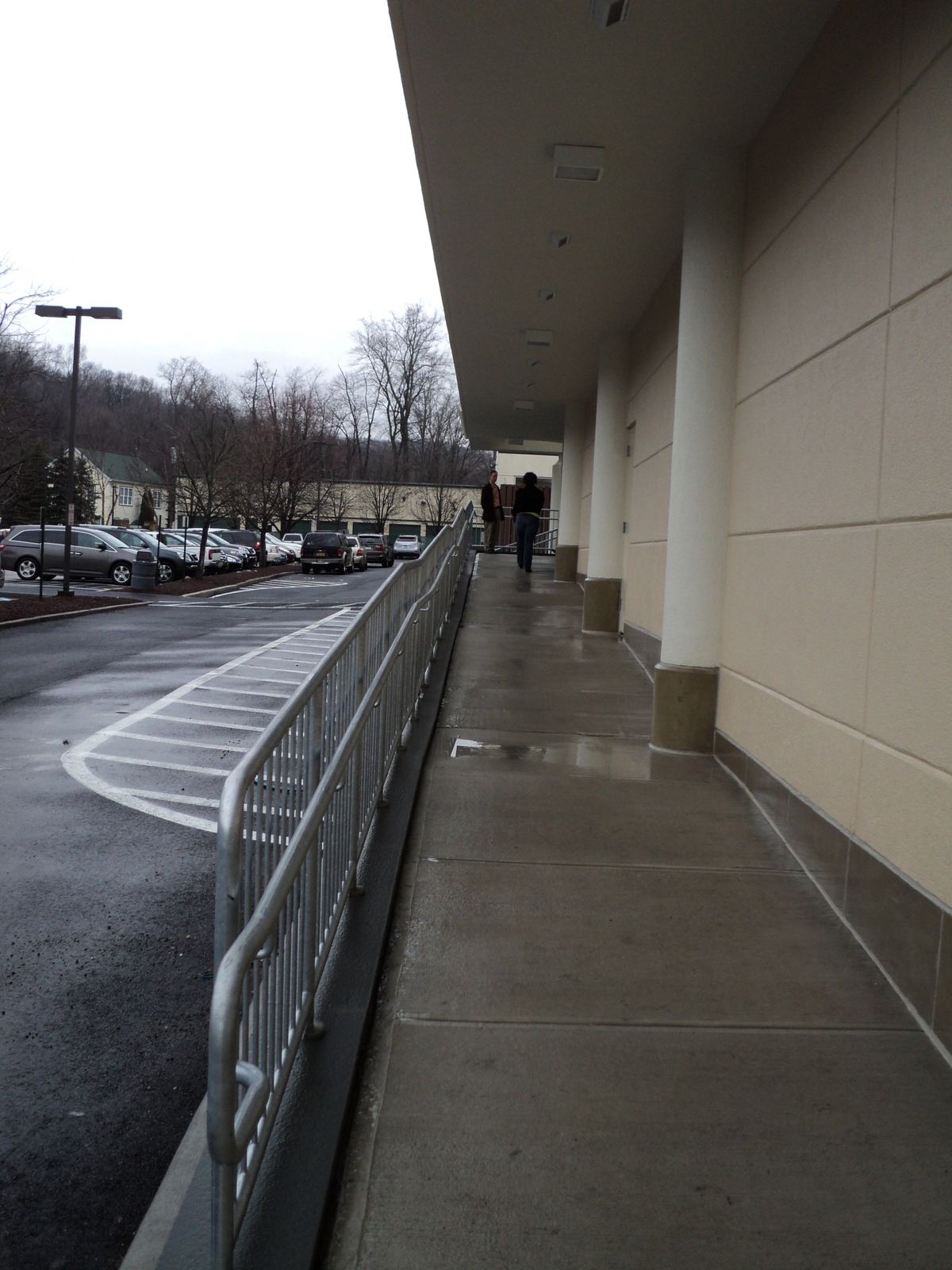

Entry ramp
Entry ramp

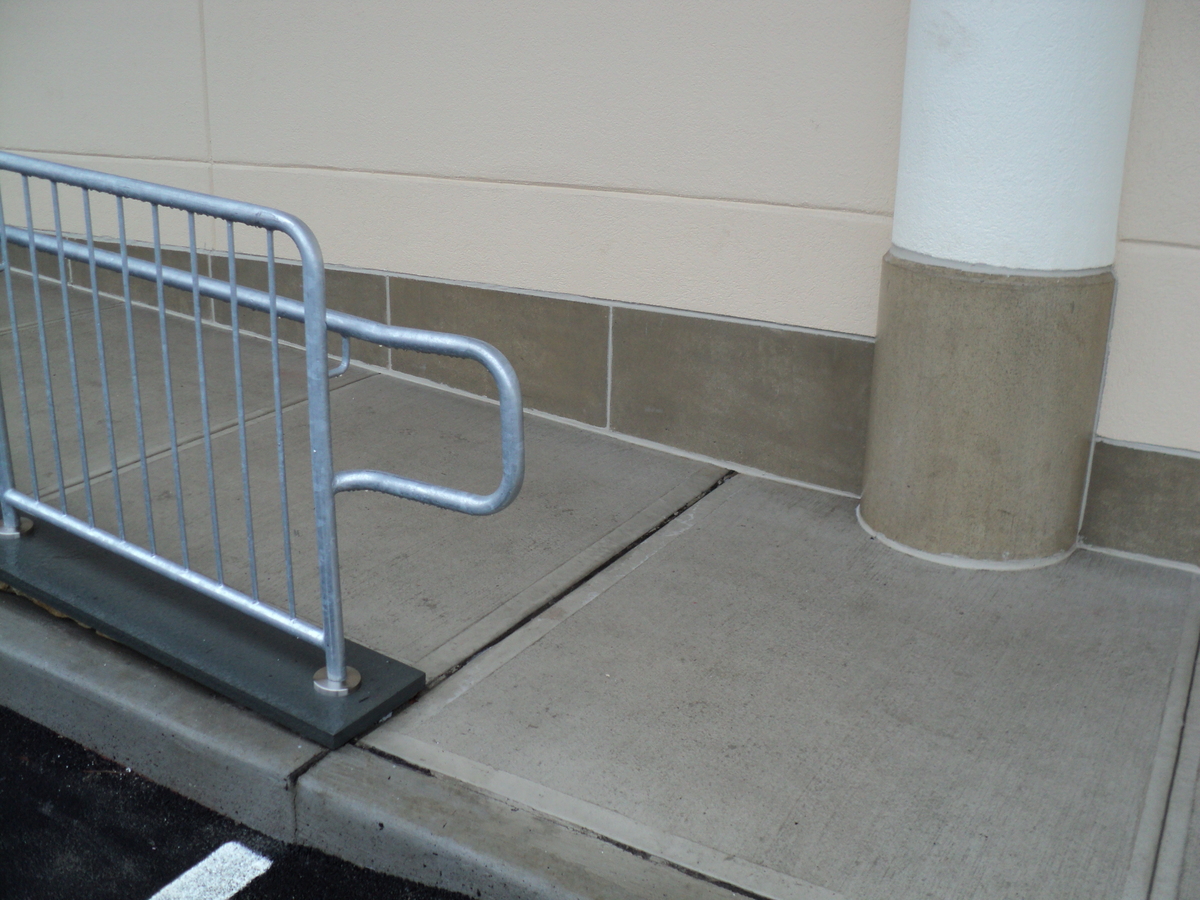

Railing, ramp and column/wall base
Railing, ramp and column/wall base
New retaining wall/planter around kids play area
New retaining wall/planter around kids play area

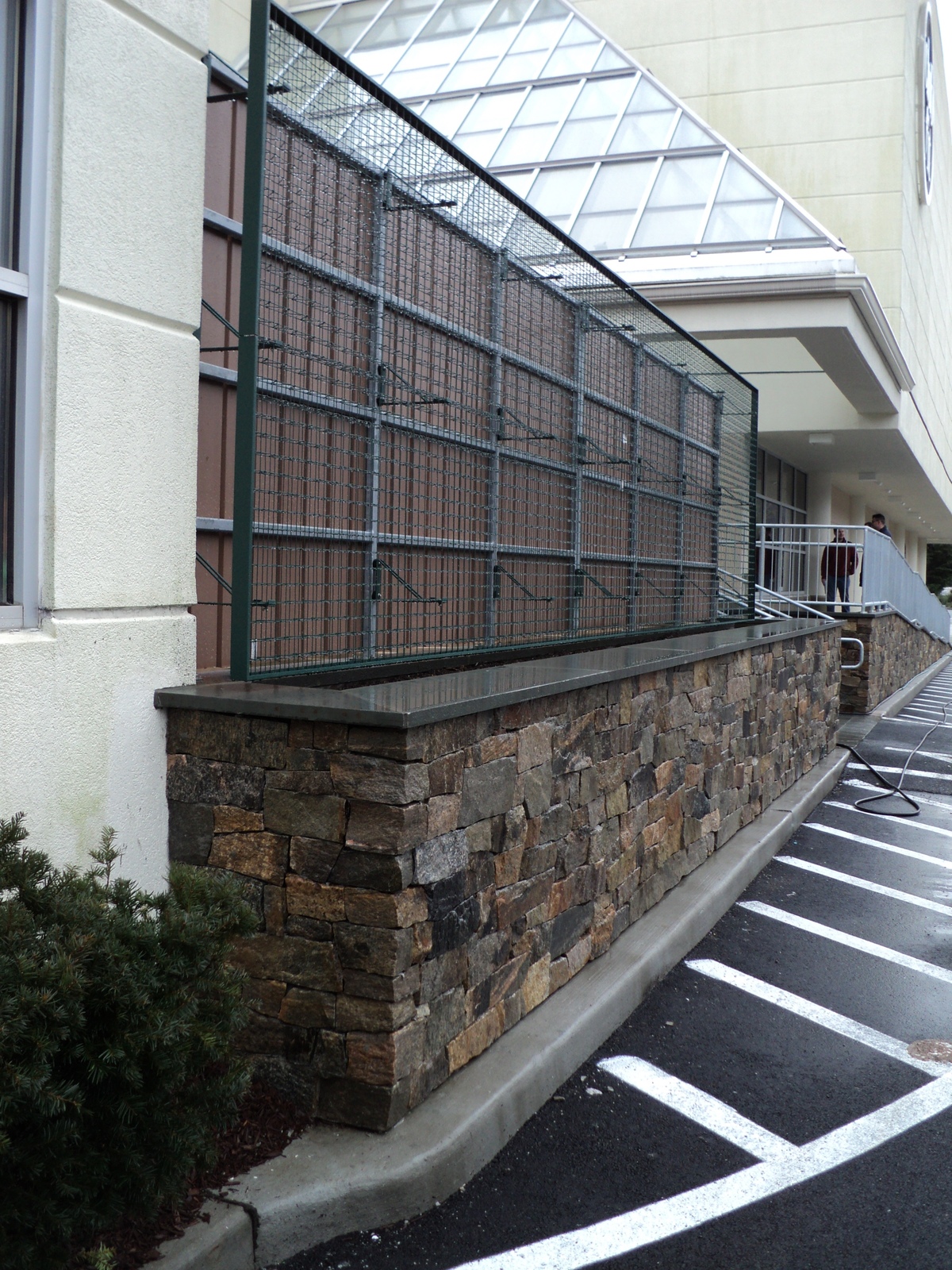

Retaining wall/planter with GreenScreen mesh for climbing plants
Retaining wall/planter with GreenScreen mesh for climbing plants
