Cafe Mundo - Working Drawings / Sustainable Designs

CAD Drawings for Commercial Design

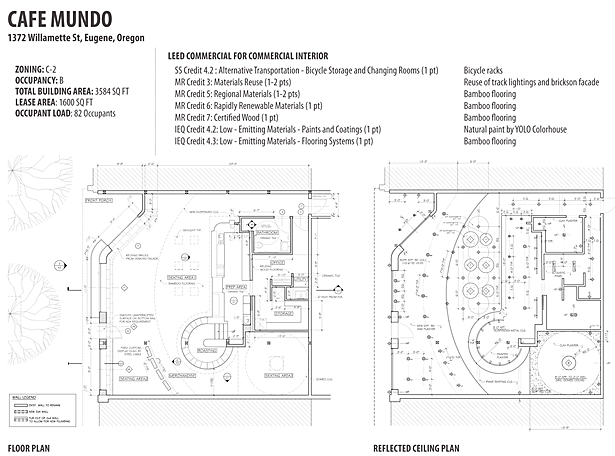

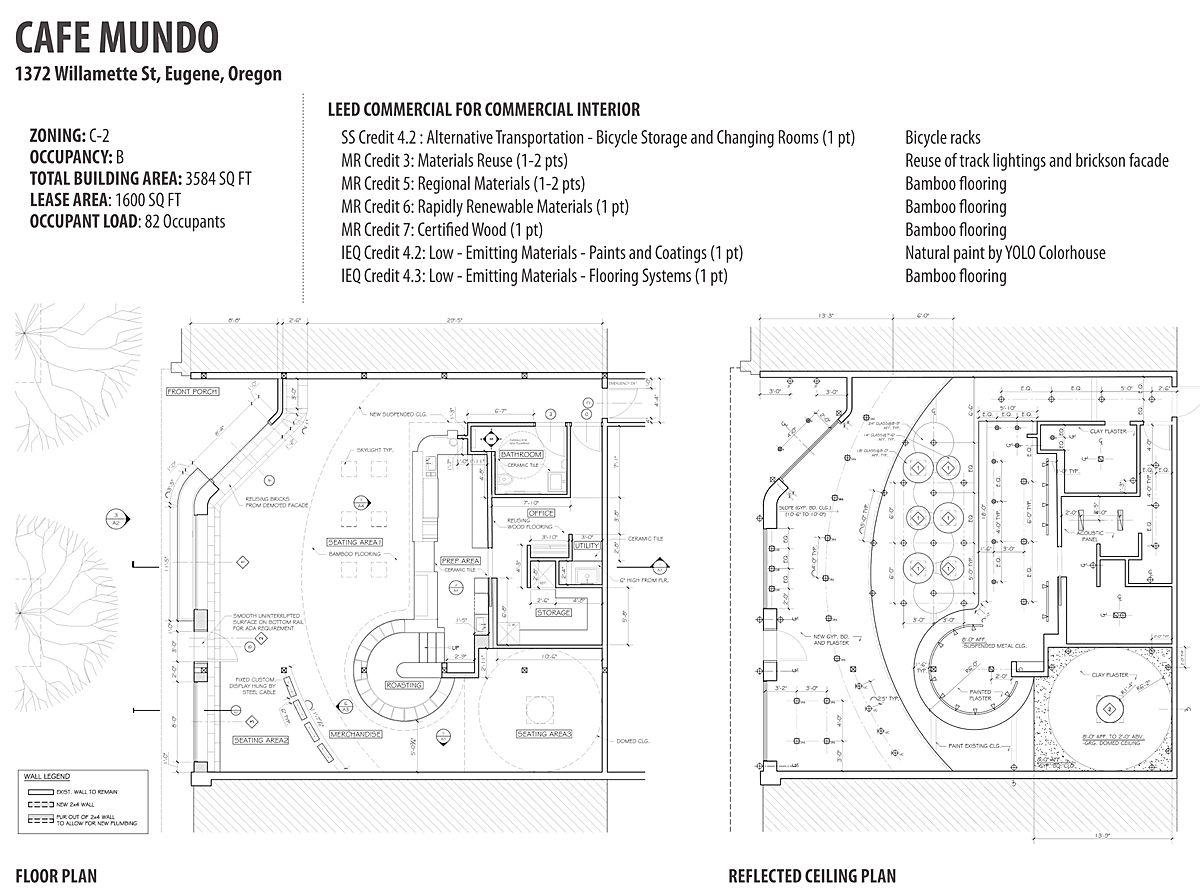

  •    Floor Plan
  •    Reflected Ceiling Plan

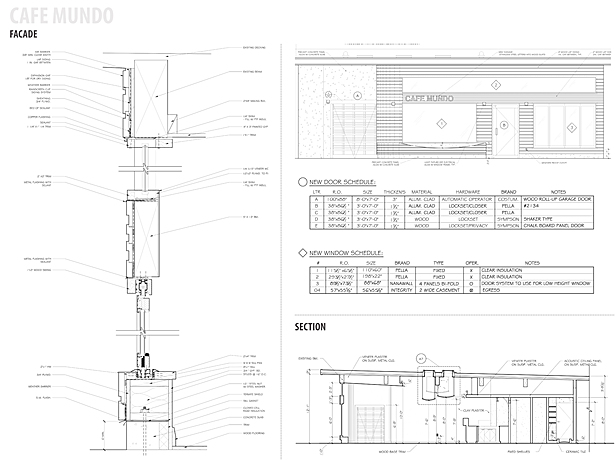

  •    Facade Elevation
  •    Facade Details
  •    Section

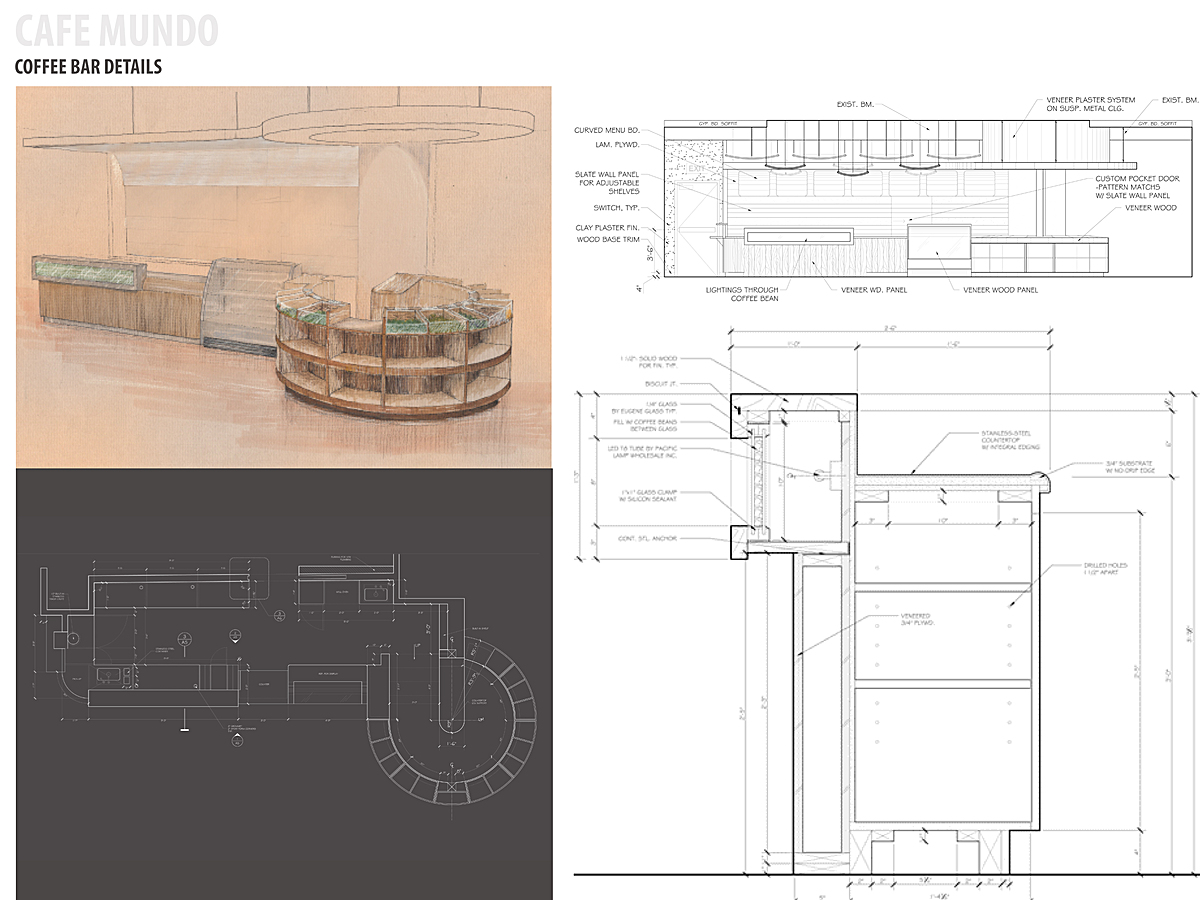

  •    Coffee Bar and Cabinet Details



LEED Commercial for Commercial Interior

  • SS Credit 4.2 : Alternative Transportation - Bicycle Storage and Changing Rooms (1 pt)
  • MR Credit 3: Materials Reuse (1-2 pts)
  • MR Credit 5: Regional Materials (1-2 pts)
  • MR Credit 6: Rapidly Renewable Materials (1 pt)
  • MR Credit 7: Certified Wood (1 pt)
  • IEQ Credit 4.2: Low - Emitting Materials - Paints and Coatings (1 pt)
  • IEQ Credit 4.3: Low - Emitting Materials - Flooring Systems (1 pt)

 Read more

Status: School Project
Location: Eugene, OR, US
