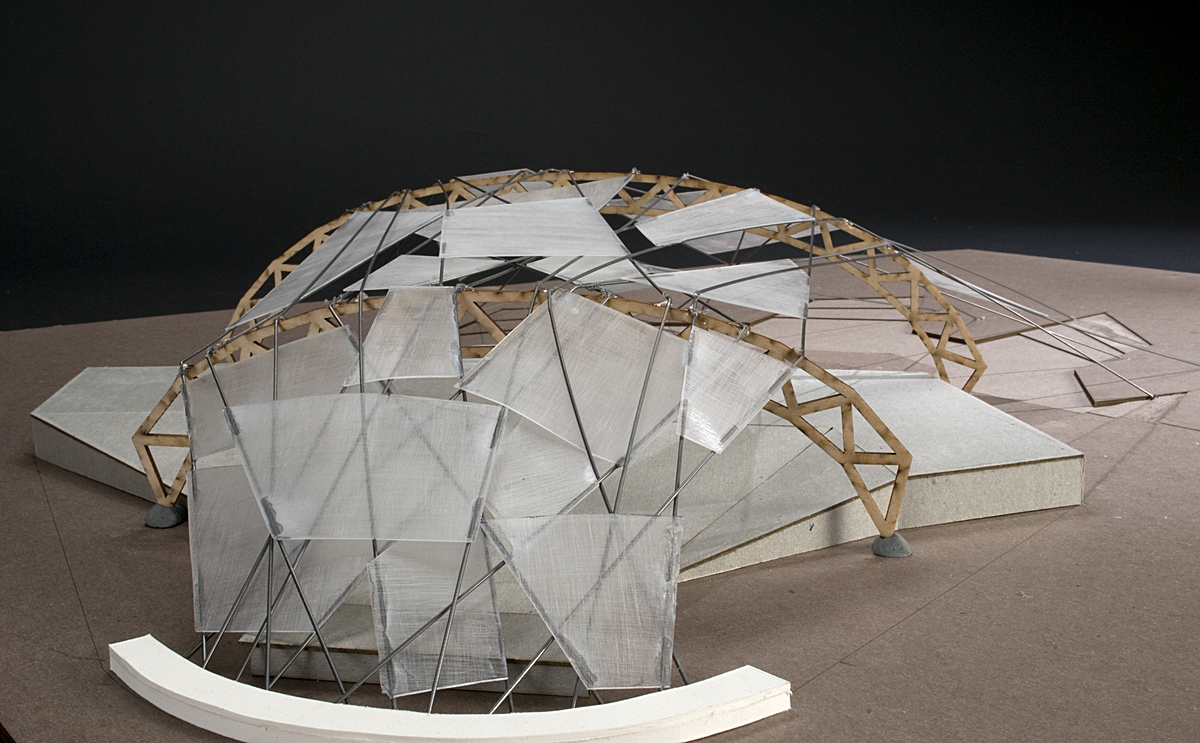

Picture of physical model
Picture of physical model
5 more images  ↓

PanAmerican Games Awards Pavilion

The project was to design the Pan American Games Awards Pavilion in Toronto for 2015. My structure was a tensile one. Long steel cables laced with fiber optic lights spanned massive distances over two large trusses that helped to shape the enclosure created. The cables supported translucent vinyl panels meant to partially enclose the space while allowing great amounts of diffuse light to penetrate to the stage and seating while not preventing the flow of air through the space. At night the fiber optics would make the structure on Toronto's waterfront an icon of multi-colored lights to behold.


 Read more

Status: School Project
Location: Toronto, ON, CA

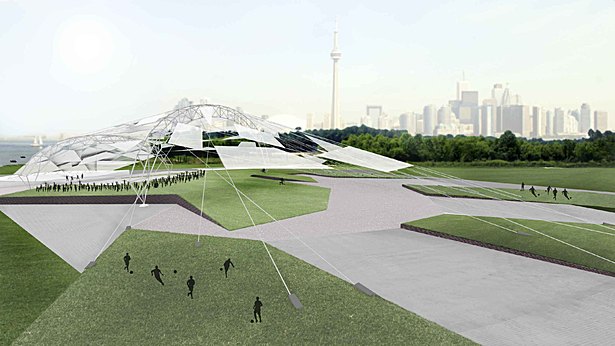

Rendered view of structure
Rendered view of structure

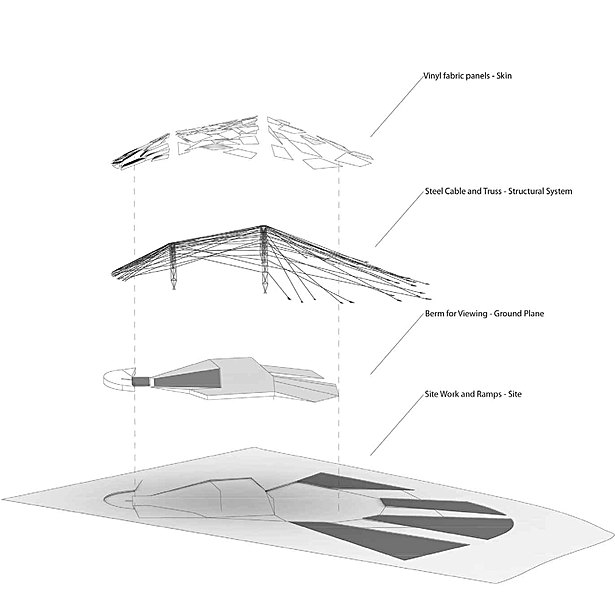

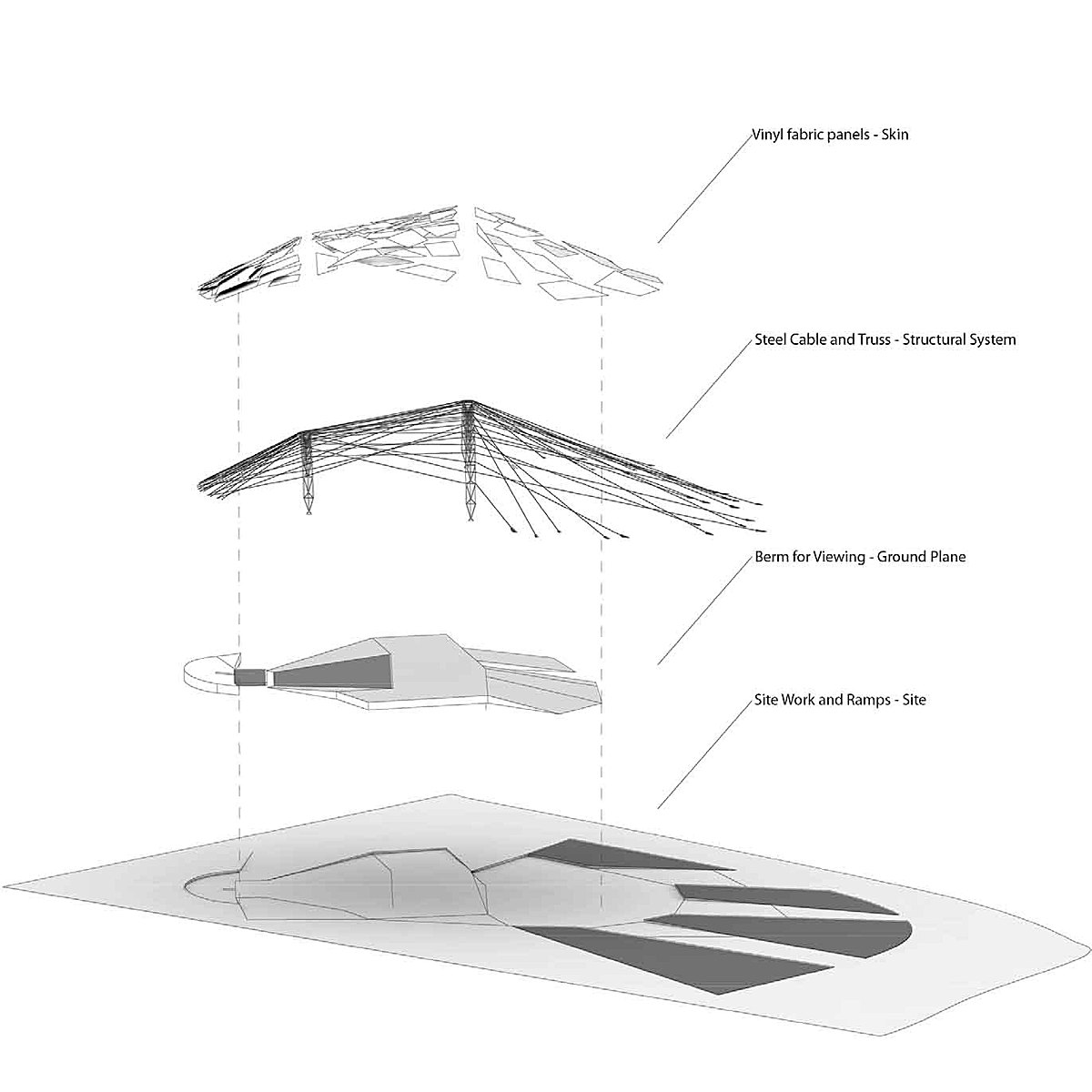

Exploded view showing different layers of structure and skin
Exploded view showing different layers of structure and skin
Rendered view of the interior with cables glowing
Rendered view of the interior with cables glowing

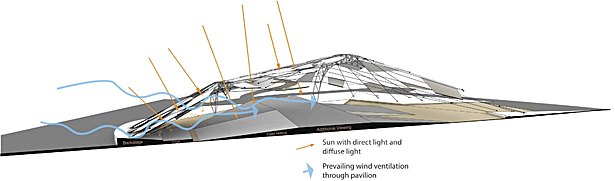

Rendered image showing the diffusing of light and flow of air
Rendered image showing the diffusing of light and flow of air
View to the stage during a ceremony
View to the stage during a ceremony
