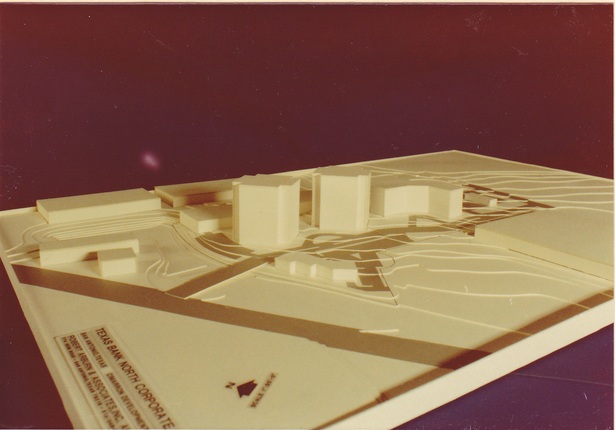

Schematic Site Model
Schematic Site Model
4 more images  ↓

Park 410 Development

Master Plan for a new mixed-use business development in San Antonio, Texas to be anchored by Texas Bank with a new corporate banking center. The mixed-use development is planned to include supporting commercial and multi-type residential developments in combination with separate land parcels to support a mix of commercial and/or light industrial/warehouse facilities.

The separate presentation models were constructed from a combination of typical chip-board site models with a internally reinforced folded paper construction technique for the larger scale/detail building model. This modeling technique provides a relatively simple and expedient method to construct study models at larger scales to advance the design development process.....very useful before the advent of more advanced 3D modeling capabilities available today.


 Read more

Status: Unbuilt
Location: San Antonio, TX, US

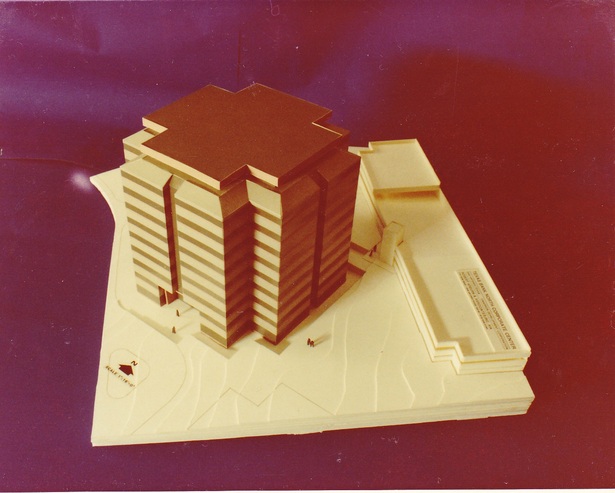

Schematic Development Model
Schematic Development Model

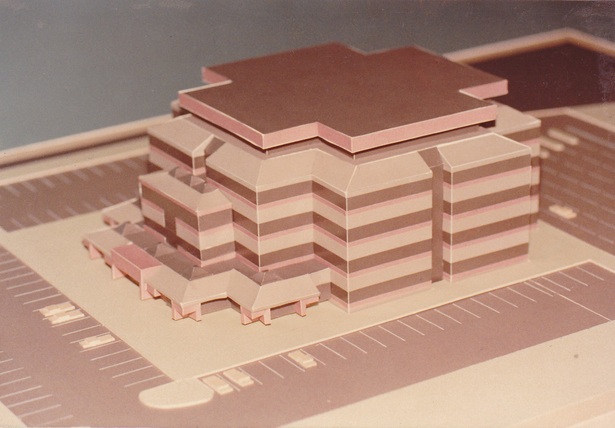

Schematic Development Model Option
Schematic Development Model Option

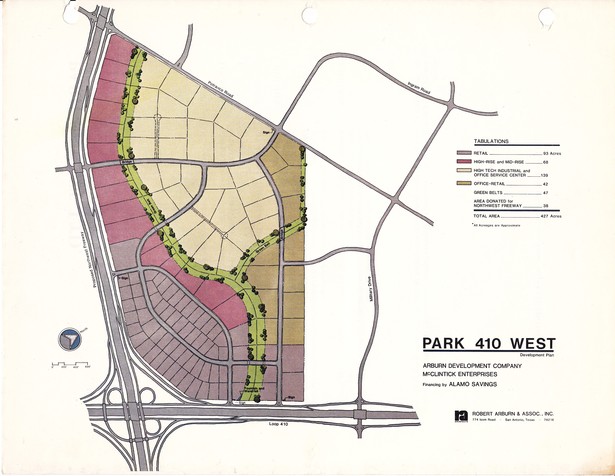

Schematic Site Plan
Schematic Site Plan

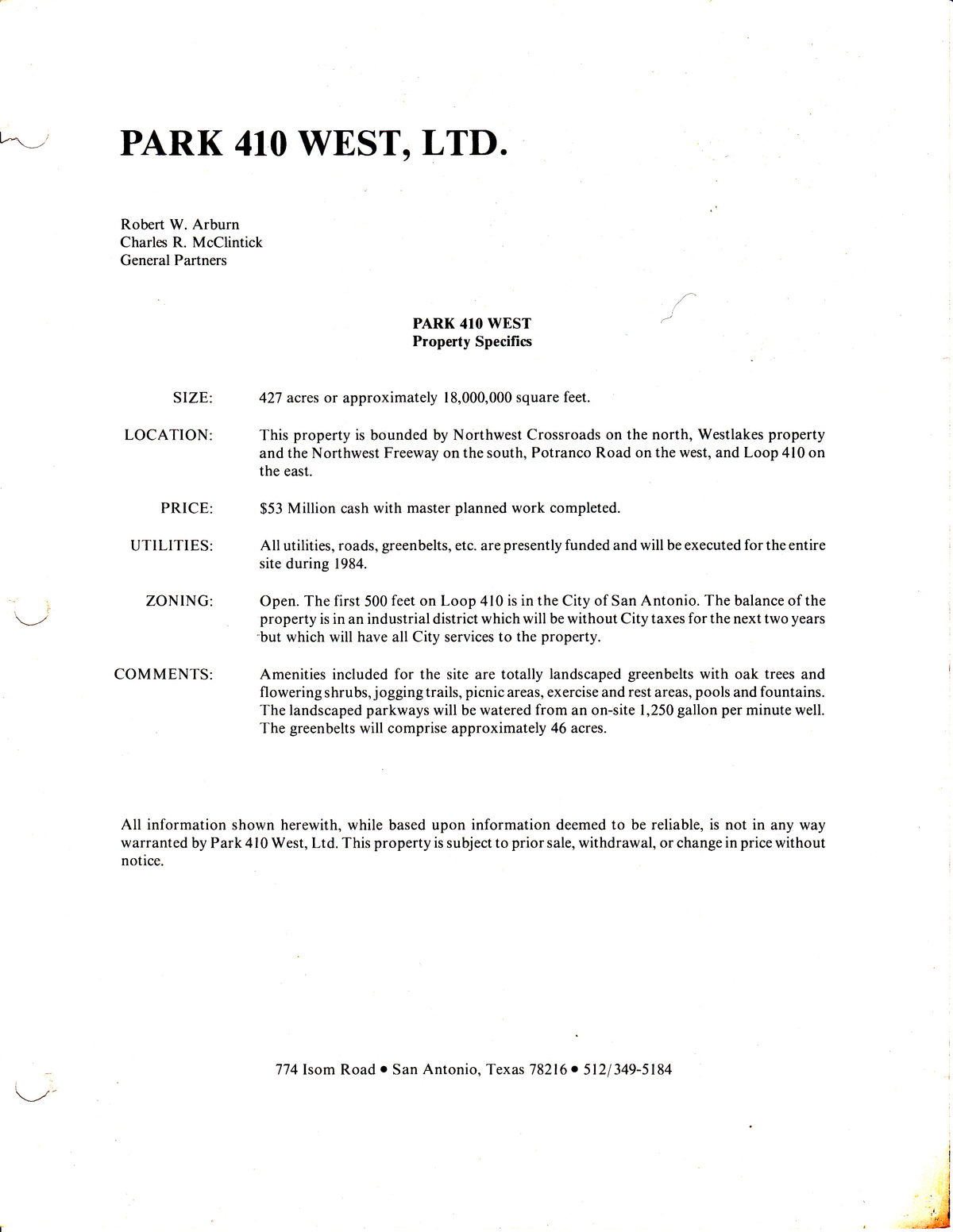

Development Design Summary
Development Design Summary
