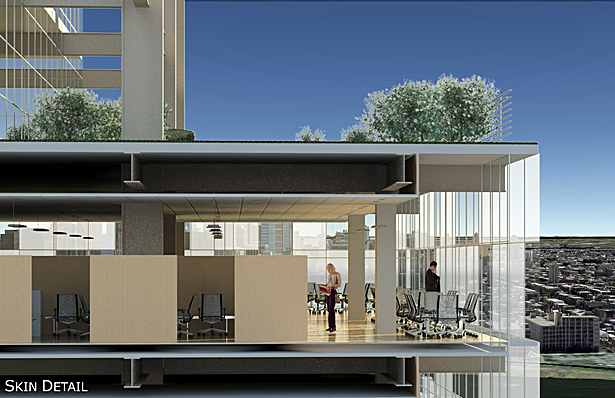

Skin Detail showing the double curtain wall design
Skin Detail showing the double curtain wall design
9 more images  ↓

Philadelphia Skyscraper

This skyscraper was located across from the old Post Office building at 30th Street. The lot was between Chestnut Street and Walnut Street. The building had to accommodate over 1 million square feet of office space as well as a 5 star hotel, retail components, and all supporting spaces. I reduced the size of the elevator core and reduced the number of stops for each car by creating skip stop lobbies, that allowed the elevator to stop at every third floor and then the passengers only had to climb or descend one flight of stairs to reach their ultimate destination. I wanted to include many green terraces that would allow many of the inhabitants to have outdoor private green space in a crowded city. The cantilevered portions of the skyscraper are a double wall design to shield the interior spaces from glare and extreme temperature differences.


 Read more

Status: School Project
Location: Philadelphia, PA, US

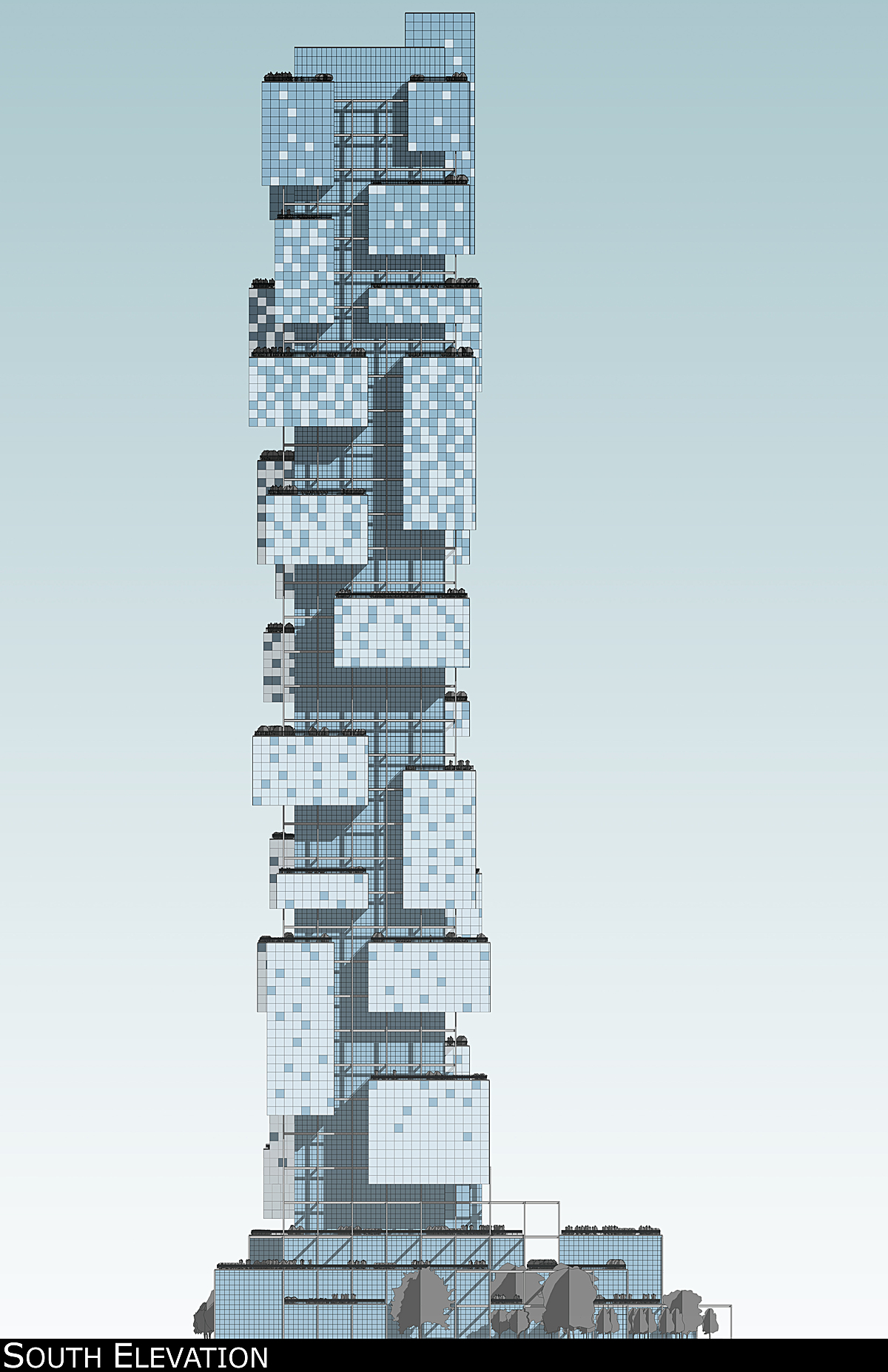

South elevation rendering showing one possible pattern achievable with smart glass
South elevation rendering showing one possible pattern achievable with smart glass

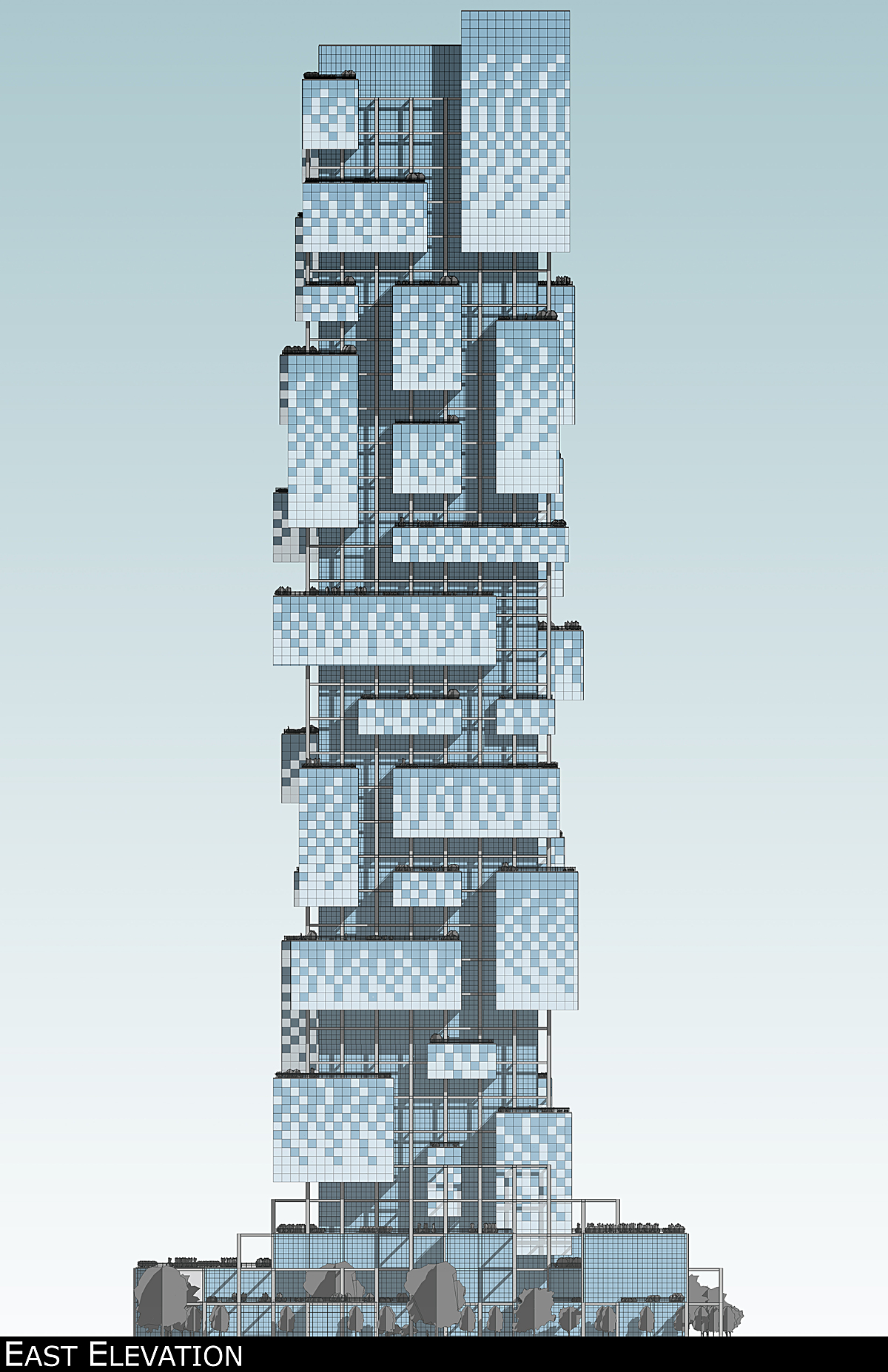

East elevation rendering showing alternative pattern with smart glass
East elevation rendering showing alternative pattern with smart glass
Section showing the breakdown of programmatic elements of the building
Section showing the breakdown of programmatic elements of the building

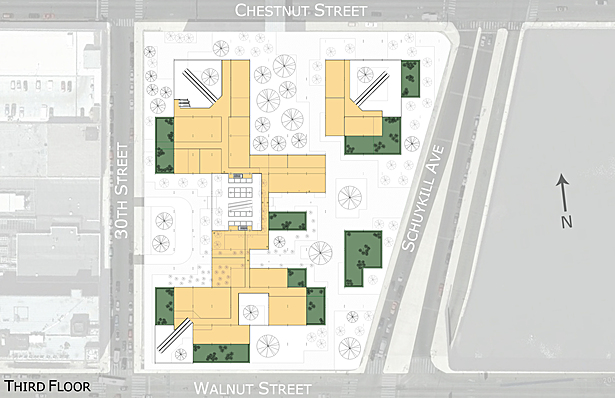

3rd floor plan showing the upper level of the retail portion of the building
3rd floor plan showing the upper level of the retail portion of the building

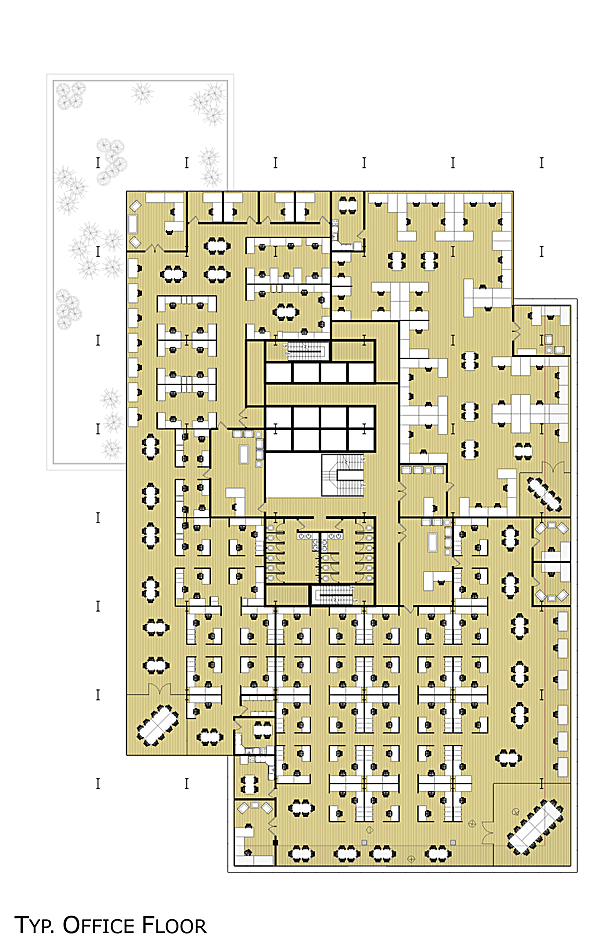

Typical office level
Typical office level

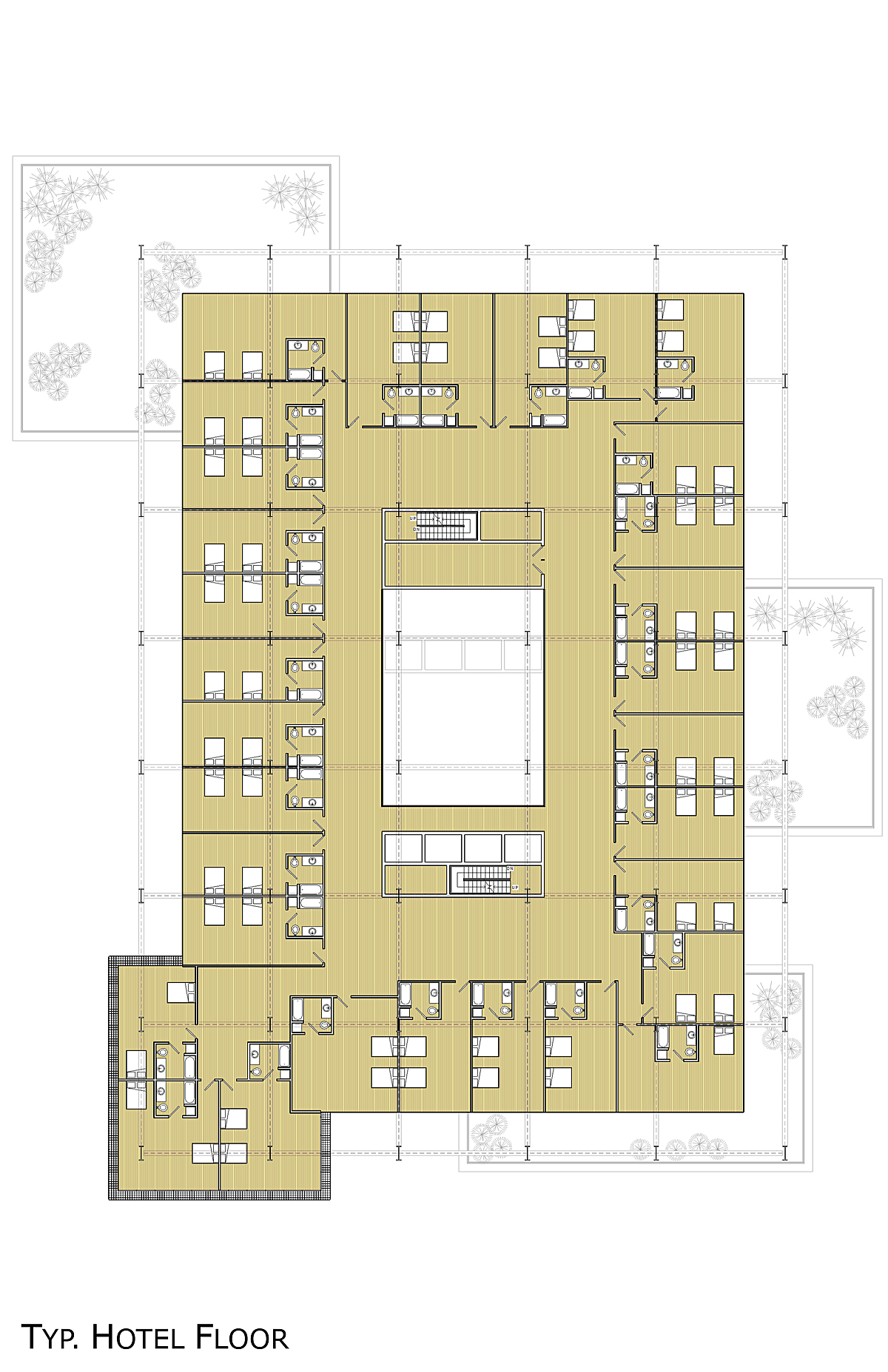

Typical hotel level
Typical hotel level

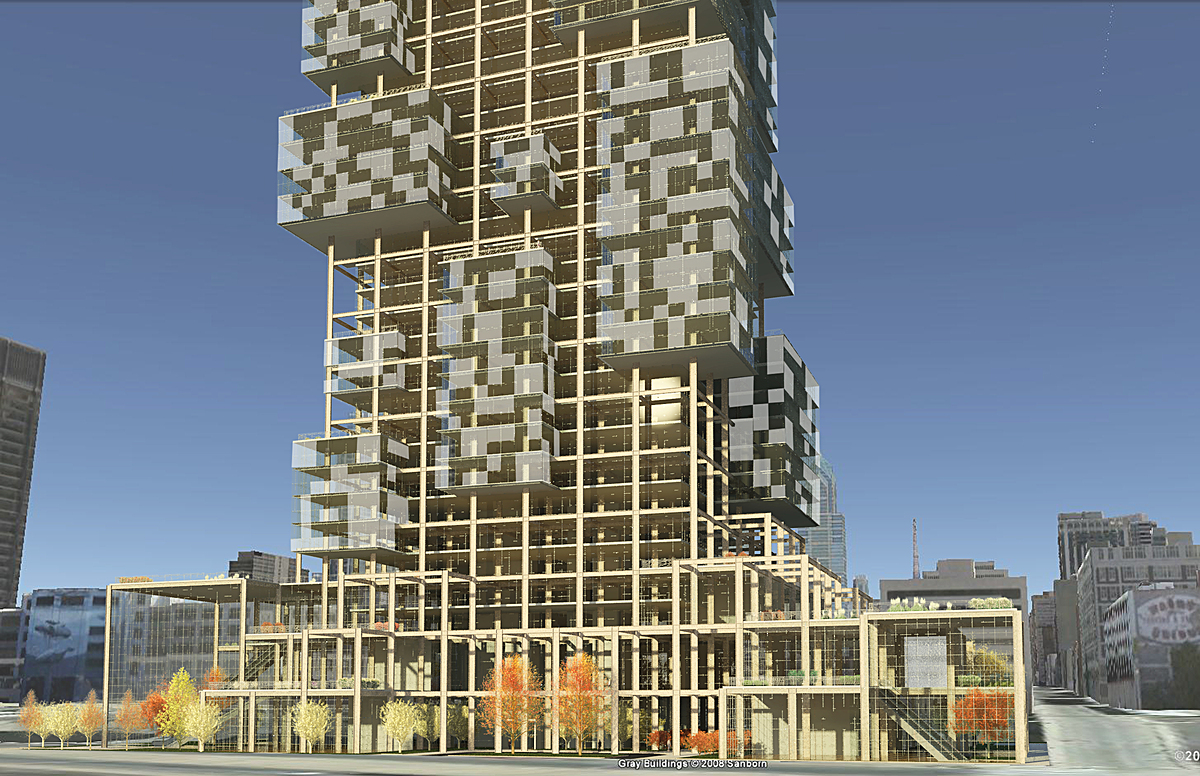

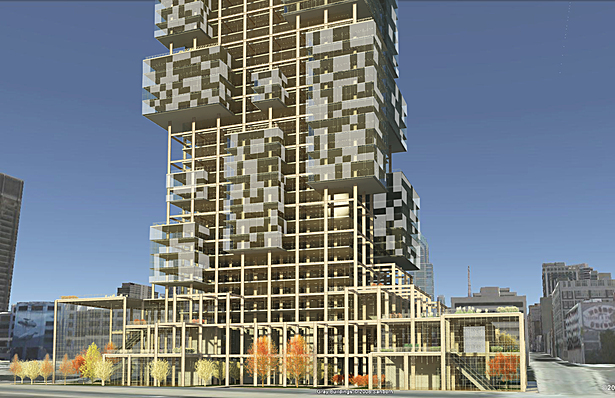

Exterior rendering showing the transparency vs. opacity of the smart glass wall system
Exterior rendering showing the transparency vs. opacity of the smart glass wall system

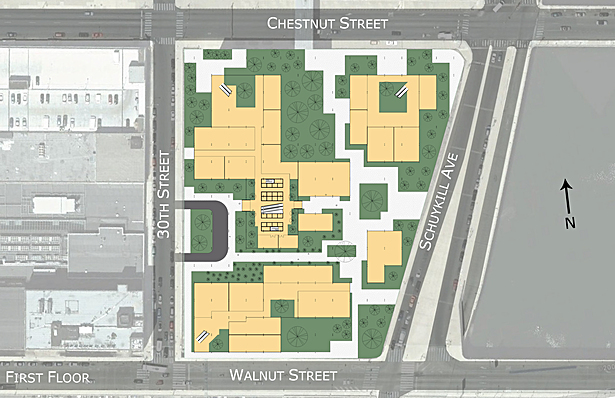

1st floor plan showing the multiple elevator cores and retail spaces
1st floor plan showing the multiple elevator cores and retail spaces

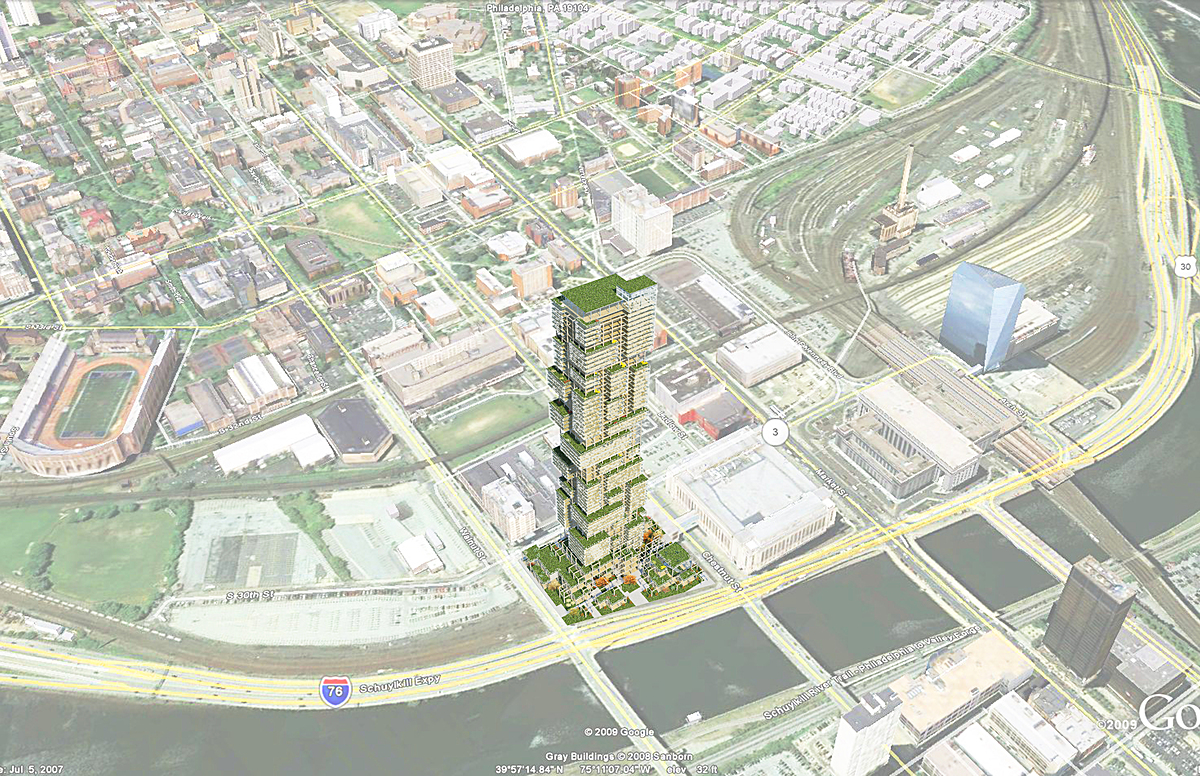

Arial view showing the amount of green space created on through the use of terraces
Arial view showing the amount of green space created on through the use of terraces
