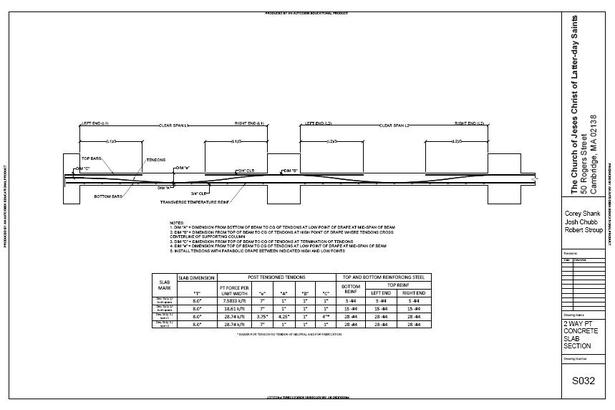

Longitudinal Section of the Slab
Longitudinal Section of the Slab
2 more images  ↓

2-Way Post-Tensioned Flat Plate System

This flooring system design is a part of the year-long Masters program at Lehigh University.  The particular design is a two-way post-tensioned flat plate.  The floor, used for a parking garage, was designed using the pre-existing architectural drawings of record (provided by Burt Hill Architects), the Equivalent Frame Method (as described by ACI-308) and ADAPT software.


 Read more

Status: School Project
Location: Boston, MA

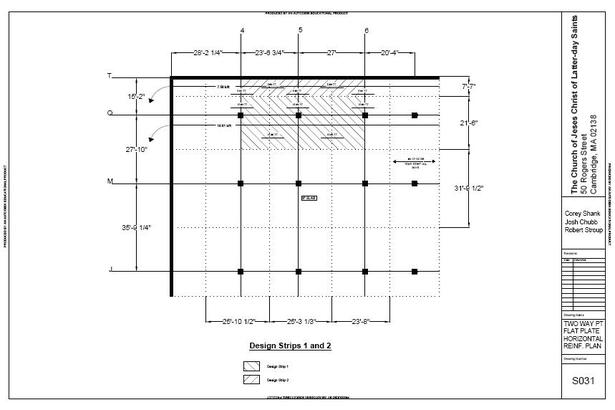

Horizontal Layout of the PT Bars
Horizontal Layout of the PT Bars

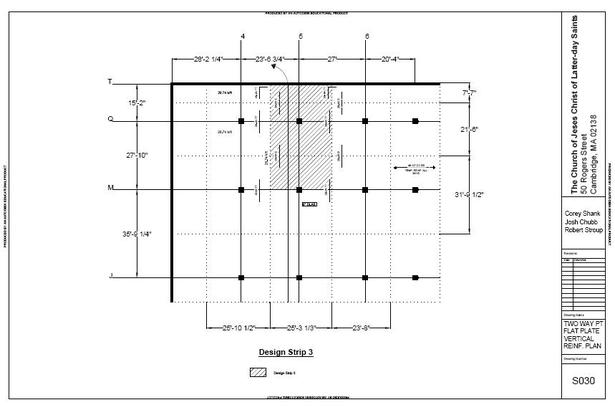

Vertical Layout of the PT Bars
Vertical Layout of the PT Bars
