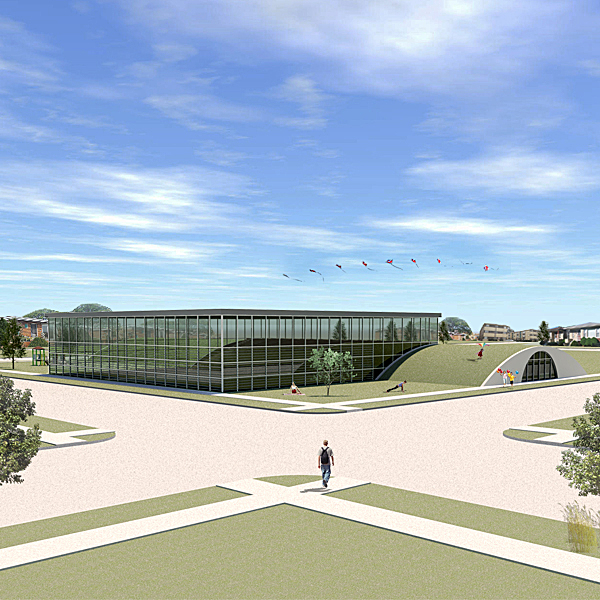

FIELDHOUSE

PROJECT: TAYLOR-LAURIDSEN FIELDHOUSE
CLIENT: IIT DESIGN STUDIO FOR CHICAGO PARK DISTRICT
PRODUCED AT: IIT



DESCRIPTION: The purpose of this architectural studio was to learn about and a design a steel structure and to also introduce students to the illustration of concept. The program given was to design a field house for Taylor-Lauridsen park while leaving enough space for athletic fields to remain on site.

The concept driving this design was that the building not disturb the site, but instead the spectator experience could merge interior and exterior spaces with a careful manipulation of topography.


 Read more

Status: School Project
Location: Chicago, IL, US


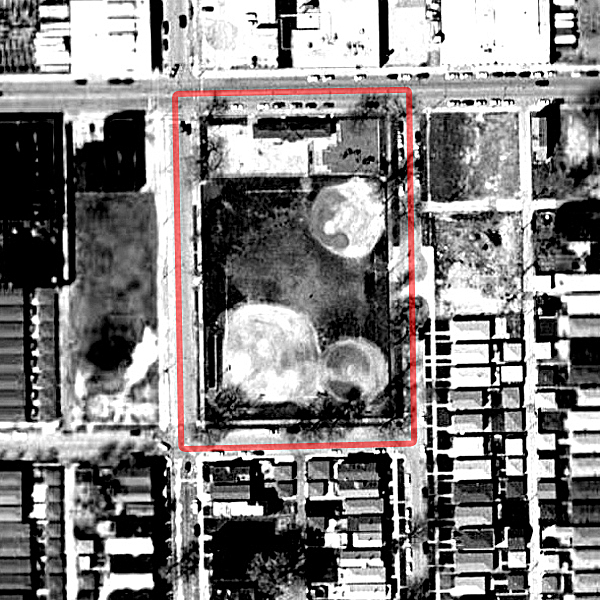

Site Aerial
Site Aerial

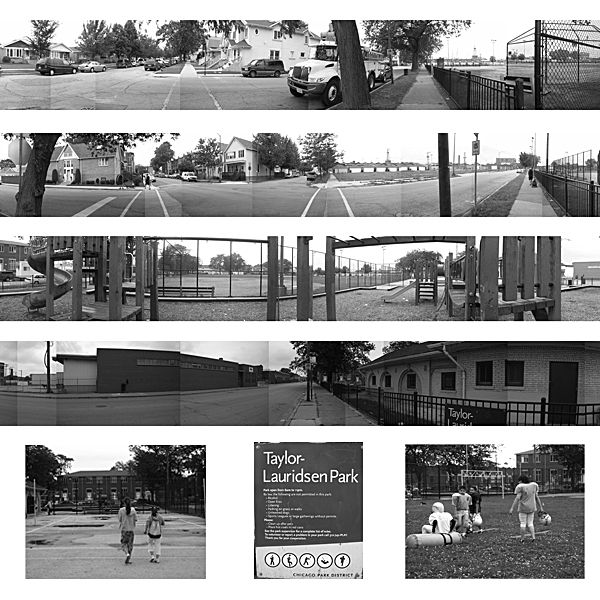

Site Conditions
Site Conditions

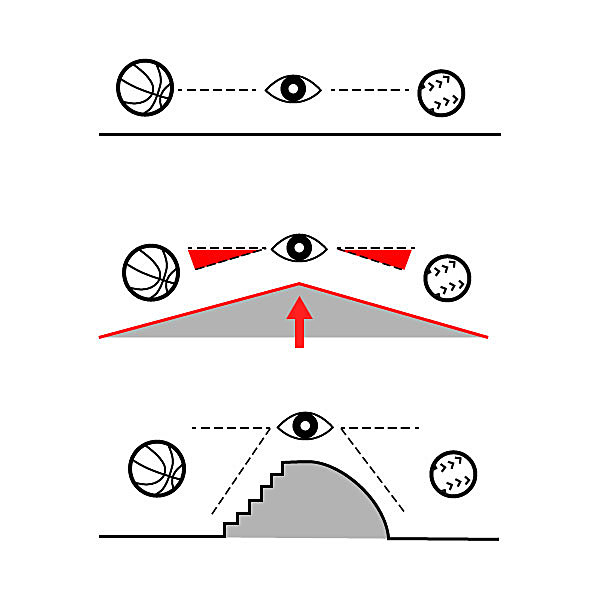

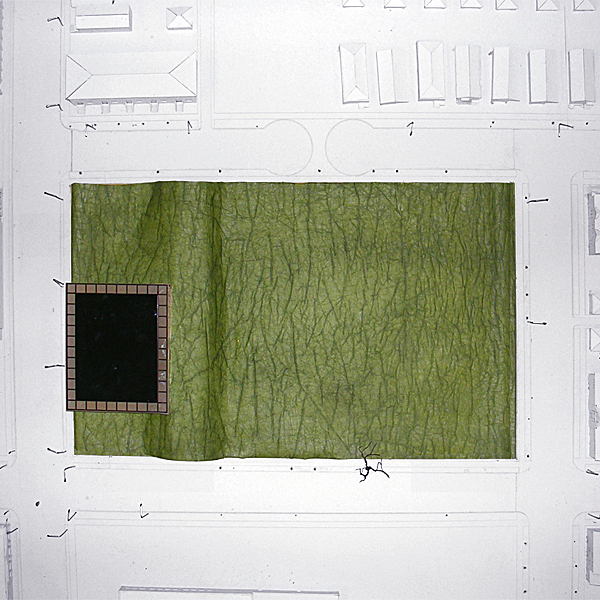

Concept Diagram
Concept Diagram

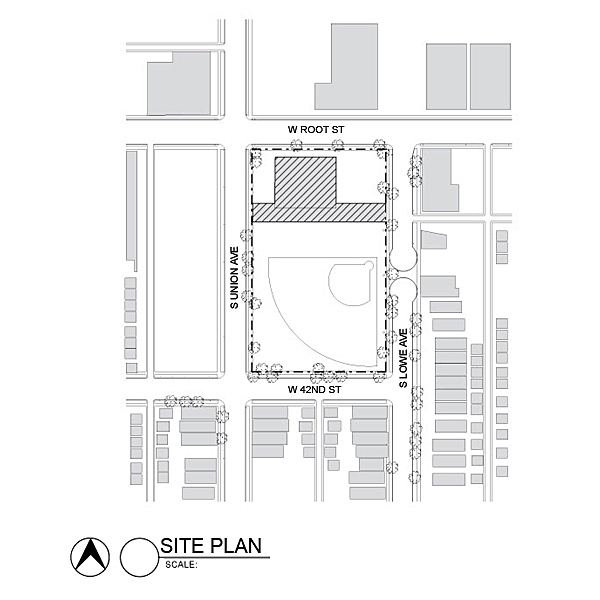

Site Plan
Site Plan

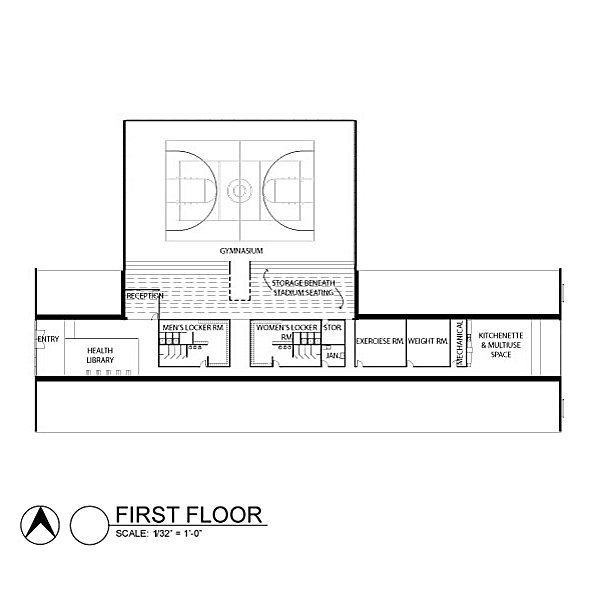

Plan
Plan

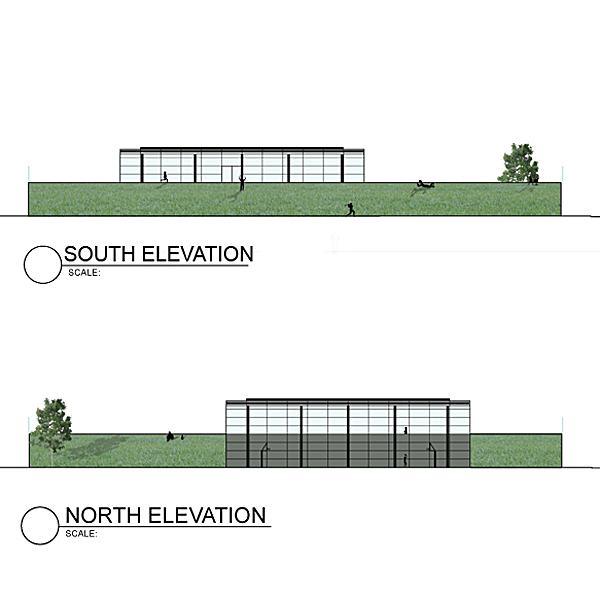

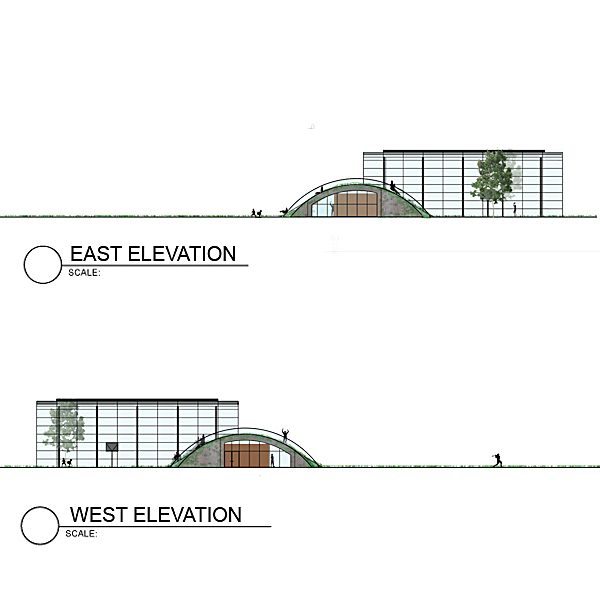

Elevations
Elevations
Elevations
Elevations

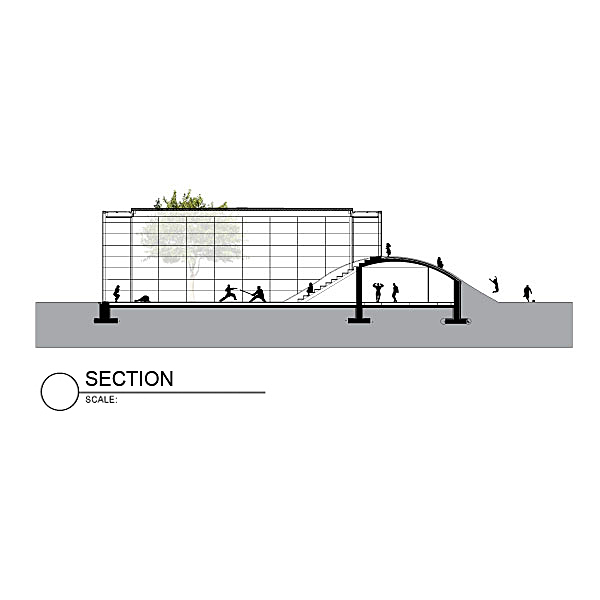

Section
Section

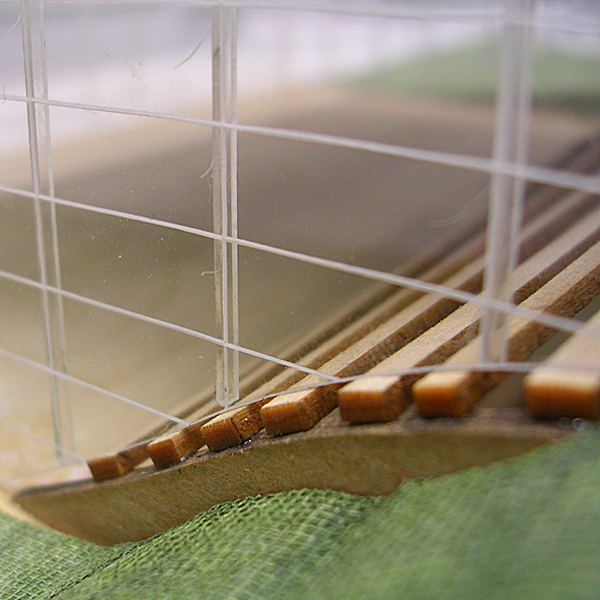

Bleachers
Bleachers

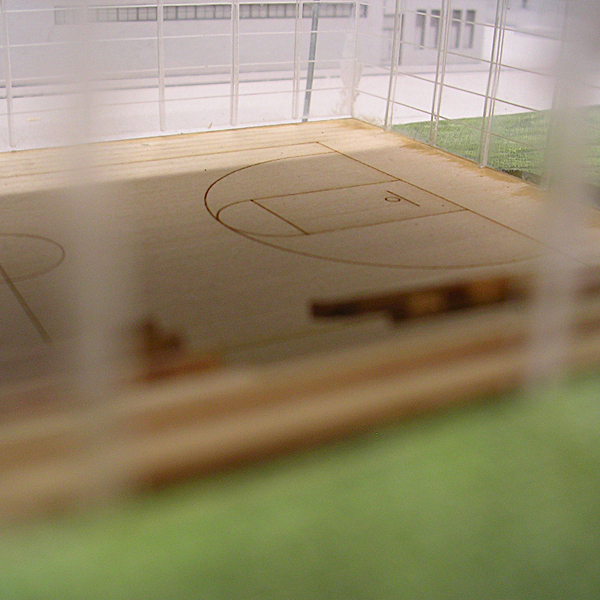

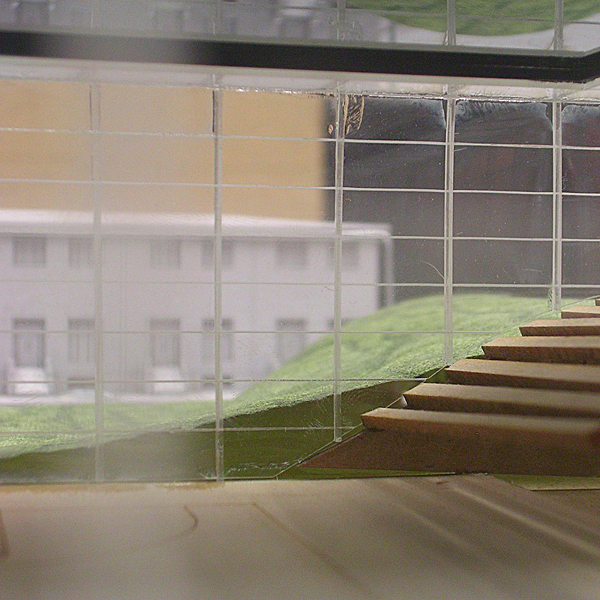

Gymnasium
Gymnasium
Gymnasium
Gymnasium

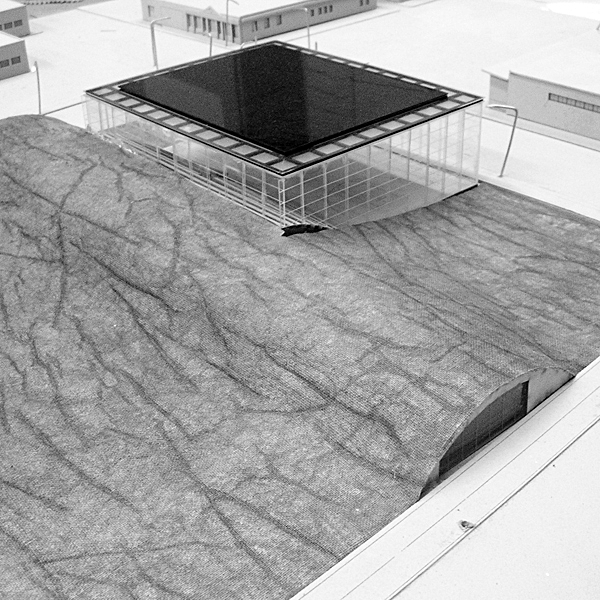

South East View
South East View

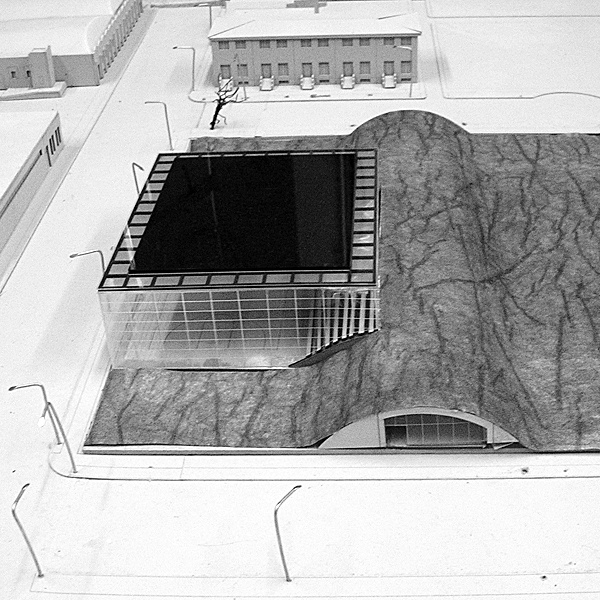

West View
West View

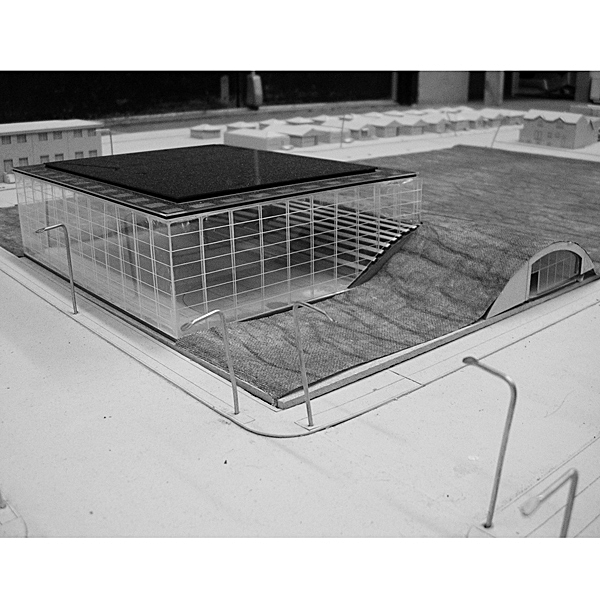

North West Corner
North West Corner

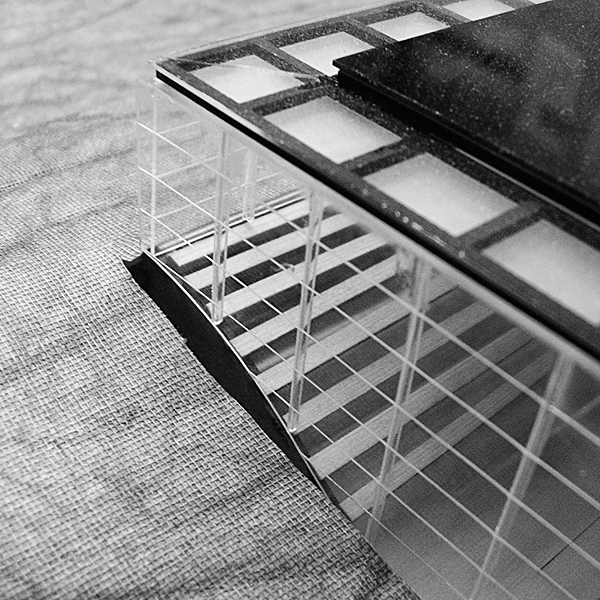

Corner Detail
Corner Detail
