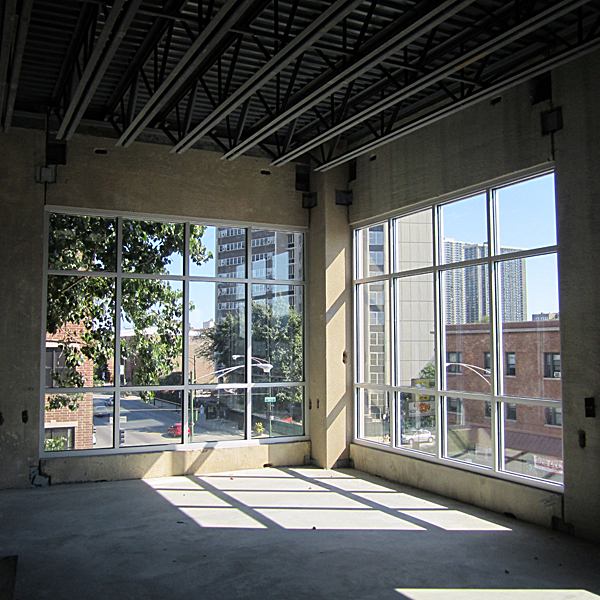

Interior North East Corner with Glazing
Interior North East Corner with Glazing
15 more images  ↓

CHICAGO MEDICAL OFFICE BUILDING

ROLE: DESIGN BUILD PROJECT MANAGER
CLIENT: AH BROADWAY, LLC
PRODUCED AT: DESIGN SYNERGIES LTD
SIZE: 14,450 SQ.FT.
COST: 2 MIL.

DESCRIPTION: This medical office building consists of covered parking and a lobby on the first floor, a gastroenterology clinic on the second floor, and two medical suites on the third floor. Challenges in this project design were to provide enough parking without creating a basement, isolate noisy oxygen equipment from quieter exam rooms, provide suction and oxygen in procedure rooms, poor soil strength conditions, and of course time. The entire process from initial design through construction took place in just over one year. The building is a stained structural precast with interior steel and bar joist floor and roof structure. As a design build we did all design work with the exception of electrical engineering and some structural calculations, and of course were also in charge of budgeting and construction.


 Read more

Status: Under Construction
Location: Chicago, IL, US

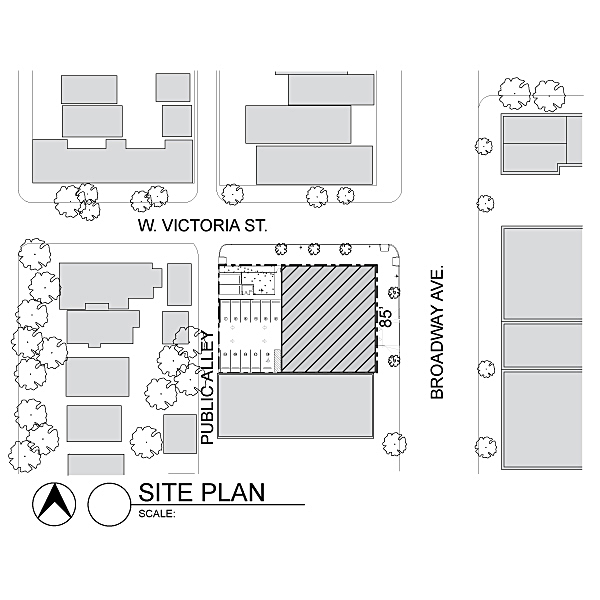

Site Plan
Site Plan

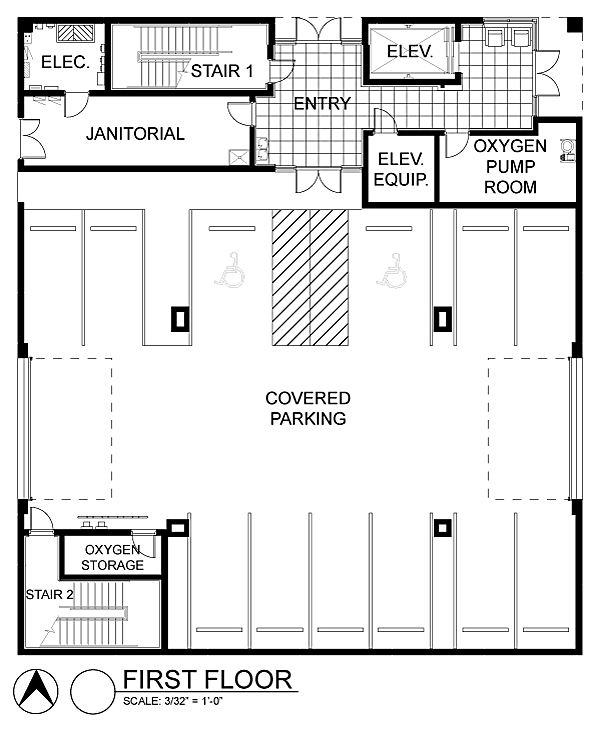

First Floor Plan
First Floor Plan

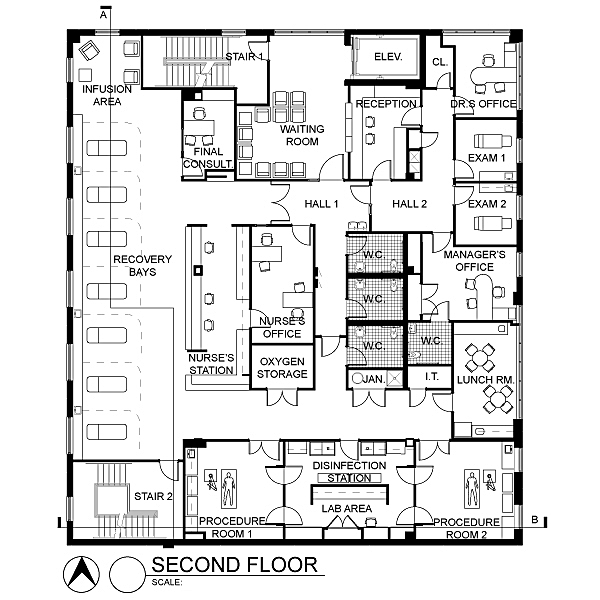

Second Floor Plan
Second Floor Plan

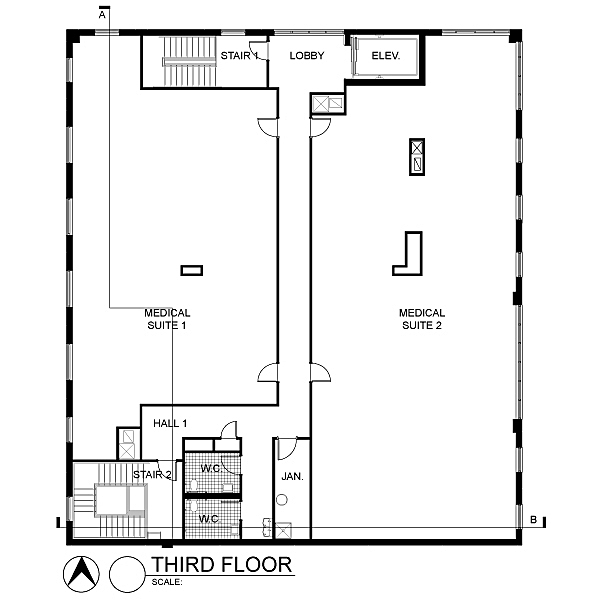

Third Floor Plan
Third Floor Plan

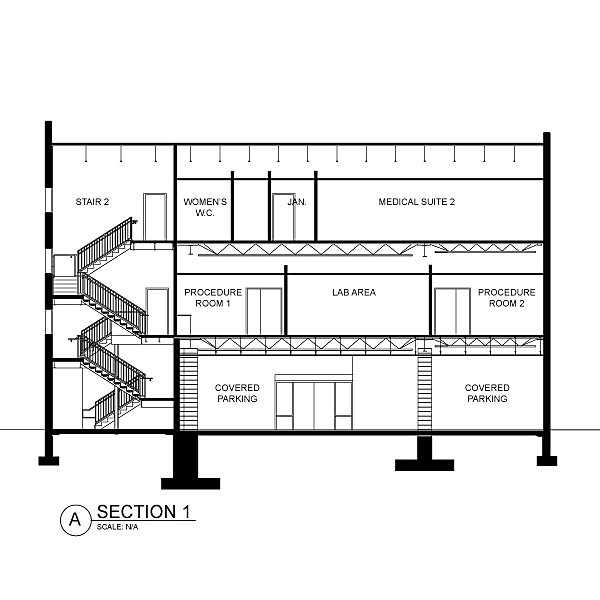

Section 1
Section 1
Section 2
Section 2

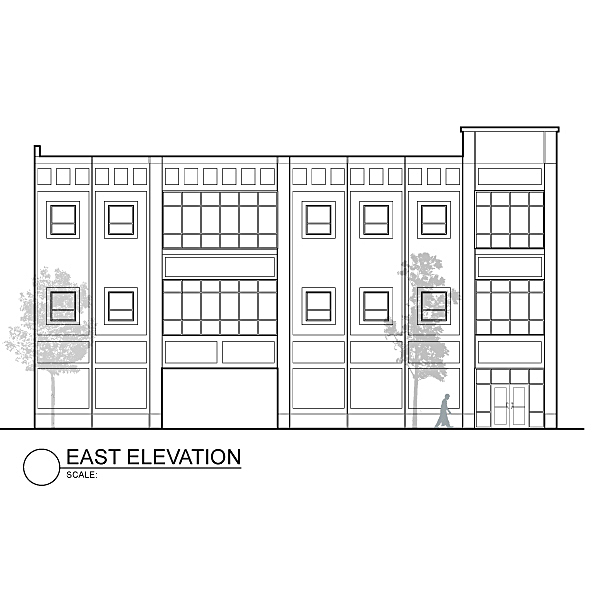

Elevation 1
Elevation 1

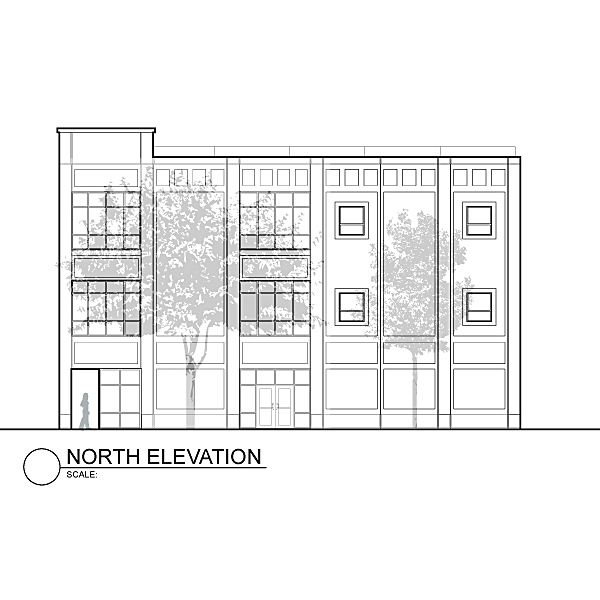

Elevation 2
Elevation 2

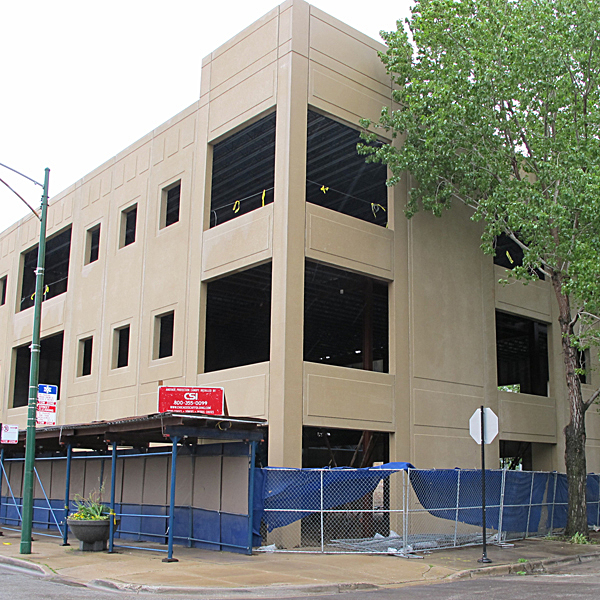

North East Corner Photo
North East Corner Photo

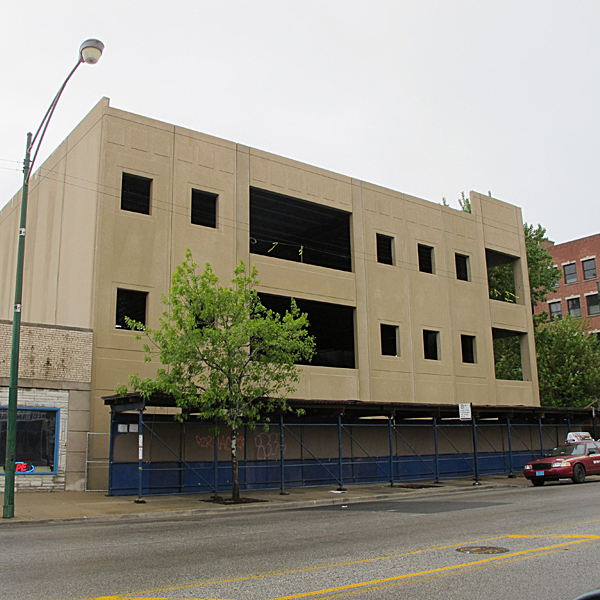

South East Corner Photo
South East Corner Photo

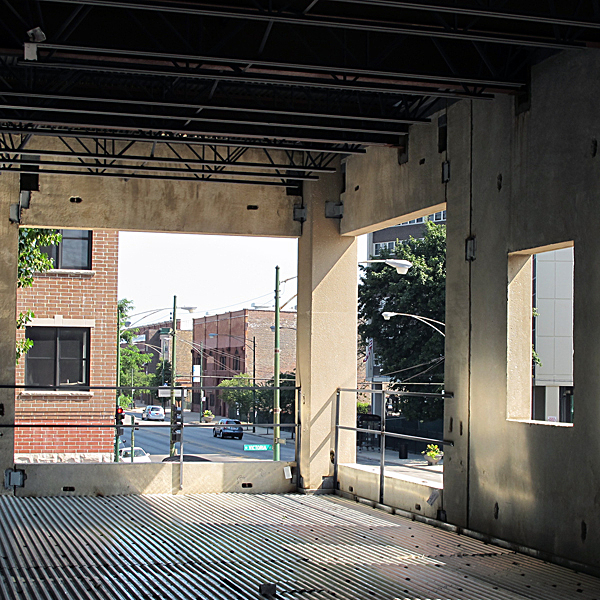

Interior North East Corner
Interior North East Corner

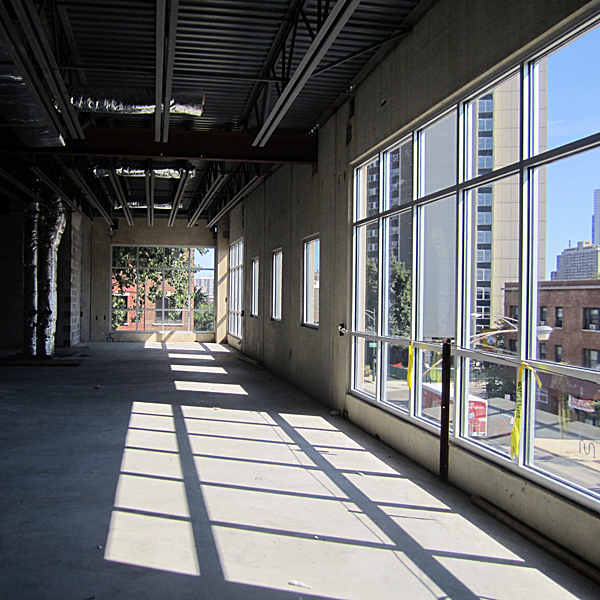

Interior East Side 1
Interior East Side 1

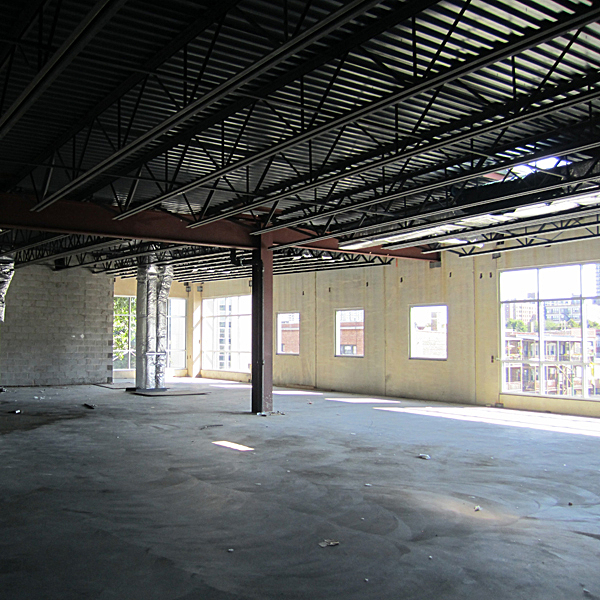

Interior East Side 2
Interior East Side 2
North East Corner Render
North East Corner Render
South East Corner Render
South East Corner Render
