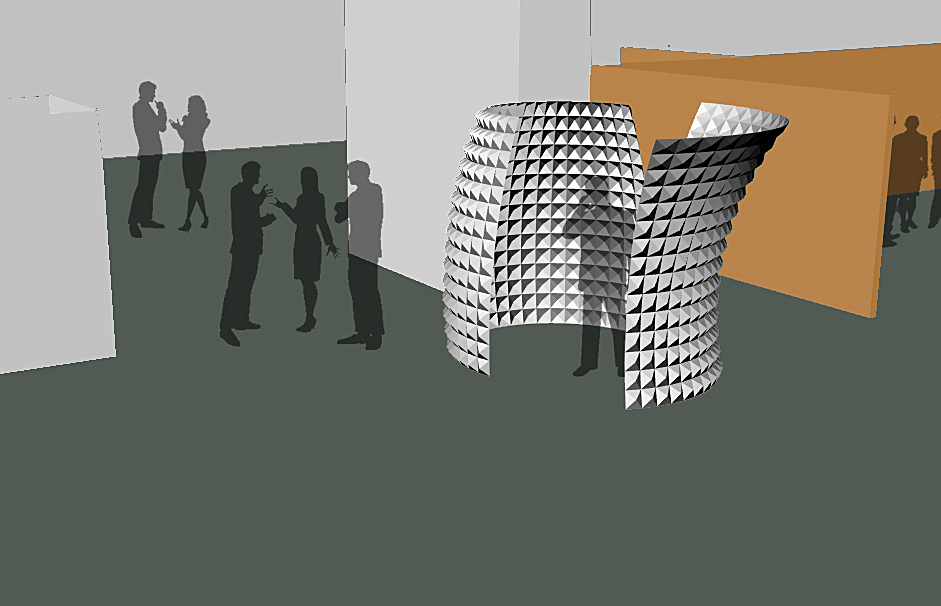

Rendering of one of the final booth designs
Rendering of one of the final booth designs
5 more images  ↓

Sonic Shields

A  study using parametric design for a cell phone booth to be located in Crown Hall on the IIT campus. Instead of making a single design, this semester was focused on parametric design allowing for thousands of possibilities. This design is made to react to the site allowing the booth to move around and automatically change forms to adapt to the each new site. My team designed the booth to protect the user from the most influential sounds in the building. We acknowledged the challenges that would be faced if the model we were generating were built and created sample parts that translated the digital model into reality. This resulted in modification to our computer model to better represent realistic designs.


 Read more

Status: School Project
Location: Crown Hall, Chicago, IL

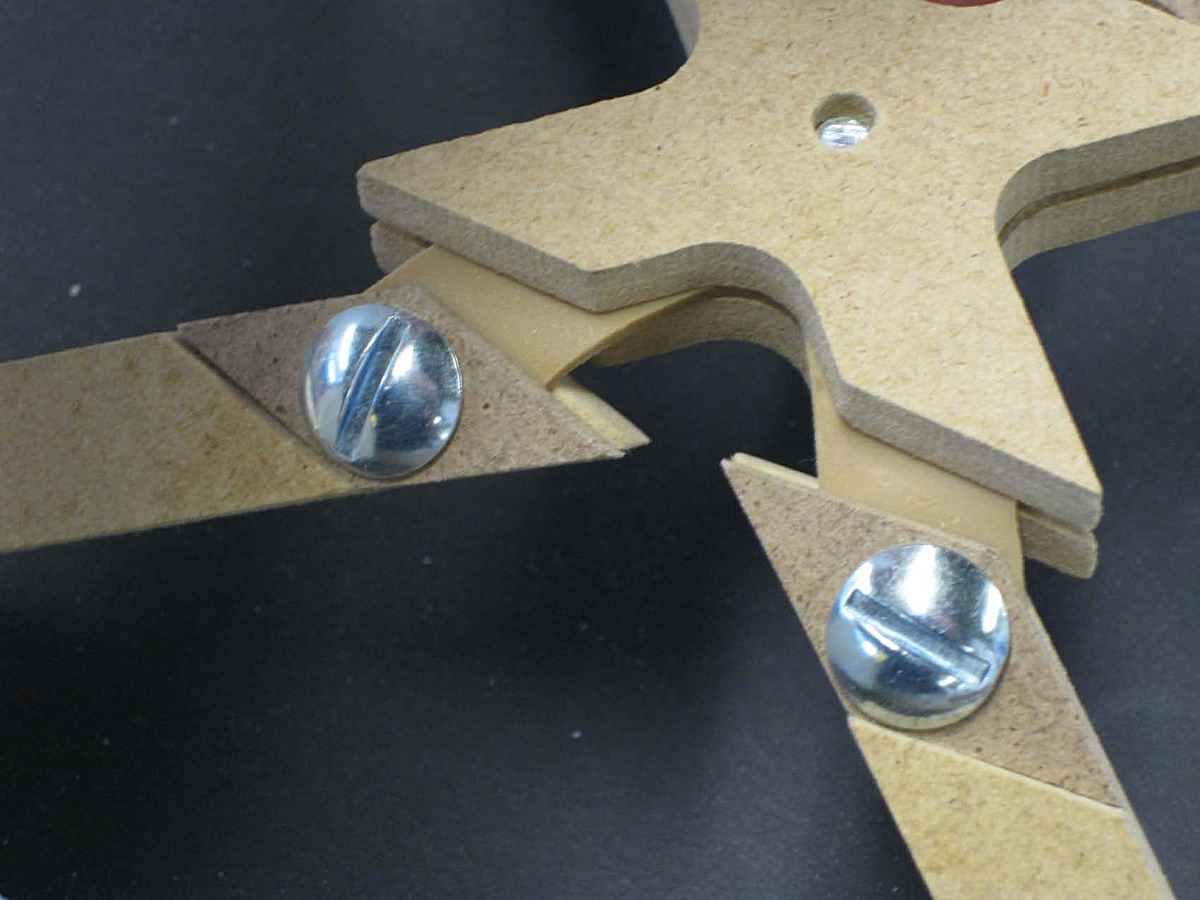

Detail of Physical Joint
Detail of Physical Joint

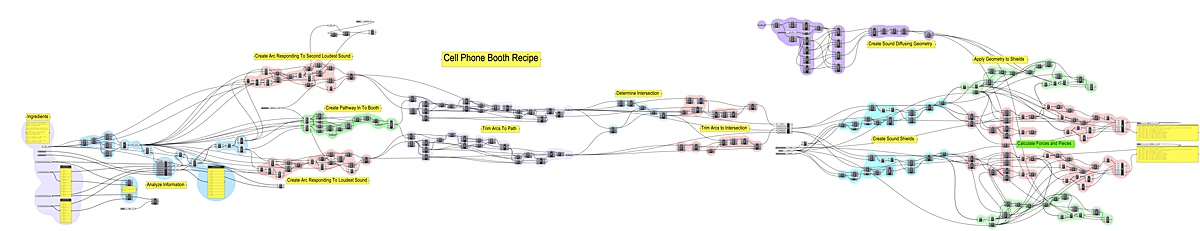

Grasshopper Definition
Grasshopper Definition

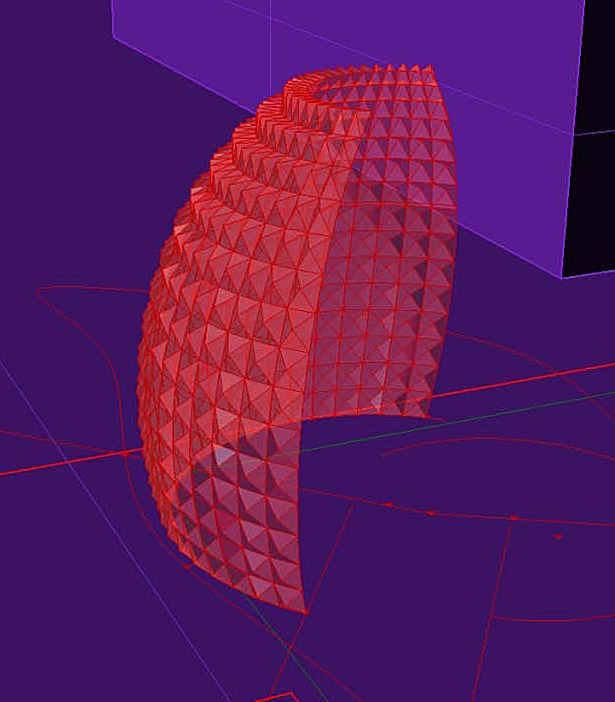

Flare taken in
Flare taken in

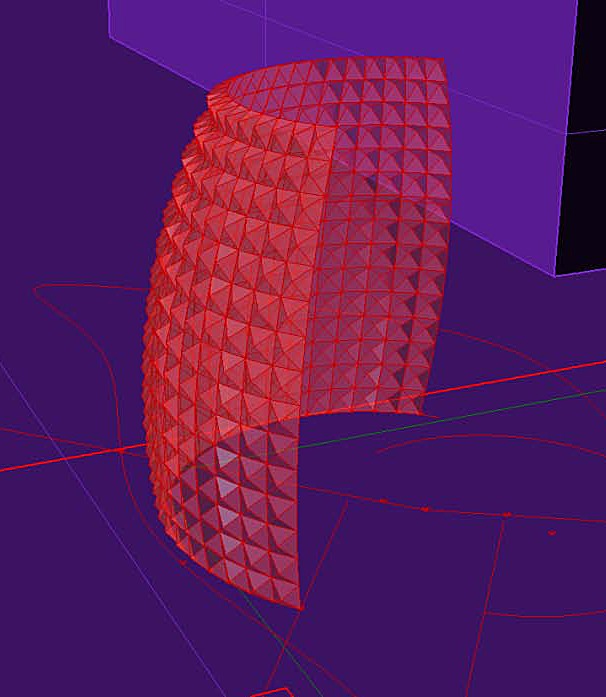

Flare near middel
Flare near middel

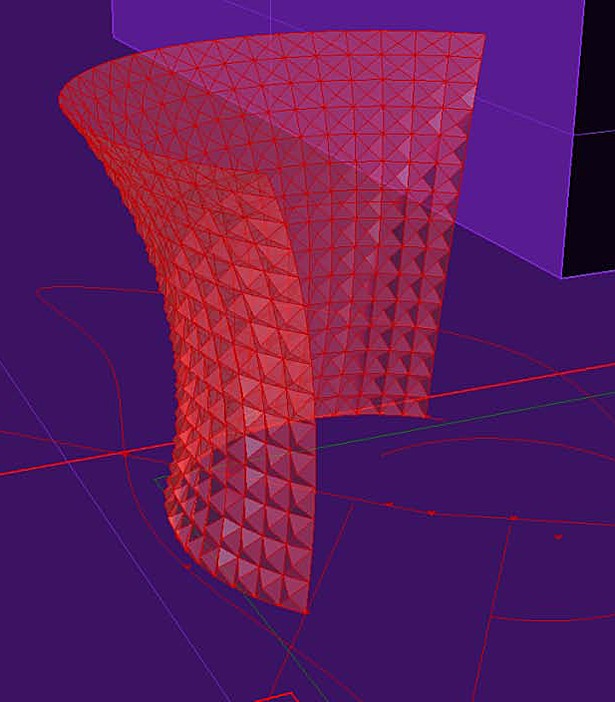

Flare let out
Flare let out
